OpenHarmony的公共事件

公共事件简介

CES（Common Event Service，公共事件服务）为应用程序提供订阅、发布、退订公共事件的能力。

公共事件分类

公共事件从系统角度可分为：系统公共事件和自定义公共事件。

• 系统公共事件：CES内部定义的公共事件，当前仅支持系统应用和系统服务发布，例如HAP安装、更新、卸载等公共事件。目前支持的系统公共事件请参见系统公共事件列表。
• 自定义公共事件：应用定义的公共事件，可用于实现跨进程的事件通信能力。
  公共事件按发送方式可分为：无序公共事件、有序公共事件和粘性公共事件。
• 无序公共事件：CES在转发公共事件时，不考虑订阅者是否接收到该事件，也不保证订阅者接收到该事件的顺序与其订阅顺序一致。
• 有序公共事件：CES在转发公共事件时，根据订阅者设置的优先级等级，优先将公共事件发送给优先级较高的订阅者，等待其成功接收该公共事件之后再将事件发送给优先级较低的订阅者。如果有多个订阅者具有相同的优先级，则他们将随机接收到公共事件。
• 粘性公共事件：能够让订阅者收到在订阅前已经发送的公共事件就是粘性公共事件。普通的公共事件只能在订阅后发送才能收到，而粘性公共事件的特殊性就是可以先发送后订阅，同时也支持先订阅后发送。发送粘性事件必须是系统应用或系统服务，粘性事件发送后会一直存在系统中，且发送者需要申请ohos.permission.COMMONEVENT_STICKY权限，配置方式请参见声明权限。

运作机制

每个应用都可以按需订阅公共事件，订阅成功，当公共事件发布时，系统会将其发送给对应的应用。这些公共事件可能来自系统、其他应用和应用自身。

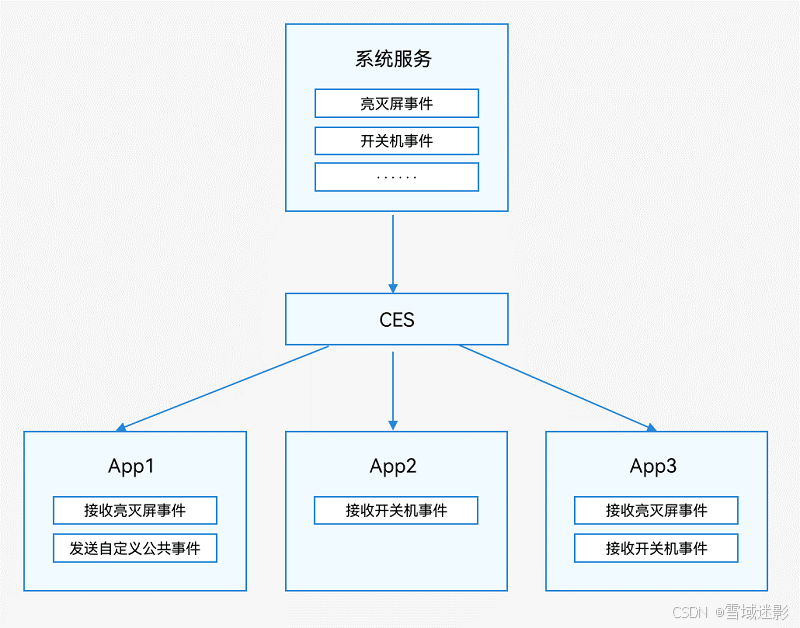

图1 公共事件示意图

安全注意事项

• 公共事件发布方：如果不加限制，任何应用都可以订阅公共事件并读取相关信息，应避免在公共事件中携带敏感信息。采用以下方式，可以限制公共事件接收方的范围。
  • 通过CommonEventPublishData中的subscriberPermissions参数指定订阅者所需权限。
  • 通过CommonEventPublishData中的bundleName参数指定订阅者的包名。
• 公共事件订阅方：订阅自定义公共事件后，任意应用都可以向订阅者发送潜在的恶意公共事件。采用以下方式，可以限制公共事件发布方的范围。
  • 通过CommonEventSubscribeInfo中的publisherPermission参数指定发布者所需权限。
  • 通过CommonEventSubscribeInfo中的publisherBundleName参数参数指定发布者的包名。
• 自定义公共事件名称应确保全局唯一，否则可能与其他公共事件冲突。

常用的公共事件

公共事件类型定义在ohos.commonEventManager模块的Support枚举中。

资源调度服务中的事件转换

resource_schedule_service开源仓地址：https://gitee.com/openharmony/resourceschedule_resource_schedule_service
在资源调度子系统中，提供系统事件的感知以及分发，例如应用启动、退出、亮灭屏等。如果需要获取系统事件，并且进行相关资源调度，那么可以选择以插件形式加入资源调度服务中。

作为资源调度子系统的子模块，智能分组模块通过系统内应用前后台切换、用户焦点输入、后台任务的执行状态，决策进程的分组调度策略，并支持通过配置将调度策略映射到不同的CGROUP分组，为系统的性能、功耗均衡调度提供决策依据。同时该模块向资源调度框架转发应用状态、焦点状态、后台任务状态等系统事件，供插件订阅。

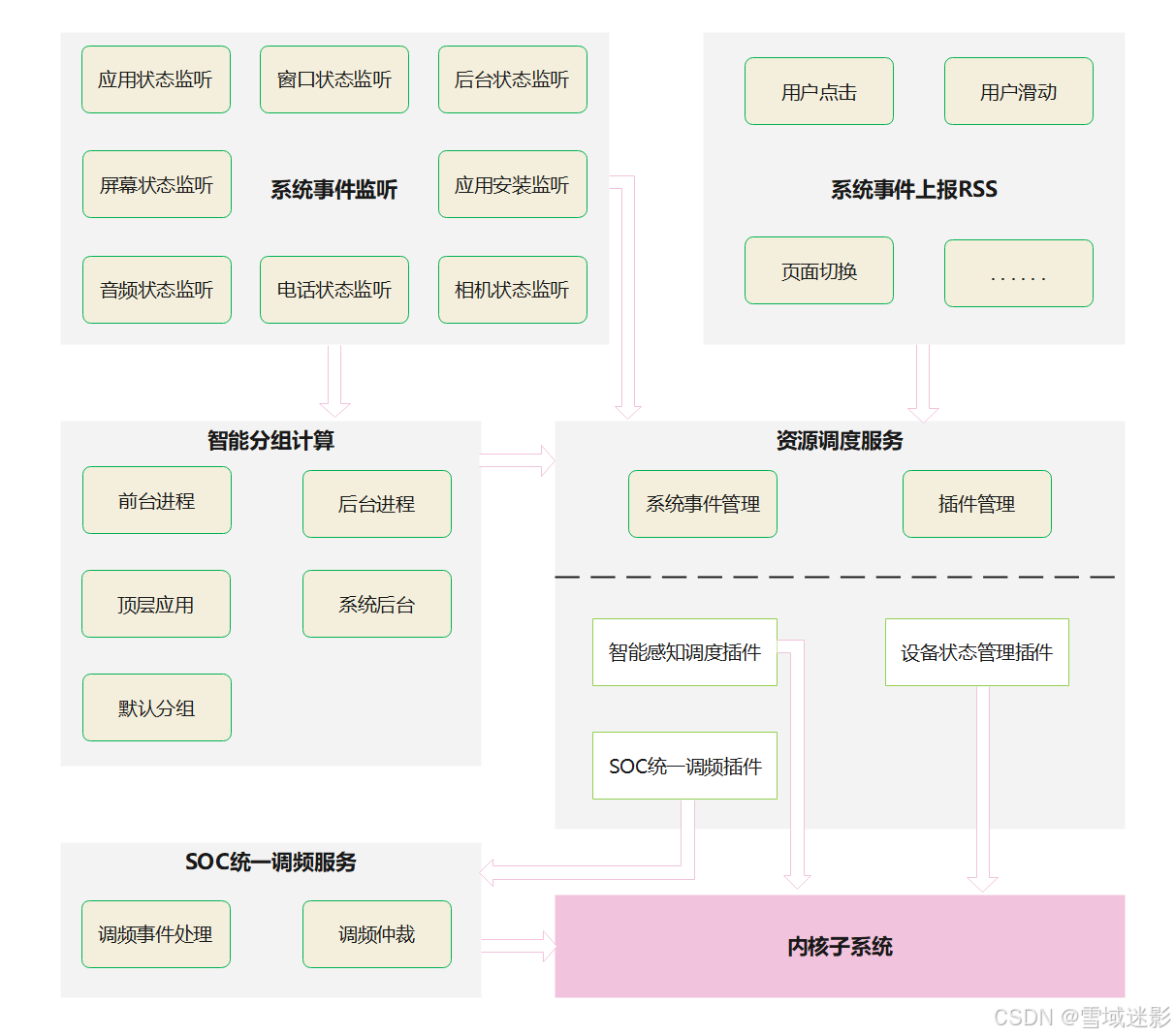

resource_schedule_service是接收事件，决策调度策略和执行调度机制的引擎，其架构图示如下：

其中包括以下几个重要组成部分： 1、事件管理器，包含了使用对外接口直接感知系统事件，以及使用监听形式感知系统事件功能。 2、应用智能分组，该组件接收应用生命周期变更的事件，决策应用的分组优先级，是全局资源调度的根本依据。 3、插件管理器，负责产品对应资源调度插件的加载，接收系统和应用的事件，并根据插件的订阅情况将事件分发给插件。 4、SOC统一调频服务，该服务主要是从SOC统一调频插件中接收调频事件，进行相关的调频仲裁，最终使用内核接口设置CPU频率策略。

resource_schedule_service主要通过插件的形式进行扩展和实现系统全局资源的调度功能，插件以动态链接的形式运行，不同产品可以选择不同的插件进行加载。目前已知的插件有智能感知调度插件、设备状态管理插件、SOC统一调频插件。其中SOC统一调频插件的服务包含在resource_schedule_service中，而另外两个插件的服务包含在其它仓内，最终都是根据系统事件设置调度策略到内核中进行实施。

1：插件Check_List

更新2022年2月18日14:35:24

事件Check_List

更新2022年6月01日14:35:24

通过查看https://gitee.com/openharmony/resourceschedule_resource_schedule_service中的源代码，我们可以看到event_controller.cpp中的void EventController::SystemAbilityStatusChangeListener::OnAddSystemAbility( int32_t systemAbilityId, const std::string& deviceId)接口中，添加了需要监听的公共事件，代码如下：

void EventController::SystemAbilityStatusChangeListener::OnAddSystemAbility(
    int32_t systemAbilityId, const std::string& deviceId)
{
    RESSCHED_LOGI("common event service is added");
    MatchingSkills matchingSkills;
    matchingSkills.AddEvent(CommonEventSupport::COMMON_EVENT_CONNECTIVITY_CHANGE);
    matchingSkills.AddEvent(CommonEventSupport::COMMON_EVENT_PACKAGE_INSTALLATION_STARTED);
    matchingSkills.AddEvent(CommonEventSupport::COMMON_EVENT_PACKAGE_ADDED);
    matchingSkills.AddEvent(CommonEventSupport::COMMON_EVENT_PACKAGE_REMOVED);
    matchingSkills.AddEvent(CommonEventSupport::COMMON_EVENT_PACKAGE_CHANGED);
    matchingSkills.AddEvent(CommonEventSupport::COMMON_EVENT_PACKAGE_REPLACED);
    matchingSkills.AddEvent(CommonEventSupport::COMMON_EVENT_SCREEN_ON);
    matchingSkills.AddEvent(CommonEventSupport::COMMON_EVENT_SCREEN_OFF);
    matchingSkills.AddEvent(CommonEventSupport::COMMON_EVENT_USER_SWITCHED);
    matchingSkills.AddEvent(CommonEventSupport::COMMON_EVENT_USER_REMOVED);
    matchingSkills.AddEvent(CommonEventSupport::COMMON_EVENT_TIMEZONE_CHANGED);
    matchingSkills.AddEvent(CommonEventSupport::COMMON_EVENT_BUNDLE_REMOVED);
    matchingSkills.AddEvent(CommonEventSupport::COMMON_EVENT_PACKAGE_FULLY_REMOVED);
    matchingSkills.AddEvent(CommonEventSupport::COMMON_EVENT_TIME_CHANGED);
    matchingSkills.AddEvent(CommonEventSupport::COMMON_EVENT_NITZ_TIME_CHANGED);
    matchingSkills.AddEvent(CommonEventSupport::COMMON_EVENT_NITZ_TIMEZONE_CHANGED);
    matchingSkills.AddEvent(CommonEventSupport::COMMON_EVENT_CHARGING);
    matchingSkills.AddEvent(CommonEventSupport::COMMON_EVENT_USB_DEVICE_ATTACHED);
    matchingSkills.AddEvent(CommonEventSupport::COMMON_EVENT_DISCHARGING);
    matchingSkills.AddEvent(CommonEventSupport::COMMON_EVENT_USB_DEVICE_DETACHED);
    matchingSkills.AddEvent(CommonEventSupport::COMMON_EVENT_CALL_STATE_CHANGED);
    matchingSkills.AddEvent(CommonEventSupport::COMMON_EVENT_WIFI_P2P_STATE_CHANGED);
    matchingSkills.AddEvent(CommonEventSupport::COMMON_EVENT_POWER_SAVE_MODE_CHANGED);
    matchingSkills.AddEvent(CommonEventSupport::COMMON_EVENT_BOOT_COMPLETED);
    matchingSkills.AddEvent(DATA_SHARE_READY);
    CommonEventSubscribeInfo subscriberInfo(matchingSkills);
    subscriber_ = std::make_shared<EventController>(subscriberInfo);
    SubscribeCommonEvent(subscriber_);
    SubscribeLockScreenCommonEvent();
}

void EventController::SystemAbilityStatusChangeListener::SubscribeLockScreenCommonEvent()
{
    MatchingSkills lockScreenSkills;
    lockScreenSkills.AddEvent("common.event.UNLOCK_SCREEN");
    lockScreenSkills.AddEvent("common.event.LOCK_SCREEN");
    CommonEventSubscribeInfo subscriberInfo(lockScreenSkills);
    subscriberInfo.SetPublisherBundleName(SCENE_BOARD_NAME);
    lockScreenSubscriber_ = std::make_shared<EventController>(subscriberInfo);
    SubscribeCommonEvent(lockScreenSubscriber_);
}

inline void SubscribeCommonEvent(std::shared_ptr<EventController> subscriber)
{
    if (CommonEventManager::SubscribeCommonEvent(subscriber)) {
        RESSCHED_LOGI("SubscribeCommonEvent ok");
    } else {
        RESSCHED_LOGW("SubscribeCommonEvent fail");
        HiSysEventWrite(HiviewDFX::HiSysEvent::Domain::RSS, "INIT_FAULT", HiviewDFX::HiSysEvent::EventType::FAULT,
                        "COMPONENT_NAME", "MAIN",
                        "ERR_TYPE", "register failure",
                        "ERR_MSG", "EventController subscribe common events failed!");
    }
}

• 1
• 2
• 3
• 4
• 5
• 6
• 7
• 8
• 9
• 10
• 11
• 12
• 13
• 14
• 15
• 16
• 17
• 18
• 19
• 20
• 21
• 22
• 23
• 24
• 25
• 26
• 27
• 28
• 29
• 30
• 31
• 32
• 33
• 34
• 35
• 36
• 37
• 38
• 39
• 40
• 41
• 42
• 43
• 44
• 45
• 46
• 47
• 48
• 49
• 50
• 51
• 52
• 53
• 54
• 55
• 56
• 57
• 58
• 59

另外，资源调度服务部件是通过`void EventController::OnReceiveEvent(const EventFwk::CommonEventData &data)'这个函数接口中转换公共事件到自定义枚举事件的，代码如下：

void EventController::OnReceiveEvent(const EventFwk::CommonEventData &data)
{
    Want want = data.GetWant();
    std::string action = want.GetAction();
    RESSCHED_LOGI("Recieved common event:%{public}s", action.c_str());

    nlohmann::json payload = nlohmann::json::object();
    if (HandlePkgCommonEvent(action, want, payload)) {
        return;
    }
    if (action == CommonEventSupport::COMMON_EVENT_SCREEN_ON) {
        ReportDataInProcess(ResType::RES_TYPE_SCREEN_STATUS, ResType::ScreenStatus::SCREEN_ON, payload);
        return;
    }
    if (action == CommonEventSupport::COMMON_EVENT_SCREEN_OFF) {
        ReportDataInProcess(ResType::RES_TYPE_SCREEN_STATUS, ResType::ScreenStatus::SCREEN_OFF, payload);
        return;
    }
    if (action == CommonEventSupport::COMMON_EVENT_CONNECTIVITY_CHANGE) {
        int32_t code = data.GetCode();
        HandleConnectivityChange(want, code, payload);
        return;
    }
    if (action == CommonEventSupport::COMMON_EVENT_USER_SWITCHED) {
        int32_t userId = data.GetCode();
        ReportDataInProcess(ResType::RES_TYPE_USER_SWITCH, static_cast<int64_t>(userId), payload);
        return;
    }
    if (action == CommonEventSupport::COMMON_EVENT_USER_REMOVED) {
        int32_t userId = data.GetCode();
        ReportDataInProcess(ResType::RES_TYPE_USER_REMOVE, static_cast<int64_t>(userId), payload);
        return;
    }
    if (action == "common.event.UNLOCK_SCREEN") {
        ReportDataInProcess(ResType::RES_TYPE_SCREEN_LOCK, ResType::ScreenLockStatus::SCREEN_UNLOCK, payload);
        return;
    }
    if (action == "common.event.LOCK_SCREEN") {
        ReportDataInProcess(ResType::RES_TYPE_SCREEN_LOCK, ResType::ScreenLockStatus::SCREEN_LOCK, payload);
        return;
    }
    if (action == EventFwk::CommonEventSupport::COMMON_EVENT_CALL_STATE_CHANGED) {
        payload["state"] = want.GetIntParam("state", -1);
        ReportDataInProcess(ResType::RES_TYPE_CALL_STATE_CHANGED, static_cast<int64_t>(data.GetCode()), payload);
        return;
    }
    if (action == DATA_SHARE_READY) {
        DataShareIsReady();
        return;
    }

    handleEvent(data.GetCode(), action, payload);
}

void EventController::handleEvent(int32_t userId, const std::string &action, nlohmann::json &payload)
{
    if (action == CommonEventSupport::COMMON_EVENT_TIMEZONE_CHANGED) {
        ReportDataInProcess(ResType::RES_TYPE_TIMEZONE_CHANGED, ResType::RES_TYPE_TIMEZONE_CHANGED, payload);
        return;
    }
    if (action == EventFwk::CommonEventSupport::COMMON_EVENT_TIME_CHANGED) {
        ReportDataInProcess(ResType::RES_TYPE_TIME_CHANGED, static_cast<int64_t>(userId), payload);
        return;
    }
    if (action == EventFwk::CommonEventSupport::COMMON_EVENT_NITZ_TIME_CHANGED) {
        ReportDataInProcess(ResType::RES_TYPE_NITZ_TIME_CHANGED, static_cast<int64_t>(userId), payload);
        return;
    }
    if (action == EventFwk::CommonEventSupport::COMMON_EVENT_NITZ_TIMEZONE_CHANGED) {
        ReportDataInProcess(ResType::RES_TYPE_NITZ_TIMEZONE_CHANGED, static_cast<int64_t>(userId), payload);
        return;
    }
    if (action == EventFwk::CommonEventSupport::COMMON_EVENT_CHARGING) {
        ReportDataInProcess(ResType::RES_TYPE_CHARGING_DISCHARGING, ResType::ChargeStatus::EVENT_CHARGING, payload);
        return;
    }
    if (action == EventFwk::CommonEventSupport::COMMON_EVENT_DISCHARGING) {
        ReportDataInProcess(ResType::RES_TYPE_CHARGING_DISCHARGING, ResType::ChargeStatus::EVENT_DISCHARGING, payload);
        return;
    }
    if (action == EventFwk::CommonEventSupport::COMMON_EVENT_USB_DEVICE_ATTACHED) {
        ReportDataInProcess(ResType::RES_TYPE_USB_DEVICE, ResType::UsbDeviceStatus::USB_DEVICE_ATTACHED, payload);
        return;
    }
    if (action == EventFwk::CommonEventSupport::COMMON_EVENT_USB_DEVICE_DETACHED) {
        ReportDataInProcess(ResType::RES_TYPE_USB_DEVICE, ResType::UsbDeviceStatus::USB_DEVICE_DETACHED, payload);
        return;
    }
    if (action == EventFwk::CommonEventSupport::COMMON_EVENT_WIFI_P2P_STATE_CHANGED) {
        ReportDataInProcess(ResType::RES_TYPE_WIFI_P2P_STATE_CHANGED, static_cast<int64_t>(userId), payload);
        return;
    }
    if (action == EventFwk::CommonEventSupport::COMMON_EVENT_POWER_SAVE_MODE_CHANGED) {
        ReportDataInProcess(ResType::RES_TYPE_POWER_MODE_CHANGED, static_cast<int64_t>(userId), payload);
        return;
    }
    handleOtherEvent(userId, action, payload);
}

void EventController::handleOtherEvent(int32_t userId, const std::string &action, nlohmann::json &payload)
{
    if (action == EventFwk::CommonEventSupport::COMMON_EVENT_BOOT_COMPLETED) {
        RESSCHED_LOGI("report boot completed");
        ReportDataInProcess(ResType::RES_TYPE_BOOT_COMPLETED,
            ResType::BootCompletedStatus::START_BOOT_COMPLETED, payload);
        return;
    }
}

• 1
• 2
• 3
• 4
• 5
• 6
• 7
• 8
• 9
• 10
• 11
• 12
• 13
• 14
• 15
• 16
• 17
• 18
• 19
• 20
• 21
• 22
• 23
• 24
• 25
• 26
• 27
• 28
• 29
• 30
• 31
• 32
• 33
• 34
• 35
• 36
• 37
• 38
• 39
• 40
• 41
• 42
• 43
• 44
• 45
• 46
• 47
• 48
• 49
• 50
• 51
• 52
• 53
• 54
• 55
• 56
• 57
• 58
• 59
• 60
• 61
• 62
• 63
• 64
• 65
• 66
• 67
• 68
• 69
• 70
• 71
• 72
• 73
• 74
• 75
• 76
• 77
• 78
• 79
• 80
• 81
• 82
• 83
• 84
• 85
• 86
• 87
• 88
• 89
• 90
• 91
• 92
• 93
• 94
• 95
• 96
• 97
• 98
• 99
• 100
• 101
• 102
• 103
• 104
• 105
• 106
• 107
• 108

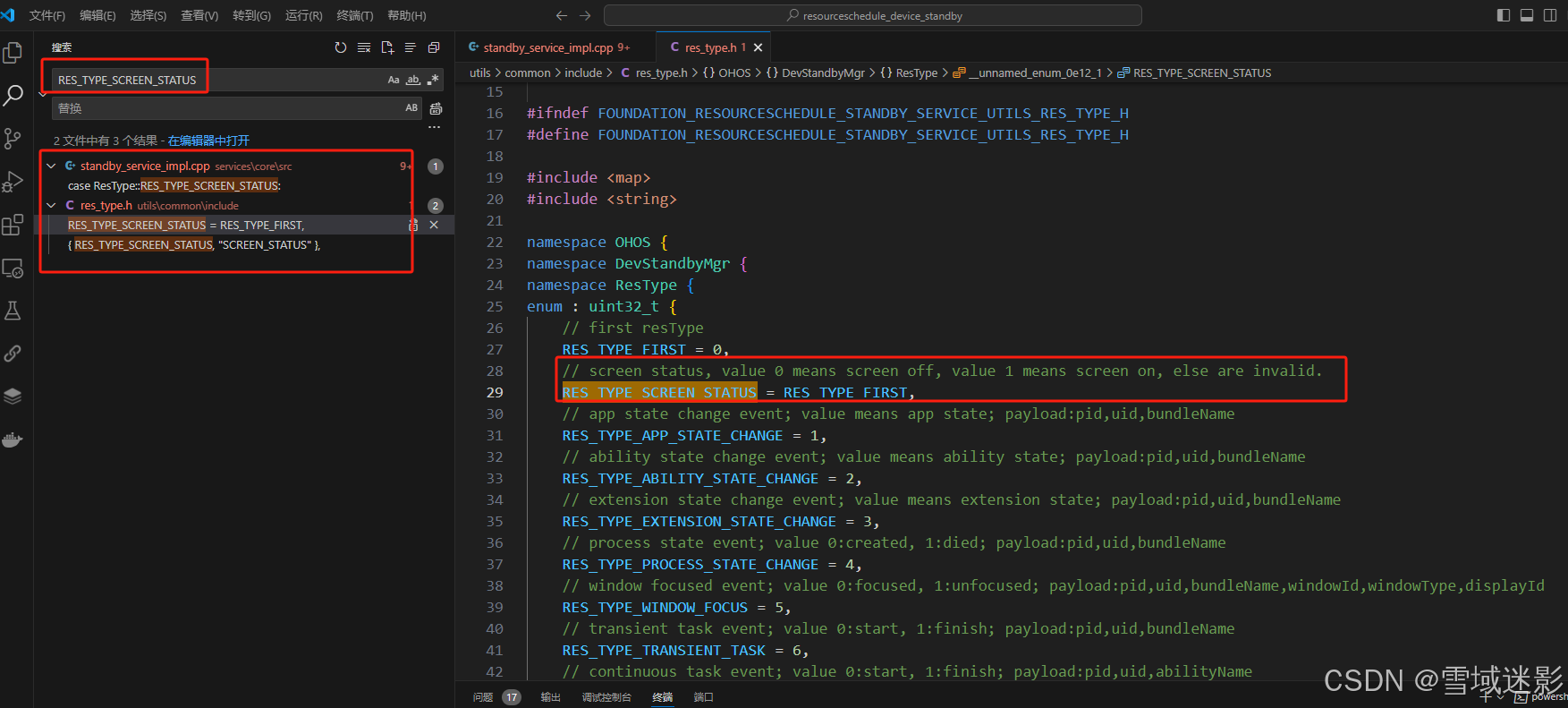

其中资源调度服务内部事件枚举定义如下：

namespace OHOS {
namespace ResourceSchedule {
namespace ResType {
enum : uint32_t {
    // first resType
    RES_TYPE_FIRST = 0,
    // screen status, value 0 means screen off, value 1 means screen on, else are invalid.
    RES_TYPE_SCREEN_STATUS = RES_TYPE_FIRST,
    // app state change event; value means app state; payload:pid,uid,bundleName
    RES_TYPE_APP_STATE_CHANGE = 1,
    // ability state change event; value means ability state; payload:pid,uid,bundleName
    RES_TYPE_ABILITY_STATE_CHANGE = 2,
    // extension state change event; value means extension state; payload:pid,uid,bundleName
    RES_TYPE_EXTENSION_STATE_CHANGE = 3,
    // process state event; value 0:created, 1:died; payload:pid,uid,bundleName
    RES_TYPE_PROCESS_STATE_CHANGE = 4,
    // window focused event; value 0:focused, 1:unfocused; payload:pid,uid,bundleName,windowId,windowType,displayId
    RES_TYPE_WINDOW_FOCUS = 5,
    // transient task event; value 0:start, 1:finish; payload:pid,uid,bundleName
    RES_TYPE_TRANSIENT_TASK = 6,
    // continuous task event; value 0:start, 1:finish; payload:pid,uid,abilityName
    RES_TYPE_CONTINUOUS_TASK = 7,
    /* cgroup change event;
     * value 0:set thread group sched; 1:set thread sched
     * payload: pid,uid,name,oldGroup,newGroup
     */
    RES_TYPE_CGROUP_ADJUSTER = 8,
    // ace gestures click_recognizer; value 1 touch event, value 2 click event
    RES_TYPE_CLICK_RECOGNIZE = 9,
    // ace pipeline_context.cpp::PushPage(); value 0: push_page_start, 1: push_page_complete
    RES_TYPE_PUSH_PAGE = 10,
    // ace slide event recognize; value 1: list fling on; 0: list fling off; 3: slide normal begin, 4: slide normal end.
    RES_TYPE_SLIDE_RECOGNIZE = 11,
    // window visibility change, value 1: isVisible, 0: not isVisible, payload:pid,uid,windowId,windowType
    RES_TYPE_WINDOW_VISIBILITY_CHANGE = 12,
    // report mmi_service service; value mmi_service tid; payload:uid,pid
    RES_TYPE_REPORT_MMI_PROCESS = 13,
    // report render thread; value render tid; payload:uid,pid
    RES_TYPE_REPORT_RENDER_THREAD = 14,
    // app install and uninstall event; value 0: uninstall, 1: install; payload:uid,bundleName
    RES_TYPE_APP_INSTALL_UNINSTALL = 15,
    // net connect state; value 0:unknow, 1:idle, 2:connecting, 3:connected, 4:disconnecting, 5:disconnected
    RES_TYPE_WIFI_CONNECT_STATE_CHANGE = 16,
    // user switch, value means the userId which switch to.
    RES_TYPE_USER_SWITCH = 17,
    // user remove, value means the userId which is removed.
    RES_TYPE_USER_REMOVE = 18,
    // screen unlock, value 0 means unlock, value 1 means locked.
    RES_TYPE_SCREEN_LOCK = 19,
    // bluetooth a2dp connect state, value 1: connected, 3: disconnected.
    RES_TYPE_BLUETOOTH_A2DP_CONNECT_STATE_CHANGE = 20,
    // network latency request, value 0: low latency, 1: normal latency, payload: identity
    RES_TYPE_NETWORK_LATENCY_REQUEST = 21,
    // call state update; value 0 : active, value 1 : holding, value 2 : dialing, value 3 : alerting,
    // value 4 : incoming, value 5 : waiting, value 6 : disconnected, value 7 : disconnecting, value 8 : idle
    RES_TYPE_CALL_STATE_UPDATE = 22,
    // Other process modify the thread Qos, value for client name id, payload: tid : qos , clientpid, pid
    RES_TYPE_THREAD_QOS_CHANGE = 23,
    // audio render state change; value -1 : RENDERER_INVALID, value 0 : RENDERER_NEW, value 1 : RENDERER_PREPARED,
    // value 2 : RENDERER_RUNNING, value 3 : RENDERER_STOPPED, value 4 : RENDERER_RELEASED, value 5 : RENDERER_PAUSED
    // payload:uid,sessionId
    RES_TYPE_AUDIO_RENDER_STATE_CHANGE = 24,
    // audio ring mode change; value 0 : RINGER_MODE_NORMAL, value 1 : RINGER_MODE_SILENT
    // value 2 : RINGER_MODE_VIBRATE
    RES_TYPE_AUDIO_RING_MODE_CHANGE = 25,
    RES_TYPE_AUDIO_VOLUME_KEY_CHANGE = 26,
    // app_ability_start_event : a very early app startup stub, when the app process has not been pulled up.
    // stub position : ability_runtime ability_manager_service.cpp::StartAbilityInner().
    // specifically : ability type is PAGE and ability launchMode is not SPECIFIED.
    RES_TYPE_APP_ABILITY_START = 27,
    // ace pipeline_context.cpp::PopPage(); value means nothing
    RES_TYPE_POP_PAGE = 28,
    // ace web gesture event recognize; value means nothing
    RES_TYPE_WEB_GESTURE = 29,
    // info from msdp, means device still state change(enter or exit)
    RES_TYPE_DEVICE_STILL_STATE_CHANGE = 30,
    // window resize event; value 0: resize window , value 1: stop resizing window.
    RES_TYPE_RESIZE_WINDOW = 31,
    // window move event; value 0: move window, value 1: stop moving window.
    RES_TYPE_MOVE_WINDOW = 32,
    // animation transition event; value 0: animation begin, value 1: animation end.
    RES_TYPE_SHOW_REMOTE_ANIMATION = 33,
    // load page; value 0: load page begin, value 1: load page end.
    RES_TYPE_LOAD_PAGE = 34,
    // report camera state, value 0: camera connect; value 1: camera disconnect
    RES_TYPE_REPORT_CAMERA_STATE = 35,
    // report runningLock state, value 0: runningLock disable; value 1: runningLock enable;
    // value 2: runningLock is proxied; value 3: runningLock is not proxied
    RES_TYPE_RUNNINGLOCK_STATE = 36,
    // drag status bar event; value 0: start drag, value 1: stop drag.
    RES_TYPE_DRAG_STATUS_BAR = 37,
    // report SceneBoard service, value pid; payload:uid, main_tid, bundleName
    RES_TYPE_REPORT_SCENE_BOARD = 38,
    // report key thread for render, value 0 add key Thread, 1 remove key thread, payload: uid, pid, tid, role
    RES_TYPE_REPORT_KEY_THREAD = 39,
    // report window state, value 0 add 1 remove, payload: uid, pid, windowId, serialNum state: 0 active 1 inactive
    RES_TYPE_REPORT_WINDOW_STATE = 40,
    // report scene sched, value 0 scene on 1 scene off, payload: uid, sceneId
    RES_TYPE_REPORT_SCENE_SCHED = 41,
    // web gesture move event; value 0: web gesture move start, value 1: web gesture move end.
    RES_TYPE_WEB_GESTURE_MOVE = 42,
    // web slide normal event; value 0: web slide normal start, value 1: web slide normal end.
    RES_TYPE_WEB_SLIDE_NORMAL = 43,
    // load url event; value means nothing.
    RES_TYPE_LOAD_URL = 44,
    // mousewheel event; value means nothing.
    RES_TYPE_MOUSEWHEEL = 45,
    // report webview audio status, value 0 start 1 stop, payload: uid, pid, tid
    RES_TYPE_WEBVIEW_AUDIO_STATUS_CHANGE = 46,
    // report entering the multimodalinput state, value means subscribed multimodalinput state.
    RES_TYPE_MMI_INPUT_STATE = 47,
    // report anco load protect file config
    RES_TYPE_ANCO_CUST = 48,
    // report time zone changed
    RES_TYPE_TIMEZONE_CHANGED = 50,
    // report connection status
    RES_TYPE_CONNECTION_OBSERVER = 51,
    // report av session create event
    RES_TYPE_AV_SESSION_ON_SESSION_CREATE = 52,
    // report av session release event
    RES_TYPE_AV_SESSION_ON_SESSION_RELEASE = 53,
    // report av session change event
    RES_TYPE_AV_SESSION_ON_TOP_SESSION_CHANGE = 54,
    // report OnAppStateChanged event
    RES_TYPE_ON_APP_STATE_CHANGED = 55,
    // report efficiency resources event
    RES_TYPE_EFFICIENCY_RESOURCES_STATE_CHANGED = 56,
    // report av_codec state, value 0:codec start info, value 1:codec stop info.
    RES_TYPE_AV_CODEC_STATE = 57,
    // 58-64 value do not change
    RES_TYPE_NITZ_TIME_CHANGED = 58,
    RES_TYPE_TIME_CHANGED = 59,
    RES_TYPE_NITZ_TIMEZONE_CHANGED = 60,
    RES_TYPE_CHARGING_DISCHARGING = 61,
    RES_TYPE_USB_DEVICE = 62,
    RES_TYPE_CALL_STATE_CHANGED = 63,
    RES_TYPE_WIFI_P2P_STATE_CHANGED = 64,

    // last resType
    //report app associated start to performance radar
    RES_TYPE_APP_ASSOCIATED_START = 65,
    //report thermal state event
    RES_TYPE_THERMAL_STATE = 66,
    // socperf event begin
    RES_TYPE_SOCPERF_CUST_EVENT_BEGIN = 67,
    // socperf event end
    RES_TYPE_SOCPERF_CUST_EVENT_END = 68,
    // window drawing content change event
    RES_TYPE_WINDOW_DRAWING_CONTENT_CHANGE = 69,

    // report vediuo capture start or stop
    RES_TYPE_REPORT_SCREEN_CAPTURE = 70,
    // report long frame, value 0 scene on 1 scene off.
    RES_TYPE_LONG_FRAME = 71,
    // report key perf scene, value 0 enter scene 1 exit scene.
    RES_TYPE_KEY_PERF_SCENE = 72,
    // report super launcher state
    RES_TYPE_SUPER_LAUNCHER = 73,
    // report cast screen state
    RES_TYPE_CAST_SCREEN = 74,
    // report screen collabroation state
    RES_TYPR_SCREEN_COLLABROATION = 75,
    // report sa control app event, eg: start app or stop app
    RES_TYPE_SA_CONTROL_APP_EVENT = 76,
    // report CPU load of the entire machine，payload:cpuPercent
    RES_TYPE_SYSTEM_CPU_LOAD = 77,
    // report download or upload scene,value 0 enter scene 1 exit scene.
    RES_TYPE_UPLOAD_DOWNLOAD = 78,
    // report main screen split，value 0 enter scene 1 exit scene.
    RES_TYPE_SPLIT_SCREEN = 79,
    // report main screen floating window，value 0 enter scene 1 exit scene.
    RES_TYPE_FLOATING_WINDOW = 80,
    // report event distribute tid, value tid, payload uid, pid.
    RES_TYPE_REPORT_DISTRIBUTE_TID = 81,
    // report frame rate
    RES_TYPE_FRAME_RATE_REPORT = 82,

    // report web screen capture, value 0 start, value 1 stop
    RES_TYPE_WEBVIEW_SCREEN_CAPTURE = 83,
    // report video state. value 0 start playing, value 1 stop playing
    RES_TYPE_WEBVIEW_VIDEO_STATUS_CHANGE = 84,
    // report location status. value 0 app status, value 1 switch status
    RES_TYPE_LOCATION_STATUS_CHANGE = 85,
    // report silent playback
    RES_TYPE_AUDIO_SILENT_PLAYBACK = 86,
    // report display mode event, value status, payload mode.
    RES_TYPE_DEVICE_MODE_STATUS = 88,
    // report distribute component change
    RES_TYPE_REPORT_DISTRIBUTE_COMPONENT_CHANGE = 89,
    // report web drag resize
    RES_TYPE_WEB_DRAG_RESIZE = 90,
    // report formCard create start/end
    RES_TYPE_FORM_STATE_CHANGE_EVENT = 91,
    // report power mode changed
    RES_TYPE_POWER_MODE_CHANGED = 92,
    // report thermal scenario changed
    RES_TYPE_THERMAL_SCENARIO_REPORT = 93,
    // report boot completed
    RES_TYPE_BOOT_COMPLETED = 94,
    // report continuous application startup
    RES_TYPE_CONTINUOUS_STARTUP = 95,
    // report account activating
    RES_TYPE_ACCOUNT_ACTIVATING = 96,
    // report silent playback in renderer
    RES_TYPE_AUDIO_RENDERER_SILENT_PLAYBACK = 97,
    // report continuous application install
    RES_TYPE_CONTINUOUS_INSTALL = 98,
    // report system updated
    RES_TYPE_FIRST_BOOT_AFTER_SYSTEM_UPGRADE = 99,
    // report background perceivable scene
    RES_TYPE_BACKGROUND_PERCEIVABLE_SCENE = 100,
    // user interaction scene
    RES_TYPE_USER_INTERACTION_SCENE = 101,
    // report game sched, value 0 start, value 1 stop
    RES_TYPE_REPORT_GAME_SCHED = 102,
    // report send frame event
    RES_TYPE_SEND_FRAME_EVENT = 103,
    // report app cold start only perf, value 0 start, value 1 stop
    RES_TYPE_ONLY_PERF_APP_COLD_START = 104,
    // report scene rotation, value 0 start, value 1 stop
    RES_TYPE_SCENE_ROTATION = 105,
    // report event vsync tid, value tid, payload pid, tid, uid.
    RES_TYPE_REPORT_VSYNC_TID = 106,
    // report cloud config update
    RES_TYPE_CLOUD_CONFIG_UPDATE = 107,
    // system ability status change
    RES_TYPE_SYSTEM_ABILITY_STATUS_CHANGE = 108,
    // mmi status change
    RES_TYPE_MMI_STATUS_CHANGE = 109,
    // report media output device change
    RES_TYPE_OUTPUT_DEVICE_CHANGE = 110,
    // report device idle
    RES_TYPE_DEVICE_IDLE = 111,
    // report media output device change
    RES_TYPE_BT_SERVICE_EVENT = 112,
    // report to hisi, let bmm_report begin change
    RES_TYPE_BMM_MONITER_CHANGE_EVENT = 113,
    // app frame drop event
    RES_TYPE_APP_FRAME_DROP = 114,
    // report rss cloud config update
    RES_TYPE_RSS_CLOUD_CONFIG_UPDATE = 115,
    // report game info
    RES_TYPE_GAME_INFO_NOTIFY = 116,
    // report power key down
    RES_TYPE_MMI_INPUT_POWER_KEY = 117,
    // report application stopped
    RES_TYPE_APP_STOPPED = 118,
    // last async resType
    ASYNC_RES_TYPE_LAST,
    // first sync resType
    SYNC_RES_TYPE_FIRST = ASYNC_RES_TYPE_LAST,
    // thaw one application
    SYNC_RES_TYPE_THAW_ONE_APP,
    // get all suspend state
    SYNC_RES_TYPE_GET_ALL_SUSPEND_STATE,
    // get thermal data
    SYNC_RES_TYPE_GET_THERMAL_DATA,
    // check shoul force kill process,
    SYNC_RES_TYPE_SHOULD_FORCE_KILL_PROCESS,
    // report to request mutex status
    SYNC_RES_TYPE_REQUEST_MUTEX_STATUS = 500,
    // report to check mutex before start
    SYNC_RES_TYPE_CHECK_MUTEX_BEFORE_START = 501,
    // last sync resType
    SYNC_RES_TYPE_LAST,
    // last resType
    RES_TYPE_LAST = SYNC_RES_TYPE_LAST,
};
} // namespace ResType
} // namespace ResourceSchedule
} // namespace OHOS

• 1
• 2
• 3
• 4
• 5
• 6
• 7
• 8
• 9
• 10
• 11
• 12
• 13
• 14
• 15
• 16
• 17
• 18
• 19
• 20
• 21
• 22
• 23
• 24
• 25
• 26
• 27
• 28
• 29
• 30
• 31
• 32
• 33
• 34
• 35
• 36
• 37
• 38
• 39
• 40
• 41
• 42
• 43
• 44
• 45
• 46
• 47
• 48
• 49
• 50
• 51
• 52
• 53
• 54
• 55
• 56
• 57
• 58
• 59
• 60
• 61
• 62
• 63
• 64
• 65
• 66
• 67
• 68
• 69
• 70
• 71
• 72
• 73
• 74
• 75
• 76
• 77
• 78
• 79
• 80
• 81
• 82
• 83
• 84
• 85
• 86
• 87
• 88
• 89
• 90
• 91
• 92
• 93
• 94
• 95
• 96
• 97
• 98
• 99
• 100
• 101
• 102
• 103
• 104
• 105
• 106
• 107
• 108
• 109
• 110
• 111
• 112
• 113
• 114
• 115
• 116
• 117
• 118
• 119
• 120
• 121
• 122
• 123
• 124
• 125
• 126
• 127
• 128
• 129
• 130
• 131
• 132
• 133
• 134
• 135
• 136
• 137
• 138
• 139
• 140
• 141
• 142
• 143
• 144
• 145
• 146
• 147
• 148
• 149
• 150
• 151
• 152
• 153
• 154
• 155
• 156
• 157
• 158
• 159
• 160
• 161
• 162
• 163
• 164
• 165
• 166
• 167
• 168
• 169
• 170
• 171
• 172
• 173
• 174
• 175
• 176
• 177
• 178
• 179
• 180
• 181
• 182
• 183
• 184
• 185
• 186
• 187
• 188
• 189
• 190
• 191
• 192
• 193
• 194
• 195
• 196
• 197
• 198
• 199
• 200
• 201
• 202
• 203
• 204
• 205
• 206
• 207
• 208
• 209
• 210
• 211
• 212
• 213
• 214
• 215
• 216
• 217
• 218
• 219
• 220
• 221
• 222
• 223
• 224
• 225
• 226
• 227
• 228
• 229
• 230
• 231
• 232
• 233
• 234
• 235
• 236
• 237
• 238
• 239
• 240
• 241
• 242
• 243
• 244
• 245
• 246
• 247
• 248
• 249
• 250
• 251
• 252
• 253
• 254
• 255
• 256
• 257
• 258
• 259
• 260
• 261
• 262
• 263
• 264
• 265
• 266
• 267
• 268
• 269
• 270
• 271

接着在调频插件socperf_plugin、待机插件device_standby_plugin、分组策略插件cgroup_sched_plugin中添加对资源调度内部事件的订阅和监听回调处理。
以上三个插件都分别实现了如下三个接口：

插件初始化的时候，指定需要注册监听的事件。在这些事件发生的时候，框架会依次分发给各个插件， 此时插件需要快速处理消息接收进行资源调度（需要有耗时任务则需另起线程处理），处理完成后返回。
插件事件处理约束

• 1、插件可以用C/C++实现。
• 2、插件的事件处理，必须快速完成，超过1ms会打印相关告警，超过10ms，框架认为插件异常而进行插件退出操作。

以待机插件device_standby_plugin为例，其代码实现路径为：device_standby_plugin.cpp

在init()函数中订阅相关事件，具体代码如下：

// 插件初始化
extern "C" bool OnPluginInit(std::string& libName)
{
    if (libName != LIB_NAME) {
        STANDBYSERVICE_LOGI("DeviceStandbyPlugin::OnPluginInit lib name is not match");
        return false;
    }
    DeviceStandbyPlugin::GetInstance().Init();
    STANDBYSERVICE_LOGI("DeviceStandbyPlugin::OnPluginInit success.");
    return true;
}

void DeviceStandbyPlugin::Init()
{
    resTypes_.insert(RES_TYPE_APP_INSTALL_UNINSTALL);
    resTypes_.insert(RES_TYPE_SCREEN_STATUS);
    resTypes_.insert(RES_TYPE_TIME_CHANGED);
    resTypes_.insert(RES_TYPE_NITZ_TIME_CHANGED);
    resTypes_.insert(RES_TYPE_TIMEZONE_CHANGED);
    resTypes_.insert(RES_TYPE_NITZ_TIMEZONE_CHANGED);
    resTypes_.insert(RES_TYPE_CHARGING_DISCHARGING);
    resTypes_.insert(RES_TYPE_USB_DEVICE);
    resTypes_.insert(RES_TYPE_CALL_STATE_CHANGED);
    resTypes_.insert(RES_TYPE_WIFI_P2P_STATE_CHANGED);
    resTypes_.insert(RES_TYPE_EFFICIENCY_RESOURCES_STATE_CHANGED);
    resTypes_.insert(RES_TYPE_POWER_MODE_CHANGED);
    resTypes_.insert(RES_TYPE_CLICK_RECOGNIZE);
    resTypes_.insert(RES_TYPE_MMI_INPUT_POWER_KEY);

    for (auto resType : resTypes_) {
        PluginMgr::GetInstance().SubscribeResource(LIB_NAME, resType);
    }
    STANDBYSERVICE_LOGI("DevicesStandbyPlugin::Init success");
}

• 1
• 2
• 3
• 4
• 5
• 6
• 7
• 8
• 9
• 10
• 11
• 12
• 13
• 14
• 15
• 16
• 17
• 18
• 19
• 20
• 21
• 22
• 23
• 24
• 25
• 26
• 27
• 28
• 29
• 30
• 31
• 32
• 33
• 34

待机插件事件分发处理，相关代码如下：

// 获取分发的事件
extern "C" void OnDispatchResource(const std::shared_ptr<ResData>& data)
{
    DeviceStandbyPlugin::GetInstance().DispatchResource(data);
    STANDBYSERVICE_LOGD("DeviceStandbyPlugin::OnDispatchResource success.");
}

• 1
• 2
• 3
• 4
• 5
• 6

待机插件退出，相关代码如下：

// 插件退出
extern "C" void OnPluginDisable()
{
    DeviceStandbyPlugin::GetInstance().Disable();
    STANDBYSERVICE_LOGI("DeviceStandbyPlugin::OnPluginDisable success.");
}

void DeviceStandbyPlugin::Disable()
{
    for (auto resType : resTypes_) {
        PluginMgr::GetInstance().UnSubscribeResource(LIB_NAME, resType);
    }
    resTypes_.clear();
    STANDBYSERVICE_LOGI("DevicesStandbyPlugin::Disable success");
}

• 1
• 2
• 3
• 4
• 5
• 6
• 7
• 8
• 9
• 10
• 11
• 12
• 13
• 14
• 15

在待机部件device_standby中使用事件

待机部件device_standby仓的源代码地址为：https://gitee.com/openharmony/resourceschedule_device_standby
设备待机部件为提高设备续航，降低设备功耗，在设备进入待机空闲状态时，系统会限制后台应用使用资源。开发者可以根据自身情况，为自己的应用申请纳入待机资源管控，或者暂时不被待机资源管控。

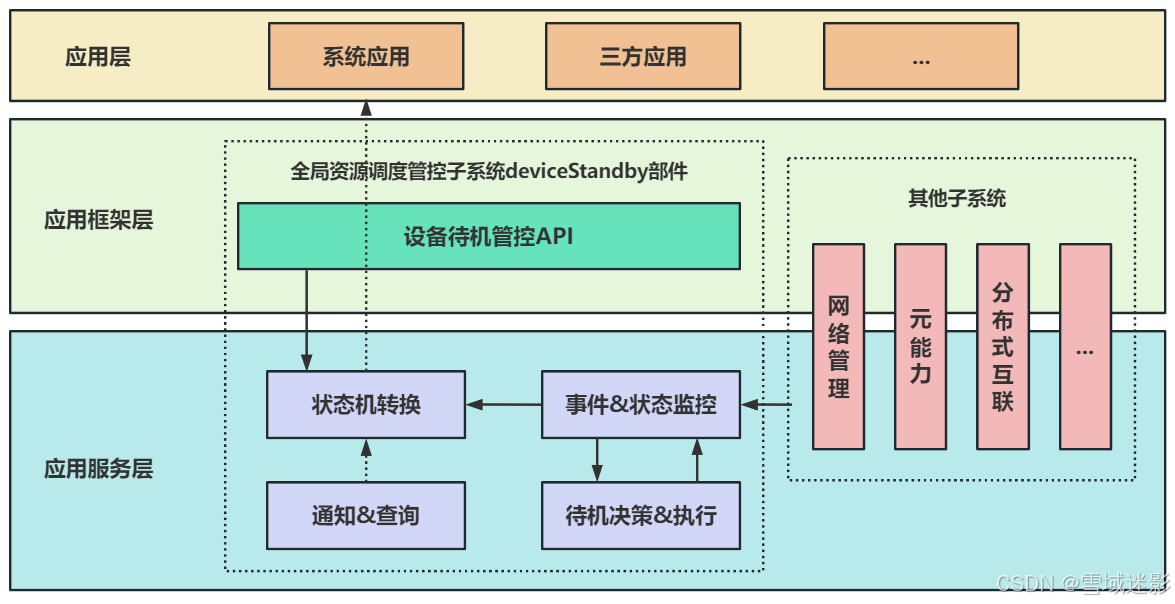

图 1 设备待机部件整体架构图

那么我们以亮屏和灭屏事件为例，看一下设备待机部件device_standby是如何使用资源调度部件resource_schedule_service中定义的事件的？

我们使用git clone https://gitee.com/openharmony/resourceschedule_device_standby.git命令下载好设备待机部件仓的源代码后，使用VScode打开源代码，搜索RES_TYPE_SCREEN_STATUS这个亮屏状态关键字，如下图所示：

可以看到utils\common\include\res_type.h中保持了一份资源调度模块的事件枚举
的子集，代码如下所示：

namespace OHOS {
namespace DevStandbyMgr {
namespace ResType {
enum : uint32_t {
    // first resType
    RES_TYPE_FIRST = 0,
    // screen status, value 0 means screen off, value 1 means screen on, else are invalid.
    RES_TYPE_SCREEN_STATUS = RES_TYPE_FIRST,
    // app state change event; value means app state; payload:pid,uid,bundleName
    RES_TYPE_APP_STATE_CHANGE = 1,
    // ability state change event; value means ability state; payload:pid,uid,bundleName
    RES_TYPE_ABILITY_STATE_CHANGE = 2,
    // extension state change event; value means extension state; payload:pid,uid,bundleName
    RES_TYPE_EXTENSION_STATE_CHANGE = 3,
    // process state event; value 0:created, 1:died; payload:pid,uid,bundleName
    RES_TYPE_PROCESS_STATE_CHANGE = 4,
    // window focused event; value 0:focused, 1:unfocused; payload:pid,uid,bundleName,windowId,windowType,displayId
    RES_TYPE_WINDOW_FOCUS = 5,
    // transient task event; value 0:start, 1:finish; payload:pid,uid,bundleName
    RES_TYPE_TRANSIENT_TASK = 6,
    // continuous task event; value 0:start, 1:finish; payload:pid,uid,abilityName
    RES_TYPE_CONTINUOUS_TASK = 7,
    /* cgroup change event;
     * value 0:set thread group sched; 1:set thread sched
     * payload: pid,uid,name,oldGroup,newGroup
     */
    RES_TYPE_CGROUP_ADJUSTER = 8,
    // ace gestures click_recognizer; value 1 touch event, value 2 click event
    RES_TYPE_CLICK_RECOGNIZE = 9,
    // ace pipeline_context.cpp::PushPage(); value 0: push_page_start, 1: push_page_complete
    RES_TYPE_PUSH_PAGE = 10,
    // ace slide event recognize; value 1: list fling on; 0: list fling off; 3: slide normal begin, 4: slide normal end.
    RES_TYPE_SLIDE_RECOGNIZE = 11,
    // window visibility change, value 1: isVisible, 0: not isVisible, payload:pid,uid,windowId,windowType
    RES_TYPE_WINDOW_VISIBILITY_CHANGE = 12,
    // report mmi_service service; value mmi_service tid; payload:uid,pid
    RES_TYPE_REPORT_MMI_PROCESS = 13,
    // report render thread; value render tid; payload:uid,pid
    RES_TYPE_REPORT_RENDER_THREAD = 14,
    // app install and uninstall event; value 0: uninstall, 1: install; payload:uid,bundleName
    RES_TYPE_APP_INSTALL_UNINSTALL = 15,
    // net connect state; value 0:unknow, 1:idle, 2:connecting, 3:connected, 4:disconnecting, 5:disconnected
    RES_TYPE_WIFI_CONNECT_STATE_CHANGE = 16,
    // user switch, value means the userId which switch to.
    RES_TYPE_USER_SWITCH = 17,
    // user remove, value means the userId which is removed.
    RES_TYPE_USER_REMOVE = 18,
    // screen unlock, value 0 means unlock, value 1 means locked.
    RES_TYPE_SCREEN_LOCK = 19,
    // bluetooth a2dp connect state, value 1: connected, 3: disconnected.
    RES_TYPE_BLUETOOTH_A2DP_CONNECT_STATE_CHANGE = 20,
    // network latency request, value 0: low latency, 1: normal latency, payload: identity
    RES_TYPE_NETWORK_LATENCY_REQUEST = 21,
    // call state update; value 0 : active, value 1 : holding, value 2 : dialing, value 3 : alerting,
    // value 4 : incoming, value 5 : waiting, value 6 : disconnected, value 7 : disconnecting, value 8 : idle
    RES_TYPE_CALL_STATE_UPDATE = 22,
    // Other process modify the thread Qos, value for client name id, payload: tid : qos , clientpid, pid
    RES_TYPE_THREAD_QOS_CHANGE = 23,
    // audio render state change; value -1 : RENDERER_INVALID, value 0 : RENDERER_NEW, value 1 : RENDERER_PREPARED,
    // value 2 : RENDERER_RUNNING, value 3 : RENDERER_STOPPED, value 4 : RENDERER_RELEASED, value 5 : RENDERER_PAUSED
    // payload:uid,sessionId
    RES_TYPE_AUDIO_RENDER_STATE_CHANGE = 24,
    // audio ring mode change; value 0 : RINGER_MODE_NORMAL, value 1 : RINGER_MODE_SILENT
    // value 2 : RINGER_MODE_VIBRATE
    RES_TYPE_AUDIO_RING_MODE_CHANGE = 25,
    RES_TYPE_AUDIO_VOLUME_KEY_CHANGE = 26,
    // app_ability_start_event : a very early app startup stub, when the app process has not been pulled up.
    // stub position : ability_runtime ability_manager_service.cpp::StartAbilityInner().
    // specifically : ability type is PAGE and ability launchMode is not SPECIFIED.
    RES_TYPE_APP_ABILITY_START = 27,
    // ace pipeline_context.cpp::PopPage(); value means nothing
    RES_TYPE_POP_PAGE = 28,
    // ace web gesture event recognize; value means nothing
    RES_TYPE_WEB_GESTURE = 29,
    // info from msdp, means device still state change(enter or exit)
    RES_TYPE_DEVICE_STILL_STATE_CHANGE = 30,
    // window resize event; value 0: resize window , value 1: stop resizing window.
    RES_TYPE_RESIZE_WINDOW = 31,
    // window move event; value 0: move window, value 1: stop moving window.
    RES_TYPE_MOVE_WINDOW = 32,
    // animation transition event; value 0: animation begin, value 1: animation end.
    RES_TYPE_SHOW_REMOTE_ANIMATION = 33,
    // load page; value 0: load page begin, value 1: load page end.
    RES_TYPE_LOAD_PAGE = 34,
    // report camera state, value 0: camera connect; value 1: camera disconnect
    RES_TYPE_REPORT_CAMERA_STATE = 35,
    // value 2: runningLock is proxied; value 3: runningLock is not proxied
    RES_TYPE_RUNNINGLOCK_STATE = 36,
    // drag status bar event; value 0: start drag, value 1: stop drag.
    RES_TYPE_DRAG_STATUS_BAR = 37,
    // report SceneBoard service, value pid; payload:uid, main_tid, bundleName
    RES_TYPE_REPORT_SCENE_BOARD = 38,
    // report key thread for render, value 0 add key Thread, 1 remove key thread, payload: uid, pid, tid, role
    RES_TYPE_REPORT_KEY_THREAD = 39,
    // report window state, value 0 add 1 remove, payload: uid, pid, windowId, serialNum state: 0 active 1 inactive
    RES_TYPE_REPORT_WINDOW_STATE = 40,
    // report scene sched, value 0 scene on 1 scene off, payload: uid, sceneId
    RES_TYPE_REPORT_SCENE_SCHED = 41,
    // web gesture move event; value 0: web gesture move start, value 1: web gesture move end.
    RES_TYPE_WEB_GESTURE_MOVE = 42,
    // web slide normal event; value 0: web slide normal start, value 1: web slide normal end.
    RES_TYPE_WEB_SLIDE_NORMAL = 43,
    // load url event; value means nothing.
    RES_TYPE_LOAD_URL = 44,
    // mousewheel event; value means nothing.
    RES_TYPE_MOUSEWHEEL = 45,
    // report webview audio status, value 0 start 1 stop, payload: uid, pid, tid
    RES_TYPE_WEBVIEW_AUDIO_STATUS_CHANGE = 46,
    // report entering the multimodalinput state, value means subscribed multimodalinput state.
    RES_TYPE_MMI_INPUT_STATE = 47,
    // report anco load protect file config
    RES_TYPE_ANCO_CUST = 48,
    // report anco app is front
    RES_TYPE_ANCO_APP_FRONT = 49,
    // report time zone changed
    RES_TYPE_TIMEZONE_CHANGED = 50,
    // report connection status
    RES_TYPE_CONNECTION_OBSERVER = 51,
    // report av session create event
    RES_TYPE_AV_SESSION_ON_SESSION_CREATE = 52,
    // report av session release event
    RES_TYPE_AV_SESSION_ON_SESSION_RELEASE = 53,
    // report av session change event
    RES_TYPE_AV_SESSION_ON_TOP_SESSION_CHANGE = 54,
    // report OnAppStateChanged event
    RES_TYPE_ON_APP_STATE_CHANGED = 55,
    // report efficiency resources event
    RES_TYPE_EFFICIENCY_RESOURCES_STATE_CHANGED = 56,
    // report av_codec state, value 0:codec start info, value 1:codec stop info.
    RES_TYPE_AV_CODEC_STATE = 57,
    RES_TYPE_NITZ_TIME_CHANGED = 58,
    RES_TYPE_TIME_CHANGED = 59,
    RES_TYPE_NITZ_TIMEZONE_CHANGED = 60,
    RES_TYPE_CHARGING_DISCHARGING = 61,
    RES_TYPE_USB_DEVICE = 62,
    RES_TYPE_CALL_STATE_CHANGED = 63,
    RES_TYPE_WIFI_P2P_STATE_CHANGED = 64,
    // report power mode changed
    RES_TYPE_POWER_MODE_CHANGED = 92,
    // report power key down
    RES_TYPE_MMI_INPUT_POWER_KEY = 117,
    // last resType
    RES_TYPE_LAST,
};

inline const std::map<uint32_t, std::string> resTypeToStr = {
    { RES_TYPE_SCREEN_STATUS, "SCREEN_STATUS" },
    { RES_TYPE_APP_STATE_CHANGE, "APP_STATE_CHANGE" },
    { RES_TYPE_ABILITY_STATE_CHANGE, "ABILITY_STATE_CHANGE" },
    { RES_TYPE_EXTENSION_STATE_CHANGE, "EXTENSION_STATE_CHANGE" },
    { RES_TYPE_PROCESS_STATE_CHANGE, "PROCESS_STATE_CHANGE" },
    { RES_TYPE_WINDOW_FOCUS, "WINDOW_FOCUS" },
    { RES_TYPE_TRANSIENT_TASK, "TRANSIENT_TASK" },
    { RES_TYPE_CONTINUOUS_TASK, "CONTINUOUS_TASK" },
    { RES_TYPE_CGROUP_ADJUSTER, "CGROUP_ADJUSTER" },
    { RES_TYPE_CLICK_RECOGNIZE, "CLICK_RECOGNIZE" },
    { RES_TYPE_PUSH_PAGE, "PUSH_PAGE" },
    { RES_TYPE_SLIDE_RECOGNIZE, "SLIDE_RECOGNIZE" },
    { RES_TYPE_WINDOW_VISIBILITY_CHANGE, "WINDOW_VISIBILITY_CHANGE" },
    { RES_TYPE_REPORT_MMI_PROCESS, "REPORT_MMI_PROCESS" },
    { RES_TYPE_REPORT_RENDER_THREAD, "REPORT_RENDER_THREAD" },
    { RES_TYPE_APP_INSTALL_UNINSTALL, "APP_INSTALL_UNINSTALL" },
    { RES_TYPE_WIFI_CONNECT_STATE_CHANGE, "WIFI_CONNECT_STATE_CHANGE" },
    { RES_TYPE_USER_SWITCH, "USER_SWITCH" },
    { RES_TYPE_USER_REMOVE, "USER_REMOVE" },
    { RES_TYPE_SCREEN_LOCK, "SCREEN_LOCK" },
    { RES_TYPE_BLUETOOTH_A2DP_CONNECT_STATE_CHANGE, "BLUETOOTH_A2DP_CONNECT_STATE_CHANGE" },
    { RES_TYPE_NETWORK_LATENCY_REQUEST, "NETWORK_LATENCY_REQUEST" },
    { RES_TYPE_CALL_STATE_UPDATE, "CALL_STATE_UPDATE" },
    { RES_TYPE_THREAD_QOS_CHANGE, "THREAD_QOS_CHANGE" },
    { RES_TYPE_AUDIO_RENDER_STATE_CHANGE, "AUDIO_RENDER_STATE_CHANGE" },
    { RES_TYPE_AUDIO_RING_MODE_CHANGE, "AUDIO_RING_MODE_CHANGE" },
    { RES_TYPE_AUDIO_VOLUME_KEY_CHANGE, "AUDIO_VOLUME_KEY_CHANGE" },
    { RES_TYPE_APP_ABILITY_START, "APP_ABILITY_START" },
    { RES_TYPE_POP_PAGE, "POP_PAGE" },
    { RES_TYPE_WEB_GESTURE, "WEB_GESTURE" },
    { RES_TYPE_DEVICE_STILL_STATE_CHANGE, "DEVICE_STILL_STATE_CHANGE" },
    { RES_TYPE_RESIZE_WINDOW, "RES_TYPE_RESIZE_WINDOW" },
    { RES_TYPE_MOVE_WINDOW, "RES_TYPE_MOVE_WINDOW" },
    { RES_TYPE_SHOW_REMOTE_ANIMATION, "RES_TYPE_SHOW_REMOTE_ANIMATION" },
    { RES_TYPE_LOAD_PAGE, "RES_TYPE_LOAD_PAGE" },
    { RES_TYPE_REPORT_CAMERA_STATE, "RES_TYPE_REPORT_CAMERA_STATE" },
    { RES_TYPE_RUNNINGLOCK_STATE, "RES_TYPE_RUNNINGLOCK_STATE" },
    { RES_TYPE_DRAG_STATUS_BAR, "RES_TYPE_DRAG_STATUS_BAR" },
    { RES_TYPE_REPORT_SCENE_BOARD, "RES_TYPE_REPORT_SCENE_BOARD" },
    { RES_TYPE_REPORT_KEY_THREAD, "RES_TYPE_REPORT_KEY_THREAD" },
    { RES_TYPE_REPORT_WINDOW_STATE, "RES_TYPE_REPORT_WINDOW_STATE" },
    { RES_TYPE_REPORT_SCENE_SCHED, "RES_TYPE_REPORT_SCENE_SCHED" },
    { RES_TYPE_WEB_GESTURE_MOVE, "RES_TYPE_WEB_GESTURE_MOVE" },
    { RES_TYPE_WEB_SLIDE_NORMAL, "RES_TYPE_WEB_SLIDE_NORMAL" },
    { RES_TYPE_LOAD_URL, "RES_TYPE_LOAD_URL" },
    { RES_TYPE_MOUSEWHEEL, "RES_TYPE_MOUSEWHEEL" },
    { RES_TYPE_WEBVIEW_AUDIO_STATUS_CHANGE, "RES_TYPE_WEBVIEW_AUDIO_STATUS_CHANGE" },
    { RES_TYPE_MMI_INPUT_STATE, "RES_TYPE_MMI_INPUT_STATE" },
    { RES_TYPE_ANCO_CUST, "RES_TYPE_ANCO_CUST" },
    { RES_TYPE_ANCO_APP_FRONT, "RES_TYPE_ANCO_APP_FRONT" },
    { RES_TYPE_TIMEZONE_CHANGED, "RES_TYPE_TIMEZONE_CHANGED" },
    { RES_TYPE_TIME_CHANGED, "RES_TYPE_TIME_CHANGED" },
    { RES_TYPE_NITZ_TIME_CHANGED, "RES_TYPE_NITZ_TIME_CHANGED" },
    { RES_TYPE_NITZ_TIMEZONE_CHANGED, "RES_TYPE_NITZ_TIMEZONE_CHANGED" },
    { RES_TYPE_CHARGING_DISCHARGING, "RES_TYPE_CHARGING_DISCHARGING" },
    { RES_TYPE_USB_DEVICE, "RES_TYPE_USB_DEVICE" },
    { RES_TYPE_CALL_STATE_CHANGED, "RES_TYPE_CALL_STATE_CHANGED" },
    { RES_TYPE_WIFI_P2P_STATE_CHANGED, "RES_TYPE_WIFI_P2P_STATE_CHANGED" },
    { RES_TYPE_CONNECTION_OBSERVER, "RES_TYPE_CONNECTION_OBSERVER" },
    { RES_TYPE_AV_SESSION_ON_SESSION_CREATE, "RES_TYPE_AV_SESSION_ON_SESSION_CREATE" },
    { RES_TYPE_AV_SESSION_ON_SESSION_RELEASE, "RES_TYPE_AV_SESSION_ON_SESSION_RELEASE" },
    { RES_TYPE_AV_SESSION_ON_TOP_SESSION_CHANGE, "RES_TYPE_AV_SESSION_ON_TOP_SESSION_CHANGE" },
    { RES_TYPE_ON_APP_STATE_CHANGED, "RES_TYPE_ON_APP_STATE_CHANGED" },
    { RES_TYPE_EFFICIENCY_RESOURCES_STATE_CHANGED, "RES_TYPE_EFFICIENCY_RESOURCES_STATE_CHANGED" },
    { RES_TYPE_AV_CODEC_STATE, "RES_TYPE_AV_CODEC_STATE" },
    { RES_TYPE_POWER_MODE_CHANGED, "RES_TYPE_POWER_MODE_CHANGED" },
};
} // namespace ResType
} // namespace ResourceSchedule
} // namespace OHOS

• 1
• 2
• 3
• 4
• 5
• 6
• 7
• 8
• 9
• 10
• 11
• 12
• 13
• 14
• 15
• 16
• 17
• 18
• 19
• 20
• 21
• 22
• 23
• 24
• 25
• 26
• 27
• 28
• 29
• 30
• 31
• 32
• 33
• 34
• 35
• 36
• 37
• 38
• 39
• 40
• 41
• 42
• 43
• 44
• 45
• 46
• 47
• 48
• 49
• 50
• 51
• 52
• 53
• 54
• 55
• 56
• 57
• 58
• 59
• 60
• 61
• 62
• 63
• 64
• 65
• 66
• 67
• 68
• 69
• 70
• 71
• 72
• 73
• 74
• 75
• 76
• 77
• 78
• 79
• 80
• 81
• 82
• 83
• 84
• 85
• 86
• 87
• 88
• 89
• 90
• 91
• 92
• 93
• 94
• 95
• 96
• 97
• 98
• 99
• 100
• 101
• 102
• 103
• 104
• 105
• 106
• 107
• 108
• 109
• 110
• 111
• 112
• 113
• 114
• 115
• 116
• 117
• 118
• 119
• 120
• 121
• 122
• 123
• 124
• 125
• 126
• 127
• 128
• 129
• 130
• 131
• 132
• 133
• 134
• 135
• 136
• 137
• 138
• 139
• 140
• 141
• 142
• 143
• 144
• 145
• 146
• 147
• 148
• 149
• 150
• 151
• 152
• 153
• 154
• 155
• 156
• 157
• 158
• 159
• 160
• 161
• 162
• 163
• 164
• 165
• 166
• 167
• 168
• 169
• 170
• 171
• 172
• 173
• 174
• 175
• 176
• 177
• 178
• 179
• 180
• 181
• 182
• 183
• 184
• 185
• 186
• 187
• 188
• 189
• 190
• 191
• 192
• 193
• 194
• 195
• 196
• 197
• 198
• 199
• 200
• 201
• 202
• 203
• 204
• 205
• 206
• 207
• 208
• 209
• 210
• 211
• 212
• 213
• 214
• 215
• 216

并且在services\core\src\standby_service_impl.cpp中的 StandbyServiceImpl::HandleCommonEvent接口，实现了对事件的统一处理，代码如下：

ErrCode StandbyServiceImpl::HandleCommonEvent(const uint32_t resType, const int64_t value, const std::string &sceneInfo)
{
    STANDBYSERVICE_LOGI("HandleCommonEvent resType = %{public}u, value = %{public}lld, sceneInfo = %{public}s",
                        resType, (long long)(value), sceneInfo.c_str());
    switch (resType) {
        case ResType::RES_TYPE_SCREEN_STATUS:
            HandleScreenStateChanged(value);
            break;
        case ResType::RES_TYPE_CHARGING_DISCHARGING:
            HandleChargeStateChanged(value);
            break;
        case ResType::RES_TYPE_USB_DEVICE:
            if (value == 0) {
                DispatchEvent(StandbyMessage(StandbyMessageType::COMMON_EVENT,
                                             EventFwk::CommonEventSupport::COMMON_EVENT_USB_DEVICE_ATTACHED));
            } else {
                DispatchEvent(StandbyMessage(StandbyMessageType::COMMON_EVENT,
                                             EventFwk::CommonEventSupport::COMMON_EVENT_USB_DEVICE_DETACHED));
            }
            break;
        case ResType::RES_TYPE_CALL_STATE_CHANGED:
            HandleCallStateChanged(sceneInfo);
            break;
        case ResType::RES_TYPE_WIFI_P2P_STATE_CHANGED:
            HandleP2PStateChanged(value);
            break;
        case ResType::RES_TYPE_CLICK_RECOGNIZE:
            HandleScreenClickRecognize(value);
            break;
        case ResType::RES_TYPE_MMI_INPUT_POWER_KEY:
            HandleMmiInputPowerKeyDown(value);
            break;
#ifdef STANDBY_POWER_MANAGER_ENABLE
        case ResType::RES_TYPE_POWER_MODE_CHANGED:
            HandlePowerModeChanged(static_cast<PowerMgr::PowerMode>(value));
            break;
#endif
        case ResType::RES_TYPE_EFFICIENCY_RESOURCES_STATE_CHANGED:
            HandleResourcesStateChanged(value, sceneInfo);
            break;
        default:
            AppEventHandler(resType, value, sceneInfo);
            break;
    }
    return ERR_OK;
}

void StandbyServiceImpl::HandleScreenStateChanged(const int64_t value)
{
    if (value == 1) {
            DispatchEvent(StandbyMessage(StandbyMessageType::COMMON_EVENT,
                                         EventFwk::CommonEventSupport::COMMON_EVENT_SCREEN_ON));
    } else {
            DispatchEvent(StandbyMessage(StandbyMessageType::COMMON_EVENT,
                                         EventFwk::CommonEventSupport::COMMON_EVENT_SCREEN_OFF));
    }
}

• 1
• 2
• 3
• 4
• 5
• 6
• 7
• 8
• 9
• 10
• 11
• 12
• 13
• 14
• 15
• 16
• 17
• 18
• 19
• 20
• 21
• 22
• 23
• 24
• 25
• 26
• 27
• 28
• 29
• 30
• 31
• 32
• 33
• 34
• 35
• 36
• 37
• 38
• 39
• 40
• 41
• 42
• 43
• 44
• 45
• 46
• 47
• 48
• 49
• 50
• 51
• 52
• 53
• 54
• 55
• 56
• 57
