零基础入门Flink，掌握基本使用方法

Flink基本概念

首先来讲，Flink是一个面向数据流处理和批处理的分布式开源计算框架。

那么，流处理和批处理分别处理什么样的数据呢，这就涉及两个概念-无界流和有界流

无界流VS有界流

任何类型的数据都可以形成流数据，比如用户交互记录， 传感器数据，事件日志等等。

Apache Flink 擅长处理无界和有界数据集。 精确的时间控制和有状态的计算，使得 Flink能够运行
任何处理无界流的应用

流数据分为无界流和有界流。

  • 1） 无界流：有定义流的开始，但没有定义流的结束， 会不停地产生数据，无界流采用的是流处理方式。
  • 2） 有界流：有定义流的开始， 也有定义流的结束， 需要在获取所有数据后再进行计算，有界流采用的是批处理方式。

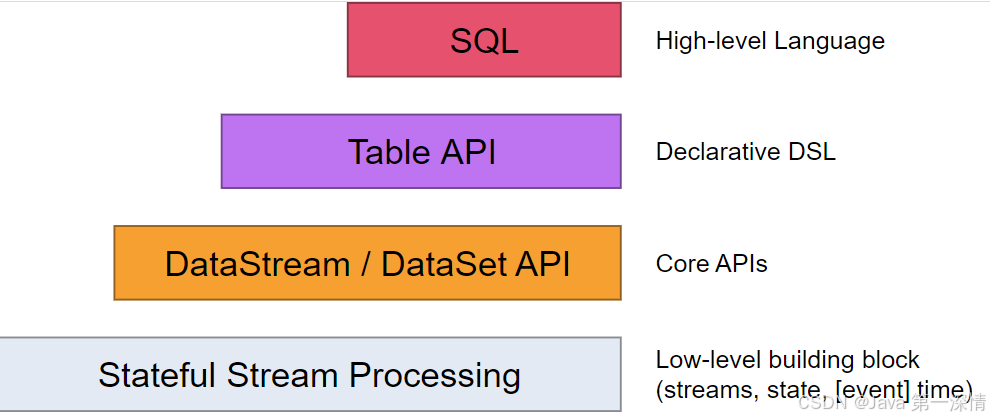

组件结构

DataSet 一般用来处理有界流数据。
DataStream一般用来处理无界流数据。

Flink基础Demo案例

1、基本环境搭建

pom.xml核心配置

  1.     <properties>
  2.         <project.build.sourceEncoding>UTF-8project.build.sourceEncoding>
  3.         <flink.version>1.11.2flink.version>
  4.         <java.version>1.8java.version>
  5.         <scala.binary.version>2.11scala.binary.version>
  6.         <maven.compiler.source>${java.version}maven.compiler.source>
  7.         <maven.compiler.target>${java.version}maven.compiler.target>
  8.         <log4j.version>2.12.1log4j.version>
  9.         <spring.boot.version>2.1.6.RELEASEspring.boot.version>
  10.         <mysql.jdbc.version>5.1.47mysql.jdbc.version>
  11.     properties>
  12.
  13.     <dependencies>
  14.
  15.         <dependency>
  16.             <groupId>org.apache.flinkgroupId>
  17.             <artifactId>flink-walkthrough-common_${scala.binary.version}artifactId>
  18.             <version>${flink.version}version>
  19.         dependency>
  20.
  21.         <dependency>
  22.             <groupId>org.apache.flinkgroupId>
  23.             <artifactId>flink-streaming-java_${scala.binary.version}artifactId>
  24.             <version>${flink.version}version>
  25.         dependency>
  26.
  27.         <dependency>
  28.             <groupId>org.apache.flinkgroupId>
  29.             <artifactId>flink-clients_${scala.binary.version}artifactId>
  30.             <version>${flink.version}version>
  31.         dependency>
  32.
  33.
  34.         <dependency>
  35.             <groupId>org.projectlombokgroupId>
  36.             <artifactId>lombokartifactId>
  37.             <version>1.18.8version>
  38.         dependency>
  39.     dependencies>

2、批处理Demo实现

这个demo实现-----通过批处理方式，统计日志文件中的异常数量。

文件准备order_info.log，文件内容如下

  1. 2019-08-25 16:32:55,626 [main] INFO  [o.s.c.s.PostProcessorRegistrationDelegate$BeanPostProcessorChecker] PostProcessorRegistrationDelegate.java:330 - Bean 'org.springframework.cloud.autoconfigure.ConfigurationPropertiesRebinderAutoConfiguration' of type [org.springframework.cloud.autoconfigure.ConfigurationPropertiesRebinderAutoConfiguration$$EnhancerBySpringCGLIB$$e1b53a9c] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying)
  2. 2019-08-25 16:32:56,918 [main] INFO  [c.i.t.s.pending.startup.StockPendingApplication] SpringApplication.java:650 - The following profiles are active: dev
  3. 2019-08-25 16:32:57,829 [main] INFO  [o.s.d.r.config.RepositoryConfigurationDelegate] RepositoryConfigurationDelegate.java:244 - Multiple Spring Data modules found, entering strict repository configuration mode!
  4. 2019-08-25 16:32:57,834 [main] INFO  [o.s.d.r.config.RepositoryConfigurationDelegate] RepositoryConfigurationDelegate.java:126 - Bootstrapping Spring Data repositories in DEFAULT mode.
  5. 2019-08-25 16:32:57,847 [main] INFO  [o.s.d.r.config.RepositoryConfigurationDelegate] RepositoryConfigurationDelegate.java:182 - Finished Spring Data repository scanning in 5ms. Found 0 repository interfaces.
  6. 2019-08-25 16:32:57,858 [main] INFO  [o.s.d.r.config.RepositoryConfigurationDelegate] RepositoryConfigurationDelegate.java:244 - Multiple Spring Data modules found, entering strict repository configuration mode!
  7. 2019-08-25 16:32:57,859 [main] INFO  [o.s.d.r.config.RepositoryConfigurationDelegate] RepositoryConfigurationDelegate.java:126 - Bootstrapping Spring Data repositories in DEFAULT mode.
  8. 2019-08-25 16:32:57,870 [main] INFO  [o.s.d.r.config.RepositoryConfigurationDelegate] RepositoryConfigurationDelegate.java:182 - Finished Spring Data repository scanning in 2ms. Found 0 repository interfaces.
  9. 2019-08-25 16:32:57,908 [main] WARN  [o.springframework.boot.actuate.endpoint.EndpointId] EndpointId.java:131 - Endpoint ID 'nacos-discovery' contains invalid characters, please migrate to a valid format.
  10. 2019-08-25 16:32:57,928 [main] WARN  [o.springframework.boot.actuate.endpoint.EndpointId] EndpointId.java:131 - Endpoint ID 'service-registry' contains invalid characters, please migrate to a valid format.
  11. 2019-08-25 16:32:58,144 [main] INFO  [o.springframework.cloud.context.scope.GenericScope] GenericScope.java:295 - BeanFactory id=62078519-08a5-3bd1-9959-a8e32b7d3ccd
  12. 2019-08-25 16:32:58,155 [main] INFO  [o.s.i.c.DefaultConfiguringBeanFactoryPostProcessor] DefaultConfiguringBeanFactoryPostProcessor.java:193 - No bean named 'errorChannel' has been explicitly defined. Therefore, a default PublishSubscribeChannel will be created.
  13. 2019-08-25 16:32:58,162 [main] INFO  [o.s.i.c.DefaultConfiguringBeanFactoryPostProcessor] DefaultConfiguringBeanFactoryPostProcessor.java:280 - No bean named 'taskScheduler' has been explicitly defined. Therefore, a default ThreadPoolTaskScheduler will be created.
  14. 2019-08-25 16:32:58,176 [main] INFO  [o.s.i.c.DefaultConfiguringBeanFactoryPostProcessor] DefaultConfiguringBeanFactoryPostProcessor.java:431 - No bean named 'integrationHeaderChannelRegistry' has been explicitly defined. Therefore, a default DefaultHeaderChannelRegistry will be created.
  15. 2019-08-25 16:32:58,212 [main] INFO  [o.s.c.s.PostProcessorRegistrationDelegate$BeanPostProcessorChecker] PostProcessorRegistrationDelegate.java:330 - Bean 'seataConfiguration' of type [com.itcast.trade.stock.pending.config.SeataConfiguration$$EnhancerBySpringCGLIB$$1c7426ba] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying)
  16. 2019-08-25 16:32:58,267 [configOperate_1_2] WARN  [io.seata.config.FileConfiguration] FileConfiguration.java:207 - Could not found property config.type, try to use default value instead.
  17. 2019-08-25 16:32:58,269 [main] WARN  [o.s.b.w.s.c.AnnotationConfigServletWebServerApplicationContext] AbstractApplicationContext.java:557 - Exception encountered during context initialization - cancelling refresh attempt: org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'globalTransactionScanner' defined in class path resource [com/itcast/trade/stock/pending/config/SeataConfiguration.class]: Bean instantiation via factory method failed; nested exception is org.springframework.beans.BeanInstantiationException: Failed to instantiate [io.seata.spring.annotation.GlobalTransactionScanner]: Factory method 'globalTransactionScanner' threw exception; nested exception is io.seata.common.exception.NotSupportYetException: not support register type: null
  18. 2019-08-25 16:32:58,280 [main] INFO  [o.s.b.a.l.ConditionEvaluationReportLoggingListener] ConditionEvaluationReportLoggingListener.java:135 -
  19.
  20. Error starting ApplicationContext. To display the conditions report re-run your application with 'debug' enabled.
  21. 2019-08-25 16:32:58,289 [main] ERROR [org.springframework.boot.SpringApplication] SpringApplication.java:821 - Application run failed
  22. org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'globalTransactionScanner' defined in class path resource [com/itcast/trade/stock/pending/config/SeataConfiguration.class]: Bean instantiation via factory method failed; nested exception is org.springframework.beans.BeanInstantiationException: Failed to instantiate [io.seata.spring.annotation.GlobalTransactionScanner]: Factory method 'globalTransactionScanner' threw exception; nested exception is io.seata.common.exception.NotSupportYetException: not support register type: null
  23. 	at org.springframework.beans.factory.support.ConstructorResolver.instantiate(ConstructorResolver.java:627)
  24. 	at org.springframework.beans.factory.support.ConstructorResolver.instantiateUsingFactoryMethod(ConstructorResolver.java:456)
  25. 	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.instantiateUsingFactoryMethod(AbstractAutowireCapableBeanFactory.java:1321)
  26. 	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBeanInstance(AbstractAutowireCapableBeanFactory.java:1160)
  27. 	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:555)
  28. 	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:515)
  29. 	at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:320)
  30. 	at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:222)
  31. 	at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:318)
  32. 	at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:204)
  33. 	at org.springframework.context.support.PostProcessorRegistrationDelegate.registerBeanPostProcessors(PostProcessorRegistrationDelegate.java:228)
  34. 	at org.springframework.context.support.AbstractApplicationContext.registerBeanPostProcessors(AbstractApplicationContext.java:721)
  35. 	at org.springframework.context.support.AbstractApplicationContext.refresh(AbstractApplicationContext.java:534)
  36. 	at org.springframework.boot.web.servlet.context.ServletWebServerApplicationContext.refresh(ServletWebServerApplicationContext.java:140)
  37. 	at org.springframework.boot.SpringApplication.refresh(SpringApplication.java:742)
  38. 	at org.springframework.boot.SpringApplication.refreshContext(SpringApplication.java:389)
  39. 	at org.springframework.boot.SpringApplication.run(SpringApplication.java:311)
  40. 	at org.springframework.boot.SpringApplication.run(SpringApplication.java:1213)
  41. 	at org.springframework.boot.SpringApplication.run(SpringApplication.java:1202)
  42. 	at com.itcast.trade.stock.pending.startup.StockPendingApplication.main(StockPendingApplication.java:23)
  43. Caused by: org.springframework.beans.BeanInstantiationException: Failed to instantiate [io.seata.spring.annotation.GlobalTransactionScanner]: Factory method 'globalTransactionScanner' threw exception; nested exception is io.seata.common.exception.NotSupportYetException: not support register type: null
  44. 	at org.springframework.beans.factory.support.SimpleInstantiationStrategy.instantiate(SimpleInstantiationStrategy.java:185)
  45. 	at org.springframework.beans.factory.support.ConstructorResolver.instantiate(ConstructorResolver.java:622)
  46. 	... 19 common frames omitted
  47. Caused by: io.seata.common.exception.NotSupportYetException: not support register type: null
  48. 	at io.seata.config.ConfigurationFactory.buildConfiguration(ConfigurationFactory.java:84)
  49. 	at io.seata.config.ConfigurationFactory.getInstance(ConfigurationFactory.java:68)
  50. 	at io.seata.spring.annotation.GlobalTransactionScanner.<init>(GlobalTransactionScanner.java:81)
  51. 	at io.seata.spring.annotation.GlobalTransactionScanner.<init>(GlobalTransactionScanner.java:124)
  52. 	at io.seata.spring.annotation.GlobalTransactionScanner.<init>(GlobalTransactionScanner.java:113)
  53. 	at com.itcast.trade.stock.pending.config.SeataConfiguration.globalTransactionScanner(SeataConfiguration.java:38)
  54. 	at com.itcast.trade.stock.pending.config.SeataConfiguration$$EnhancerBySpringCGLIB$$1c7426ba.CGLIB$globalTransactionScanner$0(<generated>)
  55. 	at com.itcast.trade.stock.pending.config.SeataConfiguration$$EnhancerBySpringCGLIB$$1c7426ba$$FastClassBySpringCGLIB$$ec5dcab5.invoke(<generated>)
  56. 	at org.springframework.cglib.proxy.MethodProxy.invokeSuper(MethodProxy.java:244)
  57. 	at org.springframework.context.annotation.ConfigurationClassEnhancer$BeanMethodInterceptor.intercept(ConfigurationClassEnhancer.java:363)
  58. 	at com.itcast.trade.stock.pending.config.SeataConfiguration$$EnhancerBySpringCGLIB$$1c7426ba.globalTransactionScanner(<generated>)
  59. 	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
  60. 	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
  61. 	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
  62. 	at java.lang.reflect.Method.invoke(Method.java:498)
  63. 	at org.springframework.beans.factory.support.SimpleInstantiationStrategy.instantiate(SimpleInstantiationStrategy.java:154)
  64. 	... 20 common frames omitted
  65. Caused by: java.lang.IllegalArgumentException: illegal type:null
  66. 	at io.seata.config.ConfigType.getType(ConfigType.java:62)
  67. 	at io.seata.config.ConfigurationFactory.buildConfiguration(ConfigurationFactory.java:82)
  68. 	... 35 common frames omitted
  69. 2019-08-25 16:36:05,248 [main] INFO  [o.s.c.s.PostProcessorRegistrationDelegate$BeanPostProcessorChecker] PostProcessorRegistrationDelegate.java:330 - Bean 'org.springframework.cloud.autoconfigure.ConfigurationPropertiesRebinderAutoConfiguration' of type [org.springframework.cloud.autoconfigure.ConfigurationPropertiesRebinderAutoConfiguration$$EnhancerBySpringCGLIB$$ed668c12] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying)
  70. 2019-08-25 16:36:06,559 [main] INFO  [c.i.t.s.pending.startup.StockPendingApplication] SpringApplication.java:650 - The following profiles are active: dev
  71. 2019-08-25 16:36:07,554 [main] INFO  [o.s.d.r.config.RepositoryConfigurationDelegate] RepositoryConfigurationDelegate.java:244 - Multiple Spring Data modules found, entering strict repository configuration mode!
  72. 2019-08-25 16:36:07,555 [main] INFO  [o.s.d.r.config.RepositoryConfigurationDelegate] RepositoryConfigurationDelegate.java:126 - Bootstrapping Spring Data repositories in DEFAULT mode.
  73. 2019-08-25 16:36:07,568 [main] INFO  [o.s.d.r.config.RepositoryConfigurationDelegate] RepositoryConfigurationDelegate.java:182 - Finished Spring Data repository scanning in 6ms. Found 0 repository interfaces.
  74. 2019-08-25 16:36:07,581 [main] INFO  [o.s.d.r.config.RepositoryConfigurationDelegate] RepositoryConfigurationDelegate.java:244 - Multiple Spring Data modules found, entering strict repository configuration mode!
  75. 2019-08-25 16:36:07,583 [main] INFO  [o.s.d.r.config.RepositoryConfigurationDelegate] RepositoryConfigurationDelegate.java:126 - Bootstrapping Spring Data repositories in DEFAULT mode.
  76. 2019-08-25 16:36:07,595 [main] INFO  [o.s.d.r.config.RepositoryConfigurationDelegate] RepositoryConfigurationDelegate.java:182 - Finished Spring Data repository scanning in 2ms. Found 0 repository interfaces.
  77. 2019-08-25 16:36:07,639 [main] WARN  [o.springframework.boot.actuate.endpoint.EndpointId] EndpointId.java:131 - Endpoint ID 'nacos-discovery' contains invalid characters, please migrate to a valid format.
  78. 2019-08-25 16:36:07,661 [main] WARN  [o.springframework.boot.actuate.endpoint.EndpointId] EndpointId.java:131 - Endpoint ID 'service-registry' contains invalid characters, please migrate to a valid format.
  79. 2019-08-25 16:36:07,919 [main] INFO  [o.springframework.cloud.context.scope.GenericScope] GenericScope.java:295 - BeanFactory id=62078519-08a5-3bd1-9959-a8e32b7d3ccd
  80. 2019-08-25 16:36:07,930 [main] INFO  [o.s.i.c.DefaultConfiguringBeanFactoryPostProcessor] DefaultConfiguringBeanFactoryPostProcessor.java:193 - No bean named 'errorChannel' has been explicitly defined. Therefore, a default PublishSubscribeChannel will be created.
  81. 2019-08-25 16:36:07,937 [main] INFO  [o.s.i.c.DefaultConfiguringBeanFactoryPostProcessor] DefaultConfiguringBeanFactoryPostProcessor.java:280 - No bean named 'taskScheduler' has been explicitly defined. Therefore, a default ThreadPoolTaskScheduler will be created.
  82. 2019-08-25 16:36:07,944 [main] INFO  [o.s.i.c.DefaultConfiguringBeanFactoryPostProcessor] DefaultConfiguringBeanFactoryPostProcessor.java:431 - No bean named 'integrationHeaderChannelRegistry' has been explicitly defined. Therefore, a default DefaultHeaderChannelRegistry will be created.
  83. 2019-08-25 16:36:07,987 [main] INFO  [o.s.c.s.PostProcessorRegistrationDelegate$BeanPostProcessorChecker] PostProcessorRegistrationDelegate.java:330 - Bean 'seataConfiguration' of type [com.itcast.trade.stock.pending.config.SeataConfiguration$$EnhancerBySpringCGLIB$$28257830] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying)
  84. 2019-08-25 16:36:10,247 [configOperate_1_2] WARN  [io.seata.config.FileConfiguration] FileConfiguration.java:207 - Could not found property config.type, try to use default value instead.
  85. 2019-08-25 16:36:14,137 [main] WARN  [o.s.b.w.s.c.AnnotationConfigServletWebServerApplicationContext] AbstractApplicationContext.java:557 - Exception encountered during context initialization - cancelling refresh attempt: org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'globalTransactionScanner' defined in class path resource [com/itcast/trade/stock/pending/config/SeataConfiguration.class]: Bean instantiation via factory method failed; nested exception is org.springframework.beans.BeanInstantiationException: Failed to instantiate [io.seata.spring.annotation.GlobalTransactionScanner]: Factory method 'globalTransactionScanner' threw exception; nested exception is io.seata.common.exception.NotSupportYetException: not support register type: null
  86. 2019-08-25 16:36:14,150 [main] INFO  [o.s.b.a.l.ConditionEvaluationReportLoggingListener] ConditionEvaluationReportLoggingListener.java:135 -
  87.
  88. Error starting ApplicationContext. To display the conditions report re-run your application with 'debug' enabled.
  89. 2019-08-25 16:36:14,161 [main] ERROR [org.springframework.boot.SpringApplication] SpringApplication.java:821 - Application run failed
  90. org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'globalTransactionScanner' defined in class path resource [com/itcast/trade/stock/pending/config/SeataConfiguration.class]: Bean instantiation via factory method failed; nested exception is org.springframework.beans.BeanInstantiationException: Failed to instantiate [io.seata.spring.annotation.GlobalTransactionScanner]: Factory method 'globalTransactionScanner' threw exception; nested exception is io.seata.common.exception.NotSupportYetException: not support register type: null
  91. 	at org.springframework.beans.factory.support.ConstructorResolver.instantiate(ConstructorResolver.java:627)
  92. 	at org.springframework.beans.factory.support.ConstructorResolver.instantiateUsingFactoryMethod(ConstructorResolver.java:456)
  93. 	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.instantiateUsingFactoryMethod(AbstractAutowireCapableBeanFactory.java:1321)
  94. 	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBeanInstance(AbstractAutowireCapableBeanFactory.java:1160)
  95. 	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:555)
  96. 	at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:515)
  97. 	at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:320)
  98. 	at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:222)
  99. 	at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:318)
  100. 	at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:204)
  101. 	at org.springframework.context.support.PostProcessorRegistrationDelegate.registerBeanPostProcessors(PostProcessorRegistrationDelegate.java:228)
  102. 	at org.springframework.context.support.AbstractApplicationContext.registerBeanPostProcessors(AbstractApplicationContext.java:721)
  103. 	at org.springframework.context.support.AbstractApplicationContext.refresh(AbstractApplicationContext.java:534)
  104. 	at org.springframework.boot.web.servlet.context.ServletWebServerApplicationContext.refresh(ServletWebServerApplicationContext.java:140)
  105. 	at org.springframework.boot.SpringApplication.refresh(SpringApplication.java:742)
  106. 	at org.springframework.boot.SpringApplication.refreshContext(SpringApplication.java:389)
  107. 	at org.springframework.boot.SpringApplication.run(SpringApplication.java:311)
  108. 	at org.springframework.boot.SpringApplication.run(SpringApplication.java:1213)
  109. 	at org.springframework.boot.SpringApplication.run(SpringApplication.java:1202)
  110. 	at com.itcast.trade.stock.pending.startup.StockPendingApplication.main(StockPendingApplication.java:23)
  111. Caused by: org.springframework.beans.BeanInstantiationException: Failed to instantiate [io.seata.spring.annotation.GlobalTransactionScanner]: Factory method 'globalTransactionScanner' threw exception; nested exception is io.seata.common.exception.NotSupportYetException: not support register type: null
  112. 	at org.springframework.beans.factory.support.SimpleInstantiationStrategy.instantiate(SimpleInstantiationStrategy.java:185)
  113. 	at org.springframework.beans.factory.support.ConstructorResolver.instantiate(ConstructorResolver.java:622)
  114. 	... 19 common frames omitted
  115. Caused by: io.seata.common.exception.NotSupportYetException: not support register type: null
  116. 	at io.seata.config.ConfigurationFactory.buildConfiguration(ConfigurationFactory.java:84)
  117. 	at io.seata.config.ConfigurationFactory.getInstance(ConfigurationFactory.java:68)
  118. 	at io.seata.spring.annotation.GlobalTransactionScanner.<init>(GlobalTransactionScanner.java:81)
  119. 	at io.seata.spring.annotation.GlobalTransactionScanner.<init>(GlobalTransactionScanner.java:124)
  120. 	at io.seata.spring.annotation.GlobalTransactionScanner.<init>(GlobalTransactionScanner.java:113)
  121. 	at com.itcast.trade.stock.pending.config.SeataConfiguration.globalTransactionScanner(SeataConfiguration.java:38)
  122. 	at com.itcast.trade.stock.pending.config.SeataConfiguration$$EnhancerBySpringCGLIB$$28257830.CGLIB$globalTransactionScanner$0(<generated>)
  123. 	at com.itcast.trade.stock.pending.config.SeataConfiguration$$EnhancerBySpringCGLIB$$28257830$$FastClassBySpringCGLIB$$691b278a.invoke(<generated>)
  124. 	at org.springframework.cglib.proxy.MethodProxy.invokeSuper(MethodProxy.java:244)
  125. 	at org.springframework.context.annotation.ConfigurationClassEnhancer$BeanMethodInterceptor.intercept(ConfigurationClassEnhancer.java:363)
  126. 	at com.itcast.trade.stock.pending.config.SeataConfiguration$$EnhancerBySpringCGLIB$$28257830.globalTransactionScanner(<generated>)
  127. 	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
  128. 	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
  129. 	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
  130. 	at java.lang.reflect.Method.invoke(Method.java:498)
  131. 	at org.springframework.beans.factory.support.SimpleInstantiationStrategy.instantiate(SimpleInstantiationStrategy.java:154)
  132. 	... 20 common frames omitted
  133. Caused by: java.lang.IllegalArgumentException: illegal type:null
  134. 	at io.seata.config.ConfigType.getType(ConfigType.java:62)
  135. 	at io.seata.config.ConfigurationFactory.buildConfiguration(ConfigurationFactory.java:82)
  136. 	... 35 common frames omitted
  137. 2019-08-25 16:36:21,421 [main] INFO  [o.s.c.s.PostProcessorRegistrationDelegate$BeanPostProcessorChecker] PostProcessorRegistrationDelegate.java:330 - Bean

 代码实现

  1. public class BatchProcessorApplication {
  2.     public static void main(String[] args) throws Exception{
  3.         //1.定义Flink运行环境
  4.         ExecutionEnvironment env = ExecutionEnvironment.getExecutionEnvironment();
  5.
  6.         //2.读取数据源（日志文件信息）
  7.         DataSource logData = env.readTextFile("./data/order_info.log");
  8.
  9.         //3.清洗转换数据
  10.         logData.flatMap(new FlatMapFunction>() {
  11.             @Override
  12.             public void flatMap(String value, Collector> collector) throws Exception {
  13.                 // 1) 根据正则，提取每行日志的级别
  14.                 Pattern pattern = Pattern.compile("\\[main\\](.*?)\\[");
  15.                 Matcher matcher = pattern.matcher(value);
  16.                 if (matcher.find()){
  17.                     // 2) 如果匹配符合规则，放置元组，输出数据
  18.                     collector.collect(new Tuple2<>(matcher.group(1).trim(),1));
  19.                 }
  20.             }
  21.             //groupBy(0)代表对collector中每个tuple2的进行分组，sum(1)代表对tuple2中的Integer进行求和
  22.         }).groupBy(0).sum(1).print();
  23.     }
  24. }

3、流处理Demo实现

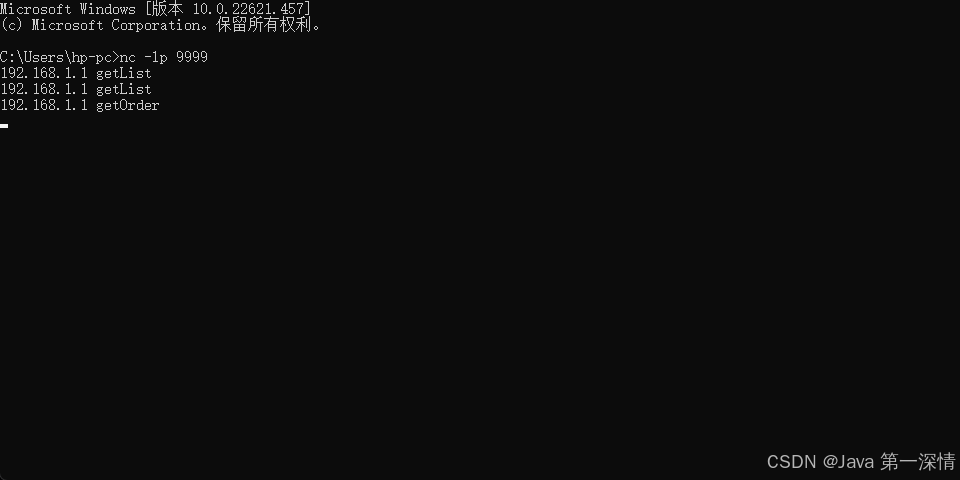

本地模拟socket请求

代码实现

  1. public class StreamProcessorApplication {
  2.
  3.     public static void main(String[] args) throws Exception{
  4.         //1.定义Flink执行环境
  5.         StreamExecutionEnvironment streamEnv = StreamExecutionEnvironment.getExecutionEnvironment();
  6.
  7.         //2.从socket数据流中读取实时流数据
  8.         DataStreamSource dataStreamSource = streamEnv.socketTextStream("127.0.0.1", 9999);
  9.
  10.         dataStreamSource.flatMap(new FlatMapFunction>() {
  11.             @Override
  12.             public void flatMap(String line, Collector> collector) throws Exception {
  13.                 String[] split = line.split("\t");
  14.                 collector.collect(new Tuple2<>(split[0],1));
  15.             }
  16.             // setParallelism设置并行流计算有多少个线程
  17.         }).keyBy(0).timeWindow(Time.seconds(5)).sum(1).print().setParallelism(1);
  18.
  19.         streamEnv.execute();
  20.     }
  21.
  22. }

Flink部署安装配置

首先确保你的Linux系统已经安装好了JDK

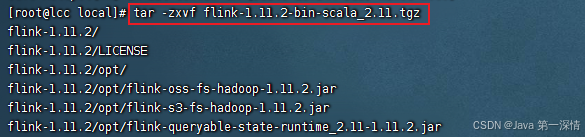

解压flink安装包

tar -zxvf flink-1.11.2-bin-scala_2.11.tgz

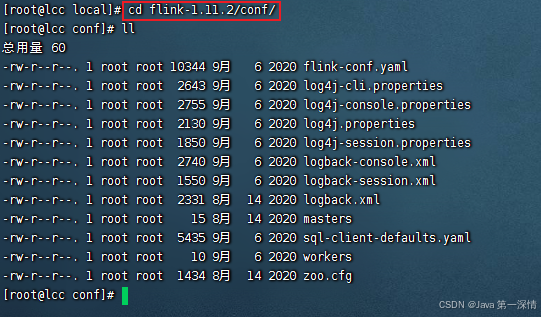

进入flink配置目录

masters 文件用于指定 Flink 集群中的主节点（JobManager）地址。它帮助集群中的各个节点知道主节点的位置，从而能够正确地连接和通信。

 flink-conf.yaml 文件是 Flink 的主要配置文件，用于配置 Flink 集群的各种参数。这个文件包含了丰富的配置选项，涵盖了从基本的集群设置到高级的性能调优。

其中的常见配置：

  • jobmanager.rpc.address:

    • 描述: 指定 JobManager 的主机名或IP地址。
    • 示例: jobmanager.rpc.address: localhost

  • jobmanager.rpc.port:

    • 描述: 指定 JobManager 的RPC端口号。
    • 示例: jobmanager.rpc.port: 6123

  • jobmanager.memory.process.size:

    • 描述: 指定 JobManager 的总内存大小。
    • 示例: jobmanager.memory.process.size: 1600m

  • taskmanager.memory.process.size:

    • 描述: 指定 TaskManager 的总内存大小。
    • 示例: taskmanager.memory.process.size: 1600m

  • taskmanager.numberOfTaskSlots:

    • 描述: 指定每个 TaskManager 的任务槽位数。
    • 示例: taskmanager.numberOfTaskSlots: 4

  • parallelism.default:

    • 描述: 指定默认的并行度。
    • 示例: parallelism.default: 4

  • state.backend:

    • 描述: 指定状态后端，可以选择 MemoryStateBackend、FsStateBackend 或 RocksDBStateBackend。
    • 示例: state.backend: rocksdb

  • rest.address:

    • 描述: 指定 REST API 的主机名或IP地址。
    • 示例: rest.address: localhost

  • rest.port:

    • 描述: 指定 REST API 的端口号。
    • 示例: rest.port: 8081

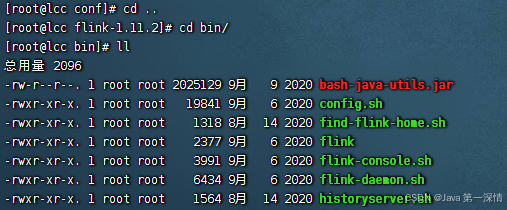

启动flink，进入到bin目录

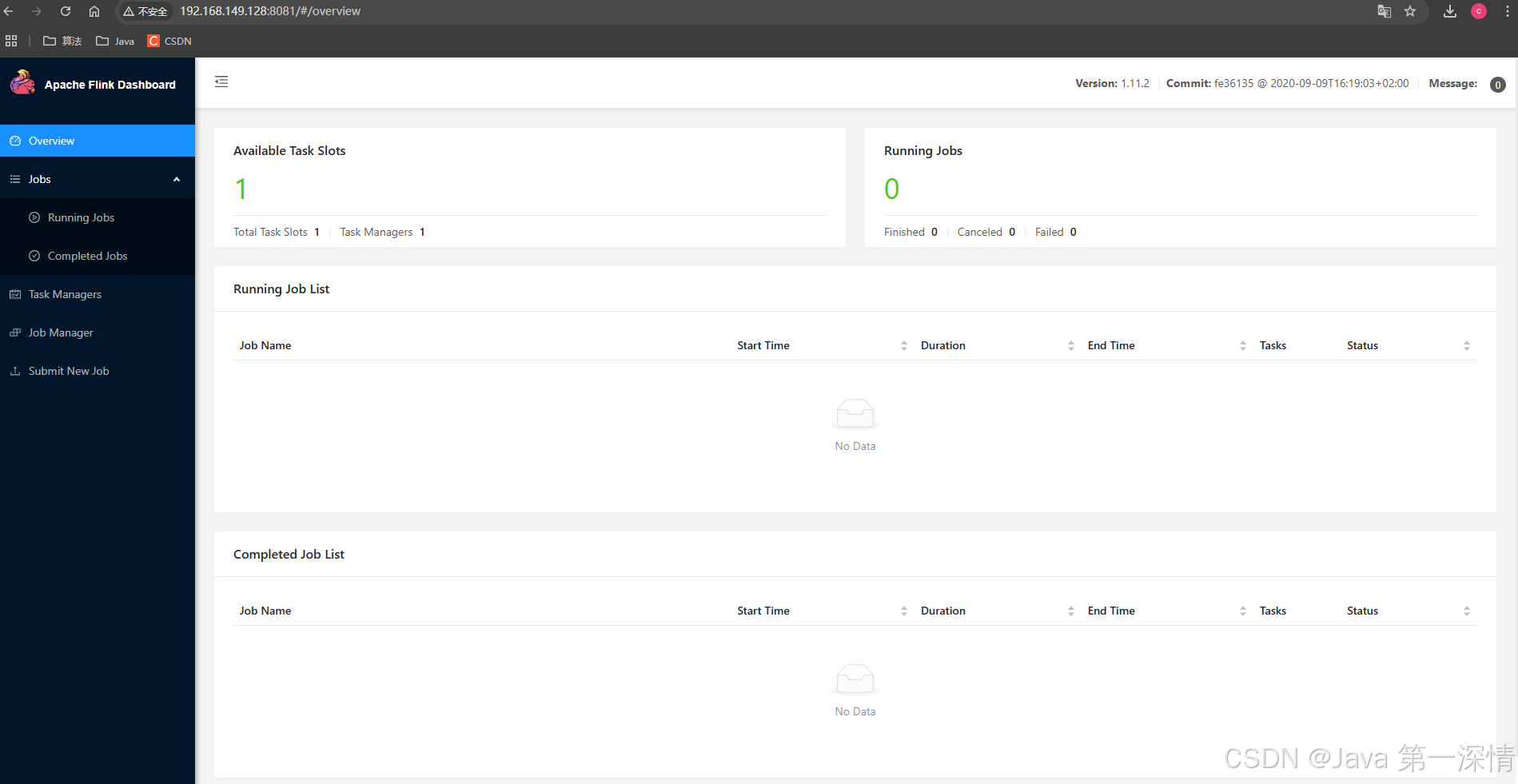

访问8081端口

到此flink安装完毕

Flink任务提交

在pom.xml文件中配置打包插件

  1. <build>
  2.         <plugins>
  3.             <plugin>
  4.                 <groupId>org.apache.maven.pluginsgroupId>
  5.                 <artifactId>maven-compiler-pluginartifactId>
  6.                 <version>3.5.1version>
  7.                 <configuration>
  8.                     <source>1.8source>
  9.                     <target>1.8target>
  10.
  11.                 configuration>
  12.             plugin>
  13.
  14.             <plugin>
  15.                 <groupId>org.apache.maven.pluginsgroupId>
  16.                 <artifactId>maven-shade-pluginartifactId>
  17.                 <version>2.3version>
  18.                 <executions>
  19.                     <execution>
  20.                         <phase>packagephase>
  21.                         <goals>
  22.                             <goal>shadegoal>
  23.                         goals>
  24.                         <configuration>
  25.                             <filters>
  26.                                 <filter>
  27.                                     <artifact>*:*artifact>
  28.                                     <excludes>
  29.
  30.                                         <exclude>META-INF/*.SFexclude>
  31.                                         <exclude>META-INF/*.DSAexclude>
  32.                                         <exclude>META-INF/*.RSAexclude>
  33.                                     excludes>
  34.                                 filter>
  35.                             filters>
  36.                             <transformers>
  37.                                 <transformer implementation="org.apache.maven.plugins.shade.resource.ManifestResourceTransformer">
  38.
  39.                                     <mainClass>com.demo.flink.usage.stream.StreamProcessorApplicationmainClass>
  40.                                 transformer>
  41.                             transformers>
  42.                         configuration>
  43.                     execution>
  44.                 executions>
  45.             plugin>
  46.         plugins>
  47.     build>

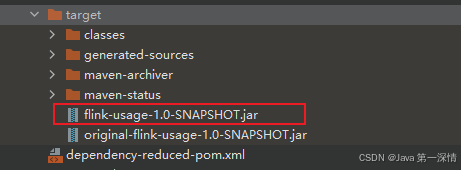

点击package打成jar包

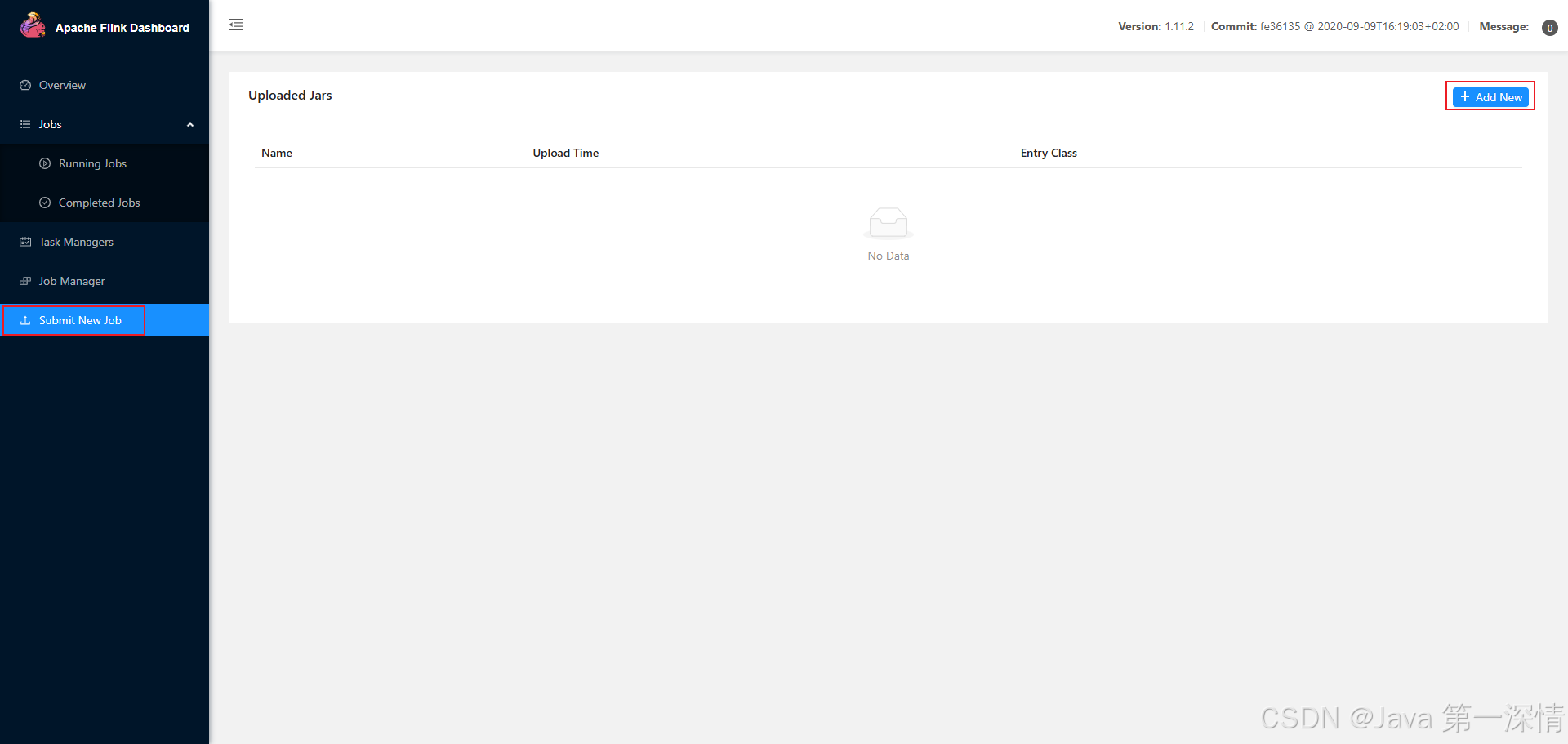

界面提交

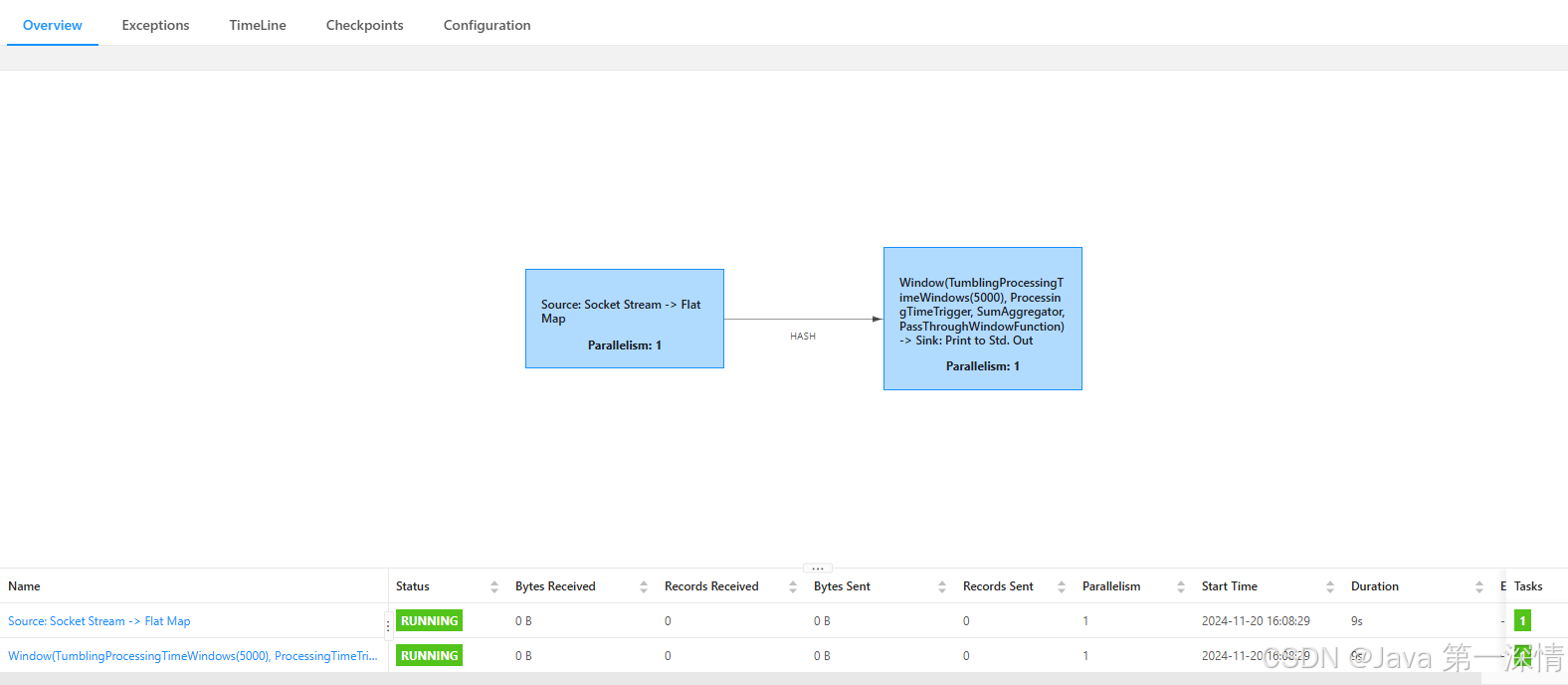

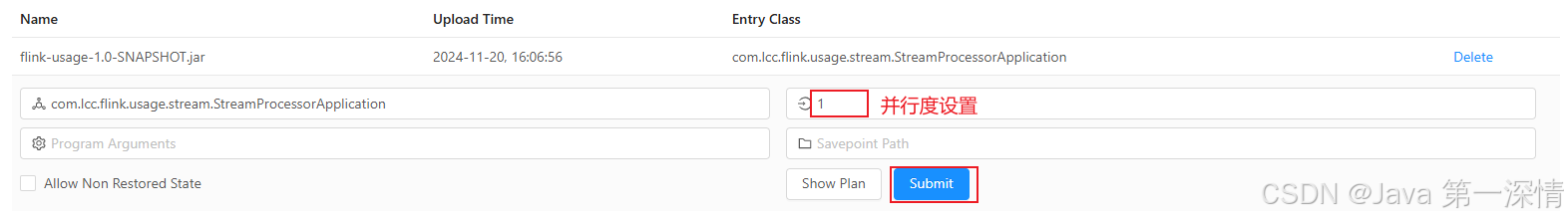

上传jar包，信息无误后，点击提交

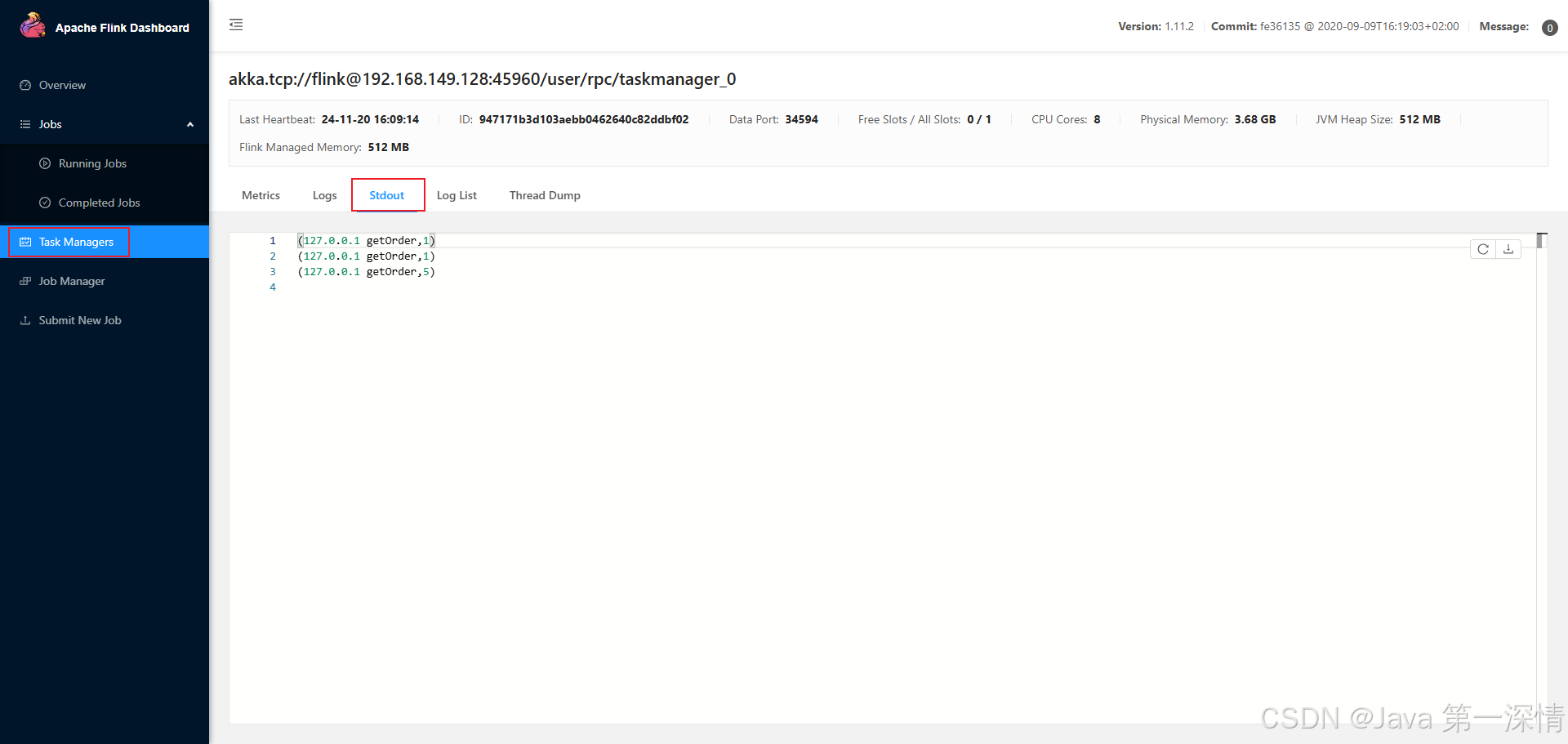

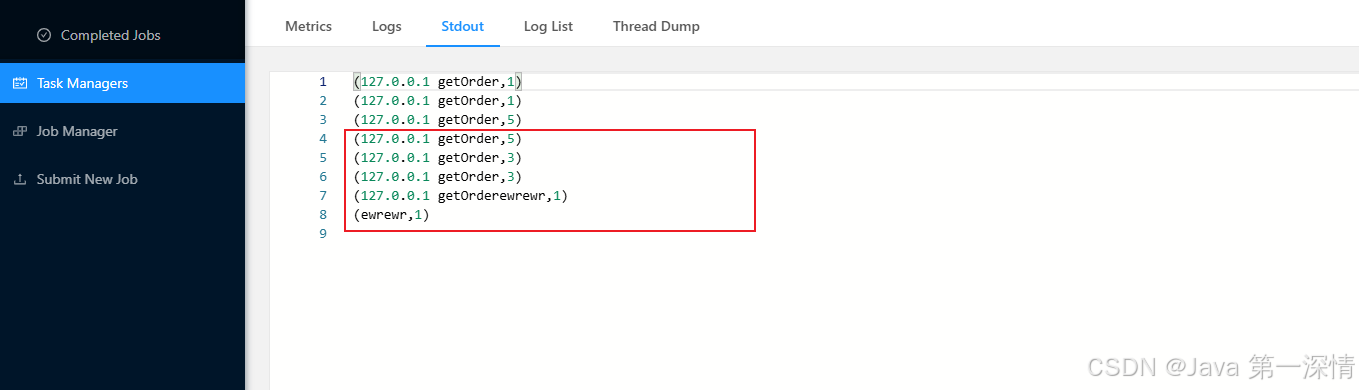

在这里就能看到输出结果了

命令行提交

上传jar包至linux

进入flink的bin目录

执行命令

./flink run -c com.demo.flink.usage.stream.StreamProcessorApplication /usr/local/flink-usage-1.0-SNAPSHOT.jar



注：本文转载自blog.csdn.net的Java 第一深情的文章"https://blog.csdn.net/qq_46248151/article/details/143885601"。版权归原作者所有，此博客不拥有其著作权，亦不承担相应法律责任。如有侵权，请联系我们删除。
复制链接
相关推荐
发表评论

评论记录：

未查询到任何数据！
