一、SPI设备对象管理与示例

前篇博客介绍了I/O设备模型框架，并以PIN设备驱动框架为例说明了RT-thread I/O设备模型框架的实现原理，下面以SPI设备驱动框架为例再做进一步介绍。SPI设备与QSPI设备CubeMX配置及HAL API库函数的使用可参考博客：SPI + QSPI + HAL。

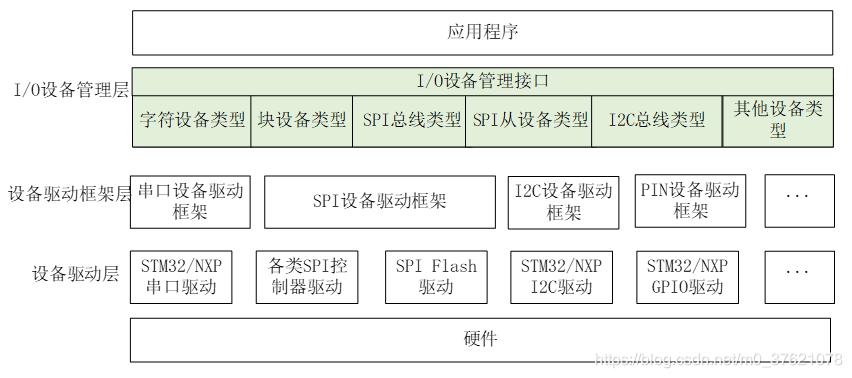

RT-Thread I/O设备模型框架
最上层的I/O设备管理层在前篇博客已经介绍过了，下面从中间的SPI设备驱动框架层开始介绍。

1.1 SPI设备驱动框架层

由于SPI设备是主从通信，所以需要对主设备和从设备分别进行描述，SPI主设备称为SPI总线，SPI从设备称为SPI设备，一个SPI总线上可以绑定多个SPI设备。

SPI总线控制块

先看SPI总线在驱动框架层是如何描述的：

// rt-thread-4.0.1\components\drivers\include\drivers\spi.h

struct rt_spi_bus
{
    struct rt_device parent;
    rt_uint8_t mode;
    const struct rt_spi_ops *ops;

    struct rt_mutex lock;
    struct rt_spi_device *owner;
};

/**
 * SPI operators
 */
struct rt_spi_ops
{
    rt_err_t (*configure)(struct rt_spi_device *device, struct rt_spi_configuration *configuration);
    rt_uint32_t (*xfer)(struct rt_spi_device *device, struct rt_spi_message *message);
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

SPI设备控制块

SPI总线虽然可绑定多个SPI设备，但每次只能与一个从设备通信，所以SPI总线在某时刻拥有一个SPI设备，SPI设备在驱动框架层的描述如下：

// rt-thread-4.0.1\components\drivers\include\drivers\spi.h

/**
 * SPI Virtual BUS, one device must connected to a virtual BUS
 */
struct rt_spi_device
{
    struct rt_device parent;
    struct rt_spi_bus *bus;

    struct rt_spi_configuration config;
    void   *user_data;
};

/**
 * SPI configuration structure
 */
struct rt_spi_configuration
{
    rt_uint8_t mode;
    rt_uint8_t data_width;
    rt_uint16_t reserved;

    rt_uint32_t max_hz;
};

/**
 * SPI message structure
 */
struct rt_spi_message
{
    const void *send_buf;
    void *recv_buf;
    rt_size_t length;
    struct rt_spi_message *next;

    unsigned cs_take    : 1;
    unsigned cs_release : 1;
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39

SPI总线对SPI设备的访问只有两种方法：一个是对SPI设备进行参数配置，配置函数是rt_spi_ops.configure，配置参数结构体为rt_spi_configuration；另一个是在SPI主从设备间进行数据传输，传输数据的函数是rt_spi_ops.xfer，传输的消息结构体为rt_spi_message。

QSPI设备控制块

// rt-thread-4.0.1\components\drivers\include\drivers\spi.h

struct rt_qspi_device
{
    struct rt_spi_device parent;

    struct rt_qspi_configuration config;

    void (*enter_qspi_mode)(struct rt_qspi_device *device);

    void (*exit_qspi_mode)(struct rt_qspi_device *device);
};

struct rt_qspi_configuration
{
    struct rt_spi_configuration parent;
    /* The size of medium */
    rt_uint32_t medium_size;
    /* double data rate mode */
    rt_uint8_t ddr_mode;
    /* the data lines max width which QSPI bus supported, such as 1, 2, 4 */
    rt_uint8_t qspi_dl_width ;
};

struct rt_qspi_message
{
    struct rt_spi_message parent;

    /* instruction stage */
    struct
    {
        rt_uint8_t content;
        rt_uint8_t qspi_lines;
    } instruction;

    /* address and alternate_bytes stage */
    struct
    {
        rt_uint32_t content;
        rt_uint8_t size;
        rt_uint8_t qspi_lines;
    } address, alternate_bytes;

    /* dummy_cycles stage */
    rt_uint32_t dummy_cycles;

    /* number of lines in qspi data stage, the other configuration items are in parent */
    rt_uint8_t qspi_data_lines;
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49

QSPI总线对QSPI设备的访问操作跟SPI一致，所以QSPI总线就不再单独用结构体描述了，直接使用SPI总线结构体，但作为QSPI总线使用时，rt_spi_ops两个操作函数指针指向的函数不同，传入的参数指针也不同，QSPI总线拥有的设备也会指向rt_qspi_device，由于rt_qspi_device继承自rt_spi_device，二者首地址一致，rt_spi_bus.owner指向QSPI设备也是可以的。

QSPI实际上是对SPI的扩展增强，从SPI设备与QSPI设备的描述结构体也可以看出，QSPI设备结构体都继承自SPI结构体，并对其进行成员扩展。为了支持QSPI的命令序列，rt_qspi_message扩展出了QSPI命令序列的指令、地址、复用交替字节、空时钟周期、数据等五个阶段的参数描述。

SPI总线接口函数

I/O设备管理层要想访问某设备，需要在下面的设备驱动层创建设备实例，并将该设备注册到I/O设备管理层，下面先看看SPI总线的创建与注册过程：

// rt-thread-4.0.1\components\drivers\spi\spi_core.c

rt_err_t rt_spi_bus_register(struct rt_spi_bus       *bus,
                             const char              *name,
                             const struct rt_spi_ops *ops)
{
    rt_err_t result;

    result = rt_spi_bus_device_init(bus, name);
    if (result != RT_EOK)
        return result;

    /* initialize mutex lock */
    rt_mutex_init(&(bus->lock), name, RT_IPC_FLAG_FIFO);
    /* set ops */
    bus->ops = ops;
    /* initialize owner */
    bus->owner = RT_NULL;
    /* set bus mode */
    bus->mode = RT_SPI_BUS_MODE_SPI;

    return RT_EOK;
}

// rt-thread-4.0.1\components\drivers\spi\spi_dev.c

rt_err_t rt_spi_bus_device_init(struct rt_spi_bus *bus, const char *name)
{
    struct rt_device *device;
    RT_ASSERT(bus != RT_NULL);

    device = &bus->parent;

    /* set device type */
    device->type    = RT_Device_Class_SPIBUS;
    /* initialize device interface */
#ifdef RT_USING_DEVICE_OPS
    device->ops     = &spi_bus_ops;
#else
    device->init    = RT_NULL;
    device->open    = RT_NULL;
    device->close   = RT_NULL;
    device->read    = _spi_bus_device_read;
    device->write   = _spi_bus_device_write;
    device->control = _spi_bus_device_control;
#endif

    /* register to device manager */
    return rt_device_register(device, name, RT_DEVICE_FLAG_RDWR);
}

#ifdef RT_USING_DEVICE_OPS
const static struct rt_device_ops spi_bus_ops =
{
    RT_NULL,
    RT_NULL,
    RT_NULL,
    _spi_bus_device_read,
    _spi_bus_device_write,
    _spi_bus_device_control
};
#endif

static rt_size_t _spi_bus_device_read(rt_device_t dev,
                                      rt_off_t    pos,
                                      void       *buffer,
                                      rt_size_t   size)
{
    struct rt_spi_bus *bus = (struct rt_spi_bus *)dev;
    RT_ASSERT(bus != RT_NULL);
    RT_ASSERT(bus->owner != RT_NULL);

    return rt_spi_transfer(bus->owner, RT_NULL, buffer, size);
}

static rt_size_t _spi_bus_device_write(rt_device_t dev,
                                       rt_off_t    pos,
                                       const void *buffer,
                                       rt_size_t   size)
{
    struct rt_spi_bus *bus = (struct rt_spi_bus *)dev;
    RT_ASSERT(bus != RT_NULL);
    RT_ASSERT(bus->owner != RT_NULL);

    return rt_spi_transfer(bus->owner, buffer, RT_NULL, size);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86

SPI驱动框架层向上层注册的操作函数集合spi_bus_ops最终通过调用rt_spi_transfer与rt_spi_configure实现，这两个函数实际最终调用的是rt_spi_bus.ops（也即rt_spi_ops），这两个函数的实现由下层的SPI设备驱动层实现。

SPI设备接口函数

SPI总线初始化并注册完成后，需要把SPI设备绑定到相应的总线上才能进行SPI通信，SPI设备绑定到SPI总线的过程如下：

// rt-thread-4.0.1\components\drivers\spi\spi_core.c

rt_err_t rt_spi_bus_attach_device(struct rt_spi_device *device,
                                  const char           *name,
                                  const char           *bus_name,
                                  void                 *user_data)
{
    rt_err_t result;
    rt_device_t bus;

    /* get physical spi bus */
    bus = rt_device_find(bus_name);
    if (bus != RT_NULL && bus->type == RT_Device_Class_SPIBUS)
    {
        device->bus = (struct rt_spi_bus *)bus;

        /* initialize spidev device */
        result = rt_spidev_device_init(device, name);
        if (result != RT_EOK)
            return result;

        rt_memset(&device->config, 0, sizeof(device->config));
        device->parent.user_data = user_data;

        return RT_EOK;
    }

    /* not found the host bus */
    return -RT_ERROR;
}

rt_err_t rt_spidev_device_init(struct rt_spi_device *dev, const char *name)
{
    struct rt_device *device;
    RT_ASSERT(dev != RT_NULL);

    device = &(dev->parent);

    /* set device type */
    device->type    = RT_Device_Class_SPIDevice;
#ifdef RT_USING_DEVICE_OPS
    device->ops     = &spi_device_ops;
#else
    device->init    = RT_NULL;
    device->open    = RT_NULL;
    device->close   = RT_NULL;
    device->read    = _spidev_device_read;
    device->write   = _spidev_device_write;
    device->control = _spidev_device_control;
#endif

    /* register to device manager */
    return rt_device_register(device, name, RT_DEVICE_FLAG_RDWR);
}

#ifdef RT_USING_DEVICE_OPS
const static struct rt_device_ops spi_device_ops =
{
    RT_NULL,
    RT_NULL,
    RT_NULL,
    _spidev_device_read,
    _spidev_device_write,
    _spidev_device_control
};
#endif

/* SPI Dev device interface, compatible with RT-Thread 0.3.x/1.0.x */
static rt_size_t _spidev_device_read(rt_device_t dev,
                                     rt_off_t    pos,
                                     void       *buffer,
                                     rt_size_t   size)
{
    struct rt_spi_device *device = (struct rt_spi_device *)dev;
    RT_ASSERT(device != RT_NULL);
    RT_ASSERT(device->bus != RT_NULL);

    return rt_spi_transfer(device, RT_NULL, buffer, size);
}

static rt_size_t _spidev_device_write(rt_device_t dev,
                                      rt_off_t    pos,
                                      const void *buffer,
                                      rt_size_t   size)
{
    struct rt_spi_device *device= = (struct rt_spi_device *)dev;
    RT_ASSERT(device != RT_NULL);
    RT_ASSERT(device->bus != RT_NULL);

    return rt_spi_transfer(device, buffer, RT_NULL, size);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91

SPI设备向上层注册的操作函数集合与SPI总线类似，用户可以通过上层提供的统一接口rt_device_ops来访问SPI设备。

SPI设备也向用户提供了SPI设备驱动框架层的一些API接口，最主要的是rt_spi_ops的两个接口：

// rt-thread-4.0.1\components\drivers\spi\spi_core.c

/**
 * This function set configuration on SPI device.
 *
 * @param device the SPI device attached to SPI bus
 * @param cfg the config parameter to be set to SPI device
 *
 * @return RT_EOK if set config successfully.
*/
rt_err_t rt_spi_configure(struct rt_spi_device        *device,
                          struct rt_spi_configuration *cfg);

/**
 * This function transfers a message list to the SPI device.
 *
 * @param device the SPI device attached to SPI bus
 * @param message the message list to be transmitted to SPI device
 *
 * @return RT_NULL if transmits message list successfully,
 *         SPI message which be transmitted failed.
 */
struct rt_spi_message *rt_spi_transfer_message(struct rt_spi_device  *device,
                                               struct rt_spi_message *message);
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

SPI设备接口除了上面两个外，还有为方便用户，基于这两个函数扩展出来的接口函数：

// rt-thread-4.0.1\components\drivers\spi\spi_core.c

/**
 * This function transmits data to SPI device.
 *
 * @param device the SPI device attached to SPI bus
 * @param send_buf the buffer to be transmitted to SPI device.
 * @param recv_buf the buffer to save received data from SPI device.
 * @param length the length of transmitted data.
 *
 * @return the actual length of transmitted.
 */
rt_size_t rt_spi_transfer(struct rt_spi_device *device,
                          const void           *send_buf,
                          void                 *recv_buf,
                          rt_size_t             length);

/* send data then receive data from SPI device */
rt_err_t rt_spi_send_then_recv(struct rt_spi_device *device,
                               const void           *send_buf,
                               rt_size_t             send_length,
                               void                 *recv_buf,
                               rt_size_t             recv_length);

rt_err_t rt_spi_send_then_send(struct rt_spi_device *device,
                               const void           *send_buf1,
                               rt_size_t             send_length1,
                               const void           *send_buf2,
                               rt_size_t             send_length2);

rt_size_t rt_spi_recv(struct rt_spi_device *device,
                      void                 *recv_buf,
                      rt_size_t             length);

rt_size_t rt_spi_send(struct rt_spi_device *device,
                      const void           *send_buf,
                      rt_size_t             length);
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37

一个SPI总线有时需要连接多个SPI设备，但每次只能与其中一个SPI设备通信，为解决SPI总线在多个SPI设备中的访问互斥问题，SPI设备驱动框架层提供了SPI总线与SPI设备的获取/释放函数接口：

// rt-thread-4.0.1\components\drivers\spi\spi_core.c

/**
 * This function takes SPI bus.
 *
 * @param device the SPI device attached to SPI bus
 *
 * @return RT_EOK on taken SPI bus successfully. others on taken SPI bus failed.
 */
rt_err_t rt_spi_take_bus(struct rt_spi_device *device);

/**
 * This function releases SPI bus.
 *
 * @param device the SPI device attached to SPI bus
 *
 * @return RT_EOK on release SPI bus successfully.
 */
rt_err_t rt_spi_release_bus(struct rt_spi_device *device);

/**
 * This function take SPI device (takes CS of SPI device).
 *
 * @param device the SPI device attached to SPI bus
 *
 * @return RT_EOK on release SPI bus successfully. others on taken SPI bus failed.
 */
rt_err_t rt_spi_take(struct rt_spi_device *device);

/**
 * This function releases SPI device (releases CS of SPI device).
 *  * @param device the SPI device attached to SPI bus
 *  * @return RT_EOK on release SPI device successfully.
 */
rt_err_t rt_spi_release(struct rt_spi_device *device);
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

QSPI总线接口函数

QSPI总线与SPI总线虽然共有描述结构体，但其中的成员参数配置有些许差异，为此QSPI总线创建与注册函数在SPI总线注册函数的基础上进行了封装，QSPI总线注册函数如下：

// rt-thread-4.0.1\components\drivers\spi\qspi_core.c

rt_err_t rt_qspi_bus_register(struct rt_spi_bus *bus, const char *name, const struct rt_spi_ops *ops)
{
    rt_err_t result = RT_EOK;

    result = rt_spi_bus_register(bus, name, ops);
    if(result == RT_EOK)
    {
        /* set SPI bus to qspi modes */
        bus->mode = RT_SPI_BUS_MODE_QSPI;
    }

    return result;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

QSPI设备接口函数

QSPI设备绑定到QSPI总线的函数并没有在QSPI驱动框架层提供，这里就不介绍了。

QSPI设备的配置与传输函数声明如下：

// rt-thread-4.0.1\components\drivers\spi\qspi_core.c

/**
 * This function can set configuration on QSPI device.
 *
 * @param device the QSPI device attached to QSPI bus.
 * @param cfg the configuration pointer.
 *
 * @return the actual length of transmitted.
 */
rt_err_t rt_qspi_configure(struct rt_qspi_device *device, struct rt_qspi_configuration *cfg);

/**
 * This function transmits data to QSPI device.
 *
 * @param device the QSPI device attached to QSPI bus.
 * @param message the message pointer.
 *
 * @return the actual length of transmitted.
 */
rt_size_t rt_qspi_transfer_message(struct rt_qspi_device  *device, struct rt_qspi_message *message);

/**
 * This function can send data then receive data from QSPI device
 *
 * @param device the QSPI device attached to QSPI bus.
 * @param send_buf the buffer to be transmitted to QSPI device.
 * @param send_length the number of data to be transmitted.
 * @param recv_buf the buffer to be recivied from QSPI device.
 * @param recv_length the data to be recivied.
 *
 * @return the status of transmit.
 */
rt_err_t rt_qspi_send_then_recv(struct rt_qspi_device *device, const void *send_buf, rt_size_t send_length,void *recv_buf, rt_size_t recv_length);

/**
 * This function can send data to QSPI device
 *
 * @param device the QSPI device attached to QSPI bus.
 * @param send_buf the buffer to be transmitted to QSPI device.
 * @param send_length the number of data to be transmitted.
 *
 * @return the status of transmit.
 */
rt_err_t rt_qspi_send(struct rt_qspi_device *device, const void *send_buf, rt_size_t length);
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45

QSPI的接口函数最终由注册到QSPI总线的操作函数集合rt_spi_ops实现，rt_spi_ops中的两个函数则有QSPI设备驱动层提供。

1.2 SPI设备驱动层

在SPI设备驱动层，并没有刻意将SPI主从设备分开描述，SPI总线与SPI设备更多的是方便上层协议管理而抽象出来的。

SPI设备驱动描述

在STM32 HAL库中有结构体SPI_HandleTypeDef描述SPI外设，RT-Thread为方便上面SPI设备驱动框架层的管理又增添了一些成员变量，比如配置参数（包括SPI配置参数与DMA配置参数）等，SPI设备驱动描述如下：

// libraries\HAL_Drivers\drv_spi.h

/* stm32 spi dirver class */
struct stm32_spi
{
    SPI_HandleTypeDef handle;
    struct stm32_spi_config *config;
    struct rt_spi_configuration *cfg;

    struct
    {
        DMA_HandleTypeDef handle_rx;
        DMA_HandleTypeDef handle_tx;
    } dma;

    rt_uint8_t spi_dma_flag;
    struct rt_spi_bus spi_bus;
};

struct stm32_spi_config
{
    SPI_TypeDef *Instance;
    char *bus_name;
    struct dma_config *dma_rx, *dma_tx;
};

struct stm32_spi_device
{
    rt_uint32_t pin;
    char *bus_name;
    char *device_name;
};

struct stm32_hw_spi_cs
{
    GPIO_TypeDef* GPIOx;
    uint16_t GPIO_Pin;
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38

SPI设备有一个片选引脚NCS，一般SPI设备只有一个片选引脚，当出现一主多从SPI设备时，SPI主设备的片选引脚不够用，可以使用GPIO引脚作为NCS片选引脚，每个GPIO控制一个SPI从设备的片选使能，这种方式成为NCS的软件控制模式，也是较常用的方式。

SPI设备驱动可由结构体stm32_spi描述，为方便向上面的SPI驱动框架层注册绑定设备，还提供了stm32_spi_device结构体，包含SPI总线名、SPI设备名、SPI设备的片选引脚等。

SPI设备驱动接口

首先看SPI驱动初始化过程：

// libraries\HAL_Drivers\drv_spi.c

int rt_hw_spi_init(void)
{
    stm32_get_dma_info();
    return rt_hw_spi_bus_init();
}
INIT_BOARD_EXPORT(rt_hw_spi_init);

static int rt_hw_spi_bus_init(void)
{
    rt_err_t result;
    for (int i = 0; i < sizeof(spi_config) / sizeof(spi_config[0]); i++)
    {
        spi_bus_obj[i].config = &spi_config[i];
        spi_bus_obj[i].spi_bus.parent.user_data = &spi_config[i];
        spi_bus_obj[i].handle.Instance = spi_config[i].Instance;

        if (spi_bus_obj[i].spi_dma_flag & SPI_USING_RX_DMA_FLAG)
        {
            /* Configure the DMA handler for Transmission process */
			......
        }

        if (spi_bus_obj[i].spi_dma_flag & SPI_USING_TX_DMA_FLAG)
        {
            /* Configure the DMA handler for Transmission process */
           ......
        }

        result = rt_spi_bus_register(&spi_bus_obj[i].spi_bus, spi_config[i].bus_name, &stm_spi_ops);
        RT_ASSERT(result == RT_EOK);

        LOG_D("%s bus init done", spi_config[i].bus_name);
    }

    return result;
}

static struct stm32_spi spi_bus_obj[sizeof(spi_config) / sizeof(spi_config[0])] = {0};

static struct stm32_spi_config spi_config[] =
{
#ifdef BSP_USING_SPI1
    SPI1_BUS_CONFIG,
#endif
......
#ifdef BSP_USING_SPI6
    SPI6_BUS_CONFIG,
#endif
};

// libraries\HAL_Drivers\config\l4\spi_config.h

#ifdef BSP_USING_SPI1
#ifndef SPI1_BUS_CONFIG
#define SPI1_BUS_CONFIG                                     \
    {                                                       \
        .Instance = SPI1,                                   \
        .bus_name = "spi1",                                 \
    }
#endif /* SPI1_BUS_CONFIG */
#endif /* BSP_USING_SPI1 */

#ifdef BSP_SPI1_TX_USING_DMA
#ifndef SPI1_TX_DMA_CONFIG
#define SPI1_TX_DMA_CONFIG                                  \
    {                                                       \
        .dma_rcc = SPI1_TX_DMA_RCC,                         \
        .Instance = SPI1_TX_DMA_INSTANCE,                   \
        .request = SPI1_TX_DMA_REQUEST,                     \
        .dma_irq = SPI1_TX_DMA_IRQ,                         \
    }
#endif /* SPI1_TX_DMA_CONFIG */
#endif /* BSP_SPI1_TX_USING_DMA */

#ifdef BSP_SPI1_RX_USING_DMA
#ifndef SPI1_RX_DMA_CONFIG
#define SPI1_RX_DMA_CONFIG                                  \
    {                                                       \
        .dma_rcc = SPI1_RX_DMA_RCC,                         \
        .Instance = SPI1_RX_DMA_INSTANCE,                   \
        .request = SPI1_RX_DMA_REQUEST,                     \
        .dma_irq = SPI1_RX_DMA_IRQ,                         \
    }
#endif /* SPI1_RX_DMA_CONFIG */
#endif /* BSP_SPI1_RX_USING_DMA */
......
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88

从上面的代码可以看出，SPI驱动初始化函数通过RT-Thread自动初始化组件完成，不需要我们再去调用。SPI的驱动初始化函数主要完成了SPI所有总线的参数配置和SPI总线向上层的注册，SPI总线注册函数rt_spi_bus_register前面介绍过。SPI总线的配置参数stm32_spi_config在一个专门的配置文件\HAL_Drivers\config\l4\spi_config.h中以宏定义形式给出。

接下来看SPI总线注册的操作函数集合：

// libraries\HAL_Drivers\drv_spi.c

static const struct rt_spi_ops stm_spi_ops =
{
    .configure = spi_configure,
    .xfer = spixfer,
};

static rt_err_t spi_configure(struct rt_spi_device *device,
                              struct rt_spi_configuration *configuration)
{
    RT_ASSERT(device != RT_NULL);
    RT_ASSERT(configuration != RT_NULL);

    struct stm32_spi *spi_drv =  rt_container_of(device->bus, struct stm32_spi, spi_bus);
    spi_drv->cfg = configuration;

    return stm32_spi_init(spi_drv, configuration);
}

static rt_uint32_t spixfer(struct rt_spi_device *device, struct rt_spi_message *message)
{
    HAL_StatusTypeDef state;
    rt_size_t message_length, already_send_length;
    rt_uint16_t send_length;
    rt_uint8_t *recv_buf;
    const rt_uint8_t *send_buf;

    struct stm32_spi *spi_drv =  rt_container_of(device->bus, struct stm32_spi, spi_bus);
    SPI_HandleTypeDef *spi_handle = &spi_drv->handle;
    struct stm32_hw_spi_cs *cs = device->parent.user_data;

    if (message->cs_take)
    {
        HAL_GPIO_WritePin(cs->GPIOx, cs->GPIO_Pin, GPIO_PIN_RESET);
    }

    message_length = message->length;
    recv_buf = message->recv_buf;
    send_buf = message->send_buf;
    while (message_length)
    {
        /* the HAL library use uint16 to save the data length */
        if (message_length > 65535)
        {
            send_length = 65535;
            message_length = message_length - 65535;
        }
        else
        {
            send_length = message_length;
            message_length = 0;
        }

        /* calculate the start address */
        already_send_length = message->length - send_length - message_length;
        send_buf = (rt_uint8_t *)message->send_buf + already_send_length;
        recv_buf = (rt_uint8_t *)message->recv_buf + already_send_length;

        /* start once data exchange in DMA mode */
        if (message->send_buf && message->recv_buf)
        {
            if ((spi_drv->spi_dma_flag & SPI_USING_TX_DMA_FLAG) && (spi_drv->spi_dma_flag & SPI_USING_RX_DMA_FLAG))
            {
                state = HAL_SPI_TransmitReceive_DMA(spi_handle, (uint8_t *)send_buf, (uint8_t *)recv_buf, send_length);
            }
            else
            {
                state = HAL_SPI_TransmitReceive(spi_handle, (uint8_t *)send_buf, (uint8_t *)recv_buf, send_length, 1000);
            }
        }
        else if (message->send_buf)
        {
            if (spi_drv->spi_dma_flag & SPI_USING_TX_DMA_FLAG)
            {
                state = HAL_SPI_Transmit_DMA(spi_handle, (uint8_t *)send_buf, send_length);
            }
            else
            {
                state = HAL_SPI_Transmit(spi_handle, (uint8_t *)send_buf, send_length, 1000);
            }
        }
        else
        {
            memset((uint8_t *)recv_buf, 0xff, send_length);
            if (spi_drv->spi_dma_flag & SPI_USING_RX_DMA_FLAG)
            {
                state = HAL_SPI_Receive_DMA(spi_handle, (uint8_t *)recv_buf, send_length);
            }
            else
            {
                state = HAL_SPI_Receive(spi_handle, (uint8_t *)recv_buf, send_length, 1000);
            }
        }

        if (state != HAL_OK)
        {
            LOG_I("spi transfer error : %d", state);
            message->length = 0;
            spi_handle->State = HAL_SPI_STATE_READY;
        }
        else
        {
            LOG_D("%s transfer done", spi_drv->config->bus_name);
        }

        /* For simplicity reasons, this example is just waiting till the end of the
           transfer, but application may perform other tasks while transfer operation
           is ongoing. */
        while (HAL_SPI_GetState(spi_handle) != HAL_SPI_STATE_READY);
    }

    if (message->cs_release)
    {
        HAL_GPIO_WritePin(cs->GPIOx, cs->GPIO_Pin, GPIO_PIN_SET);
    }

    return message->length;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119

SPI这两个操作函数实际最终调用的是STM32 HAL SPI库函数，也是上层接口函数在底层的最终实现函数。

最后看SPI设备的绑定过程：

// libraries\HAL_Drivers\drv_spi.c

/**
 * Attach the spi device to SPI bus, this function must be used after initialization.
  */
rt_err_t rt_hw_spi_device_attach(const char *bus_name, const char *device_name, GPIO_TypeDef *cs_gpiox, uint16_t cs_gpio_pin)
{
    RT_ASSERT(bus_name != RT_NULL);
    RT_ASSERT(device_name != RT_NULL);

    rt_err_t result;
    struct rt_spi_device *spi_device;
    struct stm32_hw_spi_cs *cs_pin;

    /* initialize the cs pin && select the slave*/
    GPIO_InitTypeDef GPIO_Initure;
    GPIO_Initure.Pin = cs_gpio_pin;
    GPIO_Initure.Mode = GPIO_MODE_OUTPUT_PP;
    GPIO_Initure.Pull = GPIO_PULLUP;
    GPIO_Initure.Speed = GPIO_SPEED_FREQ_HIGH;
    HAL_GPIO_Init(cs_gpiox, &GPIO_Initure);
    HAL_GPIO_WritePin(cs_gpiox, cs_gpio_pin, GPIO_PIN_SET);

    /* attach the device to spi bus*/
    spi_device = (struct rt_spi_device *)rt_malloc(sizeof(struct rt_spi_device));
    RT_ASSERT(spi_device != RT_NULL);
    cs_pin = (struct stm32_hw_spi_cs *)rt_malloc(sizeof(struct stm32_hw_spi_cs));
    RT_ASSERT(cs_pin != RT_NULL);
    cs_pin->GPIOx = cs_gpiox;
    cs_pin->GPIO_Pin = cs_gpio_pin;
    result = rt_spi_bus_attach_device(spi_device, device_name, bus_name, (void *)cs_pin);

    if (result != RT_EOK)
    {
        LOG_E("%s attach to %s faild, %d\n", device_name, bus_name, result);
    }

    RT_ASSERT(result == RT_EOK);

    LOG_D("%s attach to %s done", device_name, bus_name);

    return result;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43

SPI设备绑定函数传入的参数正好是结构体stm32_spi_device的成员，从该函数实现代码看，使用CubeMX配置SPI外设时不需要配置NCS片选引脚和DMA通道，这部分配置有RT-Thread提供的SPI驱动完成，SPI设备绑定最终要调用上层的SPI设备绑定函数rt_spi_bus_attach_device，该函数在前面也介绍过了。

QSPI设备驱动接口

首先看QSPI驱动初始化过程：

// libraries\HAL_Drivers\drv_qspi.c

static int rt_hw_qspi_bus_init(void)
{
    return stm32_qspi_register_bus(&_stm32_qspi_bus, "qspi1");
}
INIT_BOARD_EXPORT(rt_hw_qspi_bus_init);

struct stm32_qspi_bus
{
    QSPI_HandleTypeDef QSPI_Handler;
    char *bus_name;
#ifdef BSP_QSPI_USING_DMA
    DMA_HandleTypeDef hdma_quadspi;
#endif
};

struct rt_spi_bus _qspi_bus1;
struct stm32_qspi_bus _stm32_qspi_bus;

static int stm32_qspi_register_bus(struct stm32_qspi_bus *qspi_bus, const char *name)
{
    RT_ASSERT(qspi_bus != RT_NULL);
    RT_ASSERT(name != RT_NULL);

    _qspi_bus1.parent.user_data = qspi_bus;
    return rt_qspi_bus_register(&_qspi_bus1, name, &stm32_qspi_ops);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

QSPI驱动与SPI驱动初始化类似，依然使用RT-Thread自动初始化组件完成初始化，不需用户再调用初始化函数。与SPI不同的是，QSPI一般只有一组外设，所以QSPI驱动描述相比SPI更简单，比如上面的QSPI总线注册函数stm32_qspi_register_bus传递QSPI总线名时直接传入字符串"qspi1"，而不需要像SPI驱动那样使用数组容器spi_bus_obj[i]来表示SPI总线。QSPI总线注册函数最终调用的是上层的函数rt_qspi_bus_register，这个函数的实现过程在前面介绍过。

接下来看QSPI总线注册的操作函数集合：

// libraries\HAL_Drivers\drv_qspi.c

static const struct rt_spi_ops stm32_qspi_ops =
{
    .configure = qspi_configure,
    .xfer = qspixfer,
};

static rt_err_t qspi_configure(struct rt_spi_device *device, struct rt_spi_configuration *configuration)
{
    RT_ASSERT(device != RT_NULL);
    RT_ASSERT(configuration != RT_NULL);

    struct rt_qspi_device *qspi_device = (struct rt_qspi_device *)device;
    return stm32_qspi_init(qspi_device, &qspi_device->config);
}

static int stm32_qspi_init(struct rt_qspi_device *device, struct rt_qspi_configuration *qspi_cfg)
{
	......
    QSPI_HandleTypeDef QSPI_Handler_config = QSPI_BUS_CONFIG;
    qspi_bus->QSPI_Handler = QSPI_Handler_config;
    ......
    result = HAL_QSPI_Init(&qspi_bus->QSPI_Handler);
    if (result  == HAL_OK)
    {
        LOG_D("qspi init success!");
    }
    else
    {
        LOG_E("qspi init failed (%d)!", result);
    }

#ifdef BSP_QSPI_USING_DMA
    /* QSPI interrupts must be enabled when using the HAL_QSPI_Receive_DMA */
    ......
    DMA_HandleTypeDef hdma_quadspi_config = QSPI_DMA_CONFIG;
    qspi_bus->hdma_quadspi = hdma_quadspi_config;

    if (HAL_DMA_Init(&qspi_bus->hdma_quadspi) != HAL_OK)
    {
        LOG_E("qspi dma init failed (%d)!", result);
    }
    __HAL_LINKDMA(&qspi_bus->QSPI_Handler, hdma, qspi_bus->hdma_quadspi);
#endif /* BSP_QSPI_USING_DMA */

    return result;
}

static rt_uint32_t qspixfer(struct rt_spi_device *device, struct rt_spi_message *message)
{
    rt_size_t len = 0;

    struct rt_qspi_message *qspi_message = (struct rt_qspi_message *)message;
    struct stm32_qspi_bus *qspi_bus = device->bus->parent.user_data;
#ifdef BSP_QSPI_USING_SOFTCS
    struct stm32_hw_spi_cs *cs = device->parent.user_data;
#endif

    const rt_uint8_t *sndb = message->send_buf;
    rt_uint8_t *rcvb = message->recv_buf;
    rt_int32_t length = message->length;

#ifdef BSP_QSPI_USING_SOFTCS
    if (message->cs_take)
    {
        rt_pin_write(cs->pin, 0);
    }
#endif

    /* send data */
    if (sndb)
    {
        qspi_send_cmd(qspi_bus, qspi_message);
        if (qspi_message->parent.length != 0)
        {
            if (HAL_QSPI_Transmit(&qspi_bus->QSPI_Handler, (rt_uint8_t *)sndb, 5000) == HAL_OK)
            {
                len = length;
            }
            else
            {
                LOG_E("QSPI send data failed(%d)!", qspi_bus->QSPI_Handler.ErrorCode);
                qspi_bus->QSPI_Handler.State = HAL_QSPI_STATE_READY;
                goto __exit;
            }
        }
        else
        {
            len = 1;
        }
    }
    else if (rcvb)/* recv data */
    {
        qspi_send_cmd(qspi_bus, qspi_message);
#ifdef BSP_QSPI_USING_DMA
        if (HAL_QSPI_Receive_DMA(&qspi_bus->QSPI_Handler, rcvb) == HAL_OK)
#else
        if (HAL_QSPI_Receive(&qspi_bus->QSPI_Handler, rcvb, 5000) == HAL_OK)
#endif
        {
            len = length;
#ifdef BSP_QSPI_USING_DMA
            while (qspi_bus->QSPI_Handler.RxXferCount != 0);
#endif
        }
        else
        {
            LOG_E("QSPI recv data failed(%d)!", qspi_bus->QSPI_Handler.ErrorCode);
            qspi_bus->QSPI_Handler.State = HAL_QSPI_STATE_READY;
            goto __exit;
        }
    }

__exit:
#ifdef BSP_QSPI_USING_SOFTCS
    if (message->cs_release)
    {
        rt_pin_write(cs->pin, 1);
    }
#endif
    return len;
}


// libraries\HAL_Drivers\config\l4\qspi_config.h

#ifdef BSP_USING_QSPI
#ifndef QSPI_BUS_CONFIG
#define QSPI_BUS_CONFIG                                        \
    {                                                          \
        .Instance = QUADSPI,                                   \
        .Init.FifoThreshold = 4,                               \
        .Init.SampleShifting = QSPI_SAMPLE_SHIFTING_HALFCYCLE, \
        .Init.ChipSelectHighTime = QSPI_CS_HIGH_TIME_4_CYCLE,  \
    }
#endif /* QSPI_BUS_CONFIG */
#endif /* BSP_USING_QSPI */

#ifdef BSP_QSPI_USING_DMA
#ifndef QSPI_DMA_CONFIG
#define QSPI_DMA_CONFIG                                        \
    {                                                          \
        .Instance = QSPI_DMA_INSTANCE,                         \
        .Init.Request = QSPI_DMA_REQUEST,                      \
        .Init.Direction = DMA_PERIPH_TO_MEMORY,                \
        .Init.PeriphInc = DMA_PINC_DISABLE,                    \
        .Init.MemInc = DMA_MINC_ENABLE,                        \
        .Init.PeriphDataAlignment = DMA_PDATAALIGN_BYTE,       \
        .Init.MemDataAlignment = DMA_MDATAALIGN_BYTE,          \
        .Init.Mode = DMA_NORMAL,                               \
        .Init.Priority = DMA_PRIORITY_LOW                      \
    }
#endif /* QSPI_DMA_CONFIG */
#endif /* BSP_QSPI_USING_DMA */
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155

QSPI这两个操作函数通过调用STM32 HAL QSPI库函数实现，QSPI上层的接口函数则最终是通过调用这两个操作函数实现。

最后看QSPI设备的绑定过程：

// libraries\HAL_Drivers\drv_qspi.c

/**
  * @brief  This function attach device to QSPI bus.
  * @param  device_name      QSPI device name
  * @param  pin              QSPI cs pin number
  * @param  data_line_width  QSPI data lines width, such as 1, 2, 4
  * @param  enter_qspi_mode  Callback function that lets FLASH enter QSPI mode
  * @param  exit_qspi_mode   Callback function that lets FLASH exit QSPI mode
  * @retval 0 : success
  *        -1 : failed
  */
rt_err_t stm32_qspi_bus_attach_device(const char *bus_name, const char *device_name, rt_uint32_t pin, rt_uint8_t data_line_width, void (*enter_qspi_mode)(), void (*exit_qspi_mode)())
{
    struct rt_qspi_device *qspi_device = RT_NULL;
    struct stm32_hw_spi_cs *cs_pin = RT_NULL;
    rt_err_t result = RT_EOK;

    RT_ASSERT(bus_name != RT_NULL);
    RT_ASSERT(device_name != RT_NULL);
    RT_ASSERT(data_line_width == 1 || data_line_width == 2 || data_line_width == 4);

    qspi_device = (struct rt_qspi_device *)rt_malloc(sizeof(struct rt_qspi_device));
    if (qspi_device == RT_NULL)
    {
        LOG_E("no memory, qspi bus attach device failed!");
        result = RT_ENOMEM;
        goto __exit;
    }
    cs_pin = (struct stm32_hw_spi_cs *)rt_malloc(sizeof(struct stm32_hw_spi_cs));
    if (qspi_device == RT_NULL)
    {
        LOG_E("no memory, qspi bus attach device failed!");
        result = RT_ENOMEM;
        goto __exit;
    }

    qspi_device->enter_qspi_mode = enter_qspi_mode;
    qspi_device->exit_qspi_mode = exit_qspi_mode;
    qspi_device->config.qspi_dl_width = data_line_width;

    cs_pin->Pin = pin;
#ifdef BSP_QSPI_USING_SOFTCS
    rt_pin_mode(pin, PIN_MODE_OUTPUT);
    rt_pin_write(pin, 1);
#endif

    result = rt_spi_bus_attach_device(&qspi_device->parent, device_name, bus_name, (void *)cs_pin);

__exit:
    if (result != RT_EOK)
    {
        if (qspi_device)
        {
            rt_free(qspi_device);
        }

        if (cs_pin)
        {
            rt_free(cs_pin);
        }
    }

    return  result;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65

前面介绍QSPI设备驱动框架层接口函数时并没有介绍QSPI设备绑定函数，从QSPI设备驱动层的绑定函数stm32_qspi_bus_attach_device的实现代码可以看出，其最终调用的依然是上层的SPI设备绑定函数rt_spi_bus_attach_device，QSPI与SPI设备绑定过程差异没那么大，也就没有在QSPI设备驱动框架层单独实现QSPI设备绑定函数。

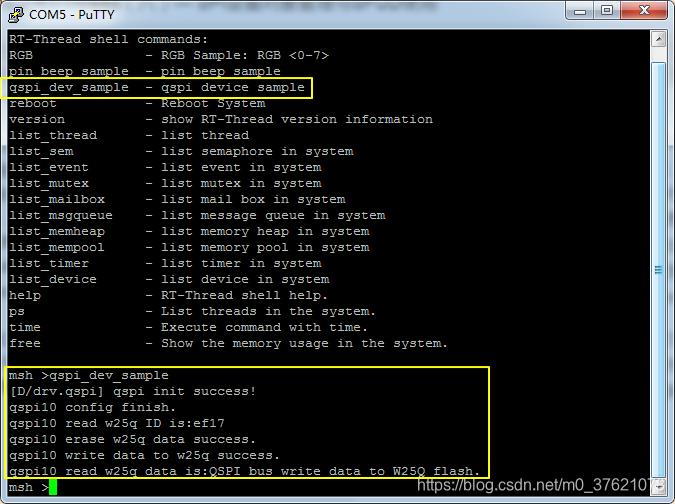

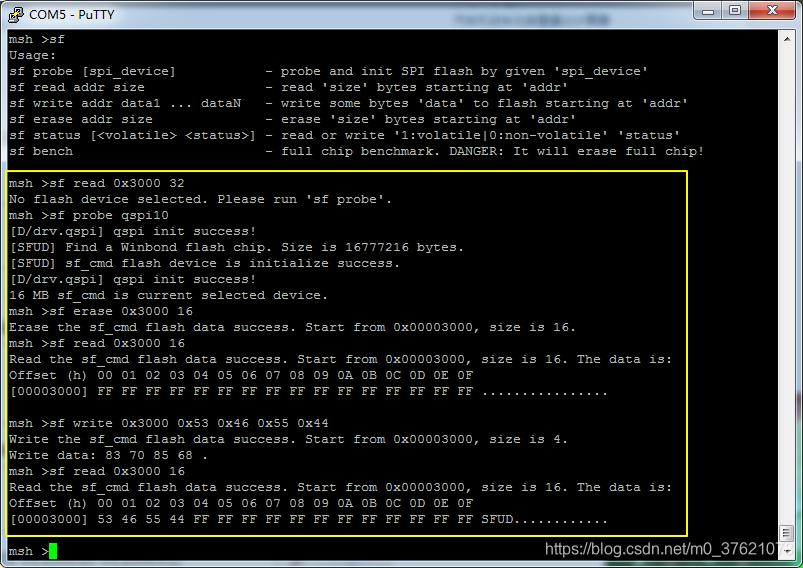

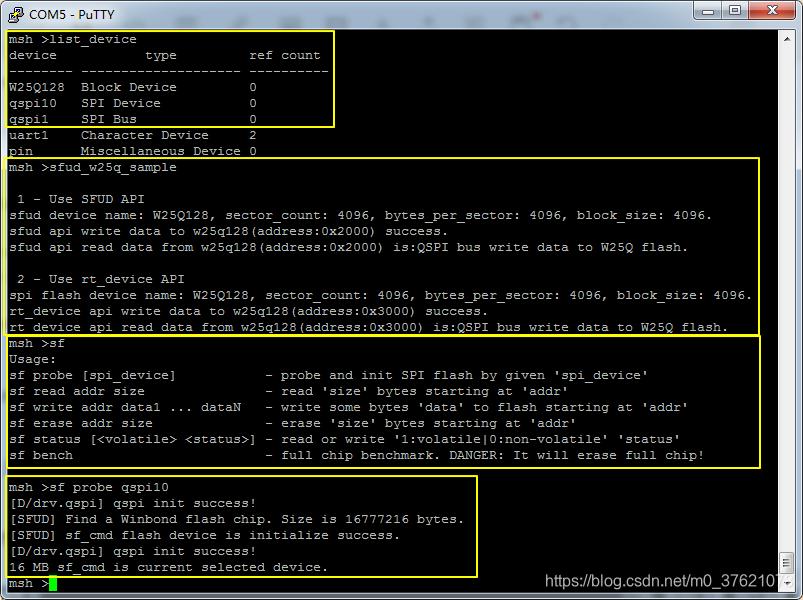

1.3 QSPI访问W25Q128示例

在前篇博客的工程stm32l475_device_sample基础上新增QSPI外设访问W25Q128 Flash，STM32L475与W25Q128的连接原理图如下：

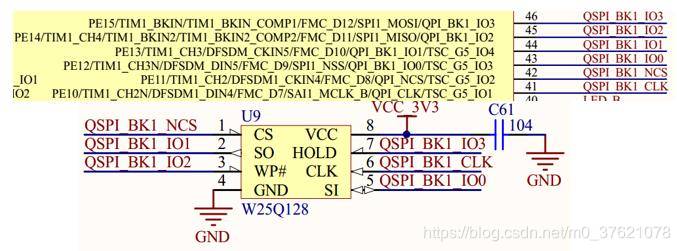

STM32L475与W25Q128连接原理图

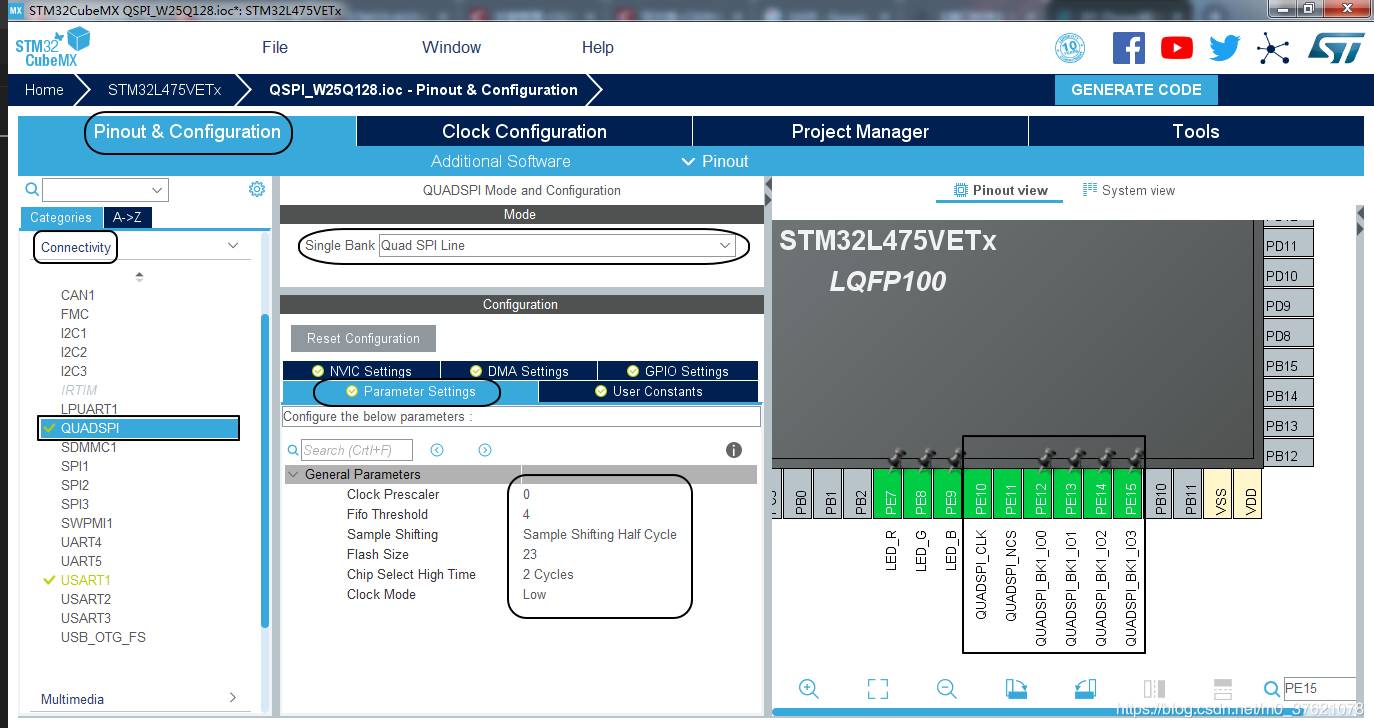

CubeMX配置QUADSPI

打开CubeMX文件projects\stm32l475_device_sample\board \CubeMX_Config\CubeMX_Config.ioc新增QSPI配置如下图所示：
STM32L475 QUADSPI CubeMX配置
QUADSPI配置参数的含义在博客：SPI + QSPI + HAL中有详细介绍。QUADSPI配置完后直接点击GENERATE CODE生成工程代码即可。

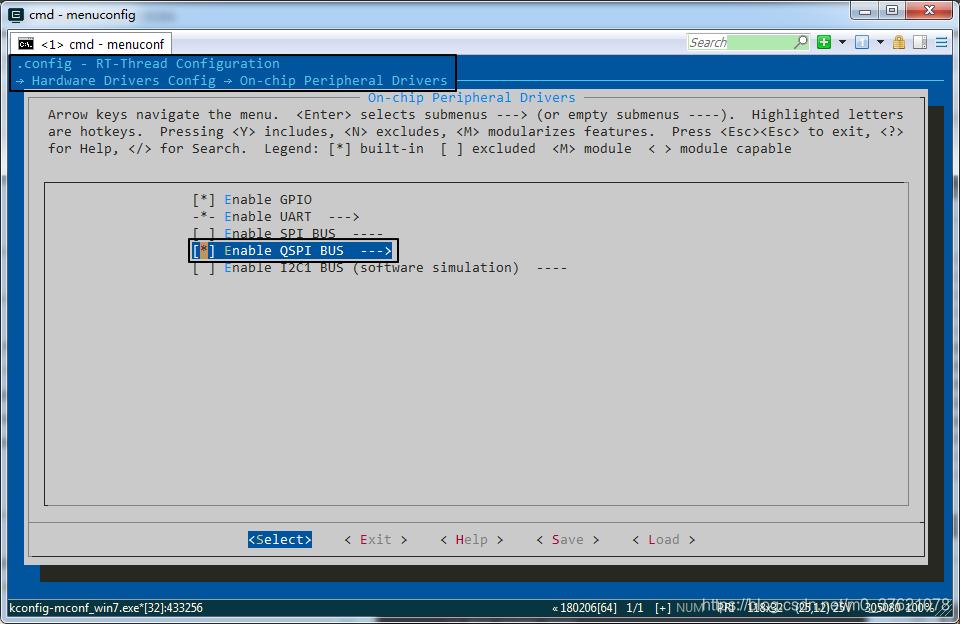

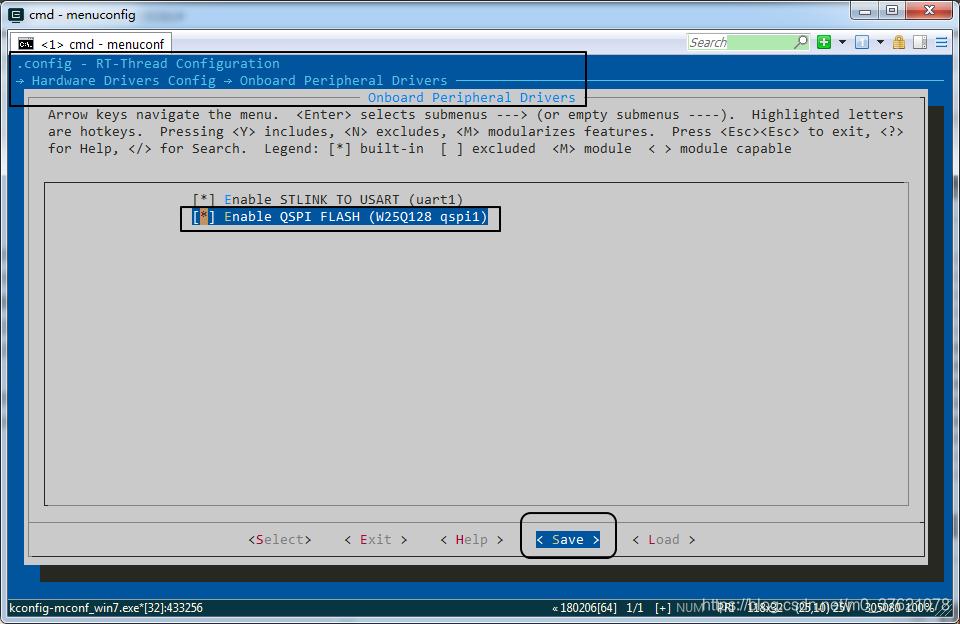

Kconfig新增QSPI设备条件宏

STM32 CubeMX主要生成了HAL_QSPI_MspInit() / MspDeInit()函数，RT-Thread要想使用QSPI设备驱动，需要在图形化配置工具menuconfig中使能QSPI设备，menuconfig配置项是从文件Kconfig中读取的，配置完成后将相应的宏定义写入到配置文件rtconfig.h中，RT-Thread最终是从rtconfig.h读取相应的宏定义。

虽然直接在rtconfig.h中配置QSPI设备的宏定义也可以，但为了方便统一由menuconfig工具管理宏定义，我们在Kconfig中配置QSPI设备的宏依赖选项，在Kconfig中新增QSPI设备配置信息如下：

// projects\stm32l475_device_sample\board\Kconfig
......
menu "On-chip Peripheral Drivers"
	......
	menuconfig BSP_USING_QSPI
        bool "Enable QSPI BUS"
        default n
        select RT_USING_QSPI
        select RT_USING_SPI
        if BSP_USING_QSPI
            config BSP_QSPI_USING_DMA
                bool "Enable QSPI DMA support"
                depends on BSP_USING_QSPI
                default n
        endif
    ......
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

Kconfig中新增BSP_USING_QSPI配置后，在工程目录打开env工具输入menuconfig，使能上面配置的BSP_USING_QSPI，menuconfig配置界面如下图所示：
menuconfig配置QSPI BUS
使能BSP_USING_QSPI后同时也把RT-Thread Components --> Device Drivers下的Using SPI Bus / Device device drivers与Enable QSPI mode也使能了。BSP_USING_QSPI属于QSPI设备驱动层的条件宏，RT_USING_QSPI与RT_USING_SPI属于QSPI设备驱动框架层的条件宏。

menuconfig使能BSP_USING_QSPI后保存配置，新增的宏定义就会被写入到工程目录下的rtconfig.h文件中，我们打开该文件查看新增宏定义如下：

// projects\stm32l475_device_sample\rtconfig.h

/* Device Drivers */
......
#define RT_USING_SPI
#define RT_USING_QSPI

/* On-chip Peripheral Drivers */
......
#define BSP_USING_QSPI
#define BSP_QSPI_USING_DMA
1
2
3
4
5
6
7
8
9
10
11

编写QSPI访问W25Q128的示例代码

本示例工程完成W25Q128最常用的几种访问操作：读取设备ID、擦除指定分区、向指定分区写入数据、从指定分区中读取数据。使用前面介绍的QSPI设备驱动框架层提供的访问接口函数实现。

在工程目录projects\stm32l475_device_sample\applications下新建spi_sample.c源文件，打开该文件并编写QSPI访问W25Q128的示例代码如下：

// projects\stm32l475_device_sample\applications\spi_sample.c

#include "rtdevice.h"
#include "rtthread.h"
#include "board.h"
#include "drv_qspi.h"

#define QSPI_BUD_NAME       "qspi1"
#define QSPI_DEVICE_NAME    "qspi10"
#define W25Q_FLASH_NAME     "W25Q128"

#define QSPI_CS_PIN         GET_PIN(E, 11)

rt_uint8_t wData[4096] = {"QSPI bus write data to W25Q flash."};
rt_uint8_t rData[4096];

static int rt_hw_spi_flash_init(void)
{
    if(stm32_qspi_bus_attach_device(QSPI_BUD_NAME, QSPI_DEVICE_NAME, (rt_uint32_t)QSPI_CS_PIN, 1, RT_NULL, RT_NULL) != RT_EOK)
        return -RT_ERROR;

    return RT_EOK;
}
INIT_COMPONENT_EXPORT(rt_hw_spi_flash_init);

static void qspi_w25q_sample(void)
{
    struct rt_qspi_device *qspi_dev_w25q = RT_NULL;
    struct rt_qspi_message message;
    struct rt_qspi_configuration config;

    rt_uint8_t w25q_read_id[4] = {0x90, 0x00, 0x00, 0x00};
    rt_uint8_t w25q_read_data[4] = {0x03, 0x00, 0x10, 0x00};
    rt_uint8_t w25q_erase_sector[4] = {0x20, 0x00, 0x10, 0x00};
    rt_uint8_t w25q_write_enable = 0x06;
    rt_uint8_t W25X_ReadStatusReg1 = 0x05;
    rt_uint8_t id[2] = {0};
    rt_uint8_t status = 1;

    qspi_dev_w25q = (struct rt_qspi_device *)rt_device_find(QSPI_DEVICE_NAME);
    if(qspi_dev_w25q == RT_NULL){
        rt_kprintf("qspi sample run failed! can't find %s device!\n", QSPI_DEVICE_NAME);
    }else{
        // config w25q qspi
        config.parent.mode = RT_SPI_MASTER | RT_SPI_MODE_0 | RT_SPI_MSB;
        config.parent.data_width = 8;
        config.parent.max_hz = 50 * 1000 * 1000;
        config.medium_size = 16 * 1024 * 1024;
        config.ddr_mode = 0;
        config.qspi_dl_width = 4;
        rt_qspi_configure(qspi_dev_w25q, &config);
        rt_kprintf("qspi10 config finish.\n");

        // read w25q id
        rt_qspi_send_then_recv(qspi_dev_w25q, w25q_read_id, 4, id, 2);
        rt_kprintf("qspi10 read w25q ID is:%2x%2x\n", id[0], id[1]);

        // erase sector address 4096
        rt_qspi_send(qspi_dev_w25q, &w25q_write_enable, 1);
        rt_qspi_send(qspi_dev_w25q, w25q_erase_sector, 4);
        // wait transfer finish
        while((status & 0x01) == 0x01)
            rt_qspi_send_then_recv(qspi_dev_w25q, &W25X_ReadStatusReg1, 1, &status, 1);
        rt_kprintf("qspi10 erase w25q sector(address:0x1000) success.\n");

        // write data to w25q address 4096
        rt_qspi_send(qspi_dev_w25q, &w25q_write_enable, 1);
        message.parent.send_buf = wData;
        message.parent.recv_buf = RT_NULL;
        message.parent.length = 64;
        message.parent.next = RT_NULL;
        message.parent.cs_take = 1;
        message.parent.cs_release = 1;
        message.instruction.content = 0X32;
        message.instruction.qspi_lines = 1;
        message.address.content = 0X00001000;
        message.address.size = 24;
        message.address.qspi_lines = 1;
        message.dummy_cycles = 0;
        message.qspi_data_lines = 4;
        rt_qspi_transfer_message(qspi_dev_w25q, &message);
        // wait transfer finish
        status = 1;
        while((status & 0x01) == 0x01)
            rt_qspi_send_then_recv(qspi_dev_w25q, &W25X_ReadStatusReg1, 1, &status, 1);
        rt_kprintf("qspi10 write data to w25q(address:0x1000) success.\n");

        // read data from w25q address 4096
        rt_qspi_send_then_recv(qspi_dev_w25q, w25q_read_data, 4, rData, 64);
        rt_kprintf("qspi10 read data from w25q(address:0x1000) is:%s\n", rData);
    }
}
MSH_CMD_EXPORT(qspi_w25q_sample, qspi w25q128 sample);
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93

QSPI设备绑定函数使用了RT-Thread自动初始化组件，QSPI设备绑定注册后，在示例程序中只需要通过rt_device_find找到已注册或绑定的设备就可以获取该设备指针，访问该设备了。

博客SPI + QSPI + HAL介绍了QSPI访问W25Q128的过程，前面又介绍了QSPI设备驱动框架层提供的用户函数接口（I/O设备管理层提供的接口功能较弱，这里直接没有使用），这里的示例工程实际上就是使用QSPI新的接口函数，按照W25QXX驱动程序的实现原理再次实现一遍。

QSPI访问W25Q128的示例代码逻辑相对简单，要使用QSPI设备需要先将该设备初始化并绑定到相应总线上，然后通过rt_device_find获得该QSPI设备的句柄。在使用前一般先对该设备参数进行配置（通过函数rt_qspi_configure实现），在传输消息时如果消息比较简单可以直接调用相应的API函数实现，如果消息比较复杂可以自己构造消息结构体rt_qspi_message（包含命令序列、发送数据缓冲区、接收数据缓冲区等信息），然后通过函数rt_qspi_transfer_message传输该消息。

示例代码编写完成后，在工程目录中打开env输入scons --target=mdk5生成MDK5工程代码，打开生成的project.uvprojx，编译无报错，烧录到我们的STM32L475潘多拉开发板中，运行结果如下：
QSPI访问W25Q128示例运行结果
本示例工程源码下载地址：https://github.com/StreamAI/RT-Thread_Projects/tree/master/projects/stm32l475_device_sample

二、SFUD管理与示例

像W25Q128这种串行Flash芯片种类有很多，如果每种芯片都提供一套驱动函数不便于管理，RT-Thread为串行Flash提供了一套通用驱动函数SFUD（Serial Flash Universal Driver），能驱动多数常用SPI Flash，SFUD属于SPI设备驱动框架层。

2.1 SFUD Flash描述

在介绍SFUD Flash设备描述结构体前，先介绍下SPI Flash结构体。SFUD Flash为了通用性，描述信息比较多；SPI Flash相对简单，而且是SFUD框架层与I / O设备管理层之间的桥梁。

SPI Flash控制块

// rt-thread-4.0.1\components\drivers\spi\spi_flash.h

struct spi_flash_device
{
    struct rt_device                flash_device;
    struct rt_device_blk_geometry   geometry;
    struct rt_spi_device *          rt_spi_device;
    struct rt_mutex                 lock;
    void *                          user_data;
};

typedef struct spi_flash_device *rt_spi_flash_device_t;


// rt-thread-4.0.1\include\rtdef.h

/**
 * block device geometry structure
 */
struct rt_device_blk_geometry
{
    rt_uint32_t sector_count;                           /**< count of sectors */
    rt_uint32_t bytes_per_sector;                       /**< number of bytes per sector */
    rt_uint32_t block_size;                             /**< number of bytes to erase one block */
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

spi_flash_device结构体继承自rt_device基对象，包含了块设备的几何结构信息geometry、SPI设备句柄rt_spi_device、互斥锁lock、用户数据指针user_data等，其中user_data可指向SFUD Flash句柄。

SFUD Flash控制块

// rt-thread-4.0.1\components\drivers\spi\sfud\inc\sfud_def.h

/**
 * serial flash device
 */
typedef struct {
    char *name;                                  /**< serial flash name */
    size_t index;                                /**< index of flash device information table  @see flash_table */
    sfud_flash_chip chip;                        /**< flash chip information */
    sfud_spi spi;                                /**< SPI device */
    bool init_ok;                                /**< initialize OK flag */
    bool addr_in_4_byte;                         /**< flash is in 4-Byte addressing */
    struct {
        void (*delay)(void);                     /**< every retry's delay */
        size_t times;                            /**< default times for error retry */
    } retry;
    void *user_data;                             /**< some user data */

#ifdef SFUD_USING_QSPI
    sfud_qspi_read_cmd_format read_cmd_format;   /**< fast read cmd format */
#endif

#ifdef SFUD_USING_SFDP
    sfud_sfdp sfdp;                              /**< serial flash discoverable parameters by JEDEC standard */
#endif

} sfud_flash, *sfud_flash_t;

/**
 * SPI device
 */
typedef struct __sfud_spi {
    /* SPI device name */
    char *name;
    /* SPI bus write read data function */
    sfud_err (*wr)(const struct __sfud_spi *spi, const uint8_t *write_buf, size_t write_size, uint8_t *read_buf,
                   size_t read_size);
#ifdef SFUD_USING_QSPI
    /* QSPI fast read function */
    sfud_err (*qspi_read)(const struct __sfud_spi *spi, uint32_t addr, sfud_qspi_read_cmd_format *qspi_read_cmd_format,
                          uint8_t *read_buf, size_t read_size);
#endif
    /* lock SPI bus */
    void (*lock)(const struct __sfud_spi *spi);
    /* unlock SPI bus */
    void (*unlock)(const struct __sfud_spi *spi);
    /* some user data */
    void *user_data;
} sfud_spi, *sfud_spi_t;

/**
 * QSPI flash read cmd format
 */
typedef struct {
    uint8_t instruction;
    uint8_t instruction_lines;
    uint8_t address_size;
    uint8_t address_lines;
    uint8_t alternate_bytes_lines;
    uint8_t dummy_cycles;
    uint8_t data_lines;
} sfud_qspi_read_cmd_format;

/**
 * the SFDP (Serial Flash Discoverable Parameters) parameter info which used on this library
 */
typedef struct {
    bool available;                              /**< available when read SFDP OK */
    uint8_t major_rev;                           /**< SFDP Major Revision */
    uint8_t minor_rev;                           /**< SFDP Minor Revision */
    uint16_t write_gran;                         /**< write granularity (bytes) */
    uint8_t erase_4k;                            /**< 4 kilobyte erase is supported throughout the device */
    uint8_t erase_4k_cmd;                        /**< 4 Kilobyte erase command */
    bool sr_is_non_vola;                         /**< status register is supports non-volatile */
    uint8_t vola_sr_we_cmd;                      /**< volatile status register write enable command */
    bool addr_3_byte;                            /**< supports 3-Byte addressing */
    bool addr_4_byte;                            /**< supports 4-Byte addressing */
    uint32_t capacity;                           /**< flash capacity (bytes) */
    struct {
        uint32_t size;                           /**< erase sector size (bytes). 0x00: not available */
        uint8_t cmd;                             /**< erase command */
    } eraser[SFUD_SFDP_ERASE_TYPE_MAX_NUM];      /**< supported eraser types table */
    //TODO lots of fast read-related stuff (like modes supported and number of wait states/dummy cycles needed in each)
} sfud_sfdp, *sfud_sfdp_t;
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84

sfud_flash结构体包含的信息比较多，除了flash设备名、flash设备信息表索引、flash芯片信息、SPI设备结构体（包括操作函数指针）外，还包括QSPI命令格式、flash发现参数等，每个成员后都有注释，就不详细解释了。

前面介绍spi_flash_device.user_data可以指向SFUD Flash控制块，这里的sfud_flash.user_data也可以指向SPI Flash控制块，这里借助user_data成员互相访问的支持，正是SFUD框架层与I / O设备管理层实现通信的基础。

SFUD Flash芯片信息描述

SFUD的实现是为了支持尽可能多的芯片型号，但市场上芯片型号太多，RT-Thread官方不可能提供对所有芯片型号的支持，如果用户使用的芯片型号并没有出现在SFUD的默认支持列表中，用户可以根据芯片手册，将该型号芯片的信息添加到SFUD芯片信息描述表中，就可以借助SFUD框架操作该型号芯片了。

SFUD Flash描述芯片信息的列表有三个，这三个列表的定义如下：

// rt-thread-4.0.1\components\drivers\spi\sfud\inc\sfud_flash_def.h

/* manufacturer information */
typedef struct {
    char *name;
    uint8_t id;
} sfud_mf;

/* SFUD supported manufacturer information table */
#define SFUD_MF_TABLE                                     \
{                                                         \
    {"Cypress",    SFUD_MF_ID_CYPRESS},                   \
	......
    {"Winbond",    SFUD_MF_ID_WINBOND},                   \
    {"Micronix",   SFUD_MF_ID_MICRONIX},                  \
}

/* flash chip information */
typedef struct {
    char *name;                                  /**< flash chip name */
    uint8_t mf_id;                               /**< manufacturer ID */
    uint8_t type_id;                             /**< memory type ID */
    uint8_t capacity_id;                         /**< capacity ID */
    uint32_t capacity;                           /**< flash capacity (bytes) */
    uint16_t write_mode;                         /**< write mode @see sfud_write_mode */
    uint32_t erase_gran;                         /**< erase granularity (bytes) */
    uint8_t erase_gran_cmd;                      /**< erase granularity size block command */
} sfud_flash_chip;

#define SFUD_FLASH_CHIP_TABLE                                                                                       \
{                                                                                                                   \
	......
    {"W25Q128BV", SFUD_MF_ID_WINBOND, 0x40, 0x18, 16L*1024L*1024L, SFUD_WM_PAGE_256B, 4096, 0x20},                  \
    {"W25Q256FV", SFUD_MF_ID_WINBOND, 0x40, 0x19, 32L*1024L*1024L, SFUD_WM_PAGE_256B, 4096, 0x20},                  \
	......
    {"PCT25VF016B", SFUD_MF_ID_SST, 0x25, 0x41, 2L*1024L*1024L, SFUD_WM_BYTE|SFUD_WM_AAI, 4096, 0x20},              \
}

#ifdef SFUD_USING_QSPI
/* QSPI flash chip's extended information compared with SPI flash */
typedef struct {
    uint8_t mf_id;                               /**< manufacturer ID */
    uint8_t type_id;                             /**< memory type ID */
    uint8_t capacity_id;                         /**< capacity ID */
    uint8_t read_mode;                           /**< supported read mode on this qspi flash chip */
} sfud_qspi_flash_ext_info;
#endif

#define SFUD_FLASH_EXT_INFO_TABLE                                                                  \
{                                                                                                  \
    ......
    /* W25Q128JV */                                                                                \
    {SFUD_MF_ID_WINBOND, 0x40, 0x18, NORMAL_SPI_READ|DUAL_OUTPUT|DUAL_IO|QUAD_OUTPUT|QUAD_IO},     \
    /* W25Q256FV */                                                                                \
    {SFUD_MF_ID_WINBOND, 0x40, 0x19, NORMAL_SPI_READ|DUAL_OUTPUT|DUAL_IO|QUAD_OUTPUT|QUAD_IO},     \
    ......
    /* GD25Q64B */                                                                                 \
    {SFUD_MF_ID_GIGADEVICE, 0x40, 0x17, NORMAL_SPI_READ|DUAL_OUTPUT},                              \
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59

如果SFUD默认Flash芯片信息列表中找不到你需要的芯片型号，可以根据芯片手册手动添加相应的item，方便的可扩展性也是通用性的体现。

2.2 SFUD Flash接口

由于SFUD位于设备驱动框架层，自然需要设备驱动层的支持。以前面介绍的QSPI访问W25Q128 Flash为例，要使用SFUD，需要QSPI总线已完成初始化并注册、QSPI设备已完成初始化并绑定到相应总线，也即前面QSPI访问W25Q128示例工程执行完stm32_qspi_bus_attach_device后的状态。

SFUD初始化过程由rt_sfud_flash_probe调用，在rt_sfud_flash_probe函数中完成查找设备驱动层注册的设备，并完成目标设备sfud_flash与rt_spi_flash_device两个结构体成员的赋值，最后向系统注册rt_spi_flash_device。rt_sfud_flash_probe函数的实现代码如下：

// rt-thread-4.0.1\components\drivers\spi\spi_flash_sfud.c

/**
 * Probe SPI flash by SFUD(Serial Flash Universal Driver) driver library and though SPI device.
 *
 * @param spi_flash_dev_name the name which will create SPI flash device
 * @param spi_dev_name using SPI device name
 *
 * @return probed SPI flash device, probe failed will return RT_NULL
 */
rt_spi_flash_device_t rt_sfud_flash_probe(const char *spi_flash_dev_name, const char *spi_dev_name) {
    rt_spi_flash_device_t rtt_dev = RT_NULL;
    sfud_flash *sfud_dev = RT_NULL;
    char *spi_flash_dev_name_bak = RT_NULL, *spi_dev_name_bak = RT_NULL;
    /* using default flash SPI configuration for initialize SPI Flash
     * @note you also can change the SPI to other configuration after initialized finish */
    struct rt_spi_configuration cfg = RT_SFUD_DEFAULT_SPI_CFG;
    extern sfud_err sfud_device_init(sfud_flash *flash);
#ifdef SFUD_USING_QSPI
    struct rt_qspi_configuration qspi_cfg = RT_SFUD_DEFAULT_QSPI_CFG;
    struct rt_qspi_device *qspi_dev = RT_NULL;
#endif

    RT_ASSERT(spi_flash_dev_name);
    RT_ASSERT(spi_dev_name);

    rtt_dev = (rt_spi_flash_device_t) rt_malloc(sizeof(struct spi_flash_device));
    sfud_dev = (sfud_flash_t) rt_malloc(sizeof(sfud_flash));
    spi_flash_dev_name_bak = (char *) rt_malloc(rt_strlen(spi_flash_dev_name) + 1);
    spi_dev_name_bak = (char *) rt_malloc(rt_strlen(spi_dev_name) + 1);

    if (rtt_dev) {
        rt_memset(rtt_dev, 0, sizeof(struct spi_flash_device));
        /* initialize lock */
        rt_mutex_init(&(rtt_dev->lock), spi_flash_dev_name, RT_IPC_FLAG_FIFO);
    }

    if (rtt_dev && sfud_dev && spi_flash_dev_name_bak && spi_dev_name_bak) {
        rt_memset(sfud_dev, 0, sizeof(sfud_flash));
        rt_strncpy(spi_flash_dev_name_bak, spi_flash_dev_name, rt_strlen(spi_flash_dev_name));
        rt_strncpy(spi_dev_name_bak, spi_dev_name, rt_strlen(spi_dev_name));
        /* make string end sign */
        spi_flash_dev_name_bak[rt_strlen(spi_flash_dev_name)] = '\0';
        spi_dev_name_bak[rt_strlen(spi_dev_name)] = '\0';
        /* SPI configure */
        {
            /* RT-Thread SPI device initialize */
            rtt_dev->rt_spi_device = (struct rt_spi_device *) rt_device_find(spi_dev_name);
            if (rtt_dev->rt_spi_device == RT_NULL || rtt_dev->rt_spi_device->parent.type != RT_Device_Class_SPIDevice) {
                rt_kprintf("ERROR: SPI device %s not found!\n", spi_dev_name);
                goto error;
            }
            sfud_dev->spi.name = spi_dev_name_bak;

#ifdef SFUD_USING_QSPI
            /* set the qspi line number and configure the QSPI bus */
            if(rtt_dev->rt_spi_device->bus->mode &RT_SPI_BUS_MODE_QSPI) {
                qspi_dev = (struct rt_qspi_device *)rtt_dev->rt_spi_device;
                qspi_cfg.qspi_dl_width = qspi_dev->config.qspi_dl_width;
                rt_qspi_configure(qspi_dev, &qspi_cfg);
            }
            else
#endif
                rt_spi_configure(rtt_dev->rt_spi_device, &cfg);
        }
        /* SFUD flash device initialize */
        {
            sfud_dev->name = spi_flash_dev_name_bak;
            /* accessed each other */
            rtt_dev->user_data = sfud_dev;
            rtt_dev->rt_spi_device->user_data = rtt_dev;
            rtt_dev->flash_device.user_data = rtt_dev;
            sfud_dev->user_data = rtt_dev;
            /* initialize SFUD device */
            if (sfud_device_init(sfud_dev) != SFUD_SUCCESS) {
                rt_kprintf("ERROR: SPI flash probe failed by SPI device %s.\n", spi_dev_name);
                goto error;
            }
            /* when initialize success, then copy SFUD flash device's geometry to RT-Thread SPI flash device */
            rtt_dev->geometry.sector_count = sfud_dev->chip.capacity / sfud_dev->chip.erase_gran;
            rtt_dev->geometry.bytes_per_sector = sfud_dev->chip.erase_gran;
            rtt_dev->geometry.block_size = sfud_dev->chip.erase_gran;
#ifdef SFUD_USING_QSPI
            /* reconfigure the QSPI bus for medium size */
            if(rtt_dev->rt_spi_device->bus->mode &RT_SPI_BUS_MODE_QSPI) {
                qspi_cfg.medium_size = sfud_dev->chip.capacity;
                rt_qspi_configure(qspi_dev, &qspi_cfg);
                if(qspi_dev->enter_qspi_mode != RT_NULL)
                    qspi_dev->enter_qspi_mode(qspi_dev);

                /* set data lines width */
                sfud_qspi_fast_read_enable(sfud_dev, qspi_dev->config.qspi_dl_width);
            }
#endif /* SFUD_USING_QSPI */
        }

        /* register device */
        rtt_dev->flash_device.type = RT_Device_Class_Block;
#ifdef RT_USING_DEVICE_OPS
        rtt_dev->flash_device.ops  = &flash_device_ops;
#else
        rtt_dev->flash_device.init = RT_NULL;
        rtt_dev->flash_device.open = RT_NULL;
        rtt_dev->flash_device.close = RT_NULL;
        rtt_dev->flash_device.read = rt_sfud_read;
        rtt_dev->flash_device.write = rt_sfud_write;
        rtt_dev->flash_device.control = rt_sfud_control;
#endif

        rt_device_register(&(rtt_dev->flash_device), spi_flash_dev_name, RT_DEVICE_FLAG_RDWR | RT_DEVICE_FLAG_STANDALONE);

        DEBUG_TRACE("Probe SPI flash %s by SPI device %s success.\n",spi_flash_dev_name, spi_dev_name);
        return rtt_dev;
    } else {
        rt_kprintf("ERROR: Low memory.\n");
        goto error;
    }

error:

    if (rtt_dev) {
        rt_mutex_detach(&(rtt_dev->lock));
    }
    /* may be one of objects memory was malloc success, so need free all */
    rt_free(rtt_dev);
    rt_free(sfud_dev);
    rt_free(spi_flash_dev_name_bak);
    rt_free(spi_dev_name_bak);

    return RT_NULL;
}


// rt-thread-4.0.1\components\drivers\spi\sfud\src\sfud.c

/**
 * SFUD initialize by flash device
 *
 * @param flash flash device
 *
 * @return result
 */
sfud_err sfud_device_init(sfud_flash *flash) {
    sfud_err result = SFUD_SUCCESS;

    /* hardware initialize */
    result = hardware_init(flash);
    if (result == SFUD_SUCCESS) {
        result = software_init(flash);
    }
    ......
}

/**
 * hardware initialize
 */
static sfud_err hardware_init(sfud_flash *flash) {
    extern sfud_err sfud_spi_port_init(sfud_flash * flash);

    sfud_err result = SFUD_SUCCESS;
    size_t i;

    SFUD_ASSERT(flash);

    result = sfud_spi_port_init(flash);
    if (result != SFUD_SUCCESS) {
        return result;
    }
    ......
}


// rt-thread-4.0.1\components\drivers\spi\spi_flash_sfud.c

sfud_err sfud_spi_port_init(sfud_flash *flash) {
    sfud_err result = SFUD_SUCCESS;

    RT_ASSERT(flash);

    /* port SPI device interface */
    flash->spi.wr = spi_write_read;
#ifdef SFUD_USING_QSPI
    flash->spi.qspi_read = qspi_read;
#endif
    flash->spi.lock = spi_lock;
    flash->spi.unlock = spi_unlock;
    flash->spi.user_data = flash;
    if (RT_TICK_PER_SECOND < 1000) {
        rt_kprintf("[SFUD] Warning: The OS tick(%d) is less than 1000. So the flash write will take more time.\n", RT_TICK_PER_SECOND);
    }
    /* 100 microsecond delay */
    flash->retry.delay = retry_delay_100us;
    /* 60 seconds timeout */
    flash->retry.times = 60 * 10000;

    return result;
}

/**
 * SPI write data then read data
 */
static sfud_err spi_write_read(const sfud_spi *spi, const uint8_t *write_buf, size_t write_size, uint8_t *read_buf,
        size_t read_size) {
    sfud_err result = SFUD_SUCCESS;
    sfud_flash *sfud_dev = (sfud_flash *) (spi->user_data);
    struct spi_flash_device *rtt_dev = (struct spi_flash_device *) (sfud_dev->user_data);
	......
#ifdef SFUD_USING_QSPI
    if(rtt_dev->rt_spi_device->bus->mode & RT_SPI_BUS_MODE_QSPI) {
        qspi_dev = (struct rt_qspi_device *) (rtt_dev->rt_spi_device);
        if (write_size && read_size) {
            if (rt_qspi_send_then_recv(qspi_dev, write_buf, write_size, read_buf, read_size) == 0) {
                result = SFUD_ERR_TIMEOUT;
            }
        } else if (write_size) {
            if (rt_qspi_send(qspi_dev, write_buf, write_size) == 0) {
                result = SFUD_ERR_TIMEOUT;
            }
        }
    }
    else
#endif
    {
        if (write_size && read_size) {
            if (rt_spi_send_then_recv(rtt_dev->rt_spi_device, write_buf, write_size, read_buf, read_size) != RT_EOK) {
                result = SFUD_ERR_TIMEOUT;
            }
        } else if (write_size) {
            if (rt_spi_send(rtt_dev->rt_spi_device, write_buf, write_size) == 0) {
                result = SFUD_ERR_TIMEOUT;
            }
        } else {
            if (rt_spi_recv(rtt_dev->rt_spi_device, read_buf, read_size) == 0) {
                result = SFUD_ERR_TIMEOUT;
            }
        }
    }

    return result;
}

#ifdef SFUD_USING_QSPI
/**
 * QSPI fast read data
 */
static sfud_err qspi_read(const struct __sfud_spi *spi, uint32_t addr, sfud_qspi_read_cmd_format *qspi_read_cmd_format, uint8_t *read_buf, size_t read_size) {
    struct rt_qspi_message message;
    sfud_err result = SFUD_SUCCESS;

    sfud_flash *sfud_dev = (sfud_flash *) (spi->user_data);
    struct spi_flash_device *rtt_dev = (struct spi_flash_device *) (sfud_dev->user_data);
    struct rt_qspi_device *qspi_dev = (struct rt_qspi_device *) (rtt_dev->rt_spi_device);
	......

    if (rt_qspi_transfer_message(qspi_dev, &message) != read_size) {
        result = SFUD_ERR_TIMEOUT;
    }

    return result;
}
#endif
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261

从上面的代码可以看出，函数rt_sfud_flash_probe调用后完成SFUD框架的初始化，同时为查找到的SPI设备创建sfud_flash对象和rt_spi_flash_device对象，并完成所创建目标设备对象的初始化。

sfud_flash设备的操作函数sfud_flash.spi.wr和sfud_flash.spi.qspi_read最终通过调用前面介绍的SPI / QSPI设备驱动框架层的接口函数实现的，所以SFUD框架是基于SPI / QSPI驱动框架实现的。

函数rt_sfud_flash_probe最后向系统注册的操作函数集合flash_device_ops及操作函数实现代码如下：

// rt-thread-4.0.1\components\drivers\spi\spi_flash_sfud.c

#ifdef RT_USING_DEVICE_OPS
const static struct rt_device_ops flash_device_ops =
{
    RT_NULL,
    RT_NULL,
    RT_NULL,
    rt_sfud_read,
    rt_sfud_write,
    rt_sfud_control
};
#endif

static rt_size_t rt_sfud_read(rt_device_t dev, rt_off_t pos, void* buffer, rt_size_t size) {
    struct spi_flash_device *rtt_dev = (struct spi_flash_device *) (dev->user_data);
    sfud_flash *sfud_dev = (sfud_flash *) (rtt_dev->user_data);
	......
    /* change the block device's logic address to physical address */
    rt_off_t phy_pos = pos * rtt_dev->geometry.bytes_per_sector;
    rt_size_t phy_size = size * rtt_dev->geometry.bytes_per_sector;

    if (sfud_read(sfud_dev, phy_pos, phy_size, buffer) != SFUD_SUCCESS) {
        return 0;
    } else {
        return size;
    }
}

static rt_size_t rt_sfud_write(rt_device_t dev, rt_off_t pos, const void* buffer, rt_size_t size) {
    struct spi_flash_device *rtt_dev = (struct spi_flash_device *) (dev->user_data);
    sfud_flash *sfud_dev = (sfud_flash *) (rtt_dev->user_data);
	......
    /* change the block device's logic address to physical address */
    rt_off_t phy_pos = pos * rtt_dev->geometry.bytes_per_sector;
    rt_size_t phy_size = size * rtt_dev->geometry.bytes_per_sector;

    if (sfud_erase_write(sfud_dev, phy_pos, phy_size, buffer) != SFUD_SUCCESS) {
        return 0;
    } else {
        return size;
    }
}

static rt_err_t rt_sfud_control(rt_device_t dev, int cmd, void *args) {
    RT_ASSERT(dev);

    switch (cmd) {
    case RT_DEVICE_CTRL_BLK_GETGEOME: {
        struct rt_device_blk_geometry *geometry = (struct rt_device_blk_geometry *) args;
        struct spi_flash_device *rtt_dev = (struct spi_flash_device *) (dev->user_data);

        if (rtt_dev == RT_NULL || geometry == RT_NULL) {
            return -RT_ERROR;
        }

        geometry->bytes_per_sector = rtt_dev->geometry.bytes_per_sector;
        geometry->sector_count = rtt_dev->geometry.sector_count;
        geometry->block_size = rtt_dev->geometry.block_size;
        break;
    }
    case RT_DEVICE_CTRL_BLK_ERASE: {
        rt_uint32_t *addrs = (rt_uint32_t *) args, start_addr = addrs[0], end_addr = addrs[1], phy_start_addr;
        struct spi_flash_device *rtt_dev = (struct spi_flash_device *) (dev->user_data);
        sfud_flash *sfud_dev = (sfud_flash *) (rtt_dev->user_data);
        rt_size_t phy_size;

        if (addrs == RT_NULL || start_addr > end_addr || rtt_dev == RT_NULL || sfud_dev == RT_NULL) {
            return -RT_ERROR;
        }

        if (end_addr == start_addr) {
            end_addr ++;
        }

        phy_start_addr = start_addr * rtt_dev->geometry.bytes_per_sector;
        phy_size = (end_addr - start_addr) * rtt_dev->geometry.bytes_per_sector;

        if (sfud_erase(sfud_dev, phy_start_addr, phy_size) != SFUD_SUCCESS) {
            return -RT_ERROR;
        }
        break;
    }
    }

    return RT_EOK;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87

调用函数rt_sfud_flash_probe后，即完成了SFUD框架初始化，并将查找到的串行Flash设备初始化、将操作函数集合flash_device_ops注册到上面的I / O设备管理层，用户便可以通过I / O设备管理接口访问SFUD Flash了。

flash_device_ops中的函数实现代码并没有直接调用sfud_flash.spi.wr和sfud_flash.spi.qspi_read，说明在I / O设备管理接口下面还有一套SFUD框架接口函数，SFUD框架接口函数最终应该是通过调用sfud_flash.spi.wr和sfud_flash.spi.qspi_read实现的，这套接口函数声明如下：

// rt-thread-4.0.1\components\drivers\spi\sfud\src\sfud.c

/**
 * read flash data
 *
 * @param flash flash device
 * @param addr start address
 * @param size read size
 * @param data read data pointer
 *
 * @return result
 */
sfud_err sfud_read(const sfud_flash *flash, uint32_t addr, size_t size, uint8_t *data);

/**
 * erase flash data
 *
 * @note It will erase align by erase granularity.
 *
 * @param flash flash device
 * @param addr start address
 * @param size erase size
 *
 * @return result
 */
sfud_err sfud_erase(const sfud_flash *flash, uint32_t addr, size_t size);

/**
 * write flash data (no erase operate)
 *
 * @param flash flash device
 * @param addr start address
 * @param data write data
 * @param size write size
 *
 * @return result
 */
sfud_err sfud_write(const sfud_flash *flash, uint32_t addr, size_t size, const uint8_t *data);

/**
 * erase and write flash data
 *
 * @param flash flash device
 * @param addr start address
 * @param size write size
 * @param data write data
 *
 * @return result
 */
sfud_err sfud_erase_write(const sfud_flash *flash, uint32_t addr, size_t size, const uint8_t *data);

/**
 * erase all flash data
 *
 * @param flash flash device
 *
 * @return result
 */
sfud_err sfud_chip_erase(const sfud_flash *flash);

/**
 * read flash register status
 *
 * @param flash flash device
 * @param status register status
 *
 * @return result
 */
sfud_err sfud_read_status(const sfud_flash *flash, uint8_t *status);

/**
 * write status register
 *
 * @param flash flash device
 * @param is_volatile true: volatile mode, false: non-volatile mode
 * @param status register status
 *
 * @return result
 */
sfud_err sfud_write_status(const sfud_flash *flash, bool is_volatile, uint8_t status);
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80

SFUD框架层接口函数都需要传入参数sfud_flash句柄，通过rt_device_find并不能直接获得sfud_flash句柄（可以获得spi_flash_device句柄），为此SFUD还提供了几个接口函数用于获取sfud_flash句柄，这几个函数声明如下：

// rt-thread-4.0.1\components\drivers\spi\spi_flash_sfud.c

/**
 * Find sfud flash device by SPI device name
 *
 * @param spi_dev_name using SPI device name
 *
 * @return sfud flash device if success, otherwise return RT_NULL
 */
sfud_flash_t rt_sfud_flash_find(const char *spi_dev_name);

/**
 * Find sfud flash device by flash device name
 *
 * @param flash_dev_name using flash device name
 *
 * @return sfud flash device if success, otherwise return RT_NULL
 */
sfud_flash_t rt_sfud_flash_find_by_dev_name(const char *flash_dev_name);

/**
 * Delete SPI flash device
 *
 * @param spi_flash_dev SPI flash device
 *
 * @return the operation status, RT_EOK on successful
 */
rt_err_t rt_sfud_flash_delete(rt_spi_flash_device_t spi_flash_dev);
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

2.3 SFUD访问W25Q128示例

由于SFUD框架是基于SPI / QSPI设备驱动框架层的，所以这里在前面QSPI访问W25Q128示例工程的基础上进行。QSPI设备驱动层的配置在前面已经完成了，所以不需要再进行CubeMX配置。

Kconfig新增SFUD配置条件宏

启用SFUD需要定义相应的宏，为了便于使用menuconfig工具，我们依然在Kconfig中增加配置，启用SFUD需要在Kconfig中增加的配置如下：

// projects\stm32l475_device_sample\board\Kconfig

menu "Onboard Peripheral Drivers"
	......
    config BSP_USING_QSPI_FLASH
        bool "Enable QSPI FLASH (W25Q128 qspi1)"
        select BSP_USING_QSPI
        select RT_USING_SFUD
        select RT_SFUD_USING_QSPI
        default n

endmenu
1
2
3
4
5
6
7
8
9
10
11
12

如果使能了BSP_USING_QSPI_FLASH，会同时定义宏BSP_USING_QSPI / RT_USING_SFUD / RT_SFUD_USING_QSPI，其中BSP_USING_QSPI在前面QSPI访问W25Q128示例工程中已经启用了，这里启用SFUD框架主要通过定义宏RT_USING_SFUD和RT_SFUD_USING_QSPI实现。

在Kconfig中新增SFUD配置后，在工程目录打开env工具，输入menuconfig，启用BSP_USING_QSPI_FLASH配置界面如下：
启用SFUD配置界面
启用BSP_USING_QSPI_FLASH并保存配置更改后，同时也把RT-Thread Components --> Device Drivers下的Using SFUD和Using QSPI mode support也使能了。

menuconfig启用BSP_USING_QSPI_FLASH后，自动在rtconfig.h中新增的宏定义如下：

// projects\stm32l475_device_sample\rtconfig.h
......
/* Device Drivers */
......
#define RT_USING_SPI
#define RT_USING_QSPI
#define RT_USING_SFUD
#define RT_SFUD_USING_SFDP
#define RT_SFUD_USING_FLASH_INFO_TABLE
#define RT_SFUD_USING_QSPI
......
/* Onboard Peripheral Drivers */
......
#define BSP_USING_QSPI_FLASH
......
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

编写SFUD访问W25Q128示例代码

继续在之前的spi_sample.c文件中新增本示例代码如下：

// projects\stm32l475_device_sample\applications\spi_sample.c
......
static int rt_hw_spi_flash_init(void)
{
//    if(rt_hw_spi_device_attach(QSPI_BUD_NAME, QSPI_DEVICE_NAME, GPIOE, GPIO_PIN_11) != RT_EOK)
//        return -RT_ERROR;

    if(stm32_qspi_bus_attach_device(QSPI_BUD_NAME, QSPI_DEVICE_NAME, (rt_uint32_t)QSPI_CS_PIN, 1, RT_NULL, RT_NULL) != RT_EOK)
        return -RT_ERROR;

#ifdef RT_USING_SFUD
    if(rt_sfud_flash_probe(W25Q_FLASH_NAME, QSPI_DEVICE_NAME) == RT_NULL)
        return -RT_ERROR;
#endif

    return RT_EOK;
}
INIT_COMPONENT_EXPORT(rt_hw_spi_flash_init);


static void sfud_w25q_sample(void)
{
    rt_spi_flash_device_t flash_dev;
    sfud_flash_t sfud_dev;
    struct rt_device_blk_geometry geometry;

    // 1- use sfud api
    rt_kprintf("\n 1 - Use SFUD API \n");

    sfud_dev = rt_sfud_flash_find_by_dev_name(W25Q_FLASH_NAME);
    if(sfud_dev == RT_NULL){
        rt_kprintf("sfud can't find %s device.\n", W25Q_FLASH_NAME);
    }else{
        rt_kprintf("sfud device name: %s, sector_count: %d, bytes_per_sector: %d, block_size: %d.\n",
                    sfud_dev->name, sfud_dev->chip.capacity / sfud_dev->chip.erase_gran,
                    sfud_dev->chip.erase_gran, sfud_dev->chip.erase_gran);

        if(sfud_erase_write(sfud_dev, 0x002000, sizeof(wData), wData) == SFUD_SUCCESS)
            rt_kprintf("sfud api write data to w25q128(address:0x2000) success.\n");

        if(sfud_read(sfud_dev, 0x002000, sizeof(rData), rData) == SFUD_SUCCESS)
            rt_kprintf("sfud api read data from w25q128(address:0x2000) is:%s\n", rData);
    }

    // 2- use rt_device api
    rt_kprintf("\n 2 - Use rt_device API \n");

    flash_dev = (rt_spi_flash_device_t)rt_device_find(W25Q_FLASH_NAME);
    if(flash_dev == RT_NULL){
        rt_kprintf("rt_device api can't find %s device.\n", W25Q_FLASH_NAME);
    }else{
        rt_device_open(&flash_dev->flash_device, RT_DEVICE_OFLAG_OPEN);

        if(rt_device_control(&flash_dev->flash_device, RT_DEVICE_CTRL_BLK_GETGEOME, &geometry) == RT_EOK)
            rt_kprintf("spi flash device name: %s, sector_count: %d, bytes_per_sector: %d, block_size: %d.\n",
                    flash_dev->flash_device.parent.name, geometry.sector_count, geometry.bytes_per_sector, geometry.block_size);

        if(rt_device_write(&flash_dev->flash_device, 0x03, wData, 1) > 0)
            rt_kprintf("rt_device api write data to w25q128(address:0x3000) success.\n");

        if(rt_device_read(&flash_dev->flash_device, 0x03, rData, 1) > 0)
            rt_kprintf("rt_device api read data from w25q128(address:0x3000) is:%s\n", rData);

        rt_device_close(&flash_dev->flash_device);
    }
}
MSH_CMD_EXPORT(sfud_w25q_sample, sfud w25q128 sample);
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67

上面的组件自动初始化代码新增了rt_sfud_flash_probe函数，并通过条件宏判断其是否会被调用。

SFUD访问W25Q128示例函数中使用两种方式分别实现：一种是使用SFUD框架层接口函数实现；另一种是使用注册到I / O设备管理层的统一管理接口实现。

在工程目录打开env，执行scons --target=mdk5生成工程代码，打开project.uvprojx工程编译报错如下：

ArmClang.exe: error: unsupported option '--c99'
1

说明SFUD框架还不支持ARMClang编译器，不能使用MDK ARM Compiler V6进行编译，我们将MDK使用的编译器改为ARM Compiler V5，再次编译无报错。

将工程代码烧录到STM32L475潘多拉开发板中，通过finsh看到执行结果如下：
SFUD访问W25Q128示例执行结果
SFUD访问W25Q128的两套API接口函数都运行正常，为了区分，数据读写的地址不同，可以从输出结果看出来。

SFUD除了提供通用访问serial flash的驱动框架及API接口外，还提供了finsh命令sf，从上图可以看出sf命令支持probe / read / write / erase / bench几种命令，要运行后面的命令，需要先执行sf probe命令，下面给出sf命令的运行示例：
SFUD sf命令执行示例
本示例工程源码下载地址：https://github.com/StreamAI/RT-Thread_Projects/tree/master/projects/stm32l475_device_sample
