前言
本文分享YOLO11的模型训练，训练任务包括物体分类、目标检测与跟踪、实例分割 、关键点姿态估计、旋转目标检测等。
安装方式支持：默认的使用pip进行安装；也支持直接调用YOLO11源码，灵活便捷修改源码。

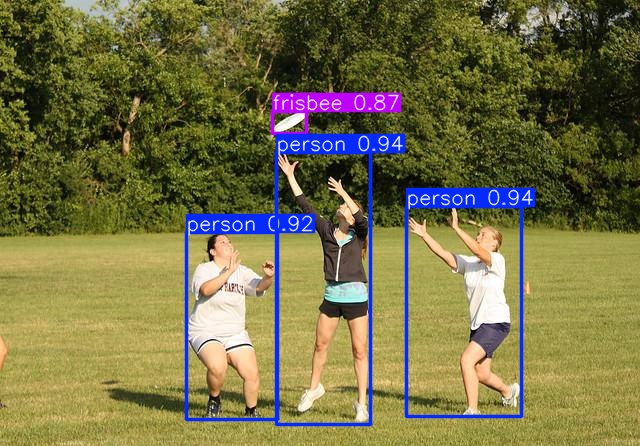

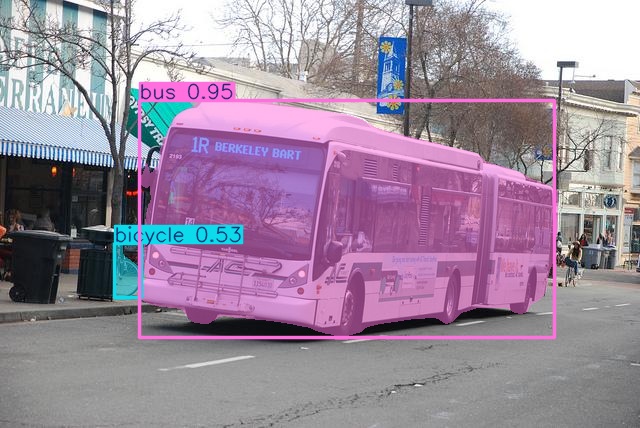

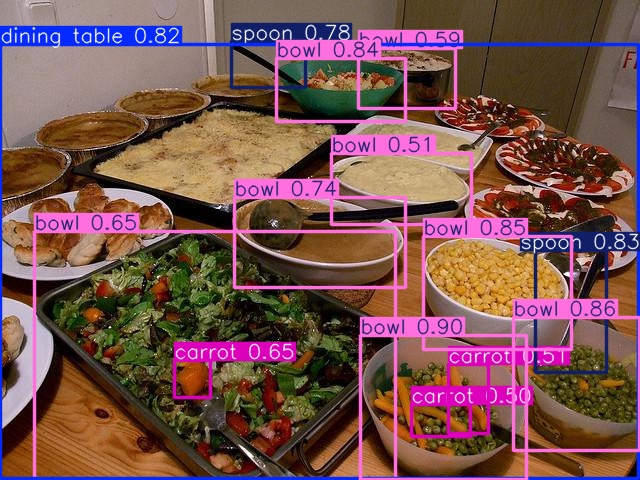

本文推荐在电脑端阅读，大约4万字左右，下面看看YOLO11目标检测的效果：

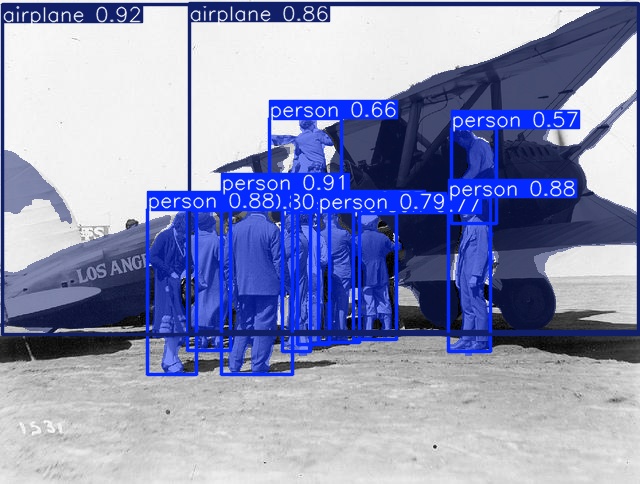

看看示例分割的效果：

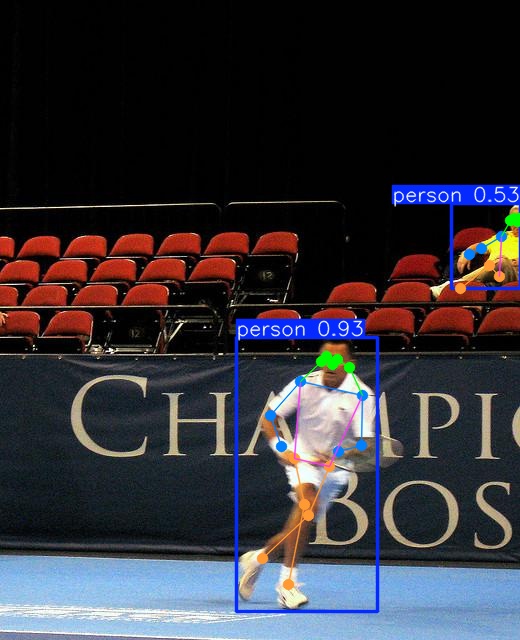

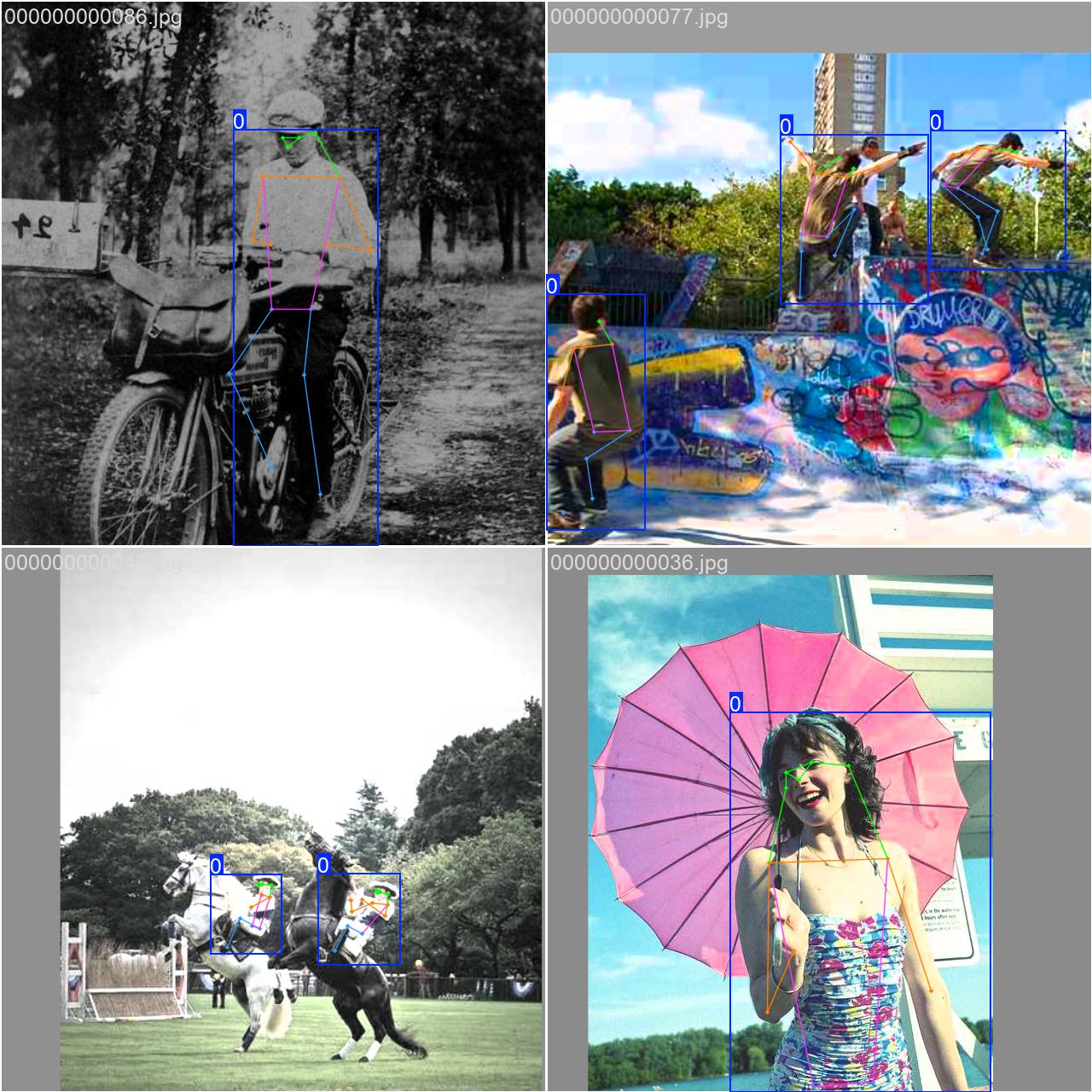

看看关键点姿态估计的效果：
首先安装YOLO11
1、官方默认安装方式
通过运行 pip install ultralytics 来快速安装 Ultralytics 包
安装要求：
- Python 版本要求：Python 版本需为 3.8 及以上，支持 3.8、3.9、3.10、3.11、3.12 这些版本。
- PyTorch 版本要求：需要 PyTorch 版本不低于 1.8。
然后使用清华源，进行加速安装
pip install ultralytics -i https://pypi.tuna.tsinghua.edu.cn/simple/2、直接调用YOLO11源码方式（推荐）
首先到YOLO11代码地址，下载源代码：https://github.com/ultralytics/ultralytics
- 在 GitHub 仓库页面上，用户点击绿色的 "Code" 按钮后，会弹出一个选项框。
- 选择通过 HTTPS 或 GitHub CLI 克隆仓库，也可以点击框中的 "Download ZIP" 按钮，将整个仓库下载为 ZIP 压缩包到本地。
解压ultralytics-main.zip文件，目录结构如下所示
- ultralytics-main/
- .github/
- docker/
- docs/
- examples/
- runs/
- tests/
- ultralytics/
- .gitignore
- CITATION.cff
- CONTRIBUTING.md
- LICENSE
- mkdocs.yml
- pyproject.toml
- README.md
- README.zh-CN.md
然后在ultralytics同级目录中，添加需要训练的代码（train.py）
以及测试数据的文件夹：datasets，权重文件目录：weights
- ultralytics-main/
- .github/
- datasets/
- docker/
- docs/
- examples/
- runs/
- tests/
- ultralytics/
- weights/
- .gitignore
- CITATION.cff
- CONTRIBUTING.md
- LICENSE
- mkdocs.yml
- print_dir.py
- pyproject.toml
- README.md
- README.zh-CN.md
- train.py
weights目录可以存放不同任务的权重，比如：yolo11m-cls.pt、yolo11m-obb.pt、yolo11m-pose.pt、yolo11m-seg.pt、yolo11m.pt、yolo11n.pt等。
train.py文件是和ultralytics文件夹同一级目录的
后面可以直接调用ultralytics源代码中的函数、类和依赖库等，如果有需要直接修改ultralytics中的代码，比较方便。
一、YOLO11模型训练——实例分割
1、模型训练简洁版
YOLO11模型训练，整体思路流程：
- 加载模型：使用 YOLO 类指定模型的配置文件
yolo11m-seg.yaml并加载预训练权重yolo11m-seg.pt。 - 执行训练：调用
model.train()方法，指定数据集coco8_lgp.yaml，设置训练轮数为 10，图像大小为 640 像素。 - 保存训练结果：训练完成后，结果保存在
results中，包含损失和精度等信息。
示例代码，如下所示：
- from ultralytics import YOLO
-
- # 加载YOLO模型的配置文件，并加载预训练权重文件
- model = YOLO("yolo11m-seg.yaml").load("weights/yolo11m-seg.pt")
-
- # 使用coco8_lgp.yaml数据集进行训练，训练10个epoch，并将图像大小设置为640像素
- results = model.train(data="coco8_lgp.yaml", epochs=10, imgsz=640)
然后执行程序，开始训练：
- Ultralytics 8.3.7 ? Python-3.8.16 torch-1.13.1 CPU (unknown)
-
- ......
- Logging results to runs\segment\train6
- Starting training for 10 epochs...
- Closing dataloader mosaic
-
- Epoch GPU_mem box_loss seg_loss cls_loss dfl_loss Instances Size
- 1/10 0G 0.6116 2.282 1.139 1.125 13 640: 100%|██████████| 1/1 [00:15<00:00, 15.61s/it]
- Class Images Instances Box(P R mAP50 mAP50-95) Mask(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:04<00:00, 4.62s/it]
- all 4 17 0.778 0.963 0.97 0.776 0.778 0.963 0.967 0.691
-
- .....
-
- Epoch GPU_mem box_loss seg_loss cls_loss dfl_loss Instances Size
- 10/10 0G 0.6489 1.423 0.6046 0.9767 13 640: 100%|██████████| 1/1 [00:13<00:00, 13.47s/it]
- Class Images Instances Box(P R mAP50 mAP50-95) Mask(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:04<00:00, 4.76s/it]
- all 4 17 0.836 0.965 0.968 0.753 0.836 0.965 0.963 0.666
-
- 10 epochs completed in 0.061 hours.
- Optimizer stripped from runs\segment\train6\weights\last.pt, 45.3MB
- Optimizer stripped from runs\segment\train6\weights\best.pt, 45.3MB
模型结构的配置文件：yolo11m-seg.yaml，模型权重:weights/yolo11m-seg.pt，存放数据集文件：coco8_lgp.yaml；这些后面在详细分析。

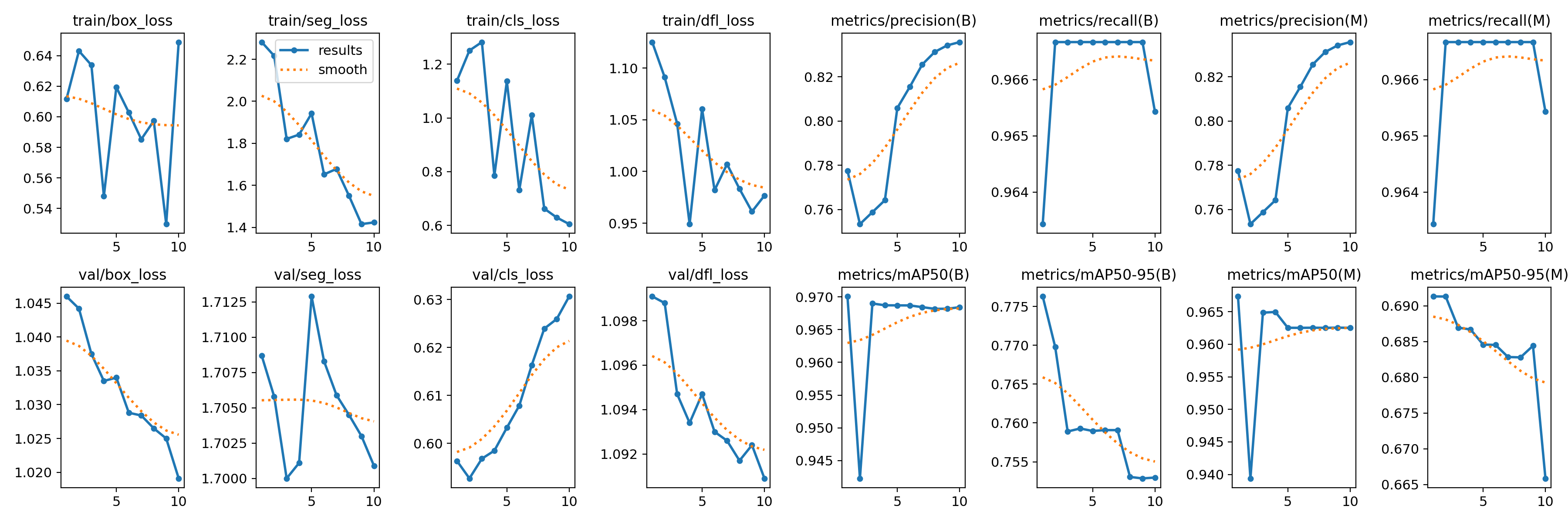

训练完成后，能看到runs\segment\train6保存的权重和训练信息

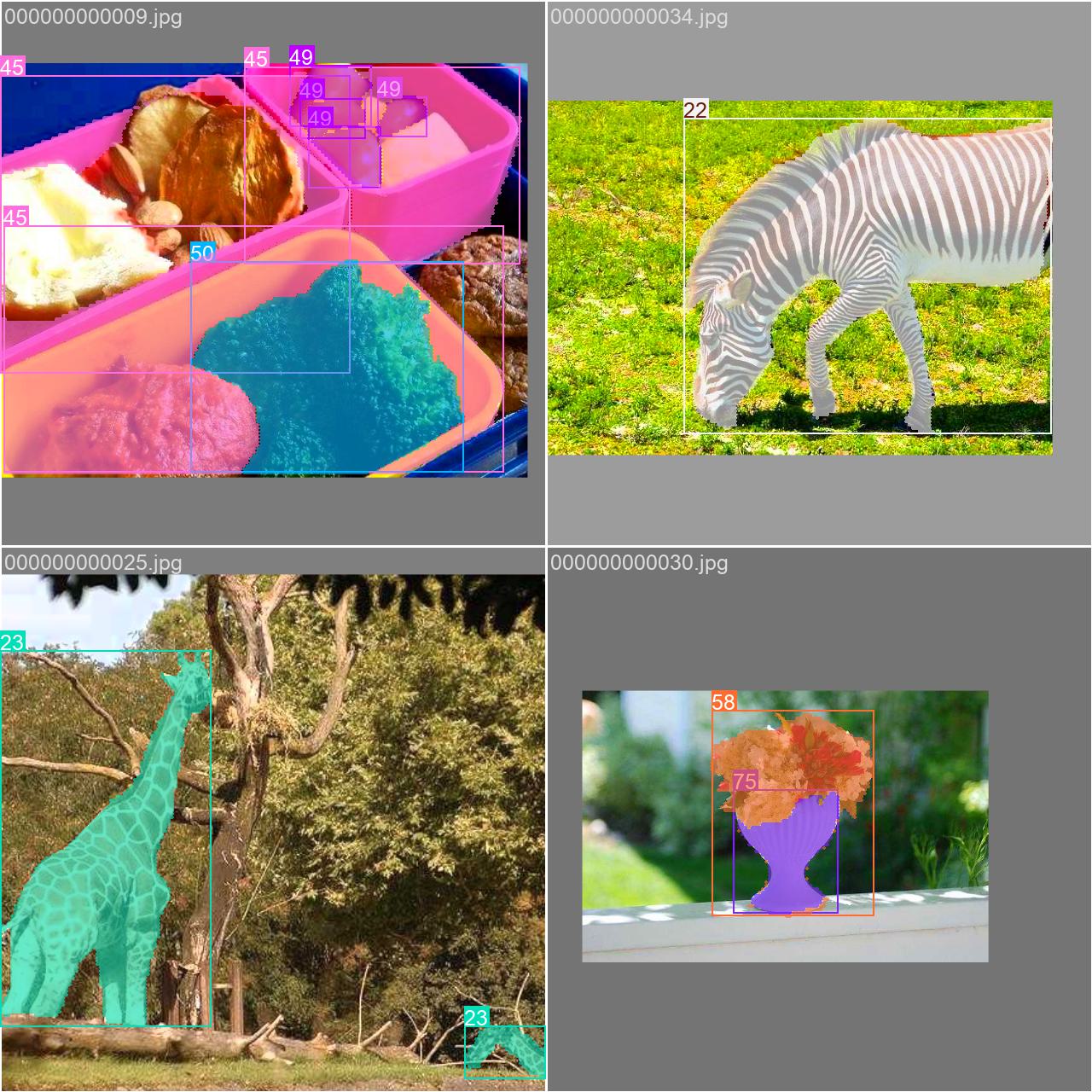

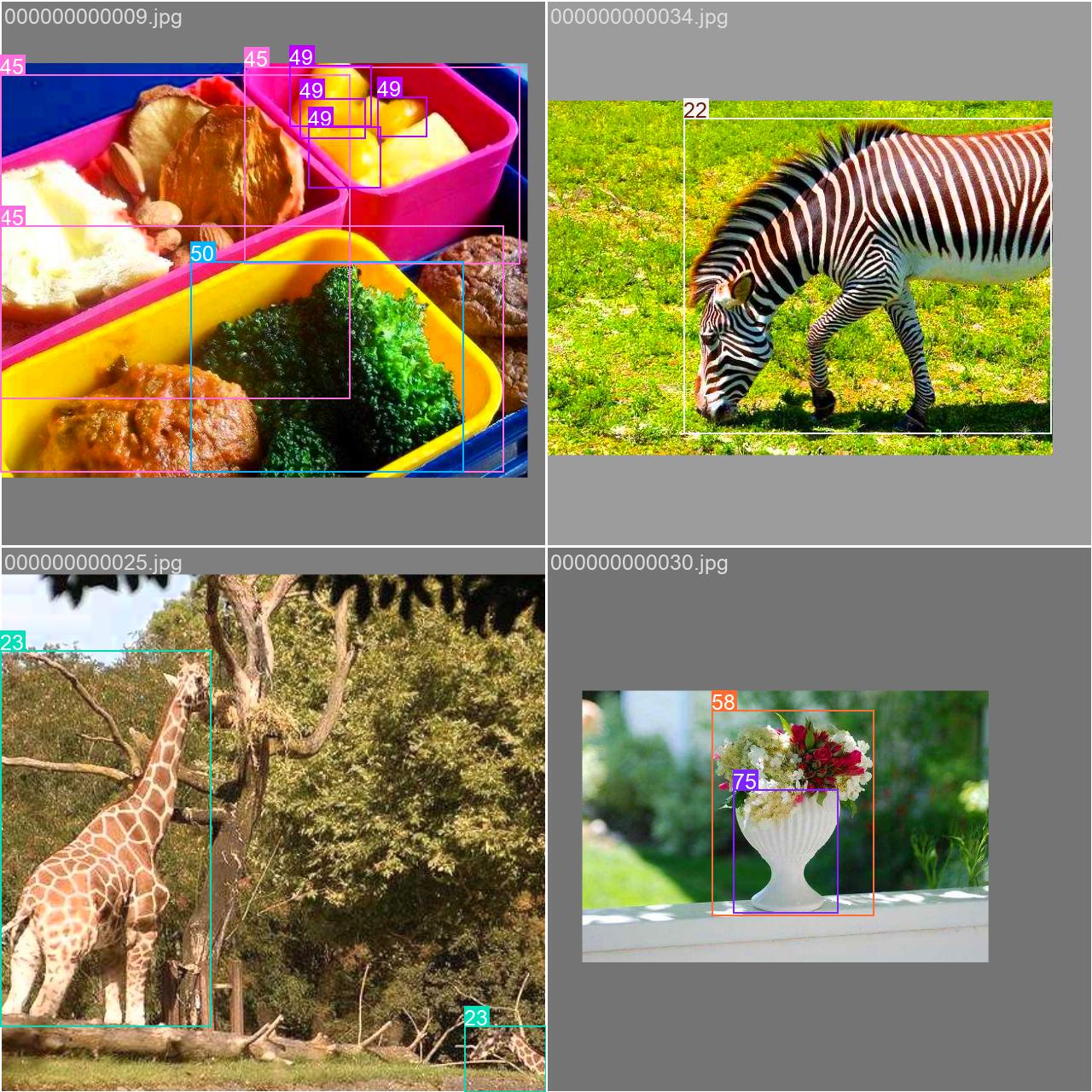

训练图像和标签的示例：
2、详细训练参数版本（重要）
YOLO11模型训练，详细参数版本的思路流程：
- 加载模型：使用 YOLO 类指定模型的配置文件
yolo11s-seg.yaml并加载预训练权重yolo11s-seg.pt。 - 定义训练参数：通过字典
train_params定义了一系列训练参数，涵盖了训练过程中可能涉及的配置项，如数据集路径、训练轮数、图像大小、优化器、数据增强等。 - 执行训练：使用
model.train(**train_params)将定义的训练参数传入模型，开始训练。 - 保存训练结果：训练完成后，结果保存在
results中，包含损失和精度等信息。
示例代码，如下所示：
- from ultralytics import YOLO
-
- # 加载预训练的模型
- model = YOLO("yolo11s-seg.yaml").load("weights_yolo/yolo11s-seg.pt")
-
- # 定义训练参数，添加默认值、范围和中文注释
- train_params = {
- 'data': "coco8_lgp.yaml", # 数据集配置文件路径，需要自定义修改
- 'epochs': 10, # 总训练轮次，默认值 100，范围 >= 1
- 'imgsz': 640, # 输入图像大小，默认值 640，范围 >= 32
- 'batch': 8, # 批次大小，默认值 16，范围 >= 1
- 'save': True, # 是否保存训练结果和模型，默认值 True
- 'save_period': -1, # 模型保存频率，默认值 -1，表示只保存最终结果
- 'cache': False, # 是否缓存数据集，默认值 False
- 'device': None, # 训练设备，默认值 None，支持 "cpu", "gpu"(device=0,1), "mps"
- 'workers': 8, # 数据加载线程数，默认值 8，影响数据预处理速度
- 'project': None, # 项目名称，保存训练结果的目录，默认值 None
- 'name': None, # 训练运行的名称，用于创建子目录保存结果，默认值 None
- 'exist_ok': False, # 是否覆盖已有项目/名称目录，默认值 False
- 'optimizer': 'auto', # 优化器，默认值 'auto'，支持 'SGD', 'Adam', 'AdamW'
- 'verbose': True, # 是否启用详细日志输出，默认值 False
- 'seed': 0, # 随机种子，确保结果的可重复性，默认值 0
- 'deterministic': True, # 是否强制使用确定性算法，默认值 True
- 'single_cls': False, # 是否将多类别数据集视为单一类别，默认值 False
- 'rect': False, # 是否启用矩形训练（优化批次图像大小），默认值 False
- 'cos_lr': False, # 是否使用余弦学习率调度器，默认值 False
- 'close_mosaic': 10, # 在最后 N 轮次中禁用 Mosaic 数据增强，默认值 10
- 'resume': False, # 是否从上次保存的检查点继续训练，默认值 False
- 'amp': True, # 是否启用自动混合精度（AMP）训练，默认值 True
- 'fraction': 1.0, # 使用数据集的比例，默认值 1.0
- 'profile': False, # 是否启用 ONNX 或 TensorRT 模型优化分析，默认值 False
- 'freeze': None, # 冻结模型的前 N 层，默认值 None
- 'lr0': 0.01, # 初始学习率，默认值 0.01，范围 >= 0
- 'lrf': 0.01, # 最终学习率与初始学习率的比值，默认值 0.01
- 'momentum': 0.937, # SGD 或 Adam 的动量因子，默认值 0.937，范围 [0, 1]
- 'weight_decay': 0.0005, # 权重衰减，防止过拟合，默认值 0.0005
- 'warmup_epochs': 3.0, # 预热学习率的轮次，默认值 3.0
- 'warmup_momentum': 0.8, # 预热阶段的初始动量，默认值 0.8
- 'warmup_bias_lr': 0.1, # 预热阶段的偏置学习率，默认值 0.1
- 'box': 7.5, # 边框损失的权重，默认值 7.5
- 'cls': 0.5, # 分类损失的权重，默认值 0.5
- 'dfl': 1.5, # 分布焦点损失的权重，默认值 1.5
- 'pose': 12.0, # 姿态损失的权重，默认值 12.0
- 'kobj': 1.0, # 关键点目标损失的权重，默认值 1.0
- 'label_smoothing': 0.0, # 标签平滑处理，默认值 0.0
- 'nbs': 64, # 归一化批次大小，默认值 64
- 'overlap_mask': True, # 是否在训练期间启用掩码重叠，默认值 True
- 'mask_ratio': 4, # 掩码下采样比例，默认值 4
- 'dropout': 0.0, # 随机失活率，用于防止过拟合，默认值 0.0
- 'val': True, # 是否在训练期间启用验证，默认值 True
- 'plots': True, # 是否生成训练曲线和验证指标图，默认值 True
-
- # 数据增强相关参数
- 'hsv_h': 0.015, # 色相变化范围 (0.0 - 1.0)，默认值 0.015
- 'hsv_s': 0.7, # 饱和度变化范围 (0.0 - 1.0)，默认值 0.7
- 'hsv_v': 0.4, # 亮度变化范围 (0.0 - 1.0)，默认值 0.4
- 'degrees': 0.0, # 旋转角度范围 (-180 - 180)，默认值 0.0
- 'translate': 0.1, # 平移范围 (0.0 - 1.0)，默认值 0.1
- 'scale': 0.5, # 缩放比例范围 (>= 0.0)，默认值 0.5
- 'shear': 0.0, # 剪切角度范围 (-180 - 180)，默认值 0.0
- 'perspective': 0.0, # 透视变化范围 (0.0 - 0.001)，默认值 0.0
- 'flipud': 0.0, # 上下翻转概率 (0.0 - 1.0)，默认值 0.0
- 'fliplr': 0.5, # 左右翻转概率 (0.0 - 1.0)，默认值 0.5
- 'bgr': 0.0, # BGR 色彩顺序调整概率 (0.0 - 1.0)，默认值 0.0
- 'mosaic': 1.0, # Mosaic 数据增强 (0.0 - 1.0)，默认值 1.0
- 'mixup': 0.0, # Mixup 数据增强 (0.0 - 1.0)，默认值 0.0
- 'copy_paste': 0.0, # Copy-Paste 数据增强 (0.0 - 1.0)，默认值 0.0
- 'copy_paste_mode': 'flip', # Copy-Paste 增强模式 ('flip' 或 'mixup')，默认值 'flip'
- 'auto_augment': 'randaugment', # 自动增强策略 ('randaugment', 'autoaugment', 'augmix')，默认值 'randaugment'
- 'erasing': 0.4, # 随机擦除增强比例 (0.0 - 0.9)，默认值 0.4
- 'crop_fraction': 1.0, # 裁剪比例 (0.1 - 1.0)，默认值 1.0
-
- }
-
- # 进行训练
- results = model.train(**train_params)
在ultralytics工程中，没有了超参数文件了，需要从model.train( )函数参数设置，所以才会有上面的示例代码。
然后执行程序，开始训练~
这里的训练参数可以再看看官方的：https://docs.ultralytics.com/modes/train/#train-settings
3、模型结构的配置文件
首先分析模型结构的配置文件：yolo11m-seg.yaml，它所在位置是
ultralytics/cfg/models/11/yolo11-seg.yaml
里面有详细的模型结构参数信息
如果需要修改YOLO11的实例分割-模型结构，可以在这个文件进行修改
- # Parameters
- nc: 80 # number of classes
- scales: # model compound scaling constants, i.e. 'model=yolo11n-seg.yaml' will call yolo11-seg.yaml with scale 'n'
- # [depth, width, max_channels]
- n: [0.50, 0.25, 1024] # summary: 355 layers, 2876848 parameters, 2876832 gradients, 10.5 GFLOPs
- s: [0.50, 0.50, 1024] # summary: 355 layers, 10113248 parameters, 10113232 gradients, 35.8 GFLOPs
- m: [0.50, 1.00, 512] # summary: 445 layers, 22420896 parameters, 22420880 gradients, 123.9 GFLOPs
- l: [1.00, 1.00, 512] # summary: 667 layers, 27678368 parameters, 27678352 gradients, 143.0 GFLOPs
- x: [1.00, 1.50, 512] # summary: 667 layers, 62142656 parameters, 62142640 gradients, 320.2 GFLOPs
-
- # YOLO11n backbone
- backbone:
- # [from, repeats, module, args]
- - [-1, 1, Conv, [64, 3, 2]] # 0-P1/2
- - [-1, 1, Conv, [128, 3, 2]] # 1-P2/4
- - [-1, 2, C3k2, [256, False, 0.25]]
- - [-1, 1, Conv, [256, 3, 2]] # 3-P3/8
- - [-1, 2, C3k2, [512, False, 0.25]]
- - [-1, 1, Conv, [512, 3, 2]] # 5-P4/16
- - [-1, 2, C3k2, [512, True]]
- - [-1, 1, Conv, [1024, 3, 2]] # 7-P5/32
- - [-1, 2, C3k2, [1024, True]]
- - [-1, 1, SPPF, [1024, 5]] # 9
- - [-1, 2, C2PSA, [1024]] # 10
-
- # YOLO11n head
- head:
- - [-1, 1, nn.Upsample, [None, 2, "nearest"]]
- - [[-1, 6], 1, Concat, [1]] # cat backbone P4
- - [-1, 2, C3k2, [512, False]] # 13
-
- - [-1, 1, nn.Upsample, [None, 2, "nearest"]]
- - [[-1, 4], 1, Concat, [1]] # cat backbone P3
- - [-1, 2, C3k2, [256, False]] # 16 (P3/8-small)
-
- - [-1, 1, Conv, [256, 3, 2]]
- - [[-1, 13], 1, Concat, [1]] # cat head P4
- - [-1, 2, C3k2, [512, False]] # 19 (P4/16-medium)
-
- - [-1, 1, Conv, [512, 3, 2]]
- - [[-1, 10], 1, Concat, [1]] # cat head P5
- - [-1, 2, C3k2, [1024, True]] # 22 (P5/32-large)
-
- - [[16, 19, 22], 1, Segment, [nc, 32, 256]] # Detect(P3, P4, P5)
4、模型权重
然后看看weights/yolo11m-seg.pt，这样就是模型权重的路径，可以根据放置的路径，进行修改。
5、数据集路径
最后看看coco8_lgp.yaml文件，这个是存放数据集的，比较重要。
它所在位置是：ultralytics/cfg/datasets/coco8_lgp.yaml，同级目录下还存在许多数据集配置文件
比如：coco128.yaml、coco.yaml、DOTAv1.5.yaml、VOC.yaml、Objects365.yaml、Argoverse.yaml等等
即下面代码的作用是一样的：
- results = model.train(data="coco8_lgp.yaml", epochs=10, imgsz=640)
- # results = model.train(data=r"C:/Users/liguopu/Downloads/ultralytics-main/ultralytics/cfg/datasets/coco8_lgp.yaml", epochs=10, imgsz=640)
coco8_lgp.yaml这个文件是我自定义的，内容如下：
里面指定了数据集的路径：path: C:\Users\liguopu\Downloads\ultralytics-main\datasets\coco8-seg，
数据集的路径path，需要根据实际数据路径进行修改
下面看看这个文件的内容：
- # Ultralytics YOLO ?, AGPL-3.0 license
-
- path: C:\Users\liguopu\Downloads\ultralytics-main\datasets\coco8-seg # dataset root dir
- train: images\train # train images (relative to 'path') 4 images
- val: images\val # val images (relative to 'path') 4 images
- test: # test images (optional)
-
- # Classes
- names:
- 0: person
- 1: bicycle
- 2: car
- 3: motorcycle
- 4: airplane
- 5: bus
- 6: train
- 7: truck
- 8: boat
- 9: traffic light
- 10: fire hydrant
- 11: stop sign
- 12: parking meter
- 13: bench
- 14: bird
- 15: cat
- 16: dog
- 17: horse
- 18: sheep
- 19: cow
- 20: elephant
- 21: bear
- 22: zebra
- 23: giraffe
- 24: backpack
- 25: umbrella
- 26: handbag
- 27: tie
- 28: suitcase
- 29: frisbee
- 30: skis
- 31: snowboard
- 32: sports ball
- 33: kite
- 34: baseball bat
- 35: baseball glove
- 36: skateboard
- 37: surfboard
- 38: tennis racket
- 39: bottle
- 40: wine glass
- 41: cup
- 42: fork
- 43: knife
- 44: spoon
- 45: bowl
- 46: banana
- 47: apple
- 48: sandwich
- 49: orange
- 50: broccoli
- 51: carrot
- 52: hot dog
- 53: pizza
- 54: donut
- 55: cake
- 56: chair
- 57: couch
- 58: potted plant
- 59: bed
- 60: dining table
- 61: toilet
- 62: tv
- 63: laptop
- 64: mouse
- 65: remote
- 66: keyboard
- 67: cell phone
- 68: microwave
- 69: oven
- 70: toaster
- 71: sink
- 72: refrigerator
- 73: book
- 74: clock
- 75: vase
- 76: scissors
- 77: teddy bear
- 78: hair drier
- 79: toothbrush
-
- # Download script/URL (optional)
- download: https://github.com/ultralytics/assets/releases/download/v0.0.0/coco8.zip
二、YOLO11模型训练——目标检测
其实和上面的代码，基本是一样的，只需改变模型权重和吗模型配置文件就可以了。
模型训练简洁版
YOLO11模型训练，整体思路流程：
- 加载模型：使用 YOLO 类指定模型的配置文件
yolo11s.yaml并加载预训练权重yolo11s.pt。 - 执行训练：调用
model.train()方法，指定数据集coco8.yaml，设置训练轮数为 10，图像大小为 640 像素。 - 保存训练结果：训练完成后，结果保存在
results中，包含损失和精度等信息。
示例代码，如下所示：
- from ultralytics import YOLO
-
- # 加载YOLO模型的配置文件，并加载预训练权重文件
- model = YOLO("yolo11s.yaml").load("weights/yolo11s.pt")
-
- # 使用coco8.yaml数据集进行训练，训练10个epoch，并将图像大小设置为640像素
- results = model.train(data="coco8.yaml", epochs=10, imgsz=640)
然后执行程序，开始训练：
- Transferred 499/499 items from pretrained weights
- Ultralytics 8.3.7 ? Python-3.8.16 torch-1.13.1 CPU (unknown)
- WARNING ⚠️ Upgrade to torch>=2.0.0 for deterministic training.
- engine\trainer: task=detect, mode=train, model=yolo11s.yaml, data=coco8.yaml, epochs=10, time=None, patience=100, batch=16, imgsz=640, save=True, save_period=-1, cache=False, device=None, workers=8, project=None, name=train, exist_ok=False, pretrained=weights/yolo11s.pt, optimizer=auto, verbose=True, seed=0, deterministic=True, single_cls=False, rect=False, cos_lr=False, close_mosaic=10, resume=False, amp=True, fraction=1.0, profile=False, freeze=None, multi_scale=False, overlap_mask=True, mask_ratio=4, dropout=0.0, val=True, split=val, save_json=False, save_hybrid=False, conf=None, iou=0.7, max_det=300, half=False, dnn=False, plots=True, source=None, vid_stride=1, stream_buffer=False, visualize=False, augment=False, agnostic_nms=False, classes=None, retina_masks=False, embed=None, show=False, save_frames=False, save_txt=False, save_conf=False, save_crop=False, show_labels=True, show_conf=True, show_boxes=True, line_width=None, format=torchscript, keras=False, optimize=False, int8=False, dynamic=False, simplify=True, opset=None, workspace=4, nms=False, lr0=0.01, lrf=0.01, momentum=0.937, weight_decay=0.0005, warmup_epochs=3.0, warmup_momentum=0.8, warmup_bias_lr=0.1, box=7.5, cls=0.5, dfl=1.5, pose=12.0, kobj=1.0, label_smoothing=0.0, nbs=64, hsv_h=0.015, hsv_s=0.7, hsv_v=0.4, degrees=0.0, translate=0.1, scale=0.5, shear=0.0, perspective=0.0, flipud=0.0, fliplr=0.5, bgr=0.0, mosaic=1.0, mixup=0.0, copy_paste=0.0, copy_paste_mode=flip, auto_augment=randaugment, erasing=0.4, crop_fraction=1.0, cfg=None, tracker=botsort.yaml, save_dir=runs\detect\train
-
- Dataset 'coco8.yaml' images not found ⚠️, missing path 'C:\Users\liguopu\Downloads\ultralytics-main\datasets\coco8\images\val'
- Downloading https://ultralytics.com/assets/coco8.zip to 'C:\Users\liguopu\Downloads\ultralytics-main\datasets\coco8.zip'...
- 100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 433k/433k [00:10<00:00, 42.1kB/s]
- Unzipping C:\Users\liguopu\Downloads\ultralytics-main\datasets\coco8.zip to C:\Users\liguopu\Downloads\ultralytics-main\datasets\coco8...: 100%|██████████| 25/25 [00:00<00:00, 1081.86file/s]
- Dataset download success ✅ (14.1s), saved to C:\Users\liguopu\Downloads\ultralytics-main\datasets
-
-
- from n params module arguments
- 0 -1 1 928 ultralytics.nn.modules.conv.Conv [3, 32, 3, 2]
- 1 -1 1 18560 ultralytics.nn.modules.conv.Conv [32, 64, 3, 2]
- 2 -1 1 26080 ultralytics.nn.modules.block.C3k2 [64, 128, 1, False, 0.25]
- 3 -1 1 147712 ultralytics.nn.modules.conv.Conv [128, 128, 3, 2]
- 4 -1 1 103360 ultralytics.nn.modules.block.C3k2 [128, 256, 1, False, 0.25]
- 5 -1 1 590336 ultralytics.nn.modules.conv.Conv [256, 256, 3, 2]
- 6 -1 1 346112 ultralytics.nn.modules.block.C3k2 [256, 256, 1, True]
- 7 -1 1 1180672 ultralytics.nn.modules.conv.Conv [256, 512, 3, 2]
- 8 -1 1 1380352 ultralytics.nn.modules.block.C3k2 [512, 512, 1, True]
- 9 -1 1 656896 ultralytics.nn.modules.block.SPPF [512, 512, 5]
- 10 -1 1 990976 ultralytics.nn.modules.block.C2PSA [512, 512, 1]
- 11 -1 1 0 torch.nn.modules.upsampling.Upsample [None, 2, 'nearest']
- 12 [-1, 6] 1 0 ultralytics.nn.modules.conv.Concat [1]
- 13 -1 1 443776 ultralytics.nn.modules.block.C3k2 [768, 256, 1, False]
- 14 -1 1 0 torch.nn.modules.upsampling.Upsample [None, 2, 'nearest']
- 15 [-1, 4] 1 0 ultralytics.nn.modules.conv.Concat [1]
- 16 -1 1 127680 ultralytics.nn.modules.block.C3k2 [512, 128, 1, False]
- 17 -1 1 147712 ultralytics.nn.modules.conv.Conv [128, 128, 3, 2]
- 18 [-1, 13] 1 0 ultralytics.nn.modules.conv.Concat [1]
- 19 -1 1 345472 ultralytics.nn.modules.block.C3k2 [384, 256, 1, False]
- 20 -1 1 590336 ultralytics.nn.modules.conv.Conv [256, 256, 3, 2]
- 21 [-1, 10] 1 0 ultralytics.nn.modules.conv.Concat [1]
- 22 -1 1 1511424 ultralytics.nn.modules.block.C3k2 [768, 512, 1, True]
- 23 [16, 19, 22] 1 850368 ultralytics.nn.modules.head.Detect [80, [128, 256, 512]]
- YOLO11s summary: 319 layers, 9,458,752 parameters, 9,458,736 gradients, 21.7 GFLOPs
-
- Transferred 499/499 items from pretrained weights
- TensorBoard: Start with 'tensorboard --logdir runs\detect\train', view at http://localhost:6006/
- Freezing layer 'model.23.dfl.conv.weight'
- train: Scanning C:\Users\liguopu\Downloads\ultralytics-main\datasets\coco8\labels\train... 4 images, 0 backgrounds, 0 corrupt: 100%|██████████| 4/4 [00:00<00:00, 88.74it/s]
- train: New cache created: C:\Users\liguopu\Downloads\ultralytics-main\datasets\coco8\labels\train.cache
- val: Scanning C:\Users\liguopu\Downloads\ultralytics-main\datasets\coco8\labels\val... 4 images, 0 backgrounds, 0 corrupt: 100%|██████████| 4/4 [00:00<00:00, 124.99it/s]
- val: New cache created: C:\Users\liguopu\Downloads\ultralytics-main\datasets\coco8\labels\val.cache
- Plotting labels to runs\detect\train\labels.jpg...
- optimizer: 'optimizer=auto' found, ignoring 'lr0=0.01' and 'momentum=0.937' and determining best 'optimizer', 'lr0' and 'momentum' automatically...
- optimizer: AdamW(lr=0.000119, momentum=0.9) with parameter groups 81 weight(decay=0.0), 88 weight(decay=0.0005), 87 bias(decay=0.0)
- TensorBoard: model graph visualization added ✅
- Image sizes 640 train, 640 val
- Using 0 dataloader workers
- Logging results to runs\detect\train
- Starting training for 10 epochs...
- Closing dataloader mosaic
-
- Epoch GPU_mem box_loss cls_loss dfl_loss Instances Size
- 1/10 0G 0.7464 1.726 1.177 13 640: 100%|██████████| 1/1 [00:05<00:00, 5.23s/it]
- Class Images Instances Box(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:02<00:00, 2.30s/it]
- all 4 17 0.934 0.788 0.935 0.733
-
- Epoch GPU_mem box_loss cls_loss dfl_loss Instances Size
- 2/10 0G 0.8044 1.794 1.126 13 640: 100%|██████████| 1/1 [00:04<00:00, 4.63s/it]
- Class Images Instances Box(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:01<00:00, 1.97s/it]
- all 4 17 0.845 0.884 0.962 0.719
-
- Epoch GPU_mem box_loss cls_loss dfl_loss Instances Size
- 3/10 0G 0.8128 1.746 1.216 13 640: 100%|██████████| 1/1 [00:05<00:00, 5.02s/it]
- Class Images Instances Box(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:02<00:00, 2.20s/it]
- all 4 17 0.922 0.793 0.934 0.711
-
- Epoch GPU_mem box_loss cls_loss dfl_loss Instances Size
- 4/10 0G 0.8673 1.121 1.161 13 640: 100%|██████████| 1/1 [00:05<00:00, 5.02s/it]
- Class Images Instances Box(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:02<00:00, 2.94s/it]
- all 4 17 0.919 0.794 0.934 0.711
-
- Epoch GPU_mem box_loss cls_loss dfl_loss Instances Size
- 5/10 0G 0.7821 1.427 1.17 13 640: 100%|██████████| 1/1 [00:05<00:00, 5.27s/it]
- Class Images Instances Box(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:02<00:00, 2.78s/it]
- all 4 17 0.917 0.795 0.934 0.695
-
- Epoch GPU_mem box_loss cls_loss dfl_loss Instances Size
- 6/10 0G 0.5842 1.11 1.014 13 640: 100%|██████████| 1/1 [00:05<00:00, 5.54s/it]
- Class Images Instances Box(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:02<00:00, 2.01s/it]
- all 4 17 0.908 0.798 0.933 0.696
-
- Epoch GPU_mem box_loss cls_loss dfl_loss Instances Size
- 7/10 0G 0.7791 1.15 1.104 13 640: 100%|██████████| 1/1 [00:04<00:00, 4.39s/it]
- Class Images Instances Box(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:01<00:00, 1.81s/it]
- all 4 17 0.898 0.8 0.936 0.696
-
- Epoch GPU_mem box_loss cls_loss dfl_loss Instances Size
- 8/10 0G 0.8725 1.353 1.201 13 640: 100%|██████████| 1/1 [00:04<00:00, 4.56s/it]
- Class Images Instances Box(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:01<00:00, 1.82s/it]
- all 4 17 0.883 0.805 0.933 0.71
-
- Epoch GPU_mem box_loss cls_loss dfl_loss Instances Size
- 9/10 0G 0.6213 1.023 1.066 13 640: 100%|██████████| 1/1 [00:04<00:00, 4.51s/it]
- Class Images Instances Box(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:01<00:00, 1.78s/it]
- all 4 17 0.878 0.839 0.96 0.712
-
- Epoch GPU_mem box_loss cls_loss dfl_loss Instances Size
- 10/10 0G 0.6774 1.118 1.038 13 640: 100%|██████████| 1/1 [00:04<00:00, 4.54s/it]
- Class Images Instances Box(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:01<00:00, 1.79s/it]
- all 4 17 0.814 0.859 0.959 0.647
-
- 10 epochs completed in 0.024 hours.
- Optimizer stripped from runs\detect\train\weights\last.pt, 19.2MB
- Optimizer stripped from runs\detect\train\weights\best.pt, 19.2MB
-
- Validating runs\detect\train\weights\best.pt...
- WARNING ⚠️ validating an untrained model YAML will result in 0 mAP.
- Ultralytics 8.3.7 ? Python-3.8.16 torch-1.13.1 CPU (unknown)
- YOLO11s summary (fused): 238 layers, 9,443,760 parameters, 0 gradients, 21.5 GFLOPs
- Class Images Instances Box(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:01<00:00, 1.54s/it]
- all 4 17 0.935 0.788 0.935 0.733
- person 3 10 1 0.23 0.804 0.435
- dog 1 1 0.963 1 0.995 0.895
- horse 1 2 0.925 1 0.995 0.699
- elephant 1 2 0.948 0.5 0.828 0.477
- umbrella 1 1 0.849 1 0.995 0.995
- potted plant 1 1 0.923 1 0.995 0.895
- Speed: 3.1ms preprocess, 368.9ms inference, 0.0ms loss, 3.0ms postprocess per image
- Results saved to runs\detect\train
- PS C:\Users\liguopu\Downloads\ultralytics-main>

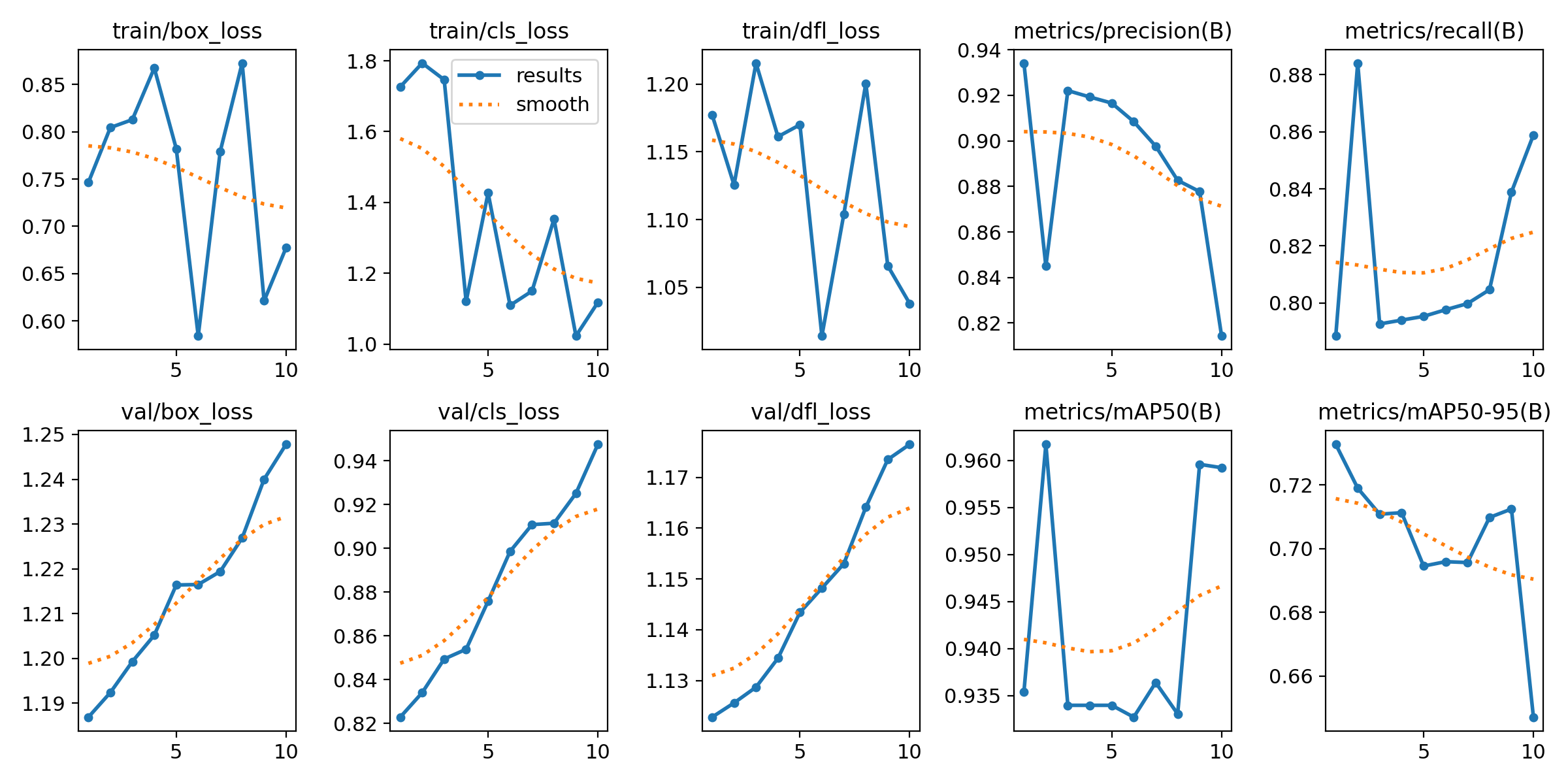

训练完成后，能看到runs\detect\train保存的权重和训练信息

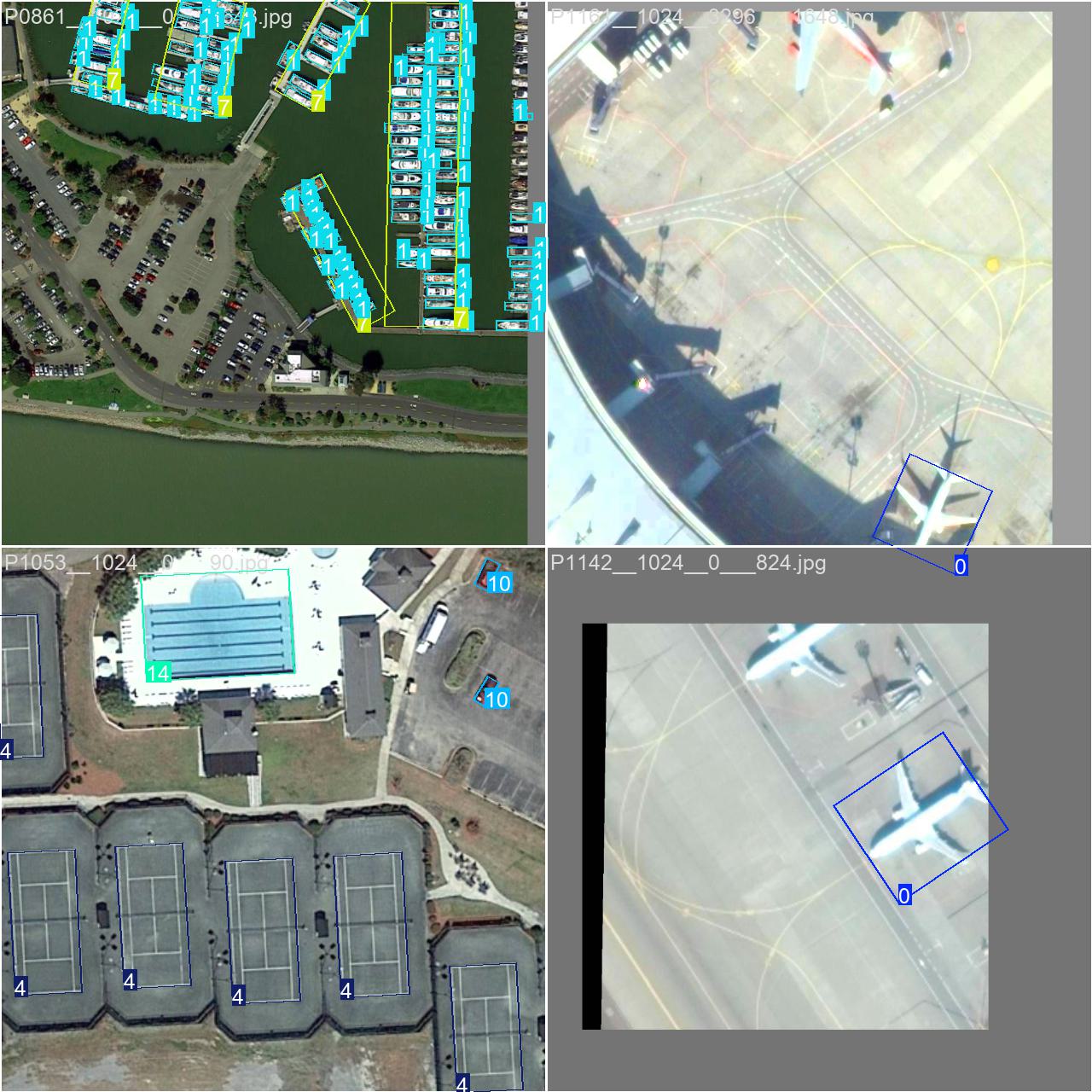

训练图像和标签的示例：
三、YOLO11模型训练——旋转目标检测
其实和上面的代码，基本是一样的，只需改变模型权重和吗模型配置文件就可以了。
模型训练简洁版
YOLO11模型训练，整体思路流程：
- 加载模型：使用 YOLO 类指定模型的配置文件
yolo11s-obb.yaml并加载预训练权重yolo11s-obb.pt。 - 执行训练：调用
model.train()方法，指定数据集dota8.yaml，设置训练轮数为 10，图像大小为 640 像素。 - 保存训练结果：训练完成后，结果保存在
results中，包含损失和精度等信息。
示例代码，如下所示：
- from ultralytics import YOLO
-
- # 加载YOLO模型的配置文件，并加载预训练权重文件
- model = YOLO("yolo11s-obb.yaml").load("weights/yolo11s-obb.pt")
-
- # 使用dota8.yaml数据集进行训练，训练10个epoch，并将图像大小设置为640像素
- results = model.train(data="dota8.yaml", epochs=10, imgsz=640)
然后执行程序，开始训练：
- Transferred 535/541 items from pretrained weights
- Ultralytics 8.3.7 ? Python-3.8.16 torch-1.13.1 CPU (unknown)
- WARNING ⚠️ Upgrade to torch>=2.0.0 for deterministic training.
- engine\trainer: task=obb, mode=train, model=yolo11s-obb.yaml, data=dota8.yaml, epochs=10, time=None, patience=100, batch=16, imgsz=640, save=True, save_period=-1, cache=False, device=None, workers=8, project=None, name=train, exist_ok=False, pretrained=weights/yolo11s-obb.pt, optimizer=auto, verbose=True, seed=0, deterministic=True, single_cls=False, rect=False, cos_lr=False, close_mosaic=10, resume=False, amp=True, fraction=1.0, profile=False, freeze=None, multi_scale=False, overlap_mask=True, mask_ratio=4, dropout=0.0, val=True, split=val, save_json=False, save_hybrid=False, conf=None, iou=0.7, max_det=300, half=False, dnn=False, plots=True, source=None, vid_stride=1, stream_buffer=False, visualize=False, augment=False, agnostic_nms=False, classes=None, retina_masks=False, embed=None, show=False, save_frames=False, save_txt=False, save_conf=False, save_crop=False, show_labels=True, show_conf=True, show_boxes=True, line_width=None, format=torchscript, keras=False, optimize=False, int8=False, dynamic=False, simplify=True, opset=None, workspace=4, nms=False, lr0=0.01, lrf=0.01, momentum=0.937, weight_decay=0.0005, warmup_epochs=3.0, warmup_momentum=0.8, warmup_bias_lr=0.1, box=7.5, cls=0.5, dfl=1.5, pose=12.0, kobj=1.0, label_smoothing=0.0, nbs=64, hsv_h=0.015, hsv_s=0.7, hsv_v=0.4, degrees=0.0, translate=0.1, scale=0.5, shear=0.0, perspective=0.0, flipud=0.0, fliplr=0.5, bgr=0.0, mosaic=1.0, mixup=0.0, copy_paste=0.0, copy_paste_mode=flip, auto_augment=randaugment, erasing=0.4, crop_fraction=1.0, cfg=None, tracker=botsort.yaml, save_dir=runs\obb\train
- Overriding model.yaml nc=80 with nc=15
-
- from n params module arguments
- 0 -1 1 928 ultralytics.nn.modules.conv.Conv [3, 32, 3, 2]
- 1 -1 1 18560 ultralytics.nn.modules.conv.Conv [32, 64, 3, 2]
- 2 -1 1 26080 ultralytics.nn.modules.block.C3k2 [64, 128, 1, False, 0.25]
- 3 -1 1 147712 ultralytics.nn.modules.conv.Conv [128, 128, 3, 2]
- 4 -1 1 103360 ultralytics.nn.modules.block.C3k2 [128, 256, 1, False, 0.25]
- 5 -1 1 590336 ultralytics.nn.modules.conv.Conv [256, 256, 3, 2]
- 6 -1 1 346112 ultralytics.nn.modules.block.C3k2 [256, 256, 1, True]
- 7 -1 1 1180672 ultralytics.nn.modules.conv.Conv [256, 512, 3, 2]
- 8 -1 1 1380352 ultralytics.nn.modules.block.C3k2 [512, 512, 1, True]
- 9 -1 1 656896 ultralytics.nn.modules.block.SPPF [512, 512, 5]
- 10 -1 1 990976 ultralytics.nn.modules.block.C2PSA [512, 512, 1]
- 11 -1 1 0 torch.nn.modules.upsampling.Upsample [None, 2, 'nearest']
- 12 [-1, 6] 1 0 ultralytics.nn.modules.conv.Concat [1]
- 13 -1 1 443776 ultralytics.nn.modules.block.C3k2 [768, 256, 1, False]
- 14 -1 1 0 torch.nn.modules.upsampling.Upsample [None, 2, 'nearest']
- 15 [-1, 4] 1 0 ultralytics.nn.modules.conv.Concat [1]
- 16 -1 1 127680 ultralytics.nn.modules.block.C3k2 [512, 128, 1, False]
- 17 -1 1 147712 ultralytics.nn.modules.conv.Conv [128, 128, 3, 2]
- 18 [-1, 13] 1 0 ultralytics.nn.modules.conv.Concat [1]
- 19 -1 1 345472 ultralytics.nn.modules.block.C3k2 [384, 256, 1, False]
- 20 -1 1 590336 ultralytics.nn.modules.conv.Conv [256, 256, 3, 2]
- 21 [-1, 10] 1 0 ultralytics.nn.modules.conv.Concat [1]
- 22 -1 1 1511424 ultralytics.nn.modules.block.C3k2 [768, 512, 1, True]
- 23 [16, 19, 22] 1 1111392 ultralytics.nn.modules.head.OBB [15, 1, [128, 256, 512]]
- YOLO11s-obb summary: 344 layers, 9,719,776 parameters, 9,719,760 gradients, 22.6 GFLOPs
-
- Transferred 535/541 items from pretrained weights
- TensorBoard: Start with 'tensorboard --logdir runs\obb\train', view at http://localhost:6006/
- Freezing layer 'model.23.dfl.conv.weight'
- train: Scanning C:\Users\liguopu\Downloads\ultralytics-main\datasets\dota8\labels\train... 4 images, 0 backgrounds, 0 corrupt: 100%|██████████| 4/4 [00:00<00:00, 83.05it/s]
- train: New cache created: C:\Users\liguopu\Downloads\ultralytics-main\datasets\dota8\labels\train.cache
- val: Scanning C:\Users\liguopu\Downloads\ultralytics-main\datasets\dota8\labels\val... 4 images, 0 backgrounds, 0 corrupt: 100%|██████████| 4/4 [00:00<00:00, 138.08it/s]
- val: New cache created: C:\Users\liguopu\Downloads\ultralytics-main\datasets\dota8\labels\val.cache
- Plotting labels to runs\obb\train\labels.jpg...
- optimizer: 'optimizer=auto' found, ignoring 'lr0=0.01' and 'momentum=0.937' and determining best 'optimizer', 'lr0' and 'momentum' automatically...
- optimizer: AdamW(lr=0.000526, momentum=0.9) with parameter groups 87 weight(decay=0.0), 97 weight(decay=0.0005), 96 bias(decay=0.0)
- TensorBoard: model graph visualization added ✅
- Image sizes 640 train, 640 val
- Using 0 dataloader workers
- Logging results to runs\obb\train
- Starting training for 10 epochs...
- Closing dataloader mosaic
-
- Epoch GPU_mem box_loss cls_loss dfl_loss Instances Size
- 1/10 0G 0.7968 4.385 1.142 121 640: 100%|██████████| 1/1 [00:15<00:00, 15.43s/it]
- Class Images Instances Box(P R mAP50 mAP50-95): 0%| | 0/1 [00:002.200s exceeded
- Class Images Instances Box(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:05<00:00, 5.70s/it]
- all 4 8 0.0849 0.75 0.491 0.326
-
- Epoch GPU_mem box_loss cls_loss dfl_loss Instances Size
- 2/10 0G 0.8239 4.402 1.148 124 640: 100%|██████████| 1/1 [00:07<00:00, 7.68s/it]
- Class Images Instances Box(P R mAP50 mAP50-95): 0%| | 0/1 [00:002.200s exceeded
- Class Images Instances Box(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:04<00:00, 4.94s/it]
- all 4 8 0.0863 0.75 0.486 0.322
-
- Epoch GPU_mem box_loss cls_loss dfl_loss Instances Size
- 3/10 0G 0.7333 4.395 1.144 107 640: 100%|██████████| 1/1 [00:07<00:00, 7.14s/it]
- Class Images Instances Box(P R mAP50 mAP50-95): 0%| | 0/1 [00:002.200s exceeded
- Class Images Instances Box(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:04<00:00, 4.63s/it]
- all 4 8 0.0841 0.75 0.484 0.311
-
- Epoch GPU_mem box_loss cls_loss dfl_loss Instances Size
- 4/10 0G 0.7834 4.376 1.167 99 640: 100%|██████████| 1/1 [00:05<00:00, 5.75s/it]
- Class Images Instances Box(P R mAP50 mAP50-95): 0%| | 0/1 [00:002.200s exceeded
- Class Images Instances Box(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:04<00:00, 4.22s/it]
- all 4 8 0.0822 0.75 0.48 0.314
-
- Epoch GPU_mem box_loss cls_loss dfl_loss Instances Size
- 5/10 0G 0.8125 4.363 1.454 84 640: 100%|██████████| 1/1 [00:06<00:00, 6.60s/it]
- Class Images Instances Box(P R mAP50 mAP50-95): 0%| | 0/1 [00:002.200s exceeded
- Class Images Instances Box(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:04<00:00, 4.45s/it]
- all 4 8 0.0691 0.639 0.469 0.295
-
- Epoch GPU_mem box_loss cls_loss dfl_loss Instances Size
- 6/10 0G 0.8424 4.348 1.417 125 640: 100%|██████████| 1/1 [00:06<00:00, 6.89s/it]
- Class Images Instances Box(P R mAP50 mAP50-95): 0%| | 0/1 [00:002.200s exceeded
- Class Images Instances Box(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:04<00:00, 4.89s/it]
- all 4 8 0.0527 0.806 0.464 0.287
-
- Epoch GPU_mem box_loss cls_loss dfl_loss Instances Size
- 7/10 0G 0.8203 4.349 1.783 123 640: 100%|██████████| 1/1 [00:05<00:00, 5.66s/it]
- Class Images Instances Box(P R mAP50 mAP50-95): 0%| | 0/1 [00:002.200s exceeded
- Class Images Instances Box(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:04<00:00, 4.61s/it]
- all 4 8 0.0532 0.806 0.464 0.288
-
- Epoch GPU_mem box_loss cls_loss dfl_loss Instances Size
- 8/10 0G 0.8241 4.314 1.475 98 640: 100%|██████████| 1/1 [00:05<00:00, 5.90s/it]
- Class Images Instances Box(P R mAP50 mAP50-95): 0%| | 0/1 [00:002.200s exceeded
- Class Images Instances Box(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:04<00:00, 4.19s/it]
- all 4 8 0.0842 0.75 0.405 0.288
-
- Epoch GPU_mem box_loss cls_loss dfl_loss Instances Size
- 9/10 0G 0.8575 4.347 1.505 116 640: 100%|██████████| 1/1 [00:05<00:00, 5.11s/it]
- Class Images Instances Box(P R mAP50 mAP50-95): 0%| | 0/1 [00:002.200s exceeded
- Class Images Instances Box(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:04<00:00, 4.69s/it]
- all 4 8 0.0864 0.75 0.403 0.282
-
- Epoch GPU_mem box_loss cls_loss dfl_loss Instances Size
- 10/10 0G 0.8994 4.323 1.629 125 640: 100%|██████████| 1/1 [00:05<00:00, 5.21s/it]
- Class Images Instances Box(P R mAP50 mAP50-95): 0%| | 0/1 [00:002.200s exceeded
- Class Images Instances Box(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:04<00:00, 4.81s/it]
- all 4 8 0.0652 0.917 0.397 0.277
-
- 10 epochs completed in 0.038 hours.
- Optimizer stripped from runs\obb\train\weights\last.pt, 19.9MB
- Optimizer stripped from runs\obb\train\weights\best.pt, 19.9MB
-
- Validating runs\obb\train\weights\best.pt...
- WARNING ⚠️ validating an untrained model YAML will result in 0 mAP.
- Ultralytics 8.3.7 ? Python-3.8.16 torch-1.13.1 CPU (unknown)
- YOLO11s-obb summary (fused): 257 layers, 9,704,592 parameters, 0 gradients, 22.3 GFLOPs
- Class Images Instances Box(P R mAP50 mAP50-95): 0%| | 0/1 [00:002.200s exceeded
- Class Images Instances Box(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:04<00:00, 4.70s/it]
- all 4 8 0.104 0.667 0.509 0.342
- baseball diamond 3 4 0 0 0 0
- basketball court 1 3 0.2 1 0.533 0.329
- soccer ball field 1 1 0.111 1 0.995 0.697
- Speed: 1.9ms preprocess, 376.6ms inference, 0.0ms loss, 740.0ms postprocess per image
- Results saved to runs\obb\train
训练完成后，能看到保存的权重和训练信息
训练图像和标签的示例：
四、YOLO11模型训练——关键点姿态估计
其实和上面的代码，基本是一样的，只需改变模型权重和吗模型配置文件就可以了。
模型训练简洁版
YOLO11模型训练，整体思路流程：
- 加载模型：使用 YOLO 类指定模型的配置文件
yolo11s-pose.yaml并加载预训练权重yolo11s-pose.pt。 - 执行训练：调用
model.train()方法，指定数据集coco8-pose.yaml，设置训练轮数为 10，图像大小为 640 像素。 - 保存训练结果：训练完成后，结果保存在
results中，包含损失和精度等信息。
示例代码，如下所示：
- from ultralytics import YOLO
-
- # 加载YOLO模型的配置文件，并加载预训练权重文件
- model = YOLO("yolo11s-pose.yaml").load("weights/yolo11s-pose.pt")
-
- # 使用coco8-pose.yaml数据集进行训练，训练10个epoch，并将图像大小设置为640像素
- results = model.train(data="coco8-pose.yaml", epochs=10, imgsz=640)
然后执行程序，开始训练：
- Transferred 535/541 items from pretrained weights
- Ultralytics 8.3.7 ? Python-3.8.16 torch-1.13.1 CPU (unknown)
- WARNING ⚠️ Upgrade to torch>=2.0.0 for deterministic training.
- engine\trainer: task=pose, mode=train, model=yolo11s-pose.yaml, data=coco8-pose.yaml, epochs=10, time=None, patience=100, batch=16, imgsz=640, save=True, save_period=-1, cache=False, device=None, workers=8, project=None, name=train, exist_ok=False, pretrained=weights/yolo11s-pose.pt, optimizer=auto, verbose=True, seed=0, deterministic=True, single_cls=False, rect=False, cos_lr=False, close_mosaic=10, resume=False, amp=True, fraction=1.0, profile=False, freeze=None, multi_scale=False, overlap_mask=True, mask_ratio=4, dropout=0.0, val=True, split=val, save_json=False, save_hybrid=False, conf=None, iou=0.7, max_det=300, half=False, dnn=False, plots=True, source=None, vid_stride=1, stream_buffer=False, visualize=False, augment=False, agnostic_nms=False, classes=None, retina_masks=False, embed=None, show=False, save_frames=False, save_txt=False, save_conf=False, save_crop=False, show_labels=True, show_conf=True, show_boxes=True, line_width=None, format=torchscript, keras=False, optimize=False, int8=False, dynamic=False, simplify=True, opset=None, workspace=4, nms=False, lr0=0.01, lrf=0.01, momentum=0.937, weight_decay=0.0005, warmup_epochs=3.0, warmup_momentum=0.8, warmup_bias_lr=0.1, box=7.5, cls=0.5, dfl=1.5, pose=12.0, kobj=1.0, label_smoothing=0.0, nbs=64, hsv_h=0.015, hsv_s=0.7, hsv_v=0.4, degrees=0.0, translate=0.1, scale=0.5, shear=0.0, perspective=0.0, flipud=0.0, fliplr=0.5, bgr=0.0, mosaic=1.0, mixup=0.0, copy_paste=0.0, copy_paste_mode=flip, auto_augment=randaugment, erasing=0.4, crop_fraction=1.0, cfg=None, tracker=botsort.yaml, save_dir=runs\pose\train
-
- Dataset 'coco8-pose.yaml' images not found ⚠️, missing path 'C:\Users\liguopu\Downloads\ultralytics-main\datasets\coco8-pose\images\val'
- Downloading https://ultralytics.com/assets/coco8-pose.zip to 'C:\Users\liguopu\Downloads\ultralytics-main\datasets\coco8-pose.zip'...
- 100%|████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 334k/334k [00:03<00:00, 108kB/s]
- Unzipping C:\Users\liguopu\Downloads\ultralytics-main\datasets\coco8-pose.zip to C:\Users\liguopu\Downloads\ultralytics-main\datasets\coco8-pose...: 100%|██████████| 27/27 [00:00<00:00, 1018.29file/s]
- Dataset download success ✅ (5.6s), saved to C:\Users\liguopu\Downloads\ultralytics-main\datasets
-
- Overriding model.yaml nc=80 with nc=1
-
- from n params module arguments
- 0 -1 1 928 ultralytics.nn.modules.conv.Conv [3, 32, 3, 2]
- 1 -1 1 18560 ultralytics.nn.modules.conv.Conv [32, 64, 3, 2]
- 2 -1 1 26080 ultralytics.nn.modules.block.C3k2 [64, 128, 1, False, 0.25]
- 3 -1 1 147712 ultralytics.nn.modules.conv.Conv [128, 128, 3, 2]
- 4 -1 1 103360 ultralytics.nn.modules.block.C3k2 [128, 256, 1, False, 0.25]
- 5 -1 1 590336 ultralytics.nn.modules.conv.Conv [256, 256, 3, 2]
- 6 -1 1 346112 ultralytics.nn.modules.block.C3k2 [256, 256, 1, True]
- 7 -1 1 1180672 ultralytics.nn.modules.conv.Conv [256, 512, 3, 2]
- 8 -1 1 1380352 ultralytics.nn.modules.block.C3k2 [512, 512, 1, True]
- 9 -1 1 656896 ultralytics.nn.modules.block.SPPF [512, 512, 5]
- 10 -1 1 990976 ultralytics.nn.modules.block.C2PSA [512, 512, 1]
- 11 -1 1 0 torch.nn.modules.upsampling.Upsample [None, 2, 'nearest']
- 12 [-1, 6] 1 0 ultralytics.nn.modules.conv.Concat [1]
- 13 -1 1 443776 ultralytics.nn.modules.block.C3k2 [768, 256, 1, False]
- 14 -1 1 0 torch.nn.modules.upsampling.Upsample [None, 2, 'nearest']
- 15 [-1, 4] 1 0 ultralytics.nn.modules.conv.Concat [1]
- 16 -1 1 127680 ultralytics.nn.modules.block.C3k2 [512, 128, 1, False]
- 17 -1 1 147712 ultralytics.nn.modules.conv.Conv [128, 128, 3, 2]
- 18 [-1, 13] 1 0 ultralytics.nn.modules.conv.Concat [1]
- 19 -1 1 345472 ultralytics.nn.modules.block.C3k2 [384, 256, 1, False]
- 20 -1 1 590336 ultralytics.nn.modules.conv.Conv [256, 256, 3, 2]
- 21 [-1, 10] 1 0 ultralytics.nn.modules.conv.Concat [1]
- 22 -1 1 1511424 ultralytics.nn.modules.block.C3k2 [768, 512, 1, True]
- 23 [16, 19, 22] 1 1309854 ultralytics.nn.modules.head.Pose [1, [17, 3], [128, 256, 512]]
- YOLO11s-pose summary: 344 layers, 9,918,238 parameters, 9,918,222 gradients, 23.3 GFLOPs
-
- Transferred 535/541 items from pretrained weights
- TensorBoard: Start with 'tensorboard --logdir runs\pose\train', view at http://localhost:6006/
- Freezing layer 'model.23.dfl.conv.weight'
- train: Scanning C:\Users\liguopu\Downloads\ultralytics-main\datasets\coco8-pose\labels\train... 4 images, 0 backgrounds, 0 corrupt: 100%|██████████| 4/4 [00:00<00:00, 111.81it/s]
- train: New cache created: C:\Users\liguopu\Downloads\ultralytics-main\datasets\coco8-pose\labels\train.cache
- val: Scanning C:\Users\liguopu\Downloads\ultralytics-main\datasets\coco8-pose\labels\val... 4 images, 0 backgrounds, 0 corrupt: 100%|██████████| 4/4 [00:00<00:00, 116.71it/s]
- val: New cache created: C:\Users\liguopu\Downloads\ultralytics-main\datasets\coco8-pose\labels\val.cache
- Plotting labels to runs\pose\train\labels.jpg...
- optimizer: 'optimizer=auto' found, ignoring 'lr0=0.01' and 'momentum=0.937' and determining best 'optimizer', 'lr0' and 'momentum' automatically...
- optimizer: AdamW(lr=0.002, momentum=0.9) with parameter groups 87 weight(decay=0.0), 97 weight(decay=0.0005), 96 bias(decay=0.0)
- TensorBoard: model graph visualization added ✅
- Image sizes 640 train, 640 val
- Using 0 dataloader workers
- Logging results to runs\pose\train
- Starting training for 10 epochs...
- Closing dataloader mosaic
-
- Epoch GPU_mem box_loss pose_loss kobj_loss cls_loss dfl_loss Instances Size
- 1/10 0G 0.9547 1.8 0.3144 2.728 1.214 7 640: 100%|██████████| 1/1 [00:05<00:00, 5.14s/it]
- Class Images Instances Box(P R mAP50 mAP50-95) Pose(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:02<00:00, 2.41s/it]
- all 4 14 0.891 0.429 0.709 0.588 1 0.354 0.561 0.315
-
- Epoch GPU_mem box_loss pose_loss kobj_loss cls_loss dfl_loss Instances Size
- 2/10 0G 0.6826 1.566 0.3834 2.278 1.16 7 640: 100%|██████████| 1/1 [00:06<00:00, 6.06s/it]
- Class Images Instances Box(P R mAP50 mAP50-95) Pose(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:02<00:00, 2.42s/it]
- all 4 14 0.915 0.5 0.717 0.593 1 0.443 0.562 0.329
-
- Epoch GPU_mem box_loss pose_loss kobj_loss cls_loss dfl_loss Instances Size
- 3/10 0G 0.8437 1.375 0.3163 3.233 1.011 7 640: 100%|██████████| 1/1 [00:05<00:00, 5.30s/it]
- Class Images Instances Box(P R mAP50 mAP50-95) Pose(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:02<00:00, 2.15s/it]
- all 4 14 0.786 0.5 0.704 0.568 0.833 0.5 0.531 0.307
-
- Epoch GPU_mem box_loss pose_loss kobj_loss cls_loss dfl_loss Instances Size
- 4/10 0G 0.7555 1.297 0.3225 2.15 1.057 7 640: 100%|██████████| 1/1 [00:06<00:00, 6.90s/it]
- Class Images Instances Box(P R mAP50 mAP50-95) Pose(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:02<00:00, 2.33s/it]
- all 4 14 1 0.57 0.748 0.606 0.916 0.5 0.563 0.31
-
- Epoch GPU_mem box_loss pose_loss kobj_loss cls_loss dfl_loss Instances Size
- 5/10 0G 0.6532 1.069 0.276 2.608 0.9624 7 640: 100%|██████████| 1/1 [00:06<00:00, 6.12s/it]
- Class Images Instances Box(P R mAP50 mAP50-95) Pose(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:02<00:00, 2.28s/it]
- all 4 14 1 0.624 0.771 0.645 0.901 0.5 0.632 0.335
-
- Epoch GPU_mem box_loss pose_loss kobj_loss cls_loss dfl_loss Instances Size
- 6/10 0G 0.865 1.923 0.268 2.503 1.143 7 640: 100%|██████████| 1/1 [00:05<00:00, 5.51s/it]
- Class Images Instances Box(P R mAP50 mAP50-95) Pose(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:02<00:00, 2.15s/it]
- all 4 14 0.948 0.643 0.775 0.652 0.876 0.571 0.642 0.33
-
- Epoch GPU_mem box_loss pose_loss kobj_loss cls_loss dfl_loss Instances Size
- 7/10 0G 0.6749 1.457 0.326 1.908 0.9575 7 640: 100%|██████████| 1/1 [00:05<00:00, 5.49s/it]
- Class Images Instances Box(P R mAP50 mAP50-95) Pose(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:02<00:00, 2.15s/it]
- all 4 14 0.957 0.643 0.763 0.643 0.823 0.571 0.644 0.326
-
- Epoch GPU_mem box_loss pose_loss kobj_loss cls_loss dfl_loss Instances Size
- 8/10 0G 0.4598 1.208 0.2935 1.765 0.9645 7 640: 100%|██████████| 1/1 [00:05<00:00, 5.50s/it]
- Class Images Instances Box(P R mAP50 mAP50-95) Pose(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:02<00:00, 2.09s/it]
- all 4 14 1 0.641 0.77 0.647 0.832 0.571 0.651 0.338
-
- Epoch GPU_mem box_loss pose_loss kobj_loss cls_loss dfl_loss Instances Size
- 9/10 0G 0.6678 1.003 0.2908 1.754 0.9891 7 640: 100%|██████████| 1/1 [00:05<00:00, 5.70s/it]
- Class Images Instances Box(P R mAP50 mAP50-95) Pose(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:02<00:00, 2.27s/it]
- all 4 14 0.906 0.693 0.766 0.647 0.963 0.5 0.649 0.338
-
- Epoch GPU_mem box_loss pose_loss kobj_loss cls_loss dfl_loss Instances Size
- 10/10 0G 0.8137 1.487 0.2731 2.158 0.8752 7 640: 100%|██████████| 1/1 [00:05<00:00, 5.50s/it]
- Class Images Instances Box(P R mAP50 mAP50-95) Pose(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:02<00:00, 2.16s/it]
- all 4 14 0.898 0.63 0.763 0.639 0.967 0.5 0.65 0.329
-
- 10 epochs completed in 0.028 hours.
- Optimizer stripped from runs\pose\train\weights\last.pt, 20.2MB
- Optimizer stripped from runs\pose\train\weights\best.pt, 20.2MB
-
- Validating runs\pose\train\weights\best.pt...
- WARNING ⚠️ validating an untrained model YAML will result in 0 mAP.
- Ultralytics 8.3.7 ? Python-3.8.16 torch-1.13.1 CPU (unknown)
- YOLO11s-pose summary (fused): 257 layers, 9,902,940 parameters, 0 gradients, 23.1 GFLOPs
- Class Images Instances Box(P R mAP50 mAP50-95) Pose(P R mAP50 mAP50-95): 100%|██████████| 1/1 [00:01<00:00, 1.88s/it]
- all 4 14 1 0.642 0.769 0.646 0.83 0.571 0.651 0.338
- Speed: 2.5ms preprocess, 404.4ms inference, 0.0ms loss, 52.5ms postprocess per image
- Results saved to runs\pose\train

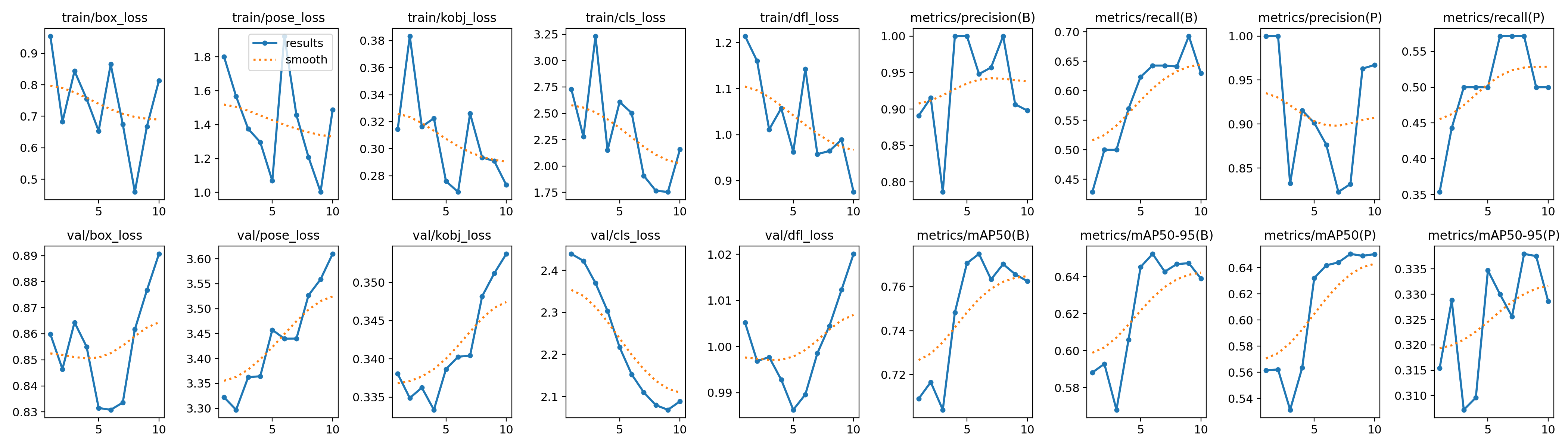

训练完成后，能看到保存的权重和训练信息
训练图像和标签的示例：
五、YOLO11模型训练——代码浅析
模型训练主要调用model.train( )函数，先看一下这个函数的源代码。代码位置：ultralytics/engine/model.py
该方法主要用于训练模型，支持自定义的训练参数和配置。
trainer(可选): 自定义的BaseTrainer实例。如果未提供，则使用默认的训练逻辑。**kwargs: 提供训练配置的可选参数，比如：data: 数据集配置文件的路径。epochs: 训练的轮次数。batch_size: 训练时的批次大小。imgsz: 输入图像的大小。device: 训练设备（如 'cuda' 或 'cpu'）。workers: 数据加载线程的数量。optimizer: 用于训练的优化器。lr0: 初始学习率。patience: 用于早停的轮次等待数量。
- def train(
- self,
- trainer=None,
- **kwargs,
- ):
-
- # 检查模型是否是 PyTorch 模型
- self._check_is_pytorch_model()
-
- # 如果当前会话中有 Ultralytics HUB 的加载模型
- if hasattr(self.session, "model") and self.session.model.id:
- # 如果本地有提供任何参数，发出警告并忽略本地参数，使用 HUB 参数
- if any(kwargs):
- LOGGER.warning("WARNING ⚠️ 使用 HUB 的训练参数，忽略本地训练参数。")
- kwargs = self.session.train_args # 使用 HUB 提供的参数覆盖本地参数
-
- # 检查是否有 pip 更新
- checks.check_pip_update_available()
-
- # 处理用户提供的配置文件，加载并解析 YAML 文件
- overrides = yaml_load(checks.check_yaml(kwargs["cfg"])) if kwargs.get("cfg") else self.overrides
- custom = {
- # 如果 'cfg' 包含 'data'，优先处理
- "data": overrides.get("data") or DEFAULT_CFG_DICT["data"] or TASK2DATA[self.task],
- "model": self.overrides["model"],
- "task": self.task,
- } # 方法默认配置
- # 合并最终的训练参数，优先级从左到右
- args = {**overrides, **custom, **kwargs, "mode": "train"}
-
- # 如果指定了恢复训练参数，设置检查点路径
- if args.get("resume"):
- args["resume"] = self.ckpt_path
-
- # 初始化训练器实例，传入合并后的参数和回调函数
- self.trainer = (trainer or self._smart_load("trainer"))(overrides=args, _callbacks=self.callbacks)
-
- # 如果不是恢复训练，手动设置模型
- if not args.get("resume"):
- self.trainer.model = self.trainer.get_model(weights=self.model if self.ckpt else None, cfg=self.model.yaml)
- self.model = self.trainer.model
-
- # 将 HUB 会话附加到训练器
- self.trainer.hub_session = self.session
-
- # 开始训练
- self.trainer.train()
-
- # 训练结束后更新模型和配置
- if RANK in {-1, 0}:
- ckpt = self.trainer.best if self.trainer.best.exists() else self.trainer.last
- self.model, _ = attempt_load_one_weight(ckpt) # 加载最佳或最后的检查点权重
- self.overrides = self.model.args # 更新配置
- self.metrics = getattr(self.trainer.validator, "metrics", None) # 获取训练指标
- return self.metrics # 返回训练的评估指标
方法内部步骤解析
-
配置处理 (
overrides):- 如果用户提供了
cfg文件，该方法加载并解析该文件的内容。否则，使用默认的模型配置参数。 - 定义
custom字典来处理特定任务和数据集的默认配置。
- 如果用户提供了
-
参数合并 (
args):- 将
overrides、custom和kwargs参数合并，优先级从左到右，形成完整的训练参数集。
- 将
-
检查是否恢复训练 (
args.get("resume")):- 如果指定了恢复训练的参数，方法会将
args["resume"]设置为上次的检查点路径。
- 如果指定了恢复训练的参数，方法会将
-
训练器实例化 (
self.trainer = ...):- 使用提供的或默认的
trainer实例进行训练器的初始化，并传递合并后的参数和回调。 - 如果不是恢复训练，会手动设置模型，调用
self.trainer.get_model来获取模型实例。
- 使用提供的或默认的
-
Ultralytics HUB 会话:
- 如果存在 HUB 会话，它将被附加到训练器中。可以处理从检查点恢复训练、与 Ultralytics HUB 集成，并在训练后更新模型和配置。
-
执行训练 (
self.trainer.train()):- 调用
trainer.train()方法开始模型训练。
- 调用
-
更新模型和配置:
- 如果训练完成后，方法会更新模型为最佳检查点 (
self.trainer.best) 或最后的检查点 (self.trainer.last)。 - 重新加载模型权重，并更新
overrides为当前模型的配置参数。 - 返回训练的评估指标。
- 如果训练完成后，方法会更新模型为最佳检查点 (
这个 train 方法为训练提供了高度的灵活性，允许用户使用本地或云端配置来进行训练。
它不仅能处理从检查点恢复训练，还能动态加载或更新模型，并支持不同的训练器和自定义配置，是一个全面的训练管理方法。
模型训练主要调用model.train( )函数，然后这个函数会根据检测任务，来到ultralytics/models/yolo/xxx/train.py中；
比如是目标检测任务，会来到ultralytics/models/yolo/detect/train.py中，然后实例化DetectionTrainer类，进行训练
如果是实例分割任务，会来到ultralytics/models/yolo/segment/train.py中，然后实例化SegmentationTrainer类，进行训练
如果是关键点姿态估计任务，会来到ultralytics/models/yolo/pose/train.py中，然后实例化PoseTrainer类，进行训练
如果是物体分类任务，会来到ultralytics/models/yolo/classify/train.py中，然后实例化ClassificationTrainer类，进行训练
如果是旋转目标检测任务，会来到ultralytics/models/yolo/obb/train.py中，然后实例化OBBTrainer类，进行训练
它们都继承BaseTrainer类，这个基础训练的类是通用的，位置在：ultralytics/engine/trainer.py
下面以目标检测为例子，详细分析一下DetectionTrainer类
下面看看DetectionTrainer类的源代码：
- class DetectionTrainer(BaseTrainer):
-
- def build_dataset(self, img_path, mode="train", batch=None):
- """
- 构建 YOLO 数据集。
- 参数：
- img_path (str): 图像文件夹的路径。
- mode (str): 模式，`train` 用于训练，`val` 用于验证，用户可以为每种模式自定义不同的增强方式。
- batch (int, optional): 批大小，用于 `rect` 模式。默认为 None。
- """
- # 计算步幅，默认为32
- gs = max(int(de_parallel(self.model).stride.max() if self.model else 0), 32)
- # 调用构建 YOLO 数据集的函数
- return build_yolo_dataset(self.args, img_path, batch, self.data, mode=mode, rect=mode == "val", stride=gs)
-
- def get_dataloader(self, dataset_path, batch_size=16, rank=0, mode="train"):
- """构建并返回数据加载器。"""
- assert mode in {"train", "val"}, f"模式必须为 'train' 或 'val'，而不是 {mode}。"
- # 使用 torch_distributed_zero_first 确保只在 DDP 模式下初始化一次 *.cache
- with torch_distributed_zero_first(rank):
- dataset = self.build_dataset(dataset_path, mode, batch_size)
- shuffle = mode == "train"
- # 如果是矩形数据集且处于训练模式，禁用数据打乱
- if getattr(dataset, "rect", False) and shuffle:
- LOGGER.warning("⚠️ 警告: 'rect=True' 与 DataLoader 的 shuffle 不兼容，将 shuffle 设置为 False")
- shuffle = False
- # 设置工作线程数量
- workers = self.args.workers if mode == "train" else self.args.workers * 2
- # 返回数据加载器
- return build_dataloader(dataset, batch_size, workers, shuffle, rank)
-
- def preprocess_batch(self, batch):
- """预处理图像批次，缩放图像并转换为 float 类型。"""
- # 将图像移到指定设备（例如 GPU），并将像素值归一化到 [0, 1] 范围
- batch["img"] = batch["img"].to(self.device, non_blocking=True).float() / 255
- if self.args.multi_scale:
- # 随机调整图像大小（多尺度训练）
- imgs = batch["img"]
- sz = (
- random.randrange(int(self.args.imgsz * 0.5), int(self.args.imgsz * 1.5 + self.stride))
- // self.stride
- * self.stride
- ) # 计算新的图像尺寸
- sf = sz / max(imgs.shape[2:]) # 缩放因子
- if sf != 1:
- ns = [
- math.ceil(x * sf / self.stride) * self.stride for x in imgs.shape[2:]
- ] # 计算新的形状，确保步幅为 `gs` 的倍数
- # 使用双线性插值调整图像大小
- imgs = nn.functional.interpolate(imgs, size=ns, mode="bilinear", align_corners=False)
- batch["img"] = imgs
- return batch
-
- def set_model_attributes(self):
- """
- 设置模型属性。
- """
- # 附加类别数量到模型
- self.model.nc = self.data["nc"]
- # 附加类别名称到模型
- self.model.names = self.data["names"]
- # 附加超参数到模型
- self.model.args = self.args
-
- def get_model(self, cfg=None, weights=None, verbose=True):
- """返回一个 YOLO 检测模型。"""
- # 初始化检测模型
- model = DetectionModel(cfg, nc=self.data["nc"], verbose=verbose and RANK == -1)
- # 如果提供了权重，则加载权重
- if weights:
- model.load(weights)
- return model
-
- def get_validator(self):
- """返回 YOLO 模型的验证器。"""
- # 定义损失名称
- self.loss_names = "box_loss", "cls_loss", "dfl_loss"
- # 返回检测验证器
- return yolo.detect.DetectionValidator(
- self.test_loader, save_dir=self.save_dir, args=copy(self.args), _callbacks=self.callbacks
- )
-
- def label_loss_items(self, loss_items=None, prefix="train"):
- """
- 返回带有标记的训练损失字典。
- 对于分类任务不需要，但对分割和检测任务是必要的。
- """
- # 根据损失名称生成对应的键
- keys = [f"{prefix}/{x}" for x in self.loss_names]
- if loss_items is not None:
- # 将损失值转换为小数点后五位
- loss_items = [round(float(x), 5) for x in loss_items]
- # 返回标记的损失字典
- return dict(zip(keys, loss_items))
- else:
- return keys
-
- def progress_string(self):
- """返回一个包含训练进度（轮次、GPU 内存、损失、实例数量和图像大小）的格式化字符串。"""
- # 生成训练进度字符串
- return ("\n" + "%11s" * (4 + len(self.loss_names))) % (
- "Epoch",
- "GPU_mem",
- *self.loss_names,
- "Instances",
- "Size",
- )
-
- def plot_training_samples(self, batch, ni):
- """绘制带有标注的训练样本。"""
- # 调用函数绘制图像、标注等信息，并保存结果
- plot_images(
- images=batch["img"],
- batch_idx=batch["batch_idx"],
- cls=batch["cls"].squeeze(-1),
- bboxes=batch["bboxes"],
- paths=batch["im_file"],
- fname=self.save_dir / f"train_batch{ni}.jpg",
- on_plot=self.on_plot,
- )
-
- def plot_metrics(self):
- """绘制训练指标图。"""
- # 从 CSV 文件中绘制结果并保存图像
- plot_results(file=self.csv, on_plot=self.on_plot)
-
- def plot_training_labels(self):
- """绘制 YOLO 模型的训练标注分布图。"""
- # 提取并拼接边界框和类别标签
- boxes = np.concatenate([lb["bboxes"] for lb in self.train_loader.dataset.labels], 0)
- cls = np.concatenate([lb["cls"] for lb in self.train_loader.dataset.labels], 0)
- # 绘制标注分布图并保存
- plot_labels(boxes, cls.squeeze(), names=self.data["names"], save_dir=self.save_dir, on_plot=self.on_plot)
这个代码定义了一个 DetectionTrainer 类，用于基于 YOLO 模型进行目标检测任务的训练，它继承了一个基础训练器类 BaseTrainer。
- 数据管道：该类设置了 YOLO 模型的数据管道，从数据集构建（
build_dataset）到构建数据加载器（get_dataloader）。 - 预处理：图像被预处理、缩放，尤其是在多尺度训练下会动态调整尺寸。
- 模型属性：根据数据集调整模型的类别数量和其他参数。
- 训练监控：通过
label_loss_items、progress_string和plot_training_samples等方法提供训练进度、损失跟踪和可视化。 - 模型加载：
get_model方法允许加载 YOLO 模型，并支持使用预训练权重进行初始化。
YOLO11相关文章推荐：
一篇文章快速认识YOLO11 | 关键改进点 | 安装使用 | 模型训练和推理-CSDN博客
YOLO11模型推理 | 目标检测与跟踪 | 实例分割 | 关键点估计 | OBB旋转目标检测-CSDN博客
分享完成~
评论记录：
回复评论：
