基于Azure Kinect SDK获取物体rgb图、深度图、红外IR图和点云数据并保存到本地

Azure Kinect

最近想做一个物体的三维重建，就买了微软最新的深度相机，功能相比前两代虽然有了很大提升，但是可参考的资料确很少，最简单的图像获取，点云图像保存，都费了我一番功夫最后再参考了现有的资料以及结合相机的源码，完成了图像保存以及点云获取保存

直接上全部的代码

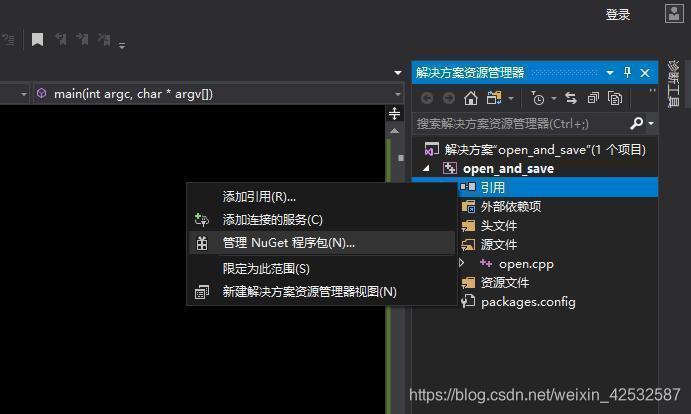

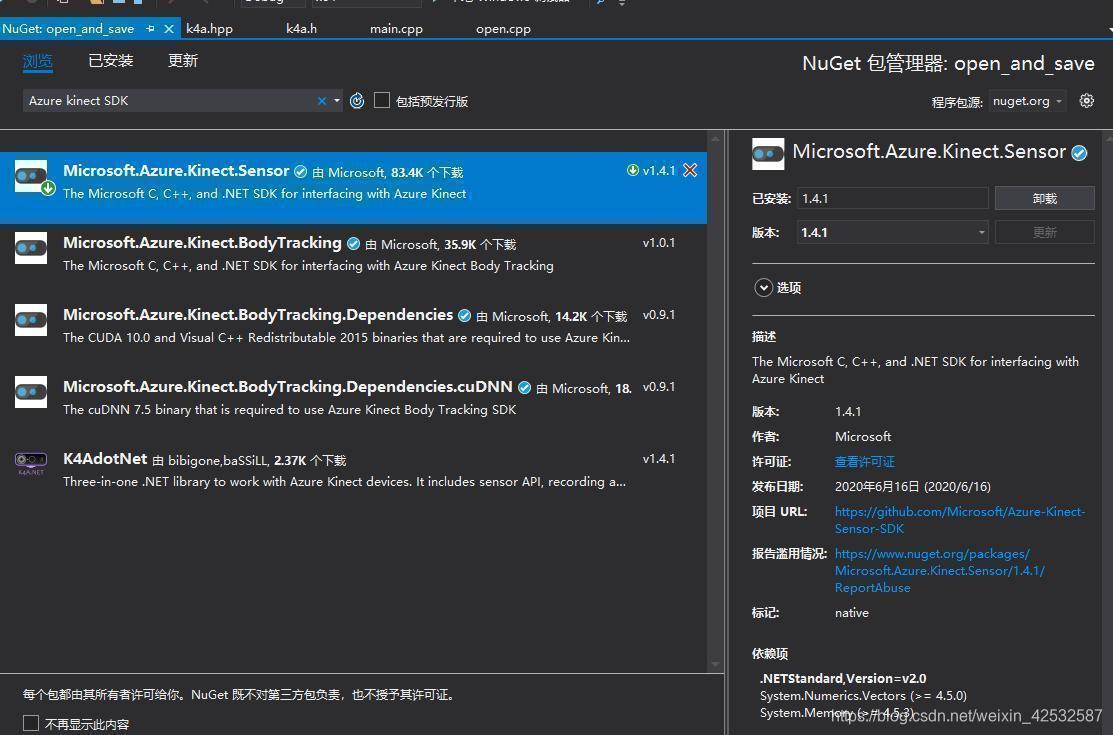

我用的是VS2017专业版，OpenCV4.2，Microsoft.Azure.Kinect.Sensor.1.4.1。

 //C++
#include
#include
#include
#include
 //OpenCV
#include
#include
#include
 //Kinect DK
#include
//#include
#include
#include

using namespace cv;
using namespace std;

 //宏
 //方便控制是否 std::cout 信息
#define DEBUG_std_cout 0


static void create_xy_table(const k4a_calibration_t *calibration, k4a_image_t xy_table)
{
	k4a_float2_t *table_data = (k4a_float2_t *)(void *)k4a_image_get_buffer(xy_table);

	int width = calibration->depth_camera_calibration.resolution_width;
	int height = calibration->depth_camera_calibration.resolution_height;

	k4a_float2_t p;
	k4a_float3_t ray;
	int valid;

	for (int y = 0, idx = 0; y < height; y++)
	{
		p.xy.y = (float)y;
		for (int x = 0; x < width; x++, idx++)
		{
			p.xy.x = (float)x;

			k4a_calibration_2d_to_3d(
				calibration, &p, 1.f, K4A_CALIBRATION_TYPE_DEPTH, K4A_CALIBRATION_TYPE_DEPTH, &ray, &valid);

			if (valid)
			{
				table_data[idx].xy.x = ray.xyz.x;
				table_data[idx].xy.y = ray.xyz.y;
			}
			else
			{
				table_data[idx].xy.x = nanf("");
				table_data[idx].xy.y = nanf("");
			}
		}
	}
}

static void generate_point_cloud(const k4a::image depth_image,	const k4a_image_t xy_table,	k4a_image_t point_cloud,	int *point_count)
{
	int width = depth_image.get_width_pixels();
	int height = depth_image.get_height_pixels();
	//int height = k4a_image_get_height_pixels(depth_image);

	uint16_t *depth_data = (uint16_t *)(void *)depth_image.get_buffer();
	k4a_float2_t *xy_table_data = (k4a_float2_t *)(void *)k4a_image_get_buffer(xy_table);
	k4a_float3_t *point_cloud_data = (k4a_float3_t *)(void *)k4a_image_get_buffer(point_cloud);

	*point_count = 0;
	for (int i = 0; i < width * height; i++)
	{
		if (depth_data[i] != 0 && !isnan(xy_table_data[i].xy.x) && !isnan(xy_table_data[i].xy.y))
		{
			point_cloud_data[i].xyz.x = xy_table_data[i].xy.x * (float)depth_data[i];
			point_cloud_data[i].xyz.y = xy_table_data[i].xy.y * (float)depth_data[i];
			point_cloud_data[i].xyz.z = (float)depth_data[i];
			(*point_count)++;
		}
		else
		{
			point_cloud_data[i].xyz.x = nanf("");
			point_cloud_data[i].xyz.y = nanf("");
			point_cloud_data[i].xyz.z = nanf("");
		}
	}
}

static void write_point_cloud(const char *file_name, const k4a_image_t point_cloud, int point_count)
{
	int width = k4a_image_get_width_pixels(point_cloud);
	int height = k4a_image_get_height_pixels(point_cloud);

	k4a_float3_t *point_cloud_data = (k4a_float3_t *)(void *)k4a_image_get_buffer(point_cloud);

	 //save to the ply file
	std::ofstream ofs(file_name); // text mode first
	ofs << "ply" << std::endl;
	ofs << "format ascii 1.0" << std::endl;
	ofs << "element vertex"
		<< " " << point_count << std::endl;
	ofs << "property float x" << std::endl;
	ofs << "property float y" << std::endl;
	ofs << "property float z" << std::endl;
	ofs << "end_header" << std::endl;
	ofs.close();

	std::stringstream ss;
	for (int i = 0; i < width * height; i++)
	{
		if (isnan(point_cloud_data[i].xyz.x) || isnan(point_cloud_data[i].xyz.y) || isnan(point_cloud_data[i].xyz.z))
		{
			continue;
		}

		ss << (float)point_cloud_data[i].xyz.x << " " << (float)point_cloud_data[i].xyz.y << " "
			<< (float)point_cloud_data[i].xyz.z << std::endl;
	}

	std::ofstream ofs_text(file_name, std::ios::out | std::ios::app);
	ofs_text.write(ss.str().c_str(), (std::streamsize)ss.str().length());
}



int main(int argc, char *argv[]) {
	/*

		找到并打开 Azure Kinect 设备
	*/
	//发现已连接的设备数

	const uint32_t device_count = k4a::device::get_installed_count();
	if (0 == device_count) {
		cout << "Error: no K4A devices found. " << endl;
		return -1;
	}
	else {
		std::cout << "Found " << device_count << " connected devices. " << std::endl;
		if (1 != device_count)// 超过1个设备，也输出错误信息。
		{
			std::cout << "Error: more than one K4A devices found. " << std::endl;
			return -1;
		}
		else// 该示例代码仅限对1个设备操作
		{
			std::cout << "Done: found 1 K4A device. " << std::endl;
		}
	}
	//打开（默认）设备
	k4a::device device = k4a::device::open(K4A_DEVICE_DEFAULT);
	std::cout << "Done: open device. " << std::endl;

	/*
		检索并保存 Azure Kinect 图像数据
	*/
	//配置并启动设备
	k4a_device_configuration_t config = K4A_DEVICE_CONFIG_INIT_DISABLE_ALL;
	config.camera_fps = K4A_FRAMES_PER_SECOND_30;
	config.color_format = K4A_IMAGE_FORMAT_COLOR_BGRA32;
	config.color_resolution = K4A_COLOR_RESOLUTION_1080P;
	config.depth_mode = K4A_DEPTH_MODE_NFOV_UNBINNED;
	//config.depth_mode = K4A_DEPTH_MODE_WFOV_2X2BINNED;
	config.synchronized_images_only = true; // ensures that depth and color images are both available in the capture
	device.start_cameras(&config);
	std::cout << "Done: start camera." << std::endl;

	//写入txt文件流
	ofstream rgb_out;
	ofstream d_out;
	ofstream ir_out;

	rgb_out.open("./rgb.txt");
	d_out.open("./depth.txt");
	ir_out.open("./ir.txt");

	rgb_out << "#  color images" << endl;
	rgb_out << "#  file: rgbd_dataset" << endl;
	rgb_out << "#  timestamp" << "    " << "filename" << endl;

	d_out << "#  depth images" << endl;
	d_out << "#  file: rgbd_dataset" << endl;
	d_out << "#  timestamp" << "    " << "filename" << endl;

	ir_out << "#  ir images" << endl;
	ir_out << "#  file: rgbd_dataset" << endl;
	ir_out << "#  timestamp" << "    " << "filename" << endl;

	rgb_out << flush;
	d_out << flush;
	//稳定化
	k4a::capture capture;
	int iAuto = 0;//用来稳定，类似自动曝光
	int iAutoError = 0;// 统计自动曝光的失败次数
	while (true) {
		if (device.get_capture(&capture)) {
			std::cout << iAuto << ". Capture several frames to give auto-exposure" << std::endl;

			//跳过前 n 个（成功的数据采集）循环，用来稳定
				if (iAuto != 30) {
					iAuto++;
					continue;
				}
				else {
					std::cout << "Done: auto-exposure" << std::endl;
					break;// 跳出该循环，完成相机的稳定过程
				}

		}
		else {
			std::cout << iAutoError << ". K4A_WAIT_RESULT_TIMEOUT." << std::endl;
			if (iAutoError != 30) {
				iAutoError++;
				continue;
			}
			else {
				std::cout << "Error: failed to give auto-exposure. " << std::endl;
				return -1;
			}
		}
	}
	std::cout << "-----------------------------------" << std::endl;
	std::cout << "----- Have Started Kinect DK. -----" << std::endl;
	std::cout << "-----------------------------------" << std::endl;
	//从设备获取捕获
	k4a::image rgbImage;
	k4a::image depthImage;
	k4a::image irImage;
	k4a::image transformed_depthImage;

	cv::Mat cv_rgbImage_with_alpha;
	cv::Mat cv_rgbImage_no_alpha;
	cv::Mat cv_depth;
	cv::Mat cv_depth_8U;
	cv::Mat cv_irImage;
	cv::Mat cv_irImage_8U;

	while (true)
		for (size_t i = 0; i < 100; i++)
		{
			if (device.get_capture(&capture, std::chrono::milliseconds(0)))
				if (device.get_capture(&capture)) {

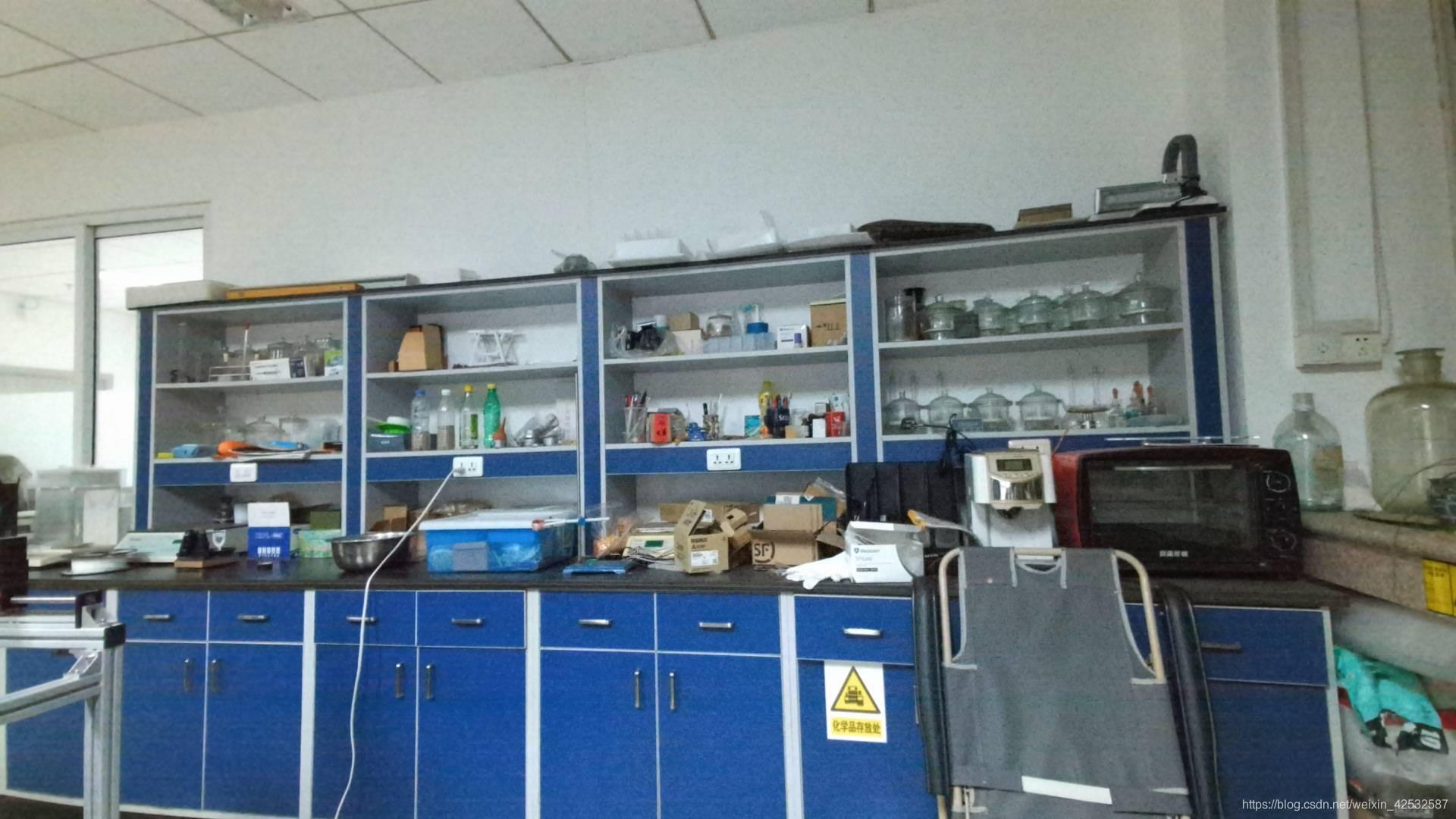

					//rgb
						//* Each pixel of BGRA32 data is four bytes.The first three bytes represent Blue, Green,
						//*and Red data.The fourth byte is the alpha channel and is unused in the Azure Kinect APIs.
						rgbImage = capture.get_color_image();
#if DEBUG_std_cout == 1
					std::cout << "[rgb] " << "
"
						<< "format: " << rgbImage.get_format() << "
"
						<< "device_timestamp: " << rgbImage.get_device_timestamp().count() << "
"
						<< "system_timestamp: " << rgbImage.get_system_timestamp().count() << "
"
						<< "height*width: " << rgbImage.get_height_pixels() << ", " << rgbImage.get_width_pixels()
						<< std::endl;
#endif

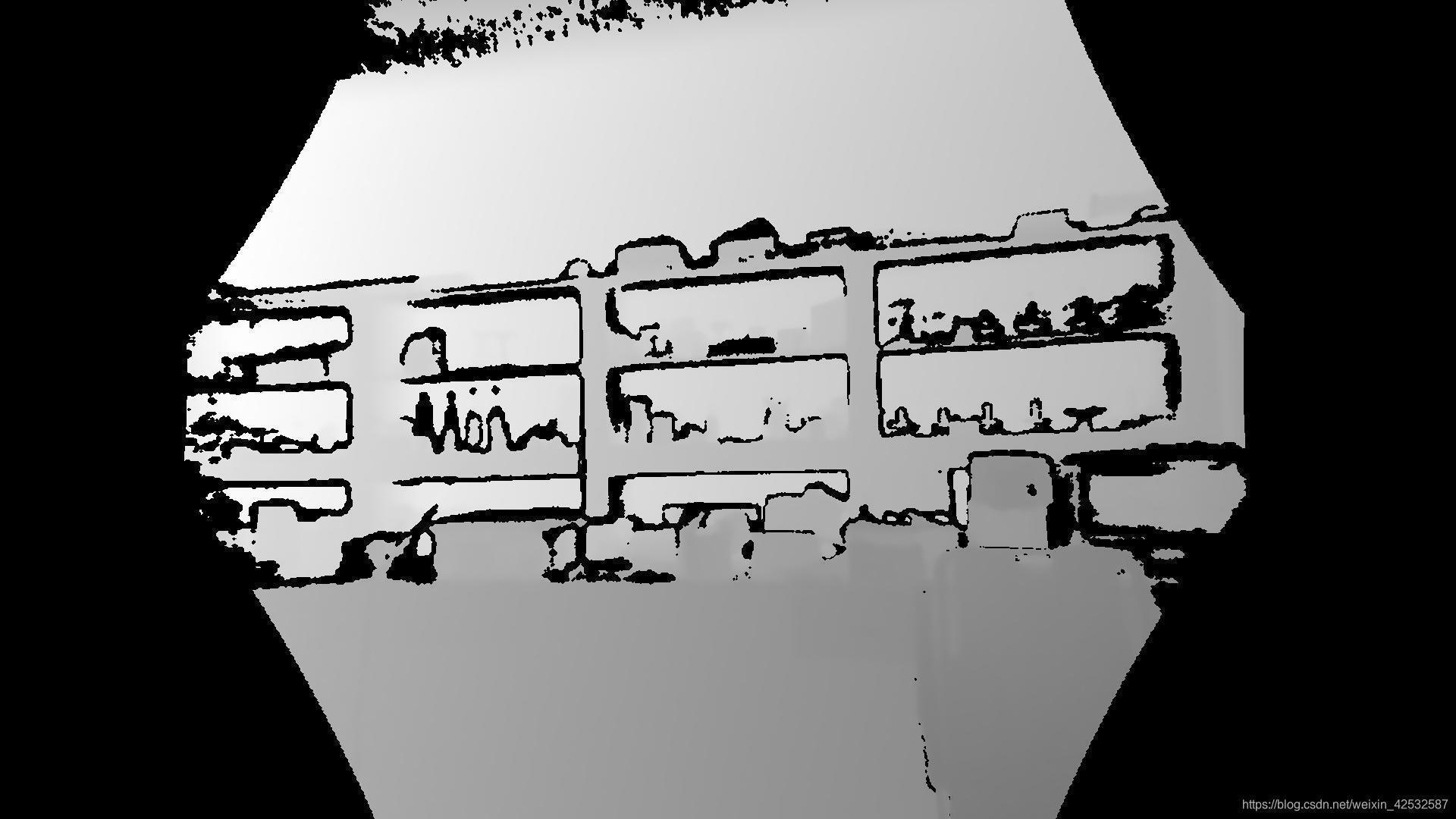

					//depth
						//* Each pixel of DEPTH16 data is two bytes of little endian unsigned depth data.The unit of the data is in
						//* millimeters from the origin of the camera.
						depthImage = capture.get_depth_image();
#if DEBUG_std_cout == 1
					std::cout << "[depth] " << "
"
						<< "format: " << depthImage.get_format() << "
"
						<< "device_timestamp: " << depthImage.get_device_timestamp().count() << "
"
						<< "system_timestamp: " << depthImage.get_system_timestamp().count() << "
"
						<< "height*width: " << depthImage.get_height_pixels() << ", " << depthImage.get_width_pixels()
						<< std::endl;
#endif

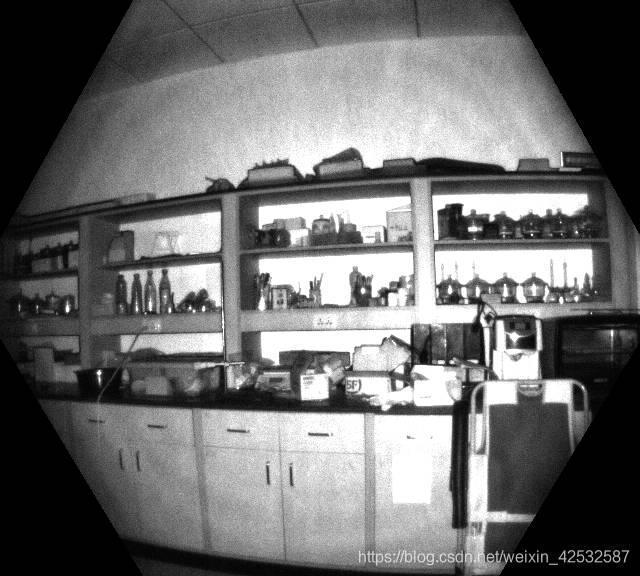

					//ir
						//* Each pixel of IR16 data is two bytes of little endian unsigned depth data.The value of the data represents
						//* brightness.
						irImage = capture.get_ir_image();
#if DEBUG_std_cout == 1
					std::cout << "[ir] " << "
"
						<< "format: " << irImage.get_format() << "
"
						<< "device_timestamp: " << irImage.get_device_timestamp().count() << "
"
						<< "system_timestamp: " << irImage.get_system_timestamp().count() << "
"
						<< "height*width: " << irImage.get_height_pixels() << ", " << irImage.get_width_pixels()
						<< std::endl;
#endif

					//深度图和RGB图配准
						//Get the camera calibration for the entire K4A device, which is used for all transformation functions.
					k4a::calibration k4aCalibration = device.get_calibration(config.depth_mode, config.color_resolution);

					k4a::transformation k4aTransformation = k4a::transformation(k4aCalibration);

					transformed_depthImage = k4aTransformation.depth_image_to_color_camera(depthImage);

					cv_rgbImage_with_alpha = cv::Mat(rgbImage.get_height_pixels(), rgbImage.get_width_pixels(), CV_8UC4,
						(void *)rgbImage.get_buffer());
					cv::cvtColor(cv_rgbImage_with_alpha, cv_rgbImage_no_alpha, cv::COLOR_BGRA2BGR);

					cv_depth = cv::Mat(transformed_depthImage.get_height_pixels(), transformed_depthImage.get_width_pixels(), CV_16U,
						(void *)transformed_depthImage.get_buffer(), static_cast<size_t>(transformed_depthImage.get_stride_bytes()));

					normalize(cv_depth, cv_depth_8U, 0, 256 * 256, NORM_MINMAX);
					cv_depth_8U.convertTo(cv_depth, CV_8U, 1);

					cv_irImage = cv::Mat(irImage.get_height_pixels(), irImage.get_width_pixels(), CV_16U,
						(void *)irImage.get_buffer(), static_cast<size_t>(irImage.get_stride_bytes()));
					normalize(cv_irImage, cv_irImage_8U, 0, 256 * 256, NORM_MINMAX);
					cv_irImage.convertTo(cv_irImage_8U, CV_8U, 1);


					//k4a::image xyzImage;
					//cv::Mat cv_xyzImage;// 16位有符号
					//cv::Mat cv_xyzImage_32F;// 32位float

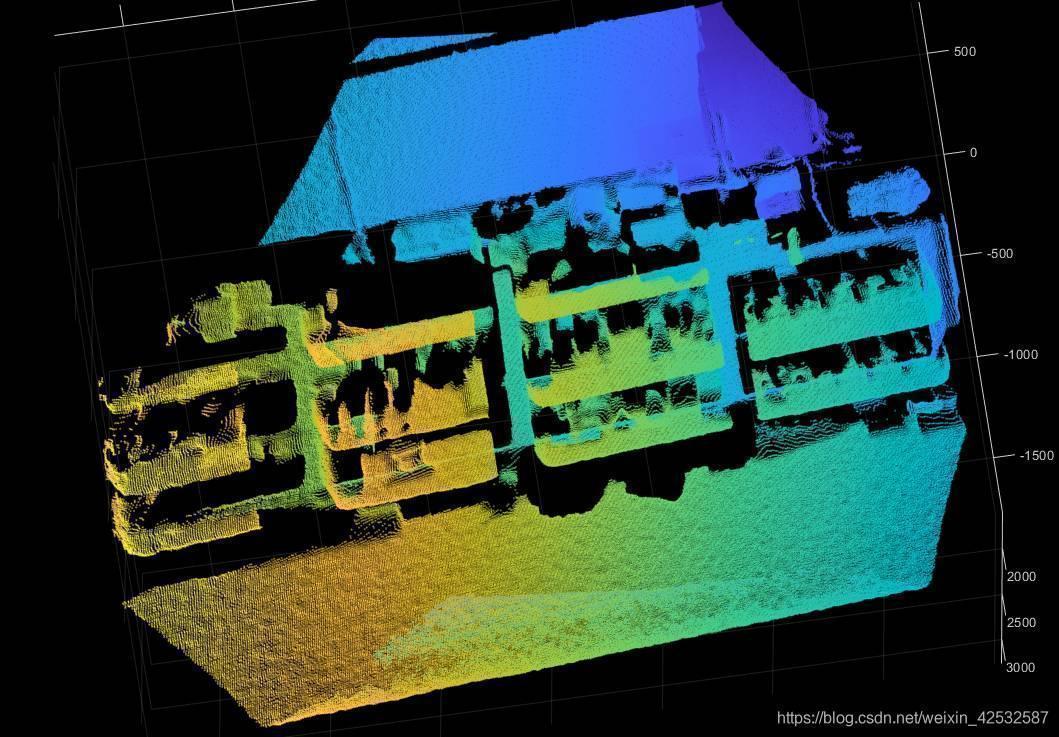

					点云
					//	/*
					//		Each pixel of the xyz_image consists of three int16_t values, totaling 6 bytes. The three int16_t values are the X, Y, and Z values of the point.
					//		我们将为每个像素存储三个带符号的 16 位坐标值（以毫米为单位）。 因此，XYZ 图像步幅设置为 width * 3 * sizeof(int16_t)。
					//		数据顺序为像素交错式，即，X 坐标 – 像素 0，Y 坐标 – 像素 0，Z 坐标 – 像素 0，X 坐标 – 像素 1，依此类推。
					//		如果无法将某个像素转换为 3D，该函数将为该像素分配值 [0,0,0]。
					//	*/

					//xyzImage = k4aTransformation.depth_image_to_point_cloud(depthImage, K4A_CALIBRATION_TYPE_DEPTH);
					//cv_xyzImage = cv::Mat(xyzImage.get_height_pixels(), xyzImage.get_width_pixels(), CV_16SC3, (void *)xyzImage.get_buffer(), static_cast(xyzImage.get_stride_bytes()));
					//cv_xyzImage.convertTo(cv_xyzImage_32F, CV_32FC3, 1.0 / 1000, 0);// 转为float，同时将单位从 mm 转换为 m.
					//cv::imshow("xyzimage", cv_xyzImage_32F);


					//show image
					cv::imshow("color", cv_rgbImage_no_alpha);
					cv::imshow("depth", cv_depth_8U);
					cv::imshow("ir", cv_irImage_8U);

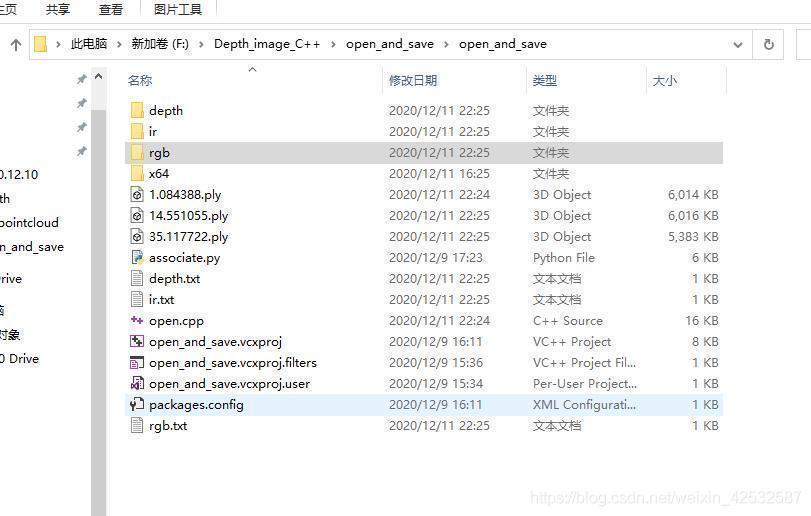

					//save image
					double time_rgb = static_cast<double>(std::chrono::duration_cast<std::chrono::microseconds>(
							rgbImage.get_device_timestamp()).count());

					std::string filename_rgb = std::to_string(time_rgb / 1000000) + ".png";

					double time_d = static_cast<double>(std::chrono::duration_cast<std::chrono::microseconds>(
						depthImage.get_device_timestamp()).count());

					std::string filename_d = std::to_string(time_d / 1000000) + ".png";

					double time_ir = static_cast<double>(std::chrono::duration_cast<std::chrono::microseconds>(
						irImage.get_device_timestamp()).count());
					std::string filename_ir = std::to_string(time_ir / 1000000) + ".png";
					imwrite("./rgb/" + filename_rgb, cv_rgbImage_no_alpha);
					imwrite("./depth/" + filename_d, cv_depth_8U);
					imwrite("./ir/" + filename_ir, cv_irImage_8U);


					//const int32_t TIMEOUT_IN_MS = 1000;
					//std::string file_name;
					//uint32_t device_count = 0;

					//k4a_device_t device1 = NULL;
					//k4a_device_configuration_t config1 = K4A_DEVICE_CONFIG_INIT_DISABLE_ALL;
					//k4a_capture_t capture1 = NULL;
					//k4a_image_t depth_image = NULL;
					//k4a_calibration_t calibration1;

					k4a_image_t xy_table = NULL;
					k4a_image_t point_cloud = NULL;
					int point_count = 0;

					double time_point = static_cast<double>(std::chrono::duration_cast<std::chrono::microseconds>(
						rgbImage.get_device_timestamp()).count());
					std::string filename_point = std::to_string(time_point / 1000000) + ".ply";
					//file_name = "./pointcloud.ply";

		/*			device_count1 = k4a_device_get_installed_count();

					if (device_count1 == 0)
					{
						printf("No K4A devices found
");
						return 0;
					}*/

					/*if (K4A_RESULT_SUCCEEDED != k4a_device_open(K4A_DEVICE_DEFAULT, &device))
					{
						printf("Failed to open device
");
					}*/


				/*	config1.depth_mode = K4A_DEPTH_MODE_WFOV_2X2BINNED;
					config1.camera_fps = K4A_FRAMES_PER_SECOND_30;*/

				/*	k4a_device_get_calibration(device1, config1.depth_mode, config1.color_resolution, &calibration1);*/

					k4a_image_create(K4A_IMAGE_FORMAT_CUSTOM,
						k4aCalibration.depth_camera_calibration.resolution_width,
						k4aCalibration.depth_camera_calibration.resolution_height,
						k4aCalibration.depth_camera_calibration.resolution_width * (int)sizeof(k4a_float2_t),
						&xy_table);

					create_xy_table(&k4aCalibration, xy_table);

					k4a_image_create(K4A_IMAGE_FORMAT_CUSTOM,
						k4aCalibration.depth_camera_calibration.resolution_width,
						k4aCalibration.depth_camera_calibration.resolution_height,
						k4aCalibration.depth_camera_calibration.resolution_width * (int)sizeof(k4a_float3_t),
						&point_cloud);
				/*	k4a_device_start_cameras(device, &config);
					k4a_device_get_capture(device, &capture, TIMEOUT_IN_MS);*/

					//depth_image = k4a_capture_get_depth_image(capture1);
					if (depthImage == 0)
					{
						printf("Failed to get depth image from capture
");
					}

					generate_point_cloud(depthImage, xy_table, point_cloud, &point_count);

					write_point_cloud(filename_point.c_str(), point_cloud, point_count);

				/*	k4a_image_release(depthImage);
					k4a_capture_release(capture);*/
					k4a_image_release(xy_table);
					k4a_image_release(point_cloud);
					//returnCode = 0;
					//k4a_device_close(device1);


					std::cout << "Acquiring!" << endl;

					//写入depth.txt, rgb.txt文件
					rgb_out << std::to_string(time_rgb / 1000000) << "    " << "rgb/" << filename_rgb << endl;
					d_out << std::to_string(time_d / 1000000) << "    " << "depth/" << filename_d << endl;
					ir_out << std::to_string(time_ir / 1000000) << "    " << "ir/" << filename_ir << endl;

					rgb_out << flush;
					d_out << flush;
					ir_out << flush;

					k4aTransformation.destroy();

					cv_rgbImage_with_alpha.release();
					cv_rgbImage_no_alpha.release();
					cv_depth.release();
					cv_depth_8U.release();
					cv_irImage.release();
					cv_irImage_8U.release();
					capture.reset();

					if (cv::waitKey() == 'q')
					{//按键采集，用户按下'q',跳出循环,结束采集
						std::cout << "----------------------------------" << std::endl;
						std::cout << "------------- closed -------------" << std::endl;
						std::cout << "----------------------------------" << std::endl;
						break;
					}
				}
				else {
					std::cout << "false: K4A_WAIT_RESULT_TIMEOUT." << std::endl;
				}
		}
	cv::destroyAllWindows();
	rgb_out << flush;
	d_out << flush;
	ir_out << flush;
	rgb_out.close();
	d_out.close();
	ir_out.close();


	// 释放，关闭设备
	rgbImage.reset();
	depthImage.reset();
	irImage.reset();
	capture.reset();
	device.close();


	return 1;
}

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38
  • 39
  • 40
  • 41
  • 42
  • 43
  • 44
  • 45
  • 46
  • 47
  • 48
  • 49
  • 50
  • 51
  • 52
  • 53
  • 54
  • 55
  • 56
  • 57
  • 58
  • 59
  • 60
  • 61
  • 62
  • 63
  • 64
  • 65
  • 66
  • 67
  • 68
  • 69
  • 70
  • 71
  • 72
  • 73
  • 74
  • 75
  • 76
  • 77
  • 78
  • 79
  • 80
  • 81
  • 82
  • 83
  • 84
  • 85
  • 86
  • 87
  • 88
  • 89
  • 90
  • 91
  • 92
  • 93
  • 94
  • 95
  • 96
  • 97
  • 98
  • 99
  • 100
  • 101
  • 102
  • 103
  • 104
  • 105
  • 106
  • 107
  • 108
  • 109
  • 110
  • 111
  • 112
  • 113
  • 114
  • 115
  • 116
  • 117
  • 118
  • 119
  • 120
  • 121
  • 122
  • 123
  • 124
  • 125
  • 126
  • 127
  • 128
  • 129
  • 130
  • 131
  • 132
  • 133
  • 134
  • 135
  • 136
  • 137
  • 138
  • 139
  • 140
  • 141
  • 142
  • 143
  • 144
  • 145
  • 146
  • 147
  • 148
  • 149
  • 150
  • 151
  • 152
  • 153
  • 154
  • 155
  • 156
  • 157
  • 158
  • 159
  • 160
  • 161
  • 162
  • 163
  • 164
  • 165
  • 166
  • 167
  • 168
  • 169
  • 170
  • 171
  • 172
  • 173
  • 174
  • 175
  • 176
  • 177
  • 178
  • 179
  • 180
  • 181
  • 182
  • 183
  • 184
  • 185
  • 186
  • 187
  • 188
  • 189
  • 190
  • 191
  • 192
  • 193
  • 194
  • 195
  • 196
  • 197
  • 198
  • 199
  • 200
  • 201
  • 202
  • 203
  • 204
  • 205
  • 206
  • 207
  • 208
  • 209
  • 210
  • 211
  • 212
  • 213
  • 214
  • 215
  • 216
  • 217
  • 218
  • 219
  • 220
  • 221
  • 222
  • 223
  • 224
  • 225
  • 226
  • 227
  • 228
  • 229
  • 230
  • 231
  • 232
  • 233
  • 234
  • 235
  • 236
  • 237
  • 238
  • 239
  • 240
  • 241
  • 242
  • 243
  • 244
  • 245
  • 246
  • 247
  • 248
  • 249
  • 250
  • 251
  • 252
  • 253
  • 254
  • 255
  • 256
  • 257
  • 258
  • 259
  • 260
  • 261
  • 262
  • 263
  • 264
  • 265
  • 266
  • 267
  • 268
  • 269
  • 270
  • 271
  • 272
  • 273
  • 274
  • 275
  • 276
  • 277
  • 278
  • 279
  • 280
  • 281
  • 282
  • 283
  • 284
  • 285
  • 286
  • 287
  • 288
  • 289
  • 290
  • 291
  • 292
  • 293
  • 294
  • 295
  • 296
  • 297
  • 298
  • 299
  • 300
  • 301
  • 302
  • 303
  • 304
  • 305
  • 306
  • 307
  • 308
  • 309
  • 310
  • 311
  • 312
  • 313
  • 314
  • 315
  • 316
  • 317
  • 318
  • 319
  • 320
  • 321
  • 322
  • 323
  • 324
  • 325
  • 326
  • 327
  • 328
  • 329
  • 330
  • 331
  • 332
  • 333
  • 334
  • 335
  • 336
  • 337
  • 338
  • 339
  • 340
  • 341
  • 342
  • 343
  • 344
  • 345
  • 346
  • 347
  • 348
  • 349
  • 350
  • 351
  • 352
  • 353
  • 354
  • 355
  • 356
  • 357
  • 358
  • 359
  • 360
  • 361
  • 362
  • 363
  • 364
  • 365
  • 366
  • 367
  • 368
  • 369
  • 370
  • 371
  • 372
  • 373
  • 374
  • 375
  • 376
  • 377
  • 378
  • 379
  • 380
  • 381
  • 382
  • 383
  • 384
  • 385
  • 386
  • 387
  • 388
  • 389
  • 390
  • 391
  • 392
  • 393
  • 394
  • 395
  • 396
  • 397
  • 398
  • 399
  • 400
  • 401
  • 402
  • 403
  • 404
  • 405
  • 406
  • 407
  • 408
  • 409
  • 410
  • 411
  • 412
  • 413
  • 414
  • 415
  • 416
  • 417
  • 418
  • 419
  • 420
  • 421
  • 422
  • 423
  • 424
  • 425
  • 426
  • 427
  • 428
  • 429
  • 430
  • 431
  • 432
  • 433
  • 434
  • 435
  • 436
  • 437
  • 438
  • 439
  • 440
  • 441
  • 442
  • 443
  • 444
  • 445
  • 446
  • 447
  • 448
  • 449
  • 450
  • 451
  • 452
  • 453
  • 454
  • 455
  • 456
  • 457
  • 458
  • 459
  • 460
  • 461
  • 462
  • 463
  • 464
  • 465
  • 466
  • 467
  • 468
  • 469

相关包的安装

本文用的OpenCV4.2以及深度相机的SDK包是直接通过NuGet程序包直接安装的，下面是每步的安装截图
右击引用，选择管理NuGet程序包
点击安装，等待安装完毕即可
同样，OpenCV也是相同的方法，但是当我安装OpenCV时，用低版本时总是报错，当用到4.2时才正常，我看网上的说是OpenCV低版本不支持VS2017，我也不知是不是这个原因，反正用到高版本时就行了，用NuGet直接安装OpenCV还有个好处是省了各种配置，只要装上就可用

程序运行结果

放几张程序运行结果图

RGB图
红外IR图
深度图的显示是根据这篇博客，采用归一化的方法进行显示保存，最后保存的图像依然是16位，后面尝试微软演示（5,6，5）的显示方式
深度图
点云可视化图
点云可视化是利用保存的.ply文件进行可视化的，C++对我一个外行太不友好了
matlab显示代码如下

ptCloud = pcread('F:Depth_image_C++open_and_saveopen_and_save14.551055.ply'); % read from a PLY file
figure
pcshow(ptCloud);
title('Original Data');

  • 1
  • 2
  • 3
  • 4

文件保存

文件保存需要分别新建几个文件夹由于保存文件，如图
在这里插入图片描述

最后

这算是我自己学习过程中的一个记录，如果能够对你们有帮助那是更好了。

https://blog.csdn.net/qq_40936780/article/details/102634734?utm_medium=distribute.pc_relevant.none-task-blog-title-3&spm=1001.2101.3001.4242
https://blog.csdn.net/Zlp19970106/article/details/107120743/?utm_medium=distribute.pc_relevant.none-task-blog-title-2&spm=1001.2101.3001.4242
还有篇参考博客找不到了，等找到了再添加吧

文章知识点与官方知识档案匹配，可进一步学习相关知识
OpenCV技能树首页概览20736 人正在系统学习中
注：本文转载自blog.csdn.net的农机AI小白的文章"https://blog.csdn.net/weixin_42532587/article/details/111054649"。版权归原作者所有，此博客不拥有其著作权，亦不承担相应法律责任。如有侵权，请联系我们删除。
复制链接
相关推荐
发表评论

评论记录：

未查询到任何数据！
