C++ TensorRT yolov8推理 CUDA核函数加速前处理、后处理

目录

效果

4K视频 CPU前处理效果

4K视频 CUDA核函数前处理效果

4K视频 CUDA核函数前处理、后处理效果

2K视频 CUDA核函数前处理效果

2K视频 CUDA核函数前处理、后处理效果

1080P 视频 CUDA核函数前处理效果

模型

电脑环境

项目

代码

下载

效果

C++ TensorRT yolov8推理 CUDA核函数加速前处理

4K视频 CPU前处理效果

4K视频 CUDA核函数前处理效果

4K视频 CUDA核函数前处理、后处理效果

2K视频 CUDA核函数前处理效果

2K视频 CUDA核函数前处理、后处理效果

1080P 视频 CUDA核函数前处理效果

模型

Model Properties
-------------------------
date：2023-09-05T13:17:15.396588
description：Ultralytics YOLOv8n model trained on coco.yaml
author：Ultralytics
task：detect
license：AGPL-3.0 https://ultralytics.com/license
version：8.0.170
stride：32
batch：1
imgsz：[640, 640]
names：{0: 'person', 1: 'bicycle', 2: 'car', 3: 'motorcycle', 4: 'airplane', 5: 'bus', 6: 'train', 7: 'truck', 8: 'boat', 9: 'traffic light', 10: 'fire hydrant', 11: 'stop sign', 12: 'parking meter', 13: 'bench', 14: 'bird', 15: 'cat', 16: 'dog', 17: 'horse', 18: 'sheep', 19: 'cow', 20: 'elephant', 21: 'bear', 22: 'zebra', 23: 'giraffe', 24: 'backpack', 25: 'umbrella', 26: 'handbag', 27: 'tie', 28: 'suitcase', 29: 'frisbee', 30: 'skis', 31: 'snowboard', 32: 'sports ball', 33: 'kite', 34: 'baseball bat', 35: 'baseball glove', 36: 'skateboard', 37: 'surfboard', 38: 'tennis racket', 39: 'bottle', 40: 'wine glass', 41: 'cup', 42: 'fork', 43: 'knife', 44: 'spoon', 45: 'bowl', 46: 'banana', 47: 'apple', 48: 'sandwich', 49: 'orange', 50: 'broccoli', 51: 'carrot', 52: 'hot dog', 53: 'pizza', 54: 'donut', 55: 'cake', 56: 'chair', 57: 'couch', 58: 'potted plant', 59: 'bed', 60: 'dining table', 61: 'toilet', 62: 'tv', 63: 'laptop', 64: 'mouse', 65: 'remote', 66: 'keyboard', 67: 'cell phone', 68: 'microwave', 69: 'oven', 70: 'toaster', 71: 'sink', 72: 'refrigerator', 73: 'book', 74: 'clock', 75: 'vase', 76: 'scissors', 77: 'teddy bear', 78: 'hair drier', 79: 'toothbrush'}
---------------------------------------------------------------

Inputs
-------------------------
name：images
tensor：Float[1, 3, 640, 640]
---------------------------------------------------------------

Outputs
-------------------------
name：output0
tensor：Float[1, 84, 8400]
---------------------------------------------------------------

电脑环境

处理器：AMD Ryzen 7 7735H with Radeon Graphics 3.20 GHz
内存：16.0 GB
显卡：NVIDIA GeForce RTX 4060 Laptop GPU
操作系统：Windows 10 企业版
opencv-4.8.1
CUDA12.4
TensorRT-8.6.1.6
VS2022

项目

包含目录

库目录

附件依赖项

cublas.lib
cublasLt.lib
cuda.lib
cudadevrt.lib
cudart.lib
cudart_static.lib
cudnn.lib
cudnn64_8.lib
cudnn_adv_infer.lib
cudnn_adv_infer64_8.lib
cudnn_adv_train.lib
cudnn_adv_train64_8.lib
cudnn_cnn_infer.lib
cudnn_cnn_infer64_8.lib
cudnn_cnn_train.lib
cudnn_cnn_train64_8.lib
cudnn_ops_infer.lib
cudnn_ops_infer64_8.lib
cudnn_ops_train.lib
cudnn_ops_train64_8.lib
cufft.lib
cufftw.lib
cufilt.lib
curand.lib
cusolver.lib
cusolverMg.lib
cusparse.lib
nppc.lib
nppial.lib
nppicc.lib
nppidei.lib
nppif.lib
nppig.lib
nppim.lib
nppist.lib
nppisu.lib
nppitc.lib
npps.lib
nvblas.lib
nvJitLink.lib
nvJitLink_static.lib
nvjpeg.lib
nvml.lib
nvptxcompiler_static.lib
nvrtc-builtins_static.lib
nvrtc.lib
nvrtc_static.lib
OpenCL.lib
nvinfer.lib
nvinfer_dispatch.lib
nvinfer_lean.lib
nvinfer_plugin.lib
nvinfer_vc_plugin.lib
nvonnxparser.lib
nvparsers.lib
opencv_world481.lib

代码

#define _CRT_SECURE_NO_DEPRECATE

#include
#include
#include
#include
#include
#include
#include "NvInfer.h"
#include "kernel_function.h"
#include "utils.h"

std::vectorstring> labels;
float score_threshold = 0.3f;
float nms_threshold = 0.5f;
std::string lable_path = "";
std::string engin_path = "";
std::string video_path = "";

utils::NvinferStruct* p = nullptr;
utils::Logger logger;

utils::InitParameter m_param;
utils::AffineMat m_dst2src;

int src_w = 0;
int src_h = 0;
int dst_w = 640;
int dst_h = 640;
double fps = 0;
int output_size = 0;

double preprocessTime = 0;
double inferTime = 0;
double postprocessTime = 0;
double totalTime = 0;
double detFps = 0;

// input
unsigned char* m_input_src_device = nullptr;
float* m_input_resize_device = nullptr;
float* m_input_rgb_device = nullptr;
float* m_input_norm_device = nullptr;
float* m_input_hwc_device = nullptr;
// output
float* m_output_src_device = nullptr;
float* output_data = nullptr;

//初始化
int init() {

    std::ifstream lable_file(lable_path);
    if (!lable_file.is_open())
    {
        std::cerr << "Error opening file: " << lable_path << std::endl;
        return -1;
    }
    std::string line;
    while (std::getline(lable_file, line))
    {
        if (!line.empty())
        {
            labels.push_back(line);
        }
    }
    lable_file.close();

    // 以二进制方式读取文件
    std::ifstream engin_file(engin_path.data(), std::ios::binary);
    if (!engin_file.good()) {
        std::cerr << "文件无法打开，请确定文件是否可用！" << std::endl;
        return -1;
    }
    size_t size = 0;
    engin_file.seekg(0, engin_file.end);    // 将读指针从文件末尾开始移动0个字节
    size = engin_file.tellg();    // 返回读指针的位置，此时读指针的位置就是文件的字节数
    engin_file.seekg(0, engin_file.beg);    // 将读指针从文件开头开始移动0个字节
    char* modelStream = new char[size];
    engin_file.read(modelStream, size);
    engin_file.close();// 关闭文件

    //创建推理核心结构体，初始化变量
    p = new utils::NvinferStruct();

    //初始化反序列化引擎
    p->runtime = nvinfer1::createInferRuntime(logger);

    // 初始化推理引擎
    p->engine = p->runtime->deserializeCudaEngine(modelStream, size);

    // 创建上下文
    p->context = p->engine->createExecutionContext();
    int numNode = p->engine->getNbBindings();

    delete[] modelStream;

    output_size = 1 * (labels.size() + 4) * 8400;;
    output_data = new float[output_size];

    float a = float(dst_h) / src_h;
    float b = float(dst_w) / src_w;
    float scale = a < b ? a : b;

    /*cv::Mat src2dst = (cv::Mat_(2, 3) << scale, 0.f, (-scale * src_w + dst_w + scale - 1) * 0.5,
        0.f, scale, (-scale * src_h + dst_h + scale - 1) * 0.5);*/

    cv::Mat src2dst = (cv::Mat_(2, 3) << scale, 0.f, (-scale * src_w + dst_w) * 0.5,
        0.f, scale, (-scale * src_h + dst_h) * 0.5);

    cv::Mat dst2src = cv::Mat::zeros(2, 3, CV_32FC1);

    cv::invertAffineTransform(src2dst, dst2src);

    m_dst2src.v0 = dst2src.ptr(0)[0];
    m_dst2src.v1 = dst2src.ptr(0)[1];
    m_dst2src.v2 = dst2src.ptr(0)[2];
    m_dst2src.v3 = dst2src.ptr(1)[0];
    m_dst2src.v4 = dst2src.ptr(1)[1];
    m_dst2src.v5 = dst2src.ptr(1)[2];

    CHECK(cudaMalloc(&m_input_src_device, 1 * 3 * src_h * src_w * sizeof(unsigned char)));
    CHECK(cudaMalloc(&m_input_resize_device, 1 * 3 * dst_h * dst_w * sizeof(float)));
    CHECK(cudaMalloc(&m_input_rgb_device, 1 * 3 * dst_h * dst_w * sizeof(float)));
    CHECK(cudaMalloc(&m_input_norm_device, 1 * 3 * dst_h * dst_w * sizeof(float)));
    CHECK(cudaMalloc(&m_input_hwc_device, 1 * 3 * dst_h * dst_w * sizeof(float)));
    CHECK(cudaMalloc(&m_output_src_device, 1 * output_size * sizeof(float)));

    return 0;
}

//前处理
void preprocess(cv::Mat& frame) {

    CHECK(cudaMemcpy(m_input_src_device, frame.data, sizeof(unsigned char) * 3 * src_h * src_w, cudaMemcpyHostToDevice));

    resizeDevice(1, m_input_src_device, src_w, src_h, m_input_resize_device, dst_w, dst_h, 114, m_dst2src);

    bgr2rgbDevice(1, m_input_resize_device, dst_w, dst_h, m_input_rgb_device, dst_w, dst_h);

    normDevice(1, m_input_rgb_device, dst_w, dst_h, m_input_norm_device, dst_w, dst_h, m_param);

    hwc2chwDevice(1, m_input_norm_device, dst_w, dst_h, m_input_hwc_device, dst_w, dst_h);
}

//后处理
void postprocess(std::vector& detectionResult) {

    CHECK(cudaMemcpy(output_data, m_output_src_device, output_size * sizeof(float), cudaMemcpyDeviceToHost));

    cv::Mat dout(labels.size() + 4, 8400, CV_32F, output_data);
    cv::Mat det_output = dout.t();

    std::vector boxes;
    std::vector classIds;
    std::vector confidences;

    const float ratio_h = dst_h / (float)src_h;
    const float ratio_w = dst_w / (float)src_w;

    for (int i = 0; i < det_output.rows; i++)
    {
        cv::Mat classes_scores = det_output.row(i).colRange(4, labels.size() + 4);
        cv::Point classIdPoint;
        double score;
        cv::minMaxLoc(classes_scores, 0, &score, 0, &classIdPoint);

        if (score > score_threshold)
        {
            float cx = det_output.at(i, 0);
            float cy = det_output.at(i, 1);
            float ow = det_output.at(i, 2);
            float oh = det_output.at(i, 3);

            int x = static_cast((cx - 0.5 * ow));
            int y = static_cast((cy - 0.5 * oh));

            int width = static_cast(ow);
            int height = static_cast(oh);
            // 基于纵横比调整边界框坐标
            if (ratio_h > ratio_w)
            {
                x = x / ratio_w;
                y = (y - (dst_h - ratio_w * src_h) / 2) / ratio_w;
                width = width / ratio_w;
                height = height / ratio_w;
            }
            else
            {
                x = (x - (dst_w - ratio_h * src_w) / 2) / ratio_h;
                y = y / ratio_h;
                width = width / ratio_h;
                height = height / ratio_h;
            }

            // 坐标值安全校验
            x = std::max(x, 0);
            y = std::max(y, 0);
            width = std::min(width, src_w - x);
            height = std::min(height, src_h - y);

            cv::Rect box;
            box.x = x;
            box.y = y;
            box.width = width;
            box.height = height;

            boxes.push_back(box);
            classIds.push_back(classIdPoint.x);
            confidences.push_back(score);
        }
    }

    std::vector indexes;
    cv::dnn::NMSBoxes(boxes, confidences, score_threshold, nms_threshold, indexes);

    for (size_t i = 0; i < indexes.size(); i++)
    {
        int index = indexes[i];
        utils::detresult box(labels[classIds[index]], classIds[index], confidences[index], boxes[index]);
        detectionResult.push_back(box);
    }

}

//绘制
void draw(cv::Mat& frame, std::vector& detectionResult) {

    for (size_t i = 0; i < detectionResult.size(); ++i)
    {
        utils::detresult box = detectionResult[i];
        cv::rectangle(frame, box.rect, cv::Scalar(0, 0, 255), 2);
        std::string label = box.className + ":" + cv::format("%.2f", box.confidence);
        putText(frame, label, cv::Point(box.rect.x, box.rect.y - 5), cv::FONT_HERSHEY_SIMPLEX, 1, cv::Scalar(0, 255, 0), 2);
    }

    // 绘制时间
    putText(frame, "preprocessTime:" + std::to_string(preprocessTime * 1000) + "ms", cv::Point(10, 30), cv::FONT_HERSHEY_SIMPLEX, 1, cv::Scalar(0, 255, 0), 2);
    putText(frame, "inferTime:" + std::to_string(inferTime * 1000) + "ms", cv::Point(10, 70), cv::FONT_HERSHEY_SIMPLEX, 1, cv::Scalar(0, 255, 0), 2);
    putText(frame, "postprocessTime:" + std::to_string(postprocessTime * 1000) + "ms", cv::Point(10, 110), cv::FONT_HERSHEY_SIMPLEX, 1, cv::Scalar(0, 255, 0), 2);
    putText(frame, "totalTime:" + std::to_string(totalTime * 1000) + "ms", cv::Point(10, 150), cv::FONT_HERSHEY_SIMPLEX, 1, cv::Scalar(0, 255, 0), 2);
    putText(frame, "detFps:" + std::to_string(detFps), cv::Point(10, 190), cv::FONT_HERSHEY_SIMPLEX, 1, cv::Scalar(0, 255, 0), 2);

    cv::imshow("detresult", frame);

}

//清理
void destroy() {

    p->context->destroy();
    p->engine->destroy();
    p->runtime->destroy();
    delete p;

    // input
    CHECK(cudaFree(m_input_src_device));
    CHECK(cudaFree(m_input_resize_device));
    CHECK(cudaFree(m_input_rgb_device));
    CHECK(cudaFree(m_input_norm_device));
    CHECK(cudaFree(m_input_hwc_device));
    // output
    CHECK(cudaFree(m_output_src_device));
    delete output_data;
}

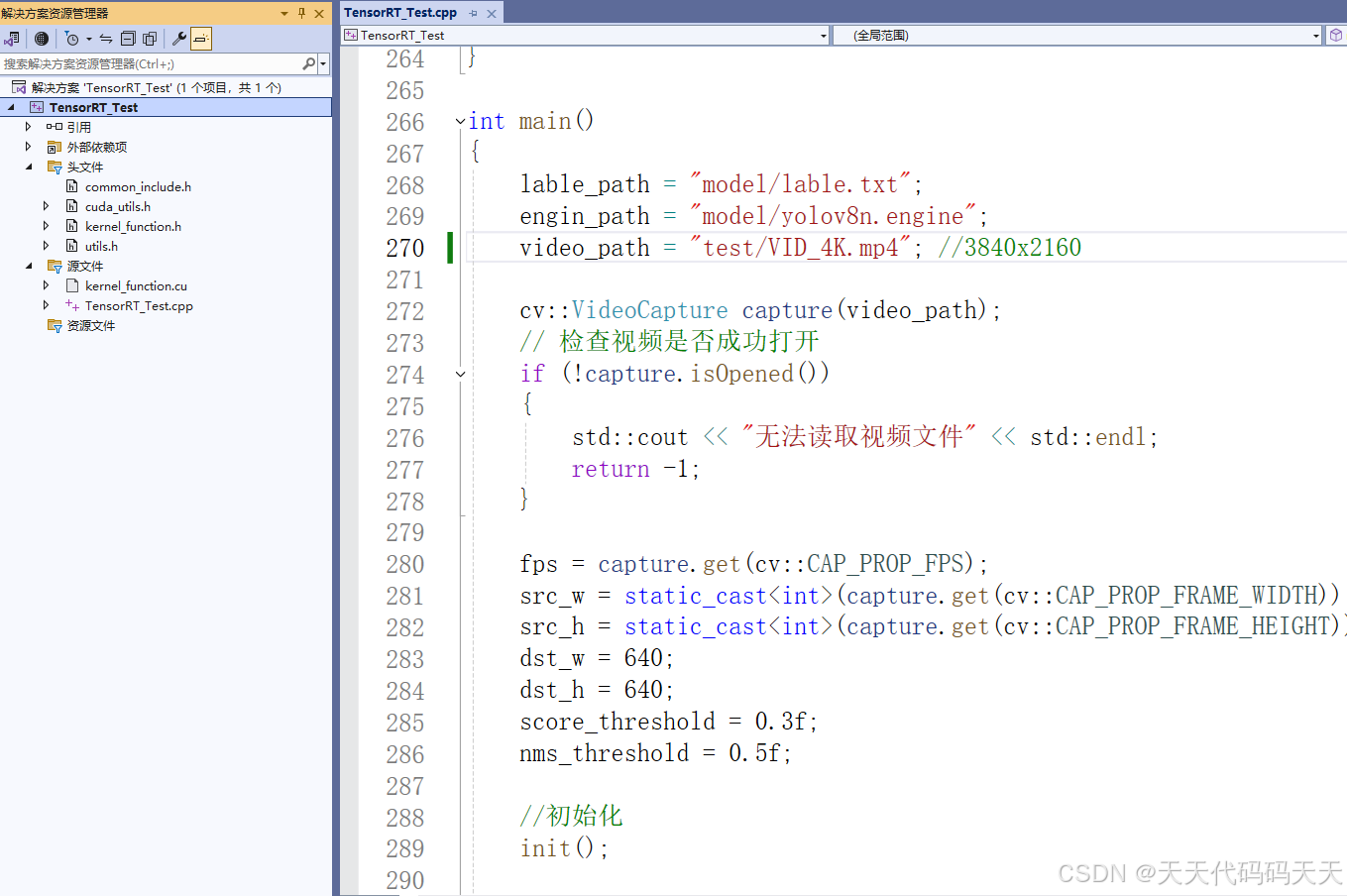

int main()
{
    lable_path = "model/lable.txt";
    engin_path = "model/yolov8n.engine";
    video_path = "test/VID_4K.mp4"; //3840x2160

    cv::VideoCapture capture(video_path);
    // 检查视频是否成功打开
    if (!capture.isOpened())
    {
        std::cout << "无法读取视频文件" << std::endl;
        return -1;
    }

    fps = capture.get(cv::CAP_PROP_FPS);
    src_w = static_cast(capture.get(cv::CAP_PROP_FRAME_WIDTH));
    src_h = static_cast(capture.get(cv::CAP_PROP_FRAME_HEIGHT));
    dst_w = 640;
    dst_h = 640;
    score_threshold = 0.3f;
    nms_threshold = 0.5f;

    //初始化
    init();

    cv::Mat frame;
    while (true)
    {
        bool success = capture.read(frame); // 读取一帧数据
        // 检查是否成功读取帧
        if (!success)
        {
            std::cout << "读取完毕" << std::endl;
            break;
        }

        //前处理
        double start = (double)cv::getTickCount();
        preprocess(frame);
        preprocessTime = ((double)cv::getTickCount() - start) / cv::getTickFrequency();

        //推理
        start = (double)cv::getTickCount();
        float* bindings[] = { m_input_hwc_device, m_output_src_device };
        bool context = p->context->executeV2((void**)bindings);
        inferTime = ((double)cv::getTickCount() - start) / cv::getTickFrequency();

        //后处理
        start = (double)cv::getTickCount();
        std::vector detectionResult;
        postprocess(detectionResult);
        postprocessTime = ((double)cv::getTickCount() - start) / cv::getTickFrequency();

        //总时间
        totalTime = preprocessTime + inferTime + postprocessTime;
        detFps = (1 / (totalTime));

        //绘制、显示
        cv::namedWindow("detresult", cv::WINDOW_NORMAL); // cv::WINDOW_NORMAL允许用户调整窗口大小
        //cv::resizeWindow("detresult", src_w / 2, src_h / 2); // 设置窗口的宽度和高度
        draw(frame, detectionResult);

        if (cv::waitKey(1) == 27) // 通过按下ESC键退出循环
        {
            break;
        }
    }

    cv::destroyAllWindows();

    destroy();

    return 0;
}

  1. #define _CRT_SECURE_NO_DEPRECATE
  2.
  3. #include <iostream>
  4. #include <opencv2/opencv.hpp>
  5. #include <opencv2/imgproc.hpp>
  6. #include <opencv2/highgui.hpp>
  7. #include <fstream>
  8. #include <numeric>
  9. #include "NvInfer.h"
  10. #include "kernel_function.h"
  11. #include "utils.h"
  12.
  13. std::vector<std::string> labels;
  14. float score_threshold = 0.3f;
  15. float nms_threshold = 0.5f;
  16. std::string lable_path = "";
  17. std::string engin_path = "";
  18. std::string video_path = "";
  19.
  20. utils::NvinferStruct* p = nullptr;
  21. utils::Logger logger;
  22.
  23. utils::InitParameter m_param;
  24. utils::AffineMat m_dst2src;
  25.
  26. int src_w = 0;
  27. int src_h = 0;
  28. int dst_w = 640;
  29. int dst_h = 640;
  30. double fps = 0;
  31. int output_size = 0;
  32.
  33. double preprocessTime = 0;
  34. double inferTime = 0;
  35. double postprocessTime = 0;
  36. double totalTime = 0;
  37. double detFps = 0;
  38.
  39. // input
  40. unsigned char* m_input_src_device = nullptr;
  41. float* m_input_resize_device = nullptr;
  42. float* m_input_rgb_device = nullptr;
  43. float* m_input_norm_device = nullptr;
  44. float* m_input_hwc_device = nullptr;
  45. // output
  46. float* m_output_src_device = nullptr;
  47. float* output_data = nullptr;
  49. //初始化
  50. int init() {
  51.
  52. 	std::ifstream lable_file(lable_path);
  53. 	if (!lable_file.is_open())
  54. 	{
  55. 		std::cerr << "Error opening file: " << lable_path << std::endl;
  56. 		return -1;
  57. 	}
  58. 	std::string line;
  59. 	while (std::getline(lable_file, line))
  60. 	{
  61. 		if (!line.empty())
  62. 		{
  63. 			labels.push_back(line);
  64. 		}
  65. 	}
  66. 	lable_file.close();
  67.
  68. 	// 以二进制方式读取文件
  69. 	std::ifstream engin_file(engin_path.data(), std::ios::binary);
  70. 	if (!engin_file.good()) {
  71. 		std::cerr << "文件无法打开，请确定文件是否可用！" << std::endl;
  72. 		return -1;
  73. 	}
  74. 	size_t size = 0;
  75. 	engin_file.seekg(0, engin_file.end);	// 将读指针从文件末尾开始移动0个字节
  76. 	size = engin_file.tellg();	// 返回读指针的位置，此时读指针的位置就是文件的字节数
  77. 	engin_file.seekg(0, engin_file.beg);	// 将读指针从文件开头开始移动0个字节
  78. 	char* modelStream = new char[size];
  79. 	engin_file.read(modelStream, size);
  80. 	engin_file.close();// 关闭文件
  81.
  82. 	//创建推理核心结构体，初始化变量
  83. 	p = new utils::NvinferStruct();
  84.
  85. 	//初始化反序列化引擎
  86. 	p->runtime = nvinfer1::createInferRuntime(logger);
  87.
  88. 	// 初始化推理引擎
  89. 	p->engine = p->runtime->deserializeCudaEngine(modelStream, size);
  90.
  91. 	// 创建上下文
  92. 	p->context = p->engine->createExecutionContext();
  93. 	int numNode = p->engine->getNbBindings();
  94.
  95. 	delete[] modelStream;
  96.
  97. 	output_size = 1 * (labels.size() + 4) * 8400;;
  98. 	output_data = new float[output_size];
  99.
  100. 	float a = float(dst_h) / src_h;
  101. 	float b = float(dst_w) / src_w;
  102. 	float scale = a < b ? a : b;
  103.
  104. 	/*cv::Mat src2dst = (cv::Mat_<float>(2, 3) << scale, 0.f, (-scale * src_w + dst_w + scale - 1) * 0.5,
  105. 		0.f, scale, (-scale * src_h + dst_h + scale - 1) * 0.5);*/
  106.
  107. 	cv::Mat src2dst = (cv::Mat_<float>(2, 3) << scale, 0.f, (-scale * src_w + dst_w) * 0.5,
  108. 		0.f, scale, (-scale * src_h + dst_h) * 0.5);
  109.
  110. 	cv::Mat dst2src = cv::Mat::zeros(2, 3, CV_32FC1);
  111.
  112. 	cv::invertAffineTransform(src2dst, dst2src);
  113.
  114. 	m_dst2src.v0 = dst2src.ptr<float>(0)[0];
  115. 	m_dst2src.v1 = dst2src.ptr<float>(0)[1];
  116. 	m_dst2src.v2 = dst2src.ptr<float>(0)[2];
  117. 	m_dst2src.v3 = dst2src.ptr<float>(1)[0];
  118. 	m_dst2src.v4 = dst2src.ptr<float>(1)[1];
  119. 	m_dst2src.v5 = dst2src.ptr<float>(1)[2];
  120.
  121. 	CHECK(cudaMalloc(&m_input_src_device, 1 * 3 * src_h * src_w * sizeof(unsigned char)));
  122. 	CHECK(cudaMalloc(&m_input_resize_device, 1 * 3 * dst_h * dst_w * sizeof(float)));
  123. 	CHECK(cudaMalloc(&m_input_rgb_device, 1 * 3 * dst_h * dst_w * sizeof(float)));
  124. 	CHECK(cudaMalloc(&m_input_norm_device, 1 * 3 * dst_h * dst_w * sizeof(float)));
  125. 	CHECK(cudaMalloc(&m_input_hwc_device, 1 * 3 * dst_h * dst_w * sizeof(float)));
  126. 	CHECK(cudaMalloc(&m_output_src_device, 1 * output_size * sizeof(float)));
  127.
  128. 	return 0;
  129. }
  130.
  131. //前处理
  132. void preprocess(cv::Mat& frame) {
  133.
  134. 	CHECK(cudaMemcpy(m_input_src_device, frame.data, sizeof(unsigned char) * 3 * src_h * src_w, cudaMemcpyHostToDevice));
  135.
  136. 	resizeDevice(1, m_input_src_device, src_w, src_h, m_input_resize_device, dst_w, dst_h, 114, m_dst2src);
  137.
  138. 	bgr2rgbDevice(1, m_input_resize_device, dst_w, dst_h, m_input_rgb_device, dst_w, dst_h);
  139.
  140. 	normDevice(1, m_input_rgb_device, dst_w, dst_h, m_input_norm_device, dst_w, dst_h, m_param);
  141.
  142. 	hwc2chwDevice(1, m_input_norm_device, dst_w, dst_h, m_input_hwc_device, dst_w, dst_h);
  143. }
  144.
  145. //后处理
  146. void postprocess(std::vector<utils::detresult>& detectionResult) {
  147.
  148. 	CHECK(cudaMemcpy(output_data, m_output_src_device, output_size * sizeof(float), cudaMemcpyDeviceToHost));
  149.
  150. 	cv::Mat dout(labels.size() + 4, 8400, CV_32F, output_data);
  151. 	cv::Mat det_output = dout.t();
  152.
  153. 	std::vector<cv::Rect> boxes;
  154. 	std::vector<int> classIds;
  155. 	std::vector<float> confidences;
  156.
  157. 	const float ratio_h = dst_h / (float)src_h;
  158. 	const float ratio_w = dst_w / (float)src_w;
  159.
  160. 	for (int i = 0; i < det_output.rows; i++)
  161. 	{
  162. 		cv::Mat classes_scores = det_output.row(i).colRange(4, labels.size() + 4);
  163. 		cv::Point classIdPoint;
  164. 		double score;
  165. 		cv::minMaxLoc(classes_scores, 0, &score, 0, &classIdPoint);
  166.
  167. 		if (score > score_threshold)
  168. 		{
  169. 			float cx = det_output.at<float>(i, 0);
  170. 			float cy = det_output.at<float>(i, 1);
  171. 			float ow = det_output.at<float>(i, 2);
  172. 			float oh = det_output.at<float>(i, 3);
  173.
  174. 			int x = static_cast<int>((cx - 0.5 * ow));
  175. 			int y = static_cast<int>((cy - 0.5 * oh));
  176.
  177. 			int width = static_cast<int>(ow);
  178. 			int height = static_cast<int>(oh);
  179. 			// 基于纵横比调整边界框坐标
  180. 			if (ratio_h > ratio_w)
  181. 			{
  182. 				x = x / ratio_w;
  183. 				y = (y - (dst_h - ratio_w * src_h) / 2) / ratio_w;
  184. 				width = width / ratio_w;
  185. 				height = height / ratio_w;
  186. 			}
  187. 			else
  188. 			{
  189. 				x = (x - (dst_w - ratio_h * src_w) / 2) / ratio_h;
  190. 				y = y / ratio_h;
  191. 				width = width / ratio_h;
  192. 				height = height / ratio_h;
  193. 			}
  194.
  195. 			// 坐标值安全校验
  196. 			x = std::max(x, 0);
  197. 			y = std::max(y, 0);
  198. 			width = std::min(width, src_w - x);
  199. 			height = std::min(height, src_h - y);
  200.
  201. 			cv::Rect box;
  202. 			box.x = x;
  203. 			box.y = y;
  204. 			box.width = width;
  205. 			box.height = height;
  206.
  207. 			boxes.push_back(box);
  208. 			classIds.push_back(classIdPoint.x);
  209. 			confidences.push_back(score);
  210. 		}
  211. 	}
  212.
  213. 	std::vector<int> indexes;
  214. 	cv::dnn::NMSBoxes(boxes, confidences, score_threshold, nms_threshold, indexes);
  215.
  216. 	for (size_t i = 0; i < indexes.size(); i++)
  217. 	{
  218. 		int index = indexes[i];
  219. 		utils::detresult box(labels[classIds[index]], classIds[index], confidences[index], boxes[index]);
  220. 		detectionResult.push_back(box);
  221. 	}
  222.
  223. }
  224.
  225. //绘制
  226. void draw(cv::Mat& frame, std::vector<utils::detresult>& detectionResult) {
  227.
  228. 	for (size_t i = 0; i < detectionResult.size(); ++i)
  229. 	{
  230. 		utils::detresult box = detectionResult[i];
  231. 		cv::rectangle(frame, box.rect, cv::Scalar(0, 0, 255), 2);
  232. 		std::string label = box.className + ":" + cv::format("%.2f", box.confidence);
  233. 		putText(frame, label, cv::Point(box.rect.x, box.rect.y - 5), cv::FONT_HERSHEY_SIMPLEX, 1, cv::Scalar(0, 255, 0), 2);
  234. 	}
  235.
  236. 	// 绘制时间
  237. 	putText(frame, "preprocessTime:" + std::to_string(preprocessTime * 1000) + "ms", cv::Point(10, 30), cv::FONT_HERSHEY_SIMPLEX, 1, cv::Scalar(0, 255, 0), 2);
  238. 	putText(frame, "inferTime:" + std::to_string(inferTime * 1000) + "ms", cv::Point(10, 70), cv::FONT_HERSHEY_SIMPLEX, 1, cv::Scalar(0, 255, 0), 2);
  239. 	putText(frame, "postprocessTime:" + std::to_string(postprocessTime * 1000) + "ms", cv::Point(10, 110), cv::FONT_HERSHEY_SIMPLEX, 1, cv::Scalar(0, 255, 0), 2);
  240. 	putText(frame, "totalTime:" + std::to_string(totalTime * 1000) + "ms", cv::Point(10, 150), cv::FONT_HERSHEY_SIMPLEX, 1, cv::Scalar(0, 255, 0), 2);
  241. 	putText(frame, "detFps:" + std::to_string(detFps), cv::Point(10, 190), cv::FONT_HERSHEY_SIMPLEX, 1, cv::Scalar(0, 255, 0), 2);
  242.
  243. 	cv::imshow("detresult", frame);
  244.
  245. }
  246.
  247. //清理
  248. void destroy() {
  249.
  250. 	p->context->destroy();
  251. 	p->engine->destroy();
  252. 	p->runtime->destroy();
  253. 	delete p;
  254.
  255. 	// input
  256. 	CHECK(cudaFree(m_input_src_device));
  257. 	CHECK(cudaFree(m_input_resize_device));
  258. 	CHECK(cudaFree(m_input_rgb_device));
  259. 	CHECK(cudaFree(m_input_norm_device));
  260. 	CHECK(cudaFree(m_input_hwc_device));
  261. 	// output
  262. 	CHECK(cudaFree(m_output_src_device));
  263. 	delete output_data;
  264. }
  265.
  266. int main()
  267. {
  268. 	lable_path = "model/lable.txt";
  269. 	engin_path = "model/yolov8n.engine";
  270. 	video_path = "test/VID_4K.mp4"; //3840x2160
  271.
  272. 	cv::VideoCapture capture(video_path);
  273. 	// 检查视频是否成功打开
  274. 	if (!capture.isOpened())
  275. 	{
  276. 		std::cout << "无法读取视频文件" << std::endl;
  277. 		return -1;
  278. 	}
  279.
  280. 	fps = capture.get(cv::CAP_PROP_FPS);
  281. 	src_w = static_cast<int>(capture.get(cv::CAP_PROP_FRAME_WIDTH));
  282. 	src_h = static_cast<int>(capture.get(cv::CAP_PROP_FRAME_HEIGHT));
  283. 	dst_w = 640;
  284. 	dst_h = 640;
  285. 	score_threshold = 0.3f;
  286. 	nms_threshold = 0.5f;
  287.
  288. 	//初始化
  289. 	init();
  290.
  291. 	cv::Mat frame;
  292. 	while (true)
  293. 	{
  294. 		bool success = capture.read(frame); // 读取一帧数据
  295. 		// 检查是否成功读取帧
  296. 		if (!success)
  297. 		{
  298. 			std::cout << "读取完毕" << std::endl;
  299. 			break;
  300. 		}
  301.
  302. 		//前处理
  303. 		double start = (double)cv::getTickCount();
  304. 		preprocess(frame);
  305. 		preprocessTime = ((double)cv::getTickCount() - start) / cv::getTickFrequency();
  306.
  307. 		//推理
  308. 		start = (double)cv::getTickCount();
  309. 		float* bindings[] = { m_input_hwc_device, m_output_src_device };
  310. 		bool context = p->context->executeV2((void**)bindings);
  311. 		inferTime = ((double)cv::getTickCount() - start) / cv::getTickFrequency();
  312.
  313. 		//后处理
  314. 		start = (double)cv::getTickCount();
  315. 		std::vector<utils::detresult> detectionResult;
  316. 		postprocess(detectionResult);
  317. 		postprocessTime = ((double)cv::getTickCount() - start) / cv::getTickFrequency();
  318.
  319. 		//总时间
  320. 		totalTime = preprocessTime + inferTime + postprocessTime;
  321. 		detFps = (1 / (totalTime));
  322.
  323. 		//绘制、显示
  324. 		cv::namedWindow("detresult", cv::WINDOW_NORMAL); // cv::WINDOW_NORMAL允许用户调整窗口大小
  325. 		//cv::resizeWindow("detresult", src_w / 2, src_h / 2); // 设置窗口的宽度和高度
  326. 		draw(frame, detectionResult);
  327.
  328. 		if (cv::waitKey(1) == 27) // 通过按下ESC键退出循环
  329. 		{
  330. 			break;
  331. 		}
  332. 	}
  333.
  334. 	cv::destroyAllWindows();
  335.
  336. 	destroy();
  337.
  338. 	return 0;
  339. }
  340.

下载

C++ TensorRT yolov8推理 CUDA核函数加速前处理

C++ TensorRT yolov8推理 CUDA核函数加速前处理、后处理

天天代码码天天
微信公众号
.NET 人工智能实践
注：本文转载自blog.csdn.net的天天代码码天天的文章"https://lw112190.blog.csdn.net/article/details/143335419"。版权归原作者所有，此博客不拥有其著作权，亦不承担相应法律责任。如有侵权，请联系我们删除。
复制链接
相关推荐
发表评论

评论记录：

未查询到任何数据！
