C++ MFC SnowWorld

目录

效果

项目

代码

下载

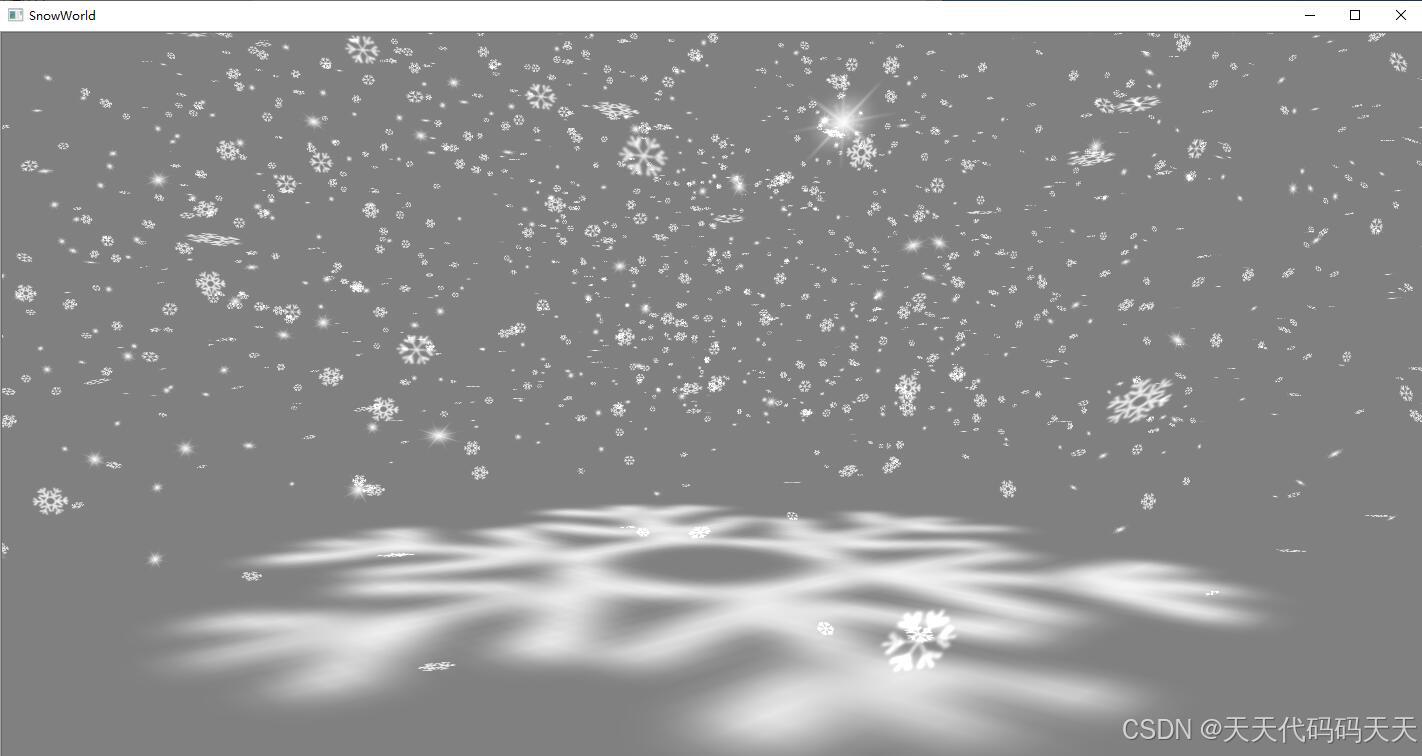

效果

SnowWorld

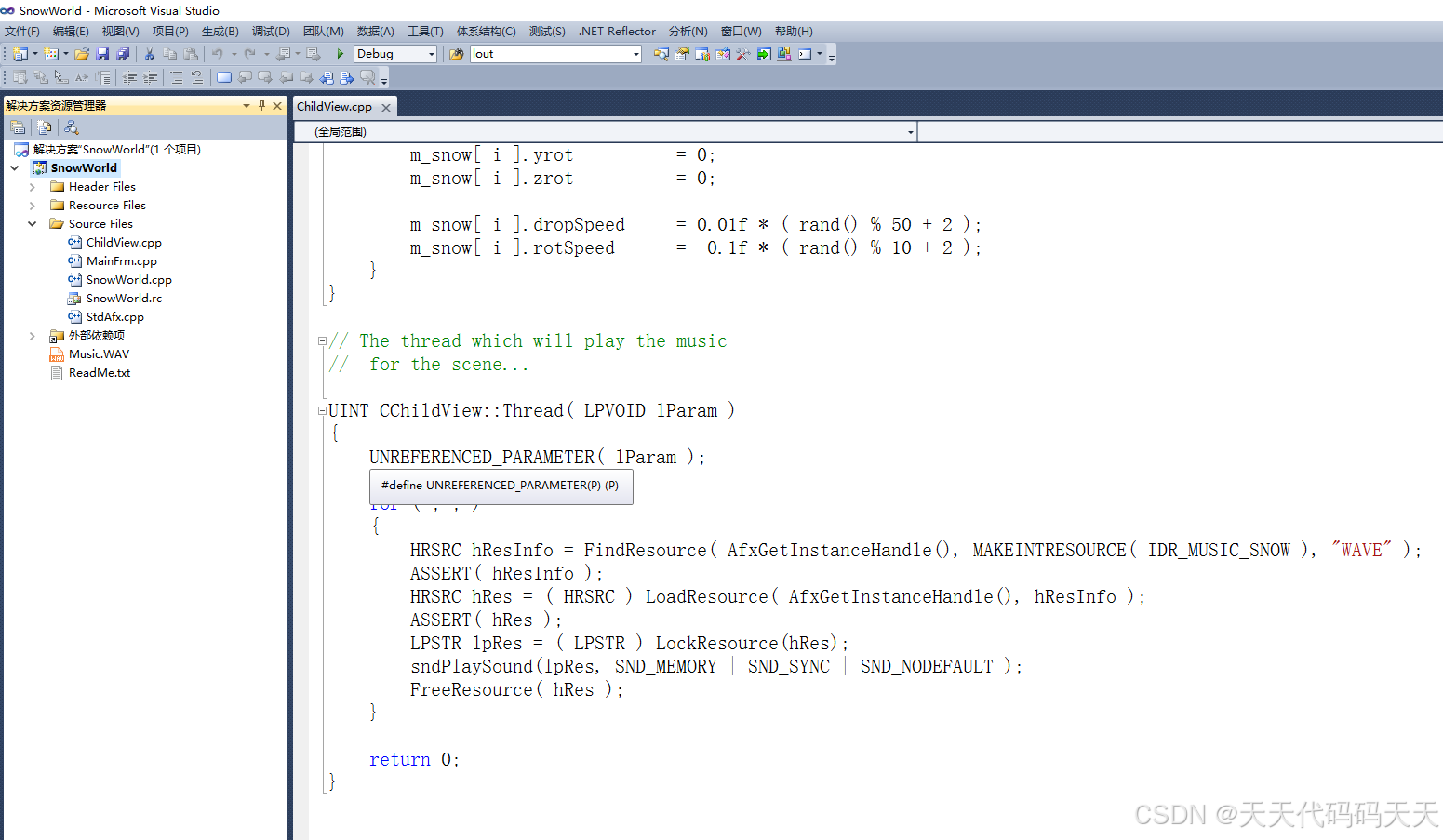

项目

代码

// ChildView.cpp : implementation of the CChildView class
//

#include "stdafx.h"
#include "SnowWorld.h"
#include "ChildView.h"

#ifdef _DEBUG
#define new DEBUG_NEW
#undef THIS_FILE
static char THIS_FILE[] = __FILE__;
#endif

GLfloat LightAmbient  [] = { 0.5f, 0.5f, 0.5f, 1.0f };
GLfloat LightDiffuse  [] = { 1.0f, 1.0f, 1.0f, 1.0f };
GLfloat LightPosition [] = { 0.0f, 0.0f, 2.0f, 1.0f };

/
// CChildView

CChildView::CChildView()
{
    m_pClientDC = NULL;
    m_lpThread  = NULL;

    m_nFloorIndex = 0;
}

CChildView::~CChildView()
{
    if ( m_lpThread != NULL )
    {
        delete m_lpThread;
        m_lpThread = NULL;
    }
}


BEGIN_MESSAGE_MAP(CChildView,CWnd )
    //{{AFX_MSG_MAP(CChildView)
    ON_WM_CREATE()

    ON_WM_SIZE()

    ON_WM_ERASEBKGND()
    ON_WM_PAINT()

    ON_WM_TIMER()

    ON_WM_DESTROY()
    //}}AFX_MSG_MAP
END_MESSAGE_MAP()


/
// CChildView message handlers

BOOL CChildView::PreCreateWindow(CREATESTRUCT& cs)
{
    if ( ! CWnd::PreCreateWindow( cs ) )
        return FALSE;

    cs.dwExStyle |= WS_EX_CLIENTEDGE;
    cs.style &= ~WS_BORDER;
    cs.lpszClass = AfxRegisterWndClass( CS_HREDRAW | CS_VREDRAW | CS_DBLCLKS,
        ::LoadCursor( NULL, IDC_ARROW ), HBRUSH( COLOR_WINDOW + 1 ), NULL );

    return TRUE;
}

BOOL CChildView::PreTranslateMessage( MSG* pMsg )
{
    if ( pMsg->message == WM_KEYDOWN && ( pMsg->wParam == VK_RETURN || pMsg->wParam == VK_SPACE ) )
    {
        if ( ++m_nFloorIndex >= 3 )
            m_nFloorIndex = 0;
    }

    return CWnd::PreTranslateMessage( pMsg );
}

int CChildView::OnCreate( LPCREATESTRUCT lpCreateStruct )
{
    if ( CWnd::OnCreate( lpCreateStruct ) == -1 )
    {
        TRACE0( "Failed to create the CChildView" );
        return -1;
    }

    m_lpThread = AfxBeginThread( Thread, NULL, THREAD_PRIORITY_NORMAL, 0, CREATE_SUSPENDED );
    ASSERT( m_lpThread );

    InitOpenGL();

    SetTimer( 1, 50, NULL );

    m_lpThread->ResumeThread();
    return 0;
}

void CChildView::OnSize( UINT nType, int cx, int cy )
{
    CWnd::OnSize( nType, cx, cy );

    if ( cy == 0 )
        cy = 1;

    glViewport( 0, 0, cx, cy );        // Reset The Current View-port
    glMatrixMode( GL_PROJECTION );    // Select The Projection Matrix
    glLoadIdentity();                // Reset The Projection Matrix

    // Calculate The Aspect Ratio Of The Window
    gluPerspective( 45.0f, ( GLfloat ) cx / ( GLfloat ) cy, 0.1f, 400.0f );
    glMatrixMode( GL_MODELVIEW );    // Select The Model-view Matrix
    glLoadIdentity();
}

void CChildView::OnPaint()
{
    CPaintDC dc(this); // device context for painting
    CBitmap bitmap;
    bitmap.LoadBitmap( IDB_SNOW_FLOOR );

    // TODO: Add your message handler code here
    DrawOpenGLScene();
    // Do not call CWnd::OnPaint() for painting messages
}

BOOL CChildView::OnEraseBkgnd( CDC* pDC )
{
    UNREFERENCED_PARAMETER( pDC );

    return TRUE;
}

void CChildView::OnDestroy()
{
    HGLRC hrc = NULL;
    hrc = ::wglGetCurrentContext();

    ::wglMakeCurrent( NULL, NULL );
    if ( hrc != NULL )
        ::wglDeleteContext( hrc );

    if ( m_pClientDC != NULL )
    {
        delete m_pClientDC;
        m_pClientDC = NULL;
    }
    ASSERT( m_pClientDC == NULL );

    CWnd::OnDestroy();
}

// Initialize the OpenGL context device...

VOID CChildView::InitOpenGL()
{
    m_pClientDC = new CClientDC( this );
    ASSERT( m_pClientDC != NULL );
    ASSERT_VALID( m_pClientDC );

    if ( ! SetupPixelFormat() )
        return;

    PIXELFORMATDESCRIPTOR pfd;

    int n = ::GetPixelFormat( m_pClientDC->GetSafeHdc());
    ::DescribePixelFormat( m_pClientDC->GetSafeHdc(), n, sizeof( pfd ), & pfd );

    HGLRC hrc = NULL;
    hrc = wglCreateContext( m_pClientDC->GetSafeHdc() );
    ASSERT( hrc );
    wglMakeCurrent( m_pClientDC->GetSafeHdc(), hrc );

    if ( ! LoadOpenGLTextures() )
        return;

    glEnable( GL_TEXTURE_2D );
    glShadeModel( GL_SMOOTH );                // Enable Smooth Shading
    glClearColor( 0.5f, 0.5f, 0.5f, 0.5f );    // Black Background
    glClearDepth( 1.0f );                    // Depth Buffer Setup

    glHint( GL_PERSPECTIVE_CORRECTION_HINT, GL_NICEST );    // Really Nice Perspective Calculations

    glLightfv( GL_LIGHT1, GL_AMBIENT,  LightAmbient  );
    glLightfv( GL_LIGHT1, GL_DIFFUSE,  LightDiffuse  );
    glLightfv( GL_LIGHT1, GL_POSITION, LightPosition );
    glEnable( GL_LIGHT1 );

    glBlendFunc( GL_SRC_ALPHA,GL_ONE );        // Set The Blending Function For Translucency
    glEnable( GL_BLEND );
}

// Load the texture from the define file path

BOOL CChildView::LoadOpenGLTextures()
{
    glGenTextures( E_TEXTURECOUNT, & m_textureSnow[ 0 ] );
    LoadImageFromResID( IDB_SNOW_LARGE,  m_textureSnow[ 0 ] );
    LoadImageFromResID( IDB_SNOW_MIDDLE, m_textureSnow[ 1 ] );
    LoadImageFromResID( IDB_SNOW_SMALL,  m_textureSnow[ 2 ] );

    InitSnow();

    LoadImageFromResID( IDB_SNOW_MIDDLE, m_textureSnow[ 3 ] );

    return TRUE;
}

VOID CChildView::SetDefaultTextureParams()
{
    glTexParameteri( GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR );
    glTexParameteri( GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR );
}

BOOL CChildView::SetupPixelFormat()
{
    static PIXELFORMATDESCRIPTOR pfd = {
        sizeof( PIXELFORMATDESCRIPTOR ),// size of this pfd
        1,                              // version number
        PFD_DRAW_TO_WINDOW |            // support window
        PFD_SUPPORT_OPENGL |        // support OpenGL
        PFD_DOUBLEBUFFER,           // double buffered
        PFD_TYPE_RGBA,                  // RGBA type
        24,                             // 24-bit color depth
        0, 0, 0, 0, 0, 0,               // color bits ignored
        0,                              // no alpha buffer
        0,                              // shift bit ignored
        0,                              // no accumulation buffer
        0, 0, 0, 0,                     // accum bits ignored
        32,                             // 32-bit z-buffer
        0,                              // no stencil buffer
        0,                              // no auxiliary buffer
        PFD_MAIN_PLANE,                 // main layer
        0,                              // reserved
        0, 0, 0                         // layer masks ignored
    };

    int pixelformat = 0;

    ASSERT( m_pClientDC != NULL );
    if ( ( pixelformat = ChoosePixelFormat( m_pClientDC->GetSafeHdc(), & pfd ) ) == 0 )
    {
        AfxMessageBox( _T( "ChoosePixelFormat failed" ) );
        return FALSE;
    }

    if ( SetPixelFormat( m_pClientDC->GetSafeHdc(), pixelformat, & pfd ) == FALSE )
    {
        AfxMessageBox( _T( "SetPixelFormat failed" ) );
        return FALSE;
    }

    return TRUE;
}

VOID CChildView::DrawOpenGLScene()
{
    static GLfloat wAngleY = 10.0f;

    glClear( GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT );

    glLoadIdentity();
    glTranslatef( 0.0f, -30.0f, -150.0f );
    glRotatef( wAngleY, 0.0f, 1.0f, 0.0f );

    glBindTexture( GL_TEXTURE_2D, m_textureSnow[ m_nFloorIndex ] );

    glColor4f( 1.0f, 1.0f, 1.0f, 0.5 );

    glBegin( GL_QUADS );
    glNormal3f( 0.0f, 1.0f, 0.0f );
    glTexCoord2f( 0.0f, 0.0f ); glVertex3f(  100.0f, 0.0f, -100.0f );
    glTexCoord2f( 1.0f, 0.0f ); glVertex3f(  100.0f, 0.0f,  100.0f );
    glTexCoord2f( 1.0f, 1.0f ); glVertex3f( -100.0f, 0.0f,  100.0f );
    glTexCoord2f( 0.0f, 1.0f ); glVertex3f( -100.0f, 0.0f, -100.0f );
    glEnd();

    for ( int nIndex = 0; nIndex < E_SNOWCOUNT; nIndex++ )
    {
        glLoadIdentity();
        glTranslatef( 0.0f, -30.0f, -150.0f );
        glRotatef( wAngleY, 0.0f, 1.0f, 0.0f );

        glBindTexture( GL_TEXTURE_2D, m_textureSnow[ m_snow[ nIndex ].nIndexTexture ] );
        glTranslatef( m_snow[ nIndex ].x, m_snow[ nIndex ].y, m_snow[ nIndex ].z );

        glRotatef( m_snow[ nIndex ].xrot, 1.0f, 0.0f, 0.0f );
        glRotatef( m_snow[ nIndex ].yrot, 0.0f, 1.0f, 0.0f );
        glRotatef( m_snow[ nIndex ].zrot, 0.0f, 0.0f, 1.0f );

        glBegin( GL_QUADS );
        glNormal3f( 0.0f, 1.0f, 0.0f );
        glTexCoord2f( 0.0f, 0.0f ); glVertex3f(  1.0f, 0.0f, -1.0f );
        glTexCoord2f( 1.0f, 0.0f ); glVertex3f(  1.0f, 0.0f,  1.0f );
        glTexCoord2f( 1.0f, 1.0f ); glVertex3f( -1.0f, 0.0f,  1.0f );
        glTexCoord2f( 0.0f, 1.0f ); glVertex3f( -1.0f, 0.0f, -1.0f );
        glEnd();

        m_snow[ nIndex ].y -= m_snow[ nIndex ].dropSpeed;
        if( m_snow[ nIndex ].y < -33 )
            m_snow[ nIndex ].y = 125.0f;

        m_snow[ nIndex ].xrot += m_snow[ nIndex ].rotSpeed;
        m_snow[ nIndex ].yrot += m_snow[ nIndex ].rotSpeed;
        m_snow[ nIndex ].zrot += m_snow[ nIndex ].rotSpeed;
    }

    wAngleY += 0.2f;

    glFinish();
    SwapBuffers( wglGetCurrentDC() );
}

BOOL CChildView::LoadImageFromResID( UINT nResID, GLuint& texture )
{
    ASSERT( nResID > 0 );

    HBITMAP hBitmap = ( HBITMAP ) LoadImage( \
        AfxGetInstanceHandle(), \
        MAKEINTRESOURCE( nResID ), \
        IMAGE_BITMAP, \
        0, 0, \
        LR_CREATEDIBSECTION );
    ASSERT( hBitmap != NULL );

    DIBSECTION ds;
    GetObject( hBitmap, sizeof( DIBSECTION ), ( LPVOID ) & ds );

    glBindTexture( GL_TEXTURE_2D, texture );
    SetDefaultTextureParams();

    glTexImage2D( GL_TEXTURE_2D, 0, 3, ds.dsBm.bmWidth, ds.dsBm.bmHeight, 0, GL_RGB, GL_UNSIGNED_BYTE, ds.dsBm.bmBits );
    DeleteObject( hBitmap );

    return TRUE;
}

void CChildView::OnTimer(UINT_PTR nIDEvent )
{
    DrawOpenGLScene();

    CWnd::OnTimer( nIDEvent );

    // Eat spurious WM_TIMER message
    MSG msg;
    while( ::PeekMessage( & msg, m_hWnd, WM_TIMER, WM_TIMER, PM_REMOVE ) )
        ;
}

VOID CChildView::InitSnow()
{
    srand( GetTickCount() );

    for ( int nIndex = 0; nIndex < E_SNOWCOUNT; nIndex++ )
    {
        m_snow[ nIndex ].nIndexTexture = rand() % 3;

        m_snow[ nIndex ].x = GLfloat( rand() % 200 - 100 );
        m_snow[ nIndex ].y = GLfloat( rand() % 200 - 100 );
        m_snow[ nIndex ].z = 100.0f + GLfloat( rand() % 25 );
    }

    for ( int i = 0; i < E_SNOWCOUNT; i++ )
    {
        m_snow[ i ].nIndexTexture = rand() % 3;
        m_snow[ i ].x             = GLfloat( rand() % 200 - 100 );
        m_snow[ i ].z             = GLfloat( rand() % 200 - 100 );
        m_snow[ i ].y             = 100.0f + GLfloat( rand() % 25 );

        m_snow[ i ].xrot          = 0;
        m_snow[ i ].yrot          = 0;
        m_snow[ i ].zrot          = 0;

        m_snow[ i ].dropSpeed     = 0.01f * ( rand() % 50 + 2 );
        m_snow[ i ].rotSpeed      =  0.1f * ( rand() % 10 + 2 );
    }
}

// The thread which will play the music
//  for the scene...

UINT CChildView::Thread( LPVOID lParam )
{
    UNREFERENCED_PARAMETER( lParam );

    for ( ; ; )
    {
        HRSRC hResInfo = FindResource( AfxGetInstanceHandle(), MAKEINTRESOURCE( IDR_MUSIC_SNOW ), "WAVE" );
        ASSERT( hResInfo );
        HRSRC hRes = ( HRSRC ) LoadResource( AfxGetInstanceHandle(), hResInfo );
        ASSERT( hRes );
        LPSTR lpRes = ( LPSTR ) LockResource(hRes);
        sndPlaySound(lpRes, SND_MEMORY | SND_SYNC | SND_NODEFAULT );
        FreeResource( hRes );
    }

    return 0;
}
