【Qt 学习之路】Qt5气泡式聊天框——QListWidget+QPainter实现

文章目录

1、简介

由于最近的项目需要，做了些相关IM的工作。所以聊天框也是必不可少的一部分。聊天框的制作分很多种，本文以QListWidget+QPainter绘制的Item做了一个Demo。该Demo只是做一个示例，代码已公布如下，需要的拿去！

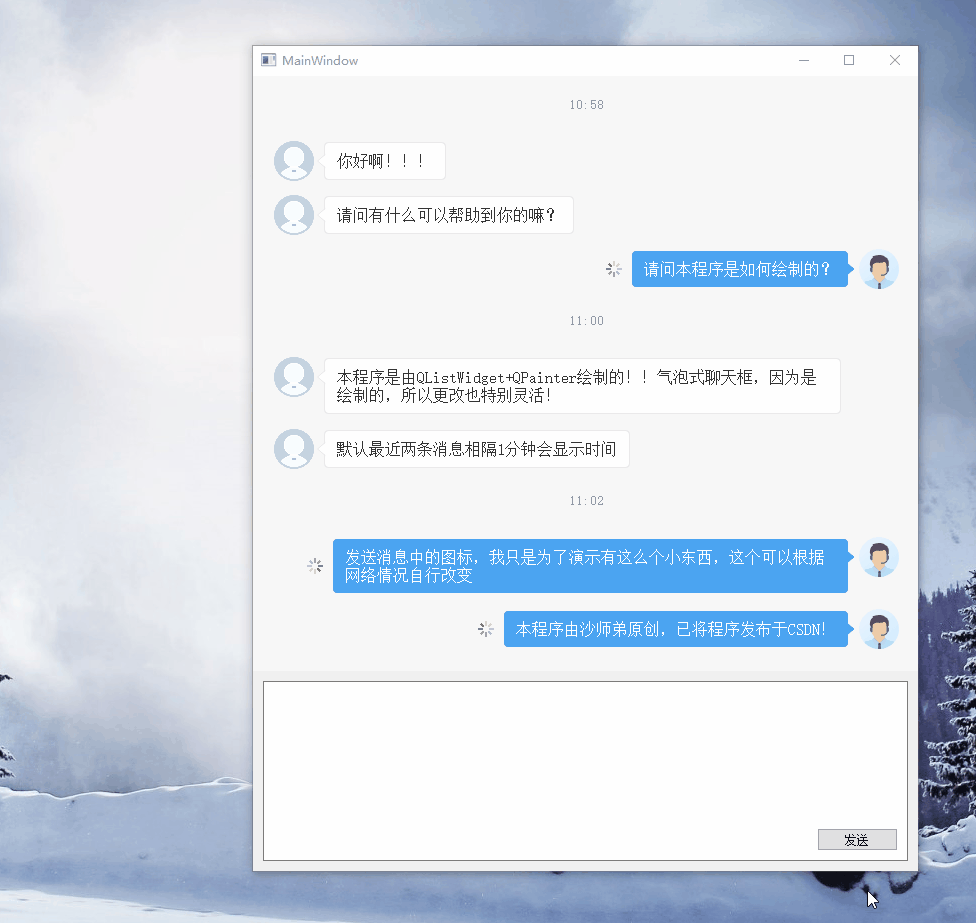

2、效果图

这里写图片描述

3、实现原理

气泡式聊天的显示是由QListWidget作为控件，每个气泡是由QListWidgetItem提升成QWidget来实现的。每个气泡可以理解位是一个QWidget，这样可以自由布置QWidget里面的内容。每个Item保存聊天的对话、发送状态、时间、种类等。

这个QWidget主要是显示一个头像+气泡，气泡里面是聊天的内容等。
气泡是在paintEvent事件中，采用QPainter来绘制的。

4、核心代码

4.1、头文件

#ifndef QNCHATMESSAGE_H
#define QNCHATMESSAGE_H

#include

class QPaintEvent;
class QPainter;
class QLabel;
class QMovie;

class QNChatMessage : public QWidget
{
    Q_OBJECT
public:
    explicit QNChatMessage(QWidget *parent = nullptr);

    enum User_Type{
        User_System,//系统
        User_Me,    //自己
        User_She,   //用户
        User_Time,  //时间
    };
    void setTextSuccess();
    void setText(QString text, QString time, QSize allSize, User_Type userType);

    QSize getRealString(QString src);
    QSize fontRect(QString str);

    inline QString text() {return m_msg;}
    inline QString time() {return m_time;}
    inline User_Type userType() {return m_userType;}
protected:
    void paintEvent(QPaintEvent *event);
private:
    QString m_msg;
    QString m_time;
    QString m_curTime;

    QSize m_allSize;
    User_Type m_userType = User_System;

    int m_kuangWidth;
    int m_textWidth;
    int m_spaceWid;
    int m_lineHeight;

    QRect m_iconLeftRect;
    QRect m_iconRightRect;
    QRect m_sanjiaoLeftRect;
    QRect m_sanjiaoRightRect;
    QRect m_kuangLeftRect;
    QRect m_kuangRightRect;
    QRect m_textLeftRect;
    QRect m_textRightRect;
    QPixmap m_leftPixmap;
    QPixmap m_rightPixmap;
    QLabel* m_loading = Q_NULLPTR;
    QMovie* m_loadingMovie = Q_NULLPTR;
    bool m_isSending = false;
};

#endif // QNCHATMESSAGE_H
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38
  • 39
  • 40
  • 41
  • 42
  • 43
  • 44
  • 45
  • 46
  • 47
  • 48
  • 49
  • 50
  • 51
  • 52
  • 53
  • 54
  • 55
  • 56
  • 57
  • 58
  • 59
  • 60
  • 61
  • 62
  • 63

4.2、源文件

#include "qnchatmessage.h"
#include
#include
#include
#include
#include
#include
#include

QNChatMessage::QNChatMessage(QWidget *parent) : QWidget(parent)
{
    QFont te_font = this->font();
    te_font.setFamily("MicrosoftYaHei");
    te_font.setPointSize(12);
//    te_font.setWordSpacing(0);
//    te_font.setLetterSpacing(QFont::PercentageSpacing,0);
//    te_font.setLetterSpacing(QFont::PercentageSpacing, 100);          //300%,100为默认  //设置字间距%
//    te_font.setLetterSpacing(QFont::AbsoluteSpacing, 0);             //设置字间距为3像素 //设置字间距像素值
    this->setFont(te_font);
    m_leftPixmap = QPixmap(":/img/Customer Copy.png");
    m_rightPixmap = QPixmap(":/img/CustomerService.png");

    m_loadingMovie = new QMovie(this);
    m_loadingMovie->setFileName(":/img/loading4.gif");
    m_loading = new QLabel(this);
    m_loading->setMovie(m_loadingMovie);
    m_loading->resize(16,16);
    m_loading->setAttribute(Qt::WA_TranslucentBackground , true);
    m_loading->setAutoFillBackground(false);
}

void QNChatMessage::setTextSuccess()
{
    m_loading->hide();
    m_loadingMovie->stop();
    m_isSending = true;
}

void QNChatMessage::setText(QString text, QString time, QSize allSize, QNChatMessage::User_Type userType)
{
    m_msg = text;
    m_userType = userType;
    m_time = time;
    m_curTime = QDateTime::fromTime_t(time.toInt()).toString("hh:mm");
    m_allSize = allSize;
    if(userType == User_Me) {
        if(!m_isSending) {
            m_loading->move(m_kuangRightRect.x() - m_loading->width() - 10, m_kuangRightRect.y()+m_kuangRightRect.height()/2- m_loading->height()/2);
            m_loading->show();
            m_loadingMovie->start();
        }
    } else {
        m_loading->hide();
    }

    this->update();
}

QSize QNChatMessage::fontRect(QString str)
{
    m_msg = str;
    int minHei = 30;
    int iconWH = 40;
    int iconSpaceW = 20;
    int iconRectW = 5;
    int iconTMPH = 10;
    int sanJiaoW = 6;
    int kuangTMP = 20;
    int textSpaceRect = 12;
    m_kuangWidth = this->width() - kuangTMP - 2*(iconWH+iconSpaceW+iconRectW);
    m_textWidth = m_kuangWidth - 2*textSpaceRect;
    m_spaceWid = this->width() - m_textWidth;
    m_iconLeftRect = QRect(iconSpaceW, iconTMPH, iconWH, iconWH);
    m_iconRightRect = QRect(this->width() - iconSpaceW - iconWH, iconTMPH, iconWH, iconWH);

    QSize size = getRealString(m_msg); // 整个的size

    qDebug() << "fontRect Size:" << size;
    int hei = size.height() < minHei ? minHei : size.height();

    m_sanjiaoLeftRect = QRect(iconWH+iconSpaceW+iconRectW, m_lineHeight/2, sanJiaoW, hei - m_lineHeight);
    m_sanjiaoRightRect = QRect(this->width() - iconRectW - iconWH - iconSpaceW - sanJiaoW, m_lineHeight/2, sanJiaoW, hei - m_lineHeight);

    if(size.width() < (m_textWidth+m_spaceWid)) {
        m_kuangLeftRect.setRect(m_sanjiaoLeftRect.x()+m_sanjiaoLeftRect.width(), m_lineHeight/4*3, size.width()-m_spaceWid+2*textSpaceRect, hei-m_lineHeight);
        m_kuangRightRect.setRect(this->width() - size.width() + m_spaceWid - 2*textSpaceRect - iconWH - iconSpaceW - iconRectW - sanJiaoW,
                                 m_lineHeight/4*3, size.width()-m_spaceWid+2*textSpaceRect, hei-m_lineHeight);
    } else {
        m_kuangLeftRect.setRect(m_sanjiaoLeftRect.x()+m_sanjiaoLeftRect.width(), m_lineHeight/4*3, m_kuangWidth, hei-m_lineHeight);
        m_kuangRightRect.setRect(iconWH + kuangTMP + iconSpaceW + iconRectW - sanJiaoW, m_lineHeight/4*3, m_kuangWidth, hei-m_lineHeight);
    }
    m_textLeftRect.setRect(m_kuangLeftRect.x()+textSpaceRect,m_kuangLeftRect.y()+iconTMPH,
                           m_kuangLeftRect.width()-2*textSpaceRect,m_kuangLeftRect.height()-2*iconTMPH);
    m_textRightRect.setRect(m_kuangRightRect.x()+textSpaceRect,m_kuangRightRect.y()+iconTMPH,
                            m_kuangRightRect.width()-2*textSpaceRect,m_kuangRightRect.height()-2*iconTMPH);

    return QSize(size.width(), hei);
}

QSize QNChatMessage::getRealString(QString src)
{
    QFontMetricsF fm(this->font());
    m_lineHeight = fm.lineSpacing();
    int nCount = src.count("\n");
    int nMaxWidth = 0;
    if(nCount == 0) {
        nMaxWidth = fm.width(src);
        QString value = src;
        if(nMaxWidth > m_textWidth) {
            nMaxWidth = m_textWidth;
            int size = m_textWidth / fm.width(" ");
            int num = fm.width(value) / m_textWidth;
            int ttmp = num*fm.width(" ");
            num = ( fm.width(value) ) / m_textWidth;
            nCount += num;
            QString temp = "";
            for(int i = 0; i < num; i++) {
                temp += value.mid(i*size, (i+1)*size) + "\n";
            }
            src.replace(value, temp);
        }
    } else {
        for(int i = 0; i < (nCount + 1); i++) {
            QString value = src.split("\n").at(i);
            nMaxWidth = fm.width(value) > nMaxWidth ? fm.width(value) : nMaxWidth;
            if(fm.width(value) > m_textWidth) {
                nMaxWidth = m_textWidth;
                int size = m_textWidth / fm.width(" ");
                int num = fm.width(value) / m_textWidth;
                num = ((i+num)*fm.width(" ") + fm.width(value)) / m_textWidth;
                nCount += num;
                QString temp = "";
                for(int i = 0; i < num; i++) {
                    temp += value.mid(i*size, (i+1)*size) + "\n";
                }
                src.replace(value, temp);
            }
        }
    }
    return QSize(nMaxWidth+m_spaceWid, (nCount + 1) * m_lineHeight+2*m_lineHeight);
}

void QNChatMessage::paintEvent(QPaintEvent *event)
{
    Q_UNUSED(event);

    QPainter painter(this);
    painter.setRenderHints(QPainter::Antialiasing | QPainter::SmoothPixmapTransform);//消锯齿
    painter.setPen(Qt::NoPen);
    painter.setBrush(QBrush(Qt::gray));

    if(m_userType == User_Type::User_She) { // 用户
        //头像
//        painter.drawRoundedRect(m_iconLeftRect,m_iconLeftRect.width(),m_iconLeftRect.height());
        painter.drawPixmap(m_iconLeftRect, m_leftPixmap);

        //框加边
        QColor col_KuangB(234, 234, 234);
        painter.setBrush(QBrush(col_KuangB));
        painter.drawRoundedRect(m_kuangLeftRect.x()-1,m_kuangLeftRect.y()-1,m_kuangLeftRect.width()+2,m_kuangLeftRect.height()+2,4,4);
        //框
        QColor col_Kuang(255,255,255);
        painter.setBrush(QBrush(col_Kuang));
        painter.drawRoundedRect(m_kuangLeftRect,4,4);

        //三角
        QPointF points[3] = {
            QPointF(m_sanjiaoLeftRect.x(), 30),
            QPointF(m_sanjiaoLeftRect.x()+m_sanjiaoLeftRect.width(), 25),
            QPointF(m_sanjiaoLeftRect.x()+m_sanjiaoLeftRect.width(), 35),
        };
        QPen pen;
        pen.setColor(col_Kuang);
        painter.setPen(pen);
        painter.drawPolygon(points, 3);

        //三角加边
        QPen penSanJiaoBian;
        penSanJiaoBian.setColor(col_KuangB);
        painter.setPen(penSanJiaoBian);
        painter.drawLine(QPointF(m_sanjiaoLeftRect.x() - 1, 30), QPointF(m_sanjiaoLeftRect.x()+m_sanjiaoLeftRect.width(), 24));
        painter.drawLine(QPointF(m_sanjiaoLeftRect.x() - 1, 30), QPointF(m_sanjiaoLeftRect.x()+m_sanjiaoLeftRect.width(), 36));

        //内容
        QPen penText;
        penText.setColor(QColor(51,51,51));
        painter.setPen(penText);
        QTextOption option(Qt::AlignLeft | Qt::AlignVCenter);
        option.setWrapMode(QTextOption::WrapAtWordBoundaryOrAnywhere);
        painter.setFont(this->font());
        painter.drawText(m_textLeftRect, m_msg,option);
    }  else if(m_userType == User_Type::User_Me) { // 自己
        //头像
//        painter.drawRoundedRect(m_iconRightRect,m_iconRightRect.width(),m_iconRightRect.height());
        painter.drawPixmap(m_iconRightRect, m_rightPixmap);

        //框
        QColor col_Kuang(75,164,242);
        painter.setBrush(QBrush(col_Kuang));
        painter.drawRoundedRect(m_kuangRightRect,4,4);

        //三角
        QPointF points[3] = {
            QPointF(m_sanjiaoRightRect.x()+m_sanjiaoRightRect.width(), 30),
            QPointF(m_sanjiaoRightRect.x(), 25),
            QPointF(m_sanjiaoRightRect.x(), 35),
        };
        QPen pen;
        pen.setColor(col_Kuang);
        painter.setPen(pen);
        painter.drawPolygon(points, 3);

        //内容
        QPen penText;
        penText.setColor(Qt::white);
        painter.setPen(penText);
        QTextOption option(Qt::AlignLeft | Qt::AlignVCenter);
        option.setWrapMode(QTextOption::WrapAtWordBoundaryOrAnywhere);
        painter.setFont(this->font());
        painter.drawText(m_textRightRect,m_msg,option);
    }  else if(m_userType == User_Type::User_Time) { // 时间
        QPen penText;
        penText.setColor(QColor(153,153,153));
        painter.setPen(penText);
        QTextOption option(Qt::AlignCenter);
        option.setWrapMode(QTextOption::WrapAtWordBoundaryOrAnywhere);
        QFont te_font = this->font();
        te_font.setFamily("MicrosoftYaHei");
        te_font.setPointSize(10);
        painter.setFont(te_font);
        painter.drawText(this->rect(),m_curTime,option);
    }
}
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38
  • 39
  • 40
  • 41
  • 42
  • 43
  • 44
  • 45
  • 46
  • 47
  • 48
  • 49
  • 50
  • 51
  • 52
  • 53
  • 54
  • 55
  • 56
  • 57
  • 58
  • 59
  • 60
  • 61
  • 62
  • 63
  • 64
  • 65
  • 66
  • 67
  • 68
  • 69
  • 70
  • 71
  • 72
  • 73
  • 74
  • 75
  • 76
  • 77
  • 78
  • 79
  • 80
  • 81
  • 82
  • 83
  • 84
  • 85
  • 86
  • 87
  • 88
  • 89
  • 90
  • 91
  • 92
  • 93
  • 94
  • 95
  • 96
  • 97
  • 98
  • 99
  • 100
  • 101
  • 102
  • 103
  • 104
  • 105
  • 106
  • 107
  • 108
  • 109
  • 110
  • 111
  • 112
  • 113
  • 114
  • 115
  • 116
  • 117
  • 118
  • 119
  • 120
  • 121
  • 122
  • 123
  • 124
  • 125
  • 126
  • 127
  • 128
  • 129
  • 130
  • 131
  • 132
  • 133
  • 134
  • 135
  • 136
  • 137
  • 138
  • 139
  • 140
  • 141
  • 142
  • 143
  • 144
  • 145
  • 146
  • 147
  • 148
  • 149
  • 150
  • 151
  • 152
  • 153
  • 154
  • 155
  • 156
  • 157
  • 158
  • 159
  • 160
  • 161
  • 162
  • 163
  • 164
  • 165
  • 166
  • 167
  • 168
  • 169
  • 170
  • 171
  • 172
  • 173
  • 174
  • 175
  • 176
  • 177
  • 178
  • 179
  • 180
  • 181
  • 182
  • 183
  • 184
  • 185
  • 186
  • 187
  • 188
  • 189
  • 190
  • 191
  • 192
  • 193
  • 194
  • 195
  • 196
  • 197
  • 198
  • 199
  • 200
  • 201
  • 202
  • 203
  • 204
  • 205
  • 206
  • 207
  • 208
  • 209
  • 210
  • 211
  • 212
  • 213
  • 214
  • 215
  • 216
  • 217
  • 218
  • 219
  • 220
  • 221
  • 222
  • 223
  • 224
  • 225
  • 226
  • 227
  • 228
  • 229
  • 230
  • 231
  • 232
  • 233
  • 234

5、代码分享

5.1、Github

地址：https://github.com/ShaShiDiZhuanLan/Demo_MessageChat_Qt

5.2、码云

地址：https://gitee.com/ShaShiDiZhuanLan/Demo_MessageChat

注：本文转载自blog.csdn.net的沙振宇的文章"https://blog.csdn.net/u014597198/article/details/81505832"。版权归原作者所有，此博客不拥有其著作权，亦不承担相应法律责任。如有侵权，请联系我们删除。
复制链接
相关推荐
发表评论

评论记录：

未查询到任何数据！
